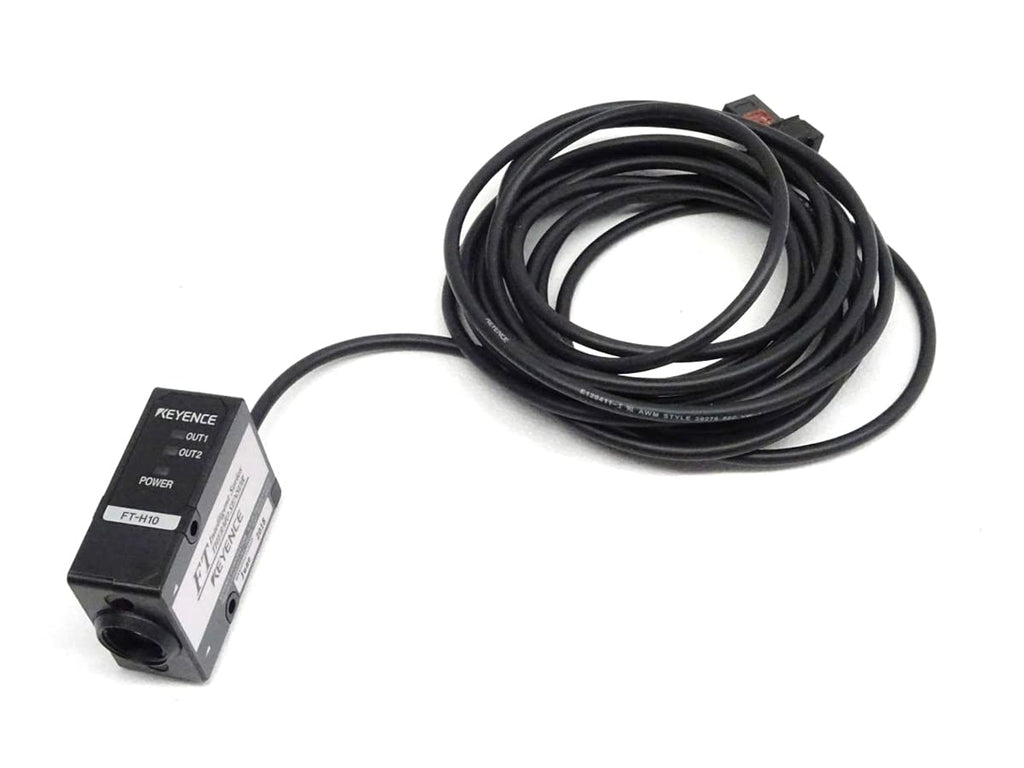

KEYENCE FT-H10 Temperature Sensor New

Key features

• Model: FT-H10
• Type: Mid to low temperature, Small-spot
• Rated temperature range: 0 to 500°C 32 to 932°F*1
• Displayable temperature range: -50 to +520°C -58 to +968°F
• Detecting distance: Unlimited*2

KEYENCE FT-H10 Temperature Sensor NewSpecifications:Model: FT-H10Type: Mid to low temperature, Small-spotRated temperature range: 0 to 500°C 32 to 932°F*1Displayable temperature range: -50 to +520°C -58 to +968°FDetecting distance: Unlimited*2Measuring distance /View diameter (example): 17.5/ø6.3 mm 0.69"/ø0.25" 35/ø1.5 mm 1.38"/ø0.06" 52.5/ø8 mm 2.07"/ø0.31"Sight: 2-point visible laser beam*3Detecting element: ThermopileDetecting wavelength: 8 to 14 µmRepeatability: ±0.5°C 0.9°FEmissivity (ε) correction: 0.10 to 1.99 (0.01 step)Environmental resistance:1. Ambient temperature: -10 to +55 °C 14 to 131 °F (No freezing)2. Relative humidity: 35 to 85 % RH (No condensation)3. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis4. Shock resistance: 500 m/s2, 10 times in each direction of each of X, Y and Z axis, 60 times in totalMaterial: Case: Reinforced glass plastic, Infrared collector lens: Germanium, Laser transmitter: Polyarylate Cable: Vinyl chloride, Mounting bracket: SUS304, Mounting screw: Stainless steelAccessory: Mounting bracketWeight: Approx. 120 g

Free shipping included. 30-day hassle-free returns.
