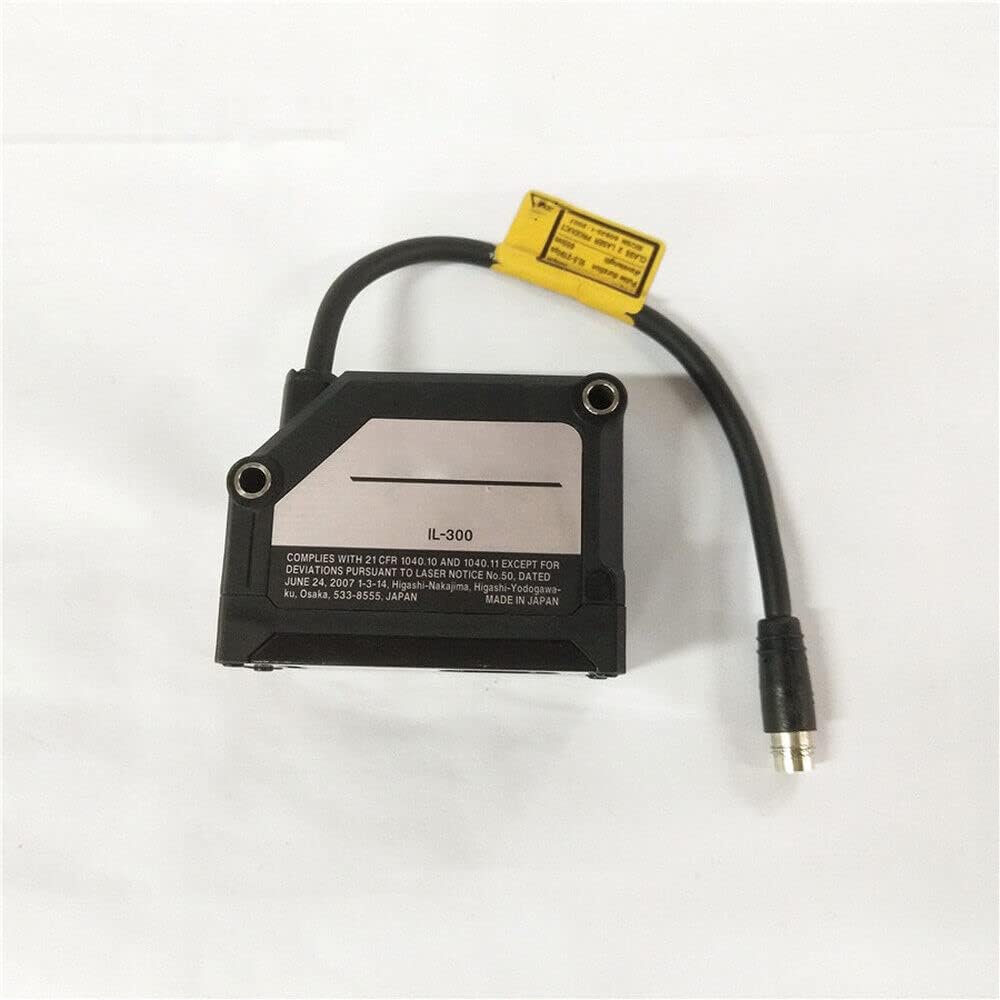

KEYENCE IL-300 Sensor New

Key features

• Model: IL-300
• Reference distance: 300 mm 11.81"
• Measurement range: 160 to 450 mm 6.30" to 17.72"

KEYENCE IL-300 Sensor NewSpecifications:Model: IL-300Reference distance: 300 mm 11.81"Measurement range: 160 to 450 mm 6.30" to 17.72"Light source:3. Output: 560 µWSpot diameter (at standard distance): Approx. ø0.5 mm ø0.02"Linearity: ±0.25% of F.S. (160 to 440 mm 6.30" to 17.32")*2*3Repeatability: 30 µm*4Sampling rate: 0.33/1/2/5 ms (4 levels available)Temperature characteristics: 0.08% of F.S./°C*5Environmental resistance:1. Enclosure rating: IP672. Pollution degree: 33. Ambient light: Incandescent lamp: 5,000 lux*64. Ambient temperature: -10 to +50 °C 14 to 122 °F (No condensation or freezing)5. Relative humidity: 35 to 85 % RH (No condensation)6. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directionsMaterial: Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVCWeight: Approx. 135 g
