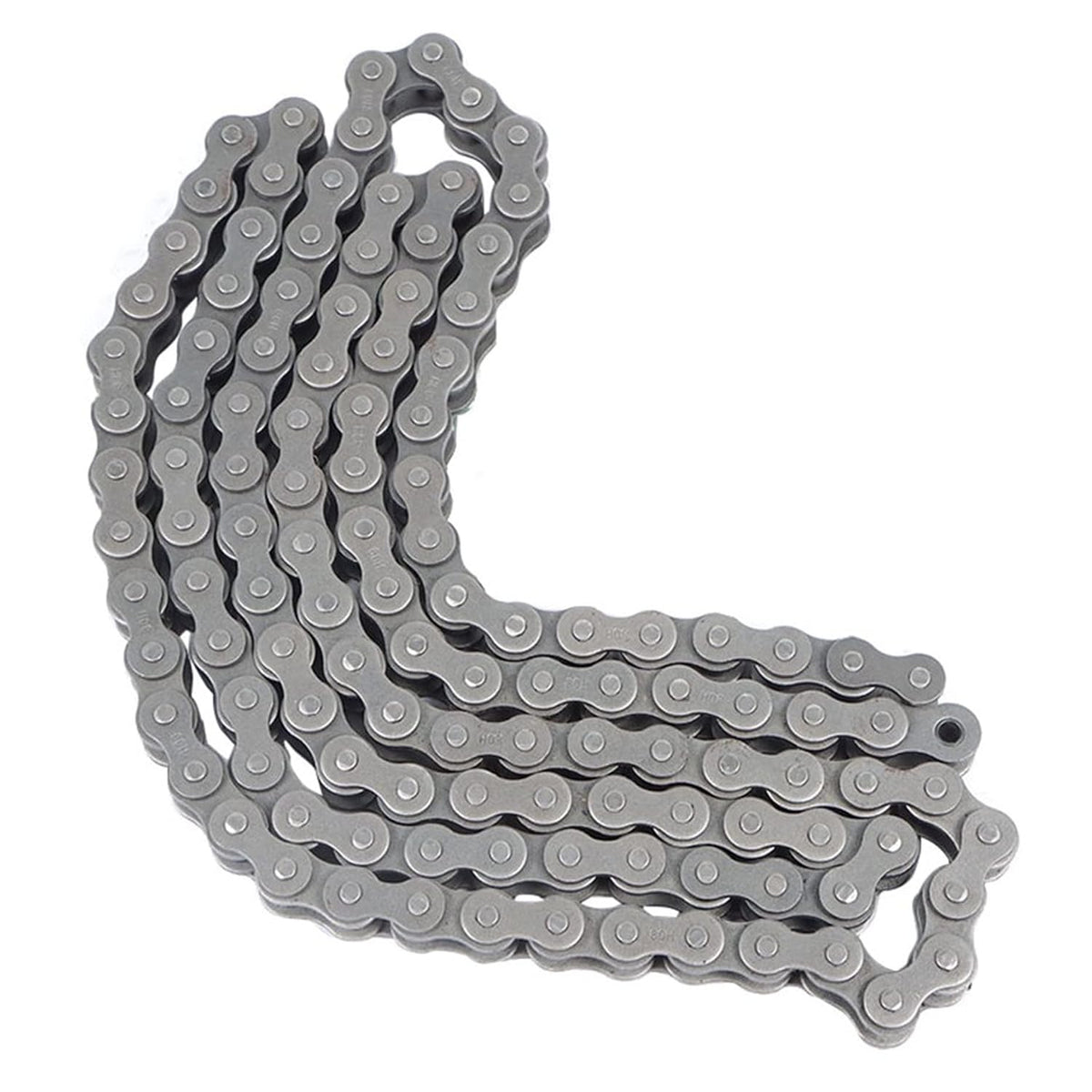

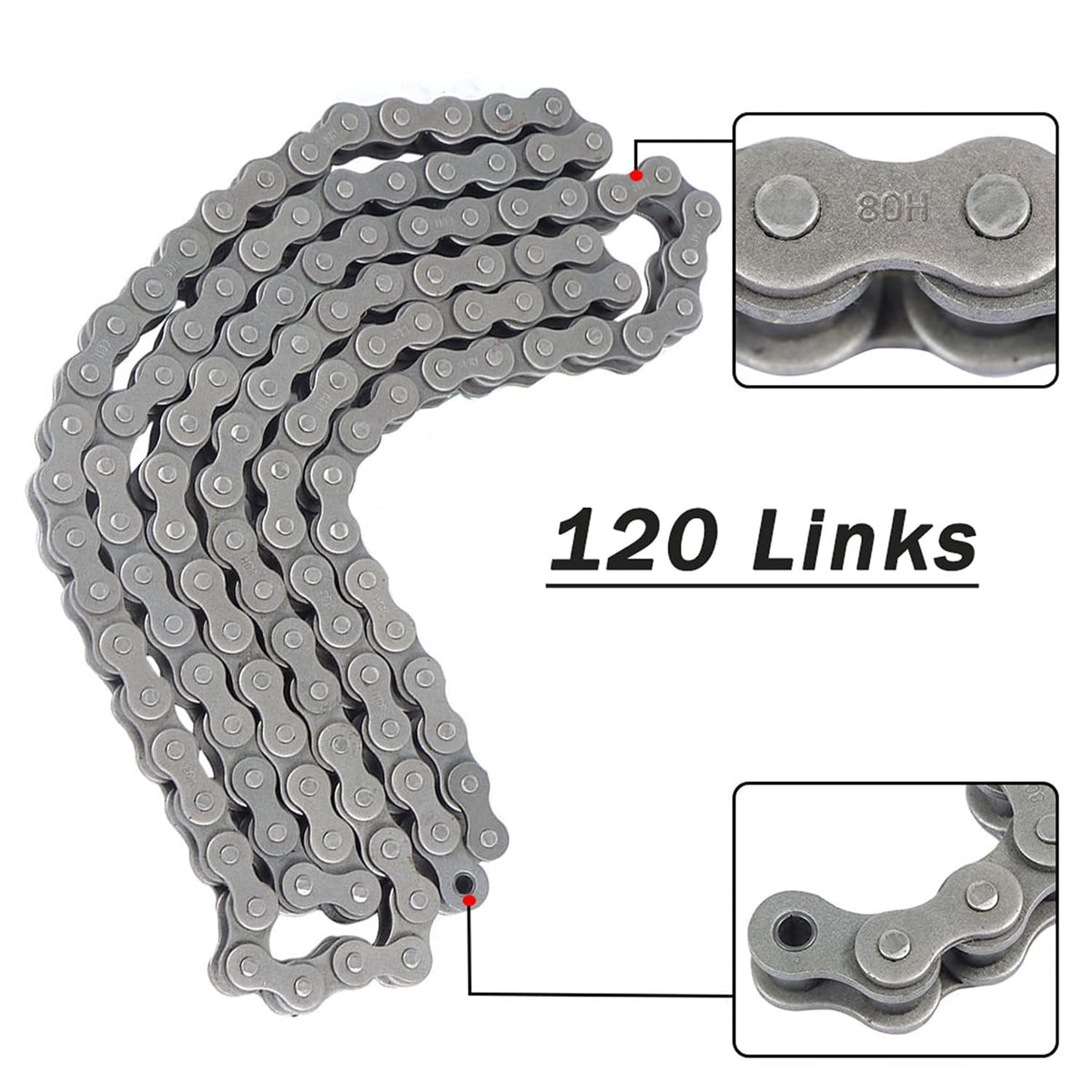

kimllier 80H Roller Chain 10 Feet with 1 Connecting Links

Key features

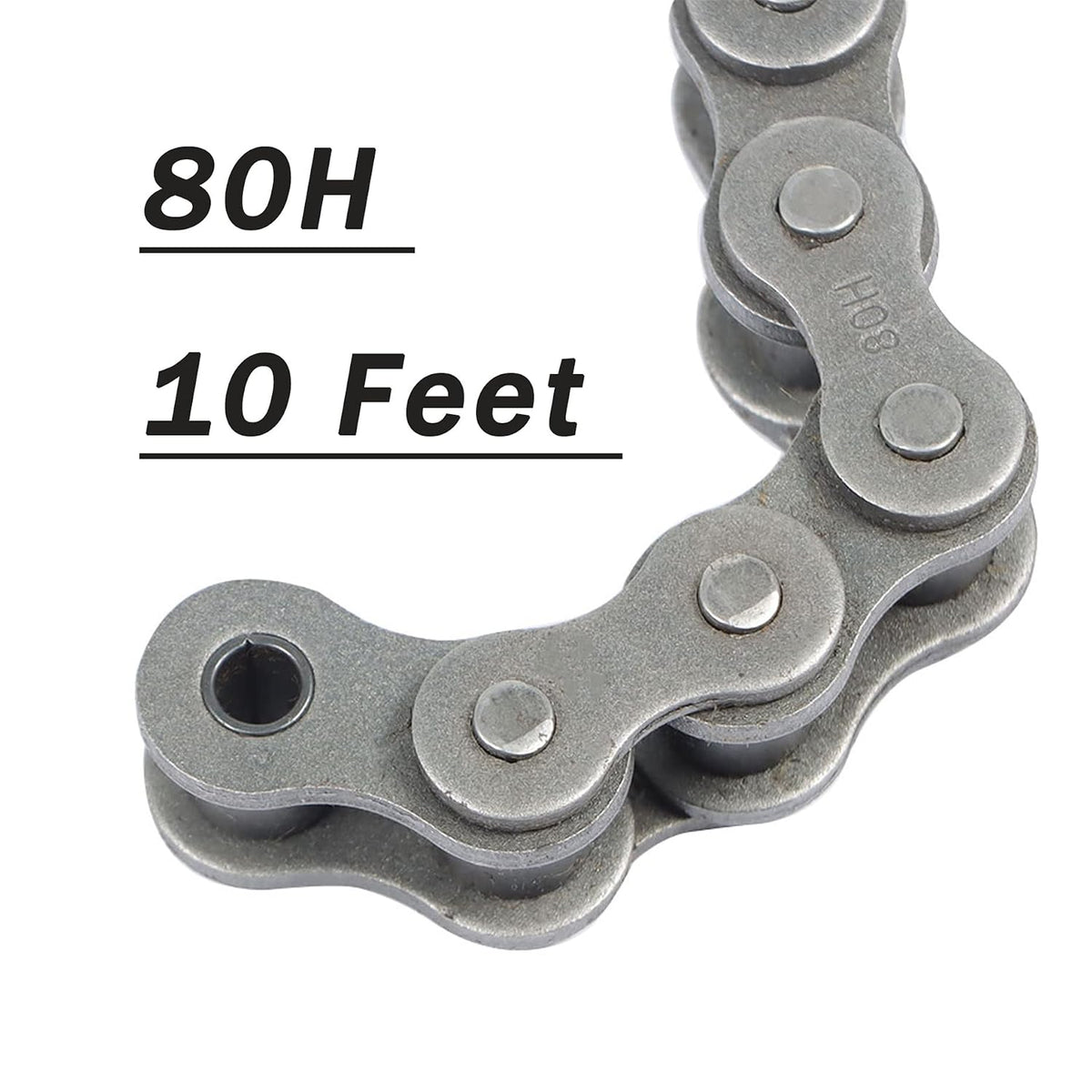

• Chain Length: 10 Feet
• ANSI Chain No.: 80H
• Process: Heat treatment during product processing ensures the toughness of all components, reduces wear during use and extends the service life of products
• Quality: The run-in of the roller chain after final assembly not only improves the endurance ability of the chain, but also effectively keep off the initial elongation of the chain
• Technical Support: Prestressed operation firmly holds chain components, evenly distributes workload, accurately determines chain length, and keep off rapid elongation during initial run-in

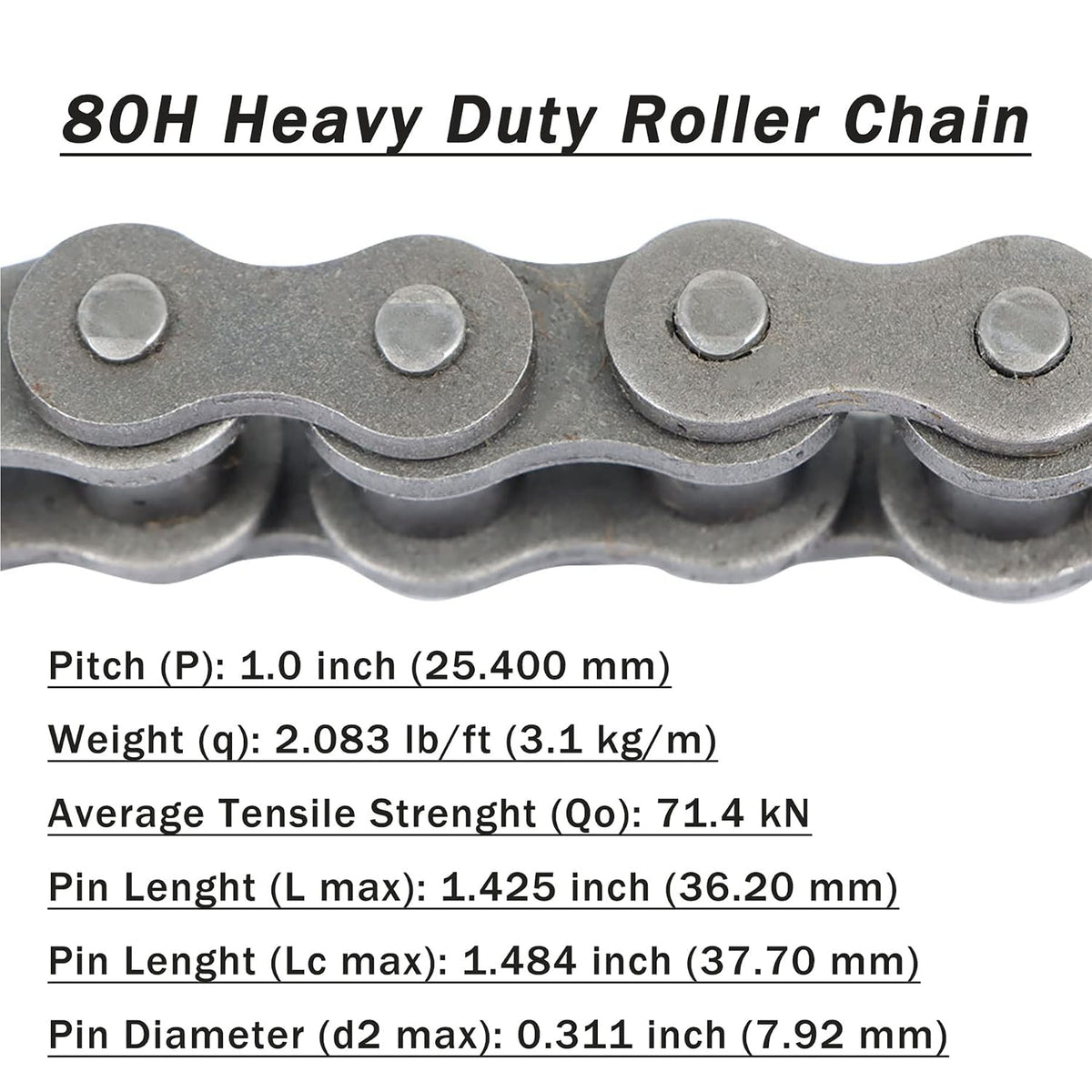

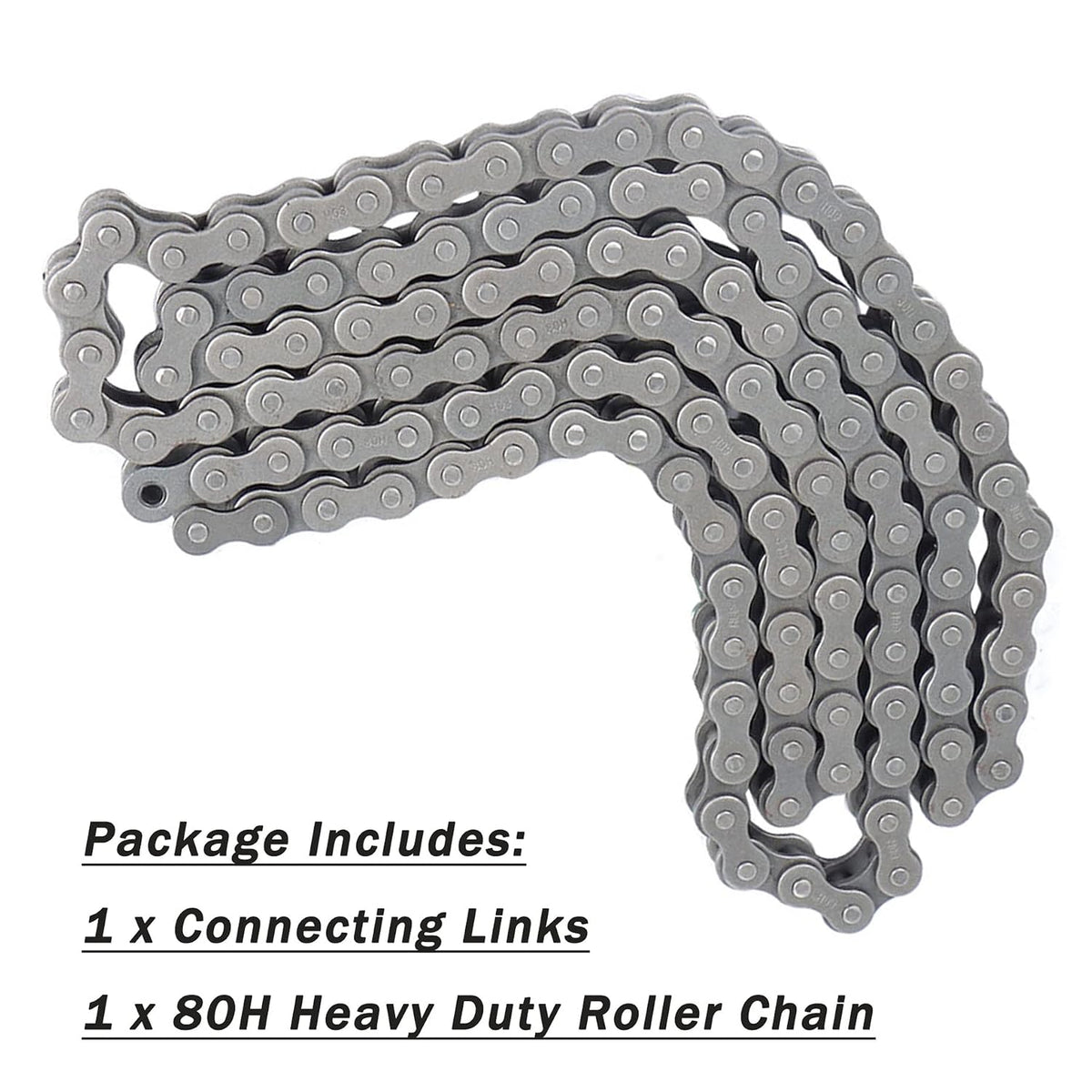

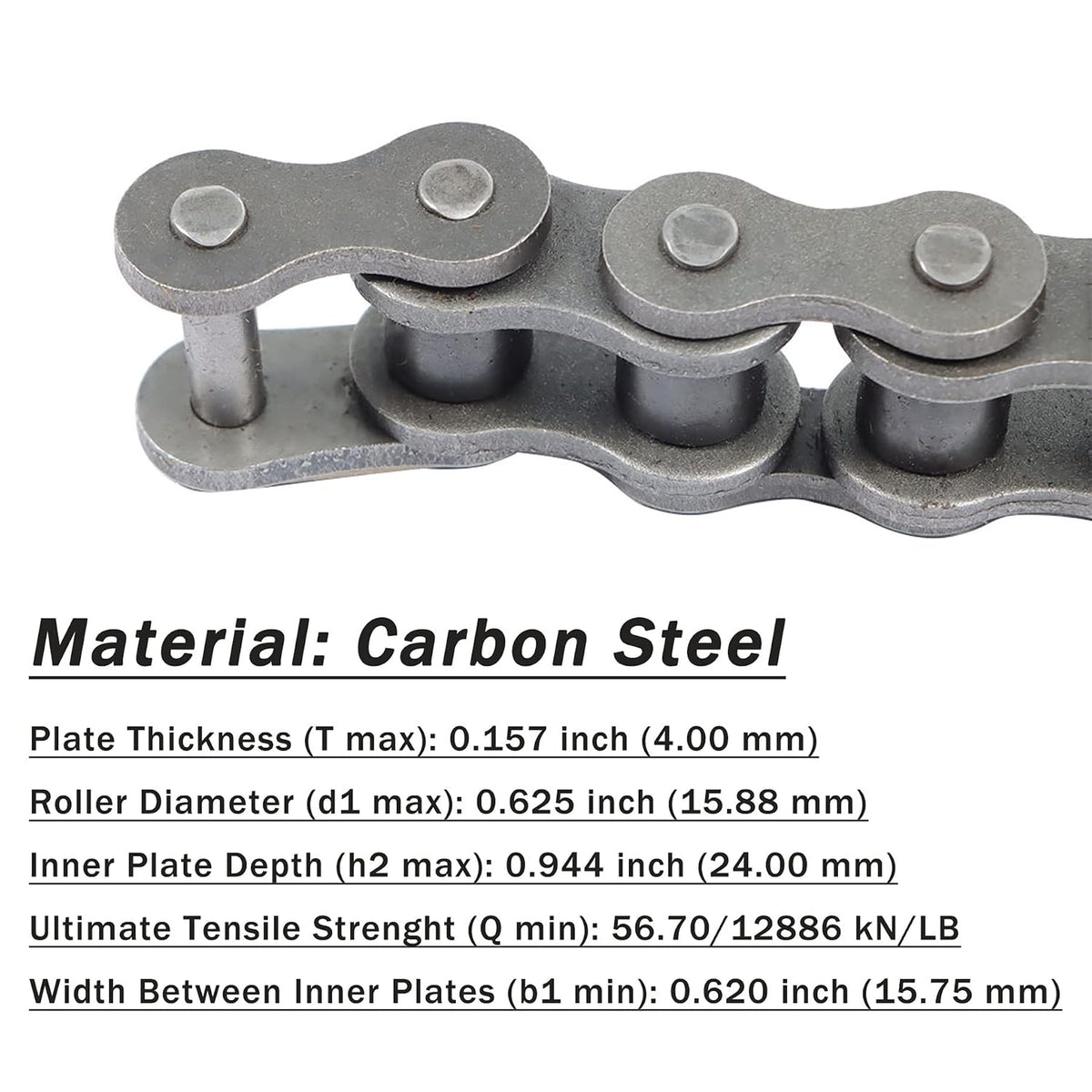

80H Heavy Duty Roller Chain 10 Feet with 1 Connecting LinksMaterial: Carbon SteelPitch (P): 1.0 inch (25.400 mm)Weight (q): 2.083 lb/ft (3.1 kg/m)Average Tensile Strenght (Qo): 71.4 kNPin Lenght (L max): 1.425 inch (36.20 mm)Pin Lenght (Lc max): 1.484 inch (37.70 mm)Pin Diameter (d2 max): 0.311 inch (7.92 mm)Plate Thickness (T max): 0.157 inch (4.00 mm)Roller Diameter (d1 max): 0.625 inch (15.88 mm)Inner Plate Depth (h2 max): 0.944 inch (24.00 mm)Ultimate Tensile Strenght (Q min): 56.70/12886 kN/LBWidth Between Inner Plates (b1 min): 0.620 inch (15.75 mm)Package Includes: 1 x Connecting Links1 x 80H Heavy Duty Roller Chain

Free shipping included. 30-day hassle-free returns.
