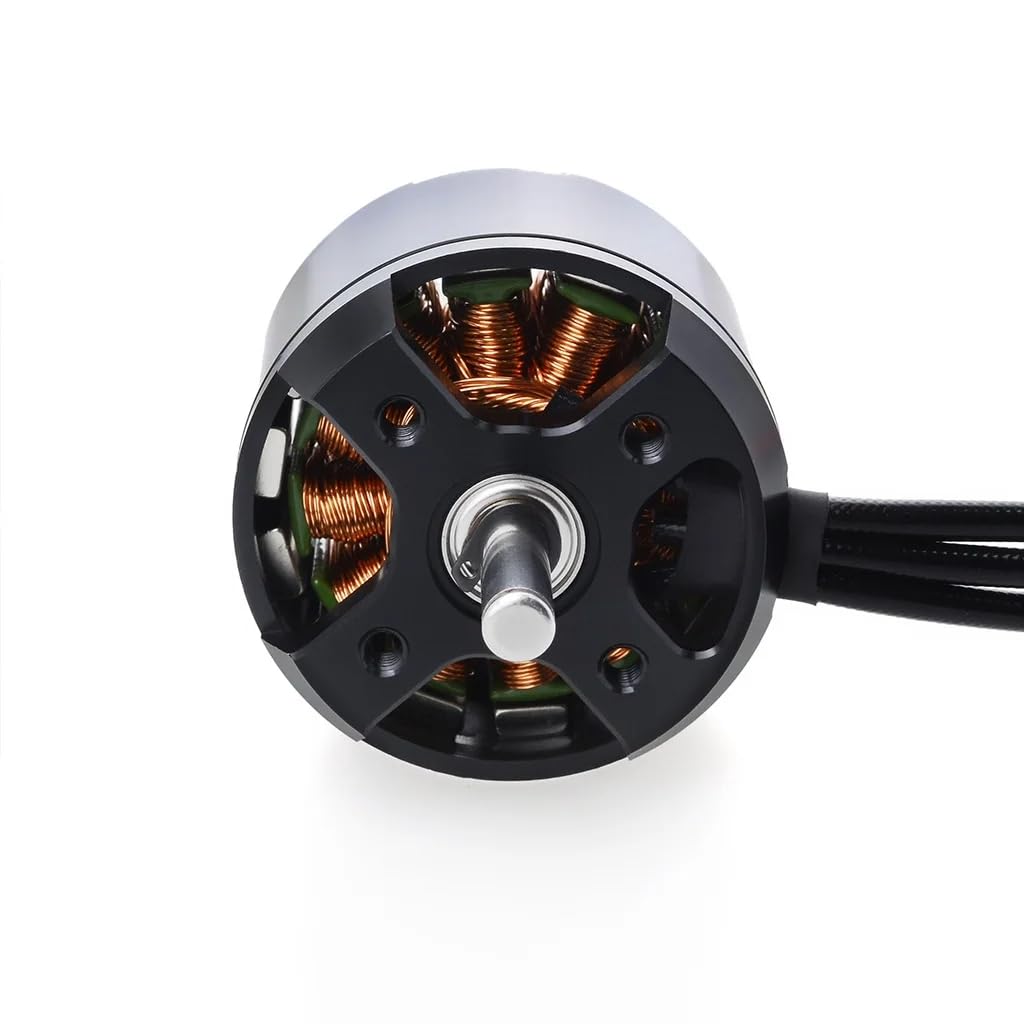

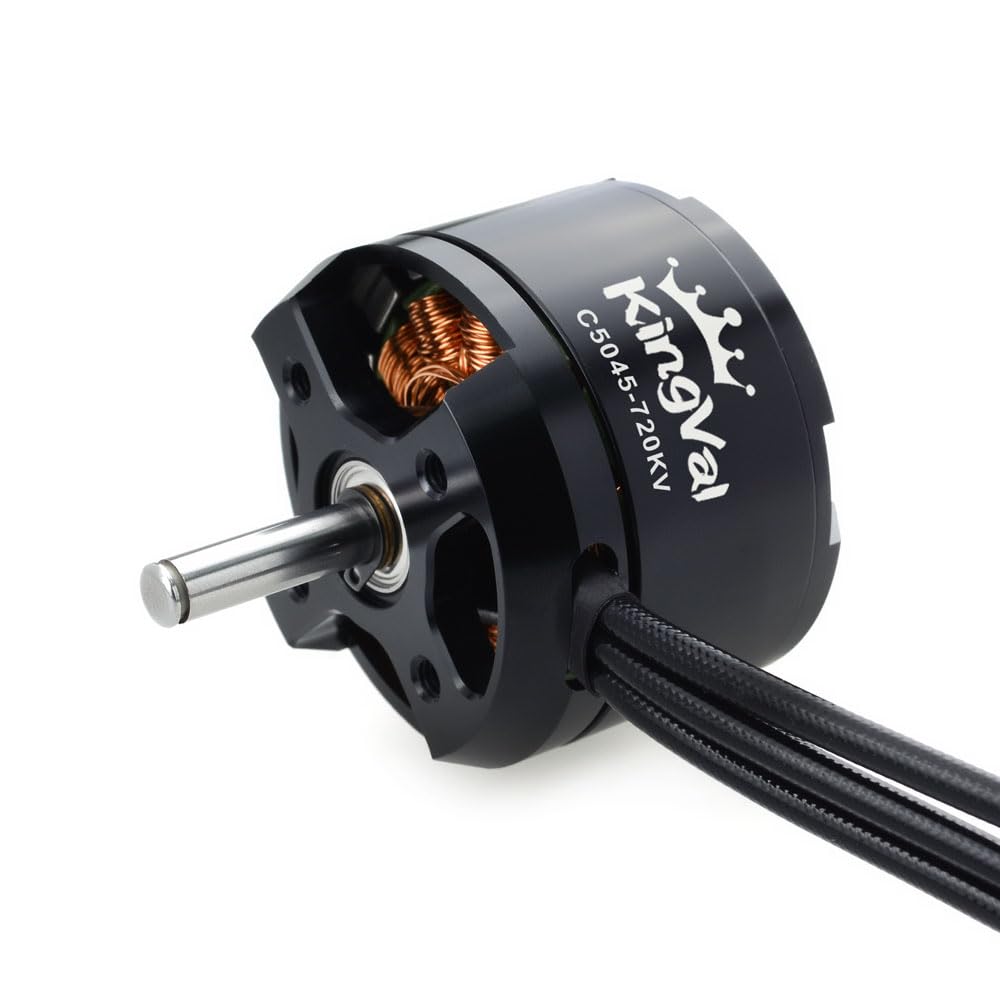

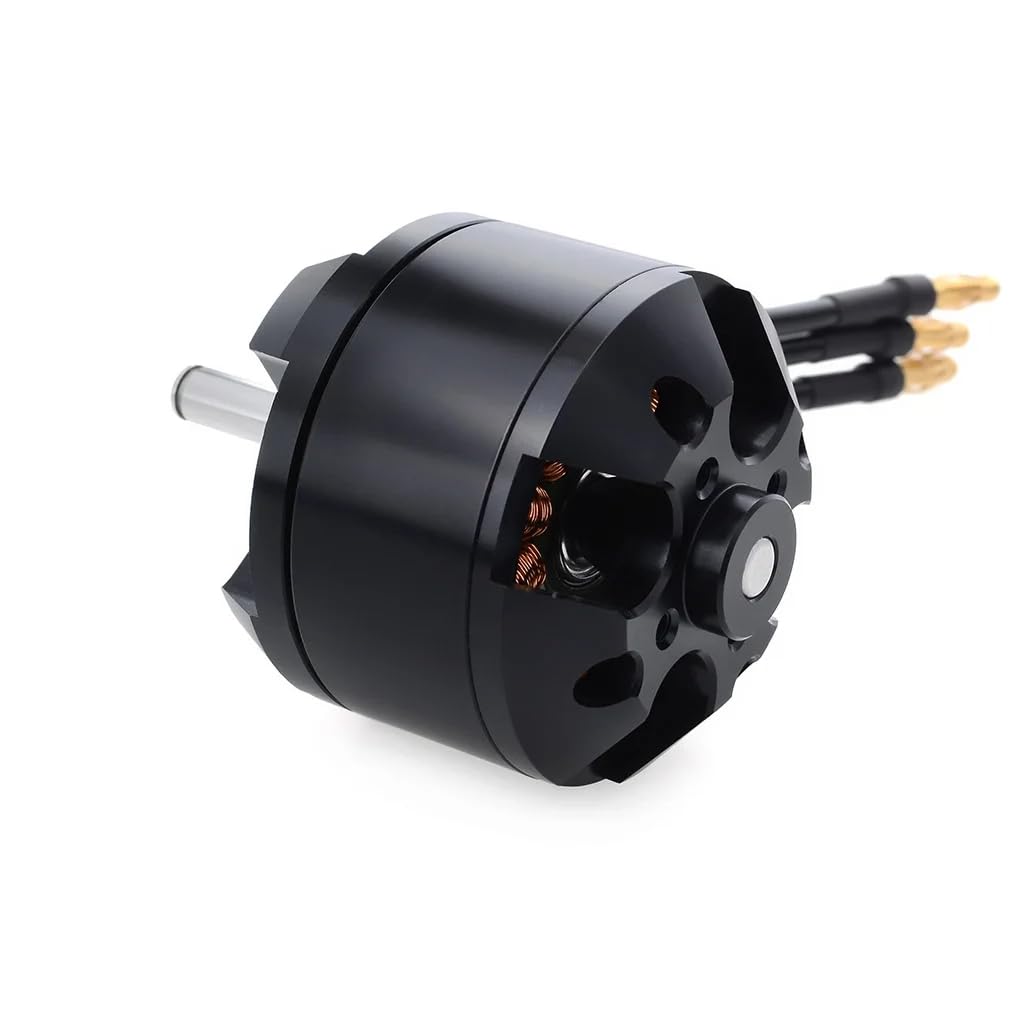

KingVal Replacement 5045 720KV Brushless Motor with Mounting Screw Kit Compatible with RC Fixed-Wing Airplane Glider
KingVal Replacement 5045 720KV Brushless Motor with Mounting Screw Kit Compatible with RC Fixed-Wing Airplane Glider
Key features
- 14Pole 12Slot Hi-torque Motor Design
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings
- Precision balanced rotor, smoothness for best reliability and maximum RPM
- Precision Engineered for Maximum Energy Conversion
Features: ★ 14Pole 12Slot Hi-torque Motor Design ★ CNC Machined 6061 T6 Billet Aluminum Heatsink Can ★ High Purity Copper Windings Maximizes Efficiency ★ High RPM ABEC5 Oversized Bearings ★ Precision balanced rotor, smoothness for best reliability and maximum RPM ★ Stator - Super Thin (0.2mm) Laminations ★ Precision Engineered for Maximum Energy Conversion Specifications: Brand:KingVal Motor Size: ø50*44mm Stator Size: ø41*10mm Shaft Diameter: 6mm Max Watts: 860W Rotor Poles: 14 Weight:195G KV(RPM/Volt): 720KV Voltage Range: 10~20V Max Current: 43A No Load Current: 1.6A Resistance: 0.0275Ω Propeller: 14x7 / 12x10 / 13x8 Inch Package Included: 1 x C5045 Brushelss Motor 1 x Mounting Screw Kit
Free shipping included. 30-day hassle-free returns.
