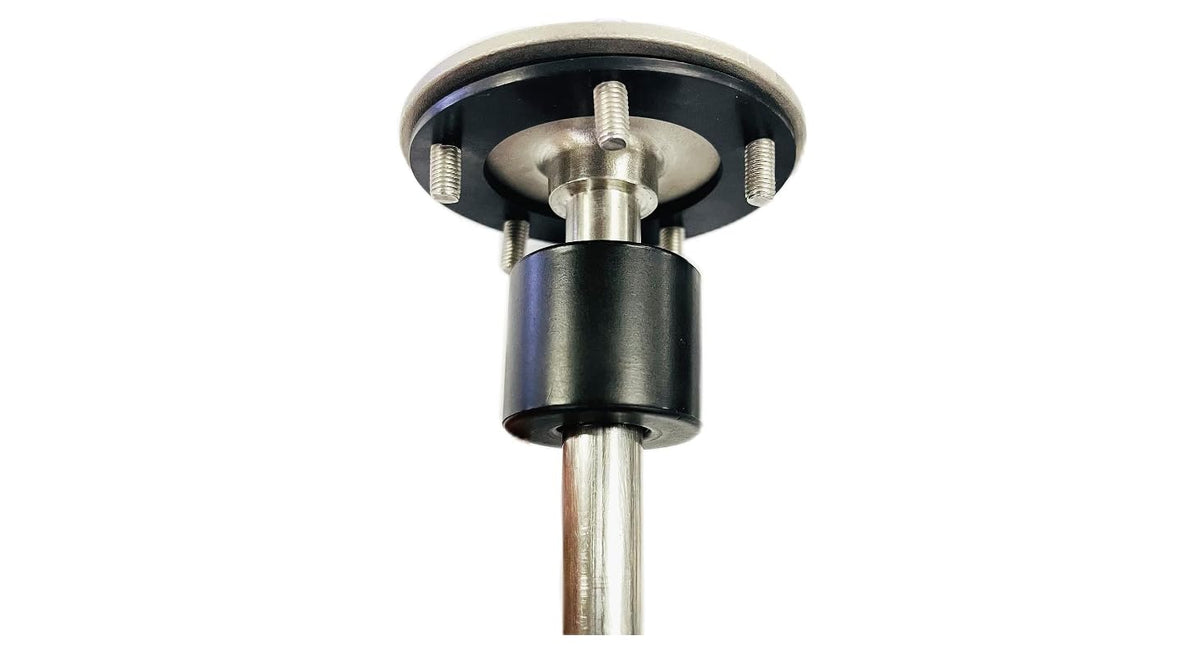

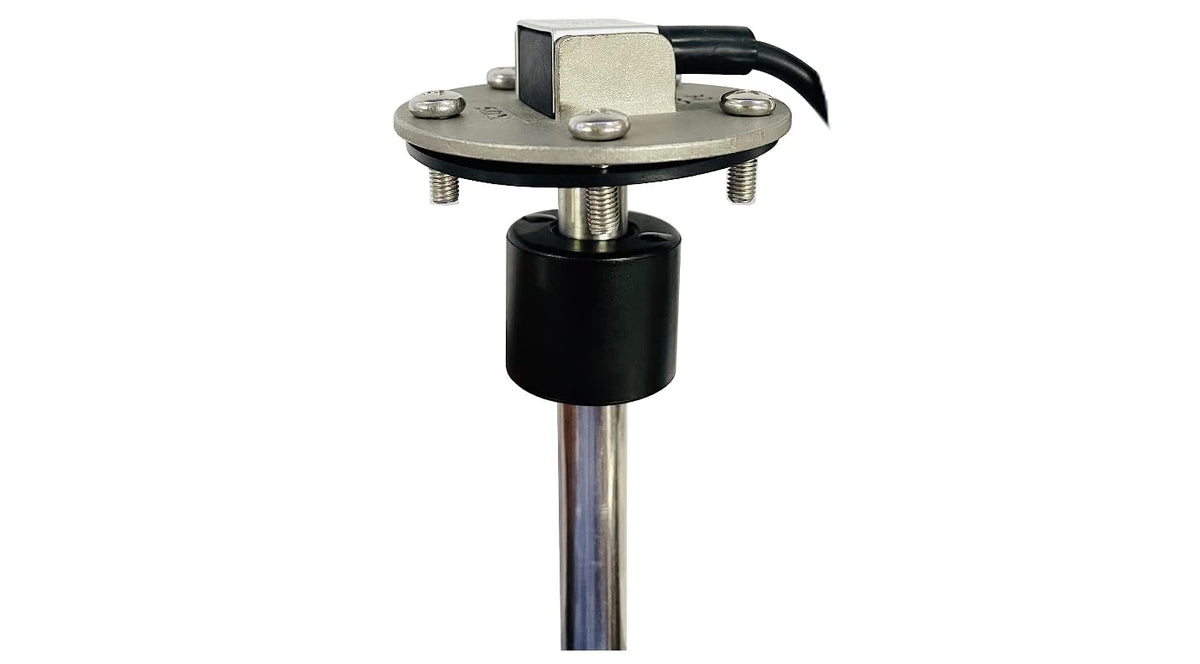

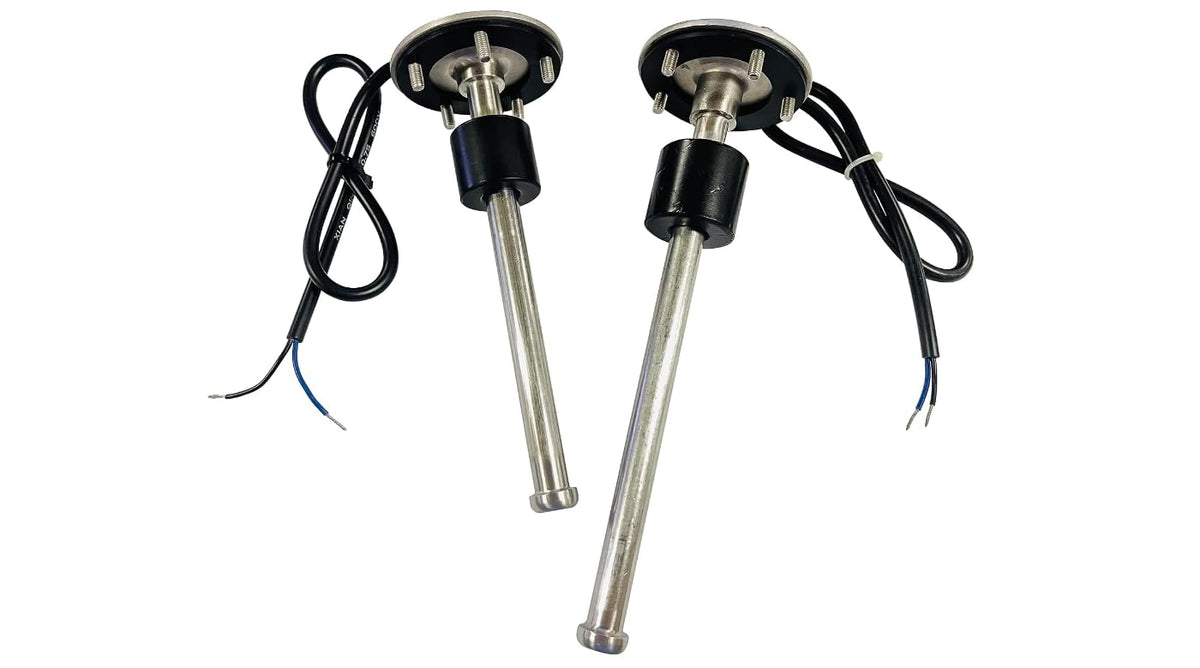

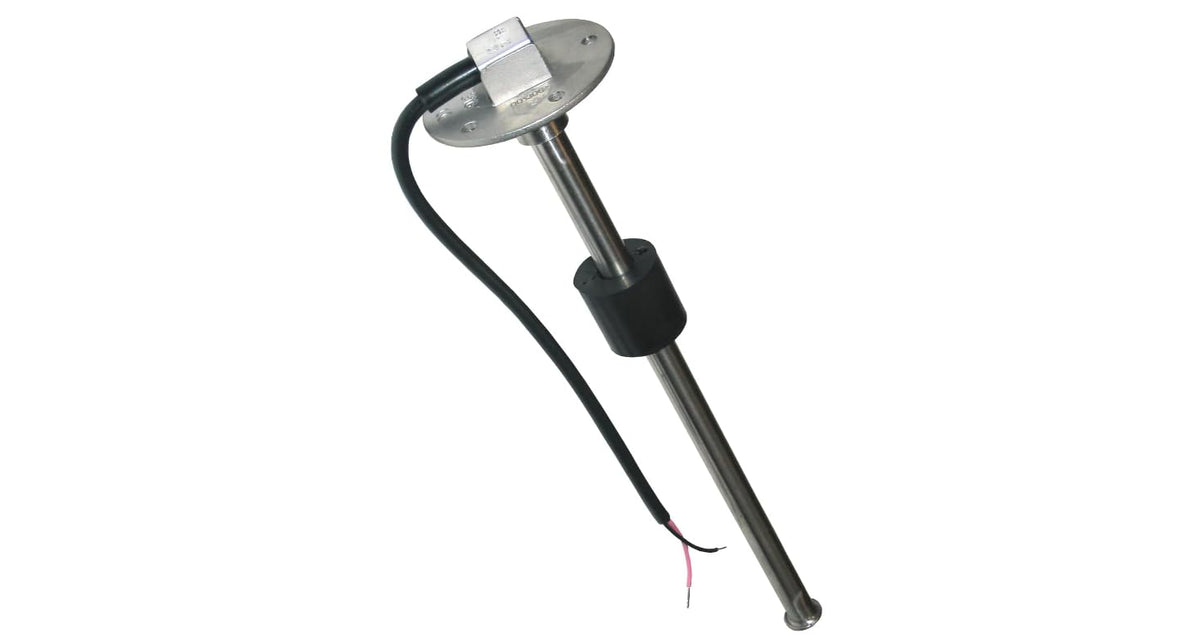

KUS USA SSS Fuel & Water Level Sensor (32")

Key features

• SIGNAL OUTPUT: Standard American Output, 240 ohm - 30 ohm (Empty - Full), Non-Linear Output, 18-21mm Per Step

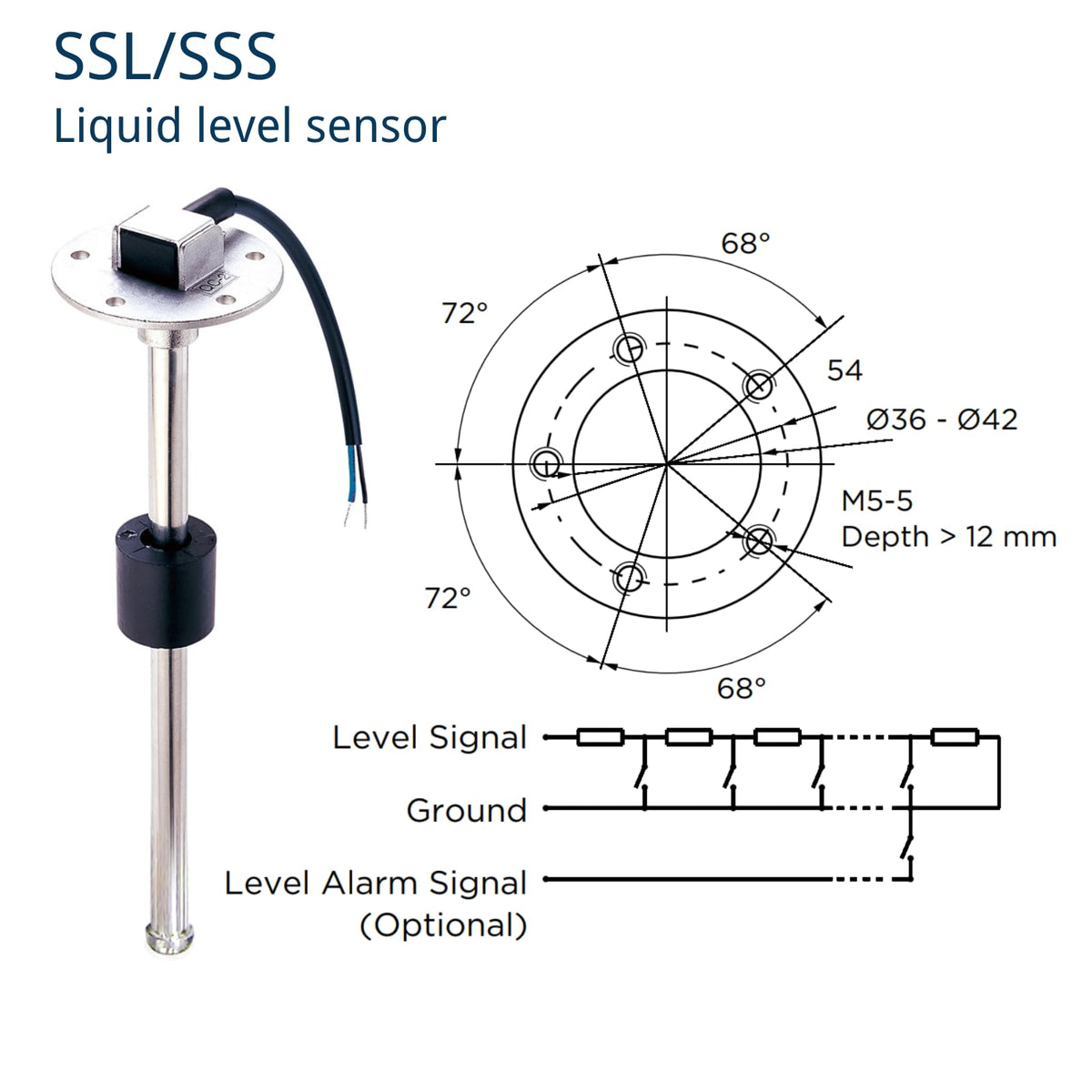

Material: Body: SUS 316 Stainless Steel Cable: PVC Float: NBR American Standard Output: 4″ through 18.5″ at 0.5″ increments 19″ through 96″ at 1″ increments Mounting Methods: Standard SAE 5-hole pattern Protection Rank: IP65 Output Signal: American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full) European Standard 0-180 ohms (0 ohms at empty, 180 ohms at full) *Voltage output available upon request *Current output available upon request *Customized output curve available upon request Resolution Range: 21mm *Finer resolution (as low as 10mm) available upon request Operational Temperature: -40°F ~ +185°F (-40°C ~ +85°C) Additional Information: Sending Unit Installation Guide Troubleshooting Guide Please note that we recommend a 1″ clearance from the bottom of plastic tanks and a 0.5″ clearance from the bottom of stainless steel/aluminum tanks.
