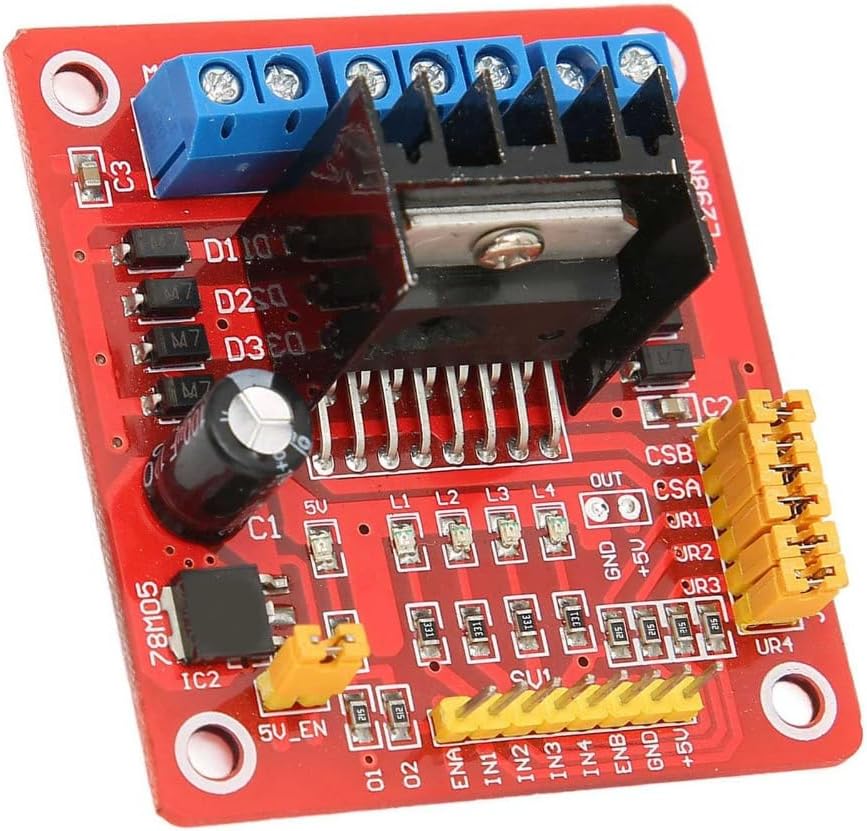

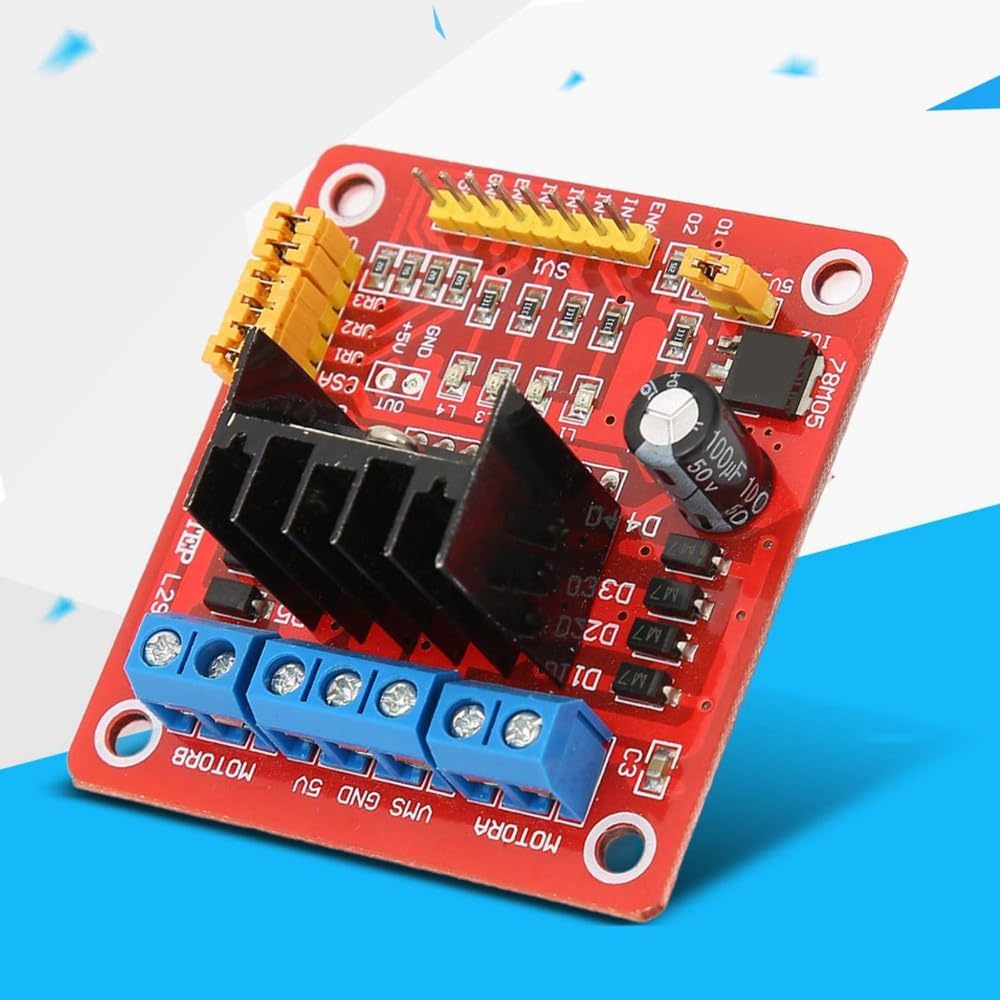

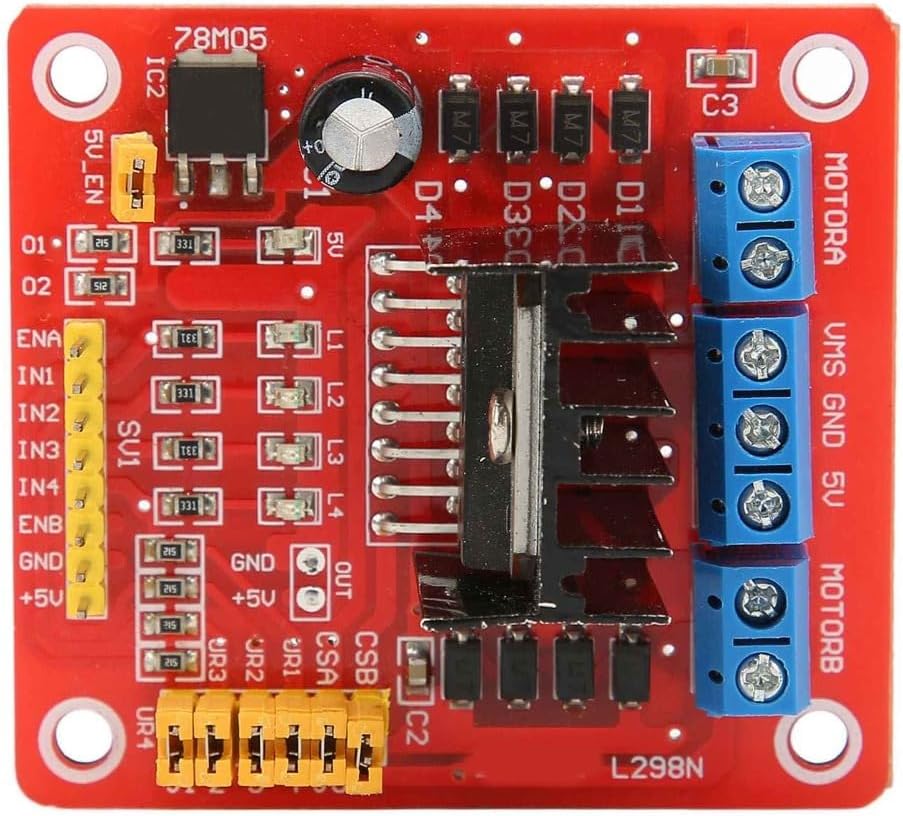

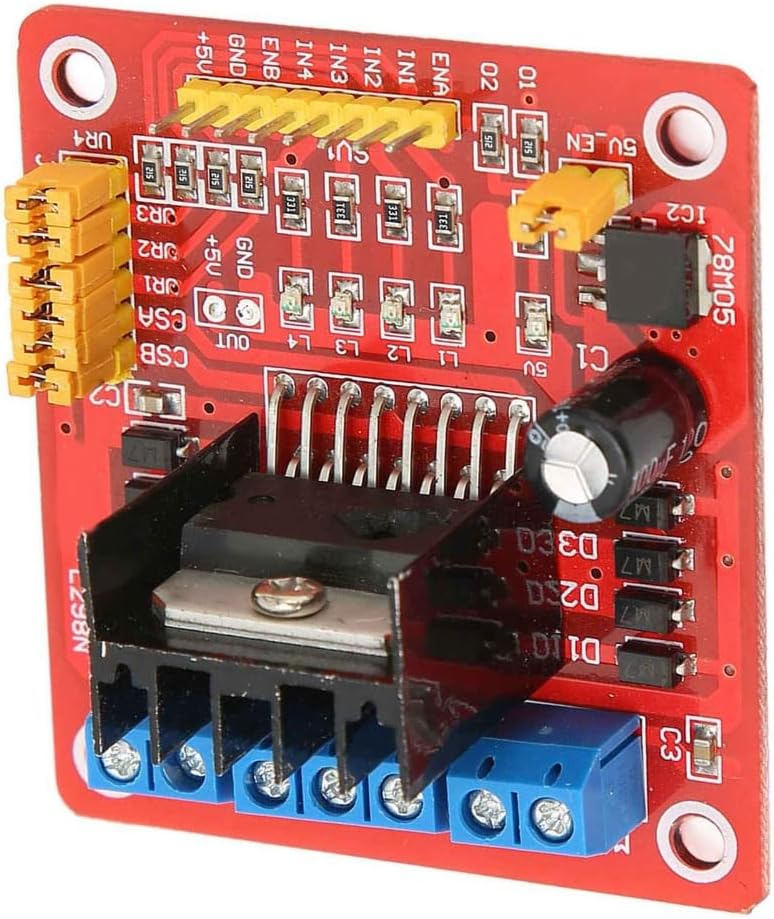

L298N Dual H Bridge Motor Driver Module – Stepper & DC Motor Controller Board with 2A/Bridge, 5V-35V Range for Robotics Application
L298N Dual H Bridge Motor Driver Module – Stepper & DC Motor Controller Board with 2A/Bridge, 5V-35V Range for Robotics Application
Key features
- Dual H Bridge Design: High efficiency L298N chip enables simultaneous control of two DC motors or one stepper motor with smooth bidirectional use
- Wide Voltage Compatibility: This dual H bridge motor driver module supports 5V to 35V input range for versatile power source adaptation with 2A per bridge maximum current
- Enhanced Protection System: The DC stepper motor driver module built-in freewheeling diodes and large filter capacitors avoid voltage spikes and ensure stable performance
- Visual Operating Indicators: Features integrated direction and power LEDs provide real-time status monitoring during motor control applications

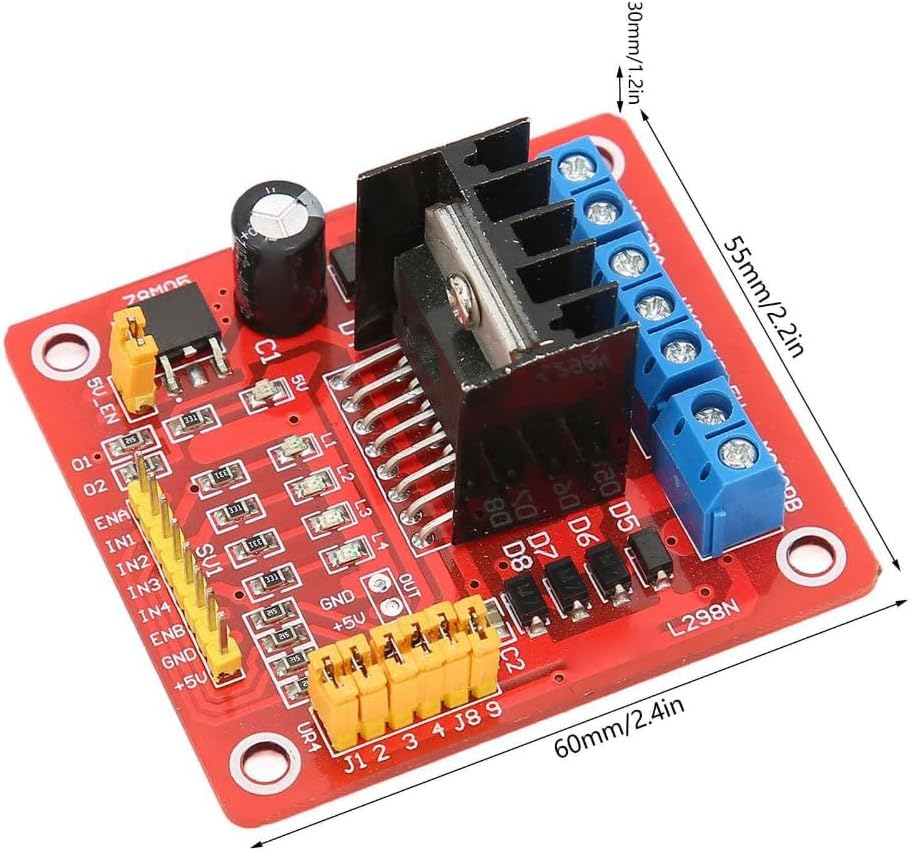

- Compact Board Dimensions: You will receive 1pcs dual H bridge DC stepper motor driver module measured 55 x 60 x 30mm red PCB facilitates easy installation in robotics and automation projects
L298N Dual H Bridge DC Stepper Motor Driver Module provides precise motor control for robotics and automation projects. This multifunctional motor controller board efficiently drives 2-phase stepper motors, 4-phase stepper motors, or 2 DC motors simultaneously. It solves power management challenges with reliable H-bridge drive technologyConnect your motors to the terminal blocks and provide 5V-35V power input. The direction control indicators show real-time operates status while the onboard filter capacitors ensure stable voltage delivery. The freewheeling diodes keep circuits from voltage spikes during sudden stopsSpecification:Item Type: Motor Driver ModuleDriver Chip: L298N dual H bridge driver chipDrive Part Terminal Power Supply Range VMS: 5V-35VDrive Part Maximum Current Io: 2A/BridgeLogic Part Terminal Power Supply Range Vss: 4.5-5.5VLogic Part Operating Current Range: 0-36mAControl Signal Input Voltage Range: High level 4.5-5.5V, low level 0VMaximum Power Consumption: 20WStorage Temperature: -25℃-130℃Driver Board Size: Approx. 55 x 60 x 30mm / 2.2 x 2.4 x 1.2inDriver Board Weight: Approx. 33g / 1.2ozColor: RedOther Functions: Control direction indicator, power indicator, cu
Free shipping included. 30-day hassle-free returns.
