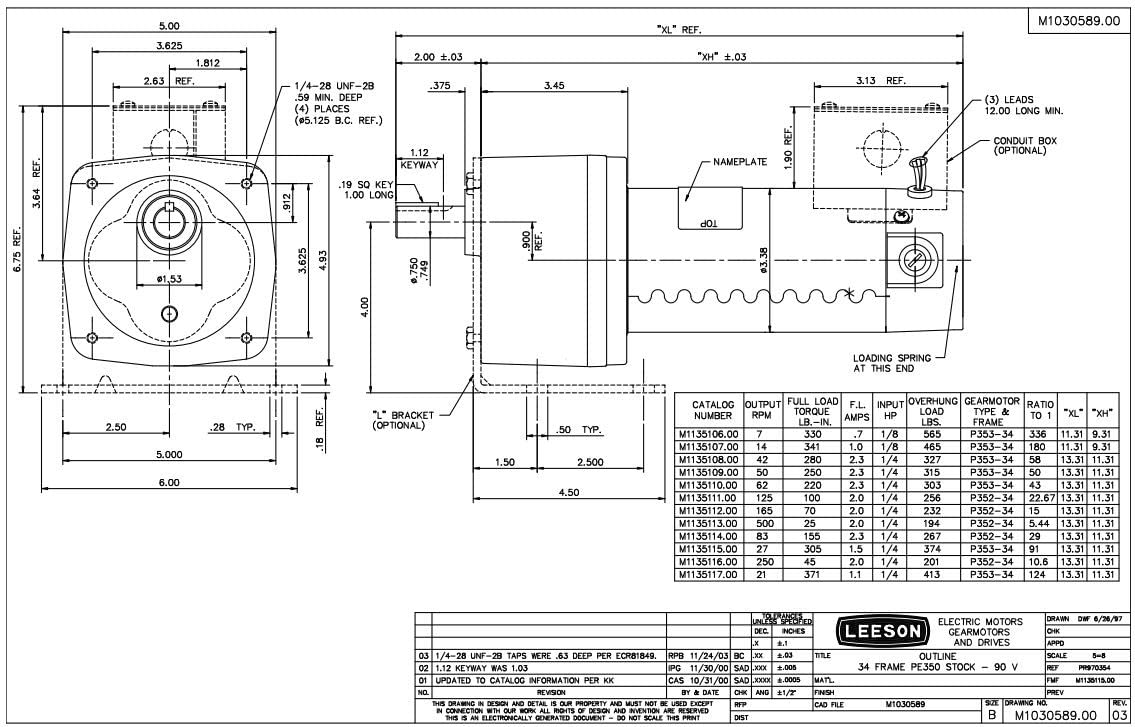

Leeson 43:1.62RPM.220LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.90V TENV.CM34D25NZ55B (M1135110.00)

Leeson 43:1.62RPM.220LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.90V TENV.CM34D25NZ55B (M1135110.00)

$1,438.99
$1,438.99 $2,398.99
Skip to product information
Leeson 43:1.62RPM.220LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.90V TENV.CM34D25NZ55B (M1135110.00)
  • Leeson 43:1.62RPM.220LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.90V TENV.CM34D25NZ55B (M1135110.00)
  • Leeson 43:1.62RPM.220LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.90V TENV.CM34D25NZ55B (M1135110.00)
  • Leeson 43:1.62RPM.220LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.90V TENV.CM34D25NZ55B (M1135110.00)
Leeson 43:1.62RPM.220LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.90V TENV.CM34D25NZ55B (M1135110.00)

Leeson 43:1.62RPM.220LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.90V TENV.CM34D25NZ55B (M1135110.00)

$1,438.99
$1,438.99 $2,398.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • 1/4 hp, 62 RPM, 2.30 amps, 90 Volts DC
  • Gear Ratio = 43; Torque 220 inch pounds
  • Over Hung Pounds = 303
  • Shaft 3/4" x 1.625"; Rotation = Reversible
  • TENV, Keyed Shaft, Ball Bearings

Optional Conduit Box # M1760007 is available. One Year Manufacture Warranty. Features: Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grelease, reducing possibility of leakage.Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Dayton Equivalent 6ML51. Can use with Leeson speed control 174307, 174308.

Free shipping included. 30-day hassle-free returns.
