Left Hand Split Arm Casement Operator, Metal Material White Finish

Left Hand Split Arm Casement Operator, Metal Material White Finish

Key features

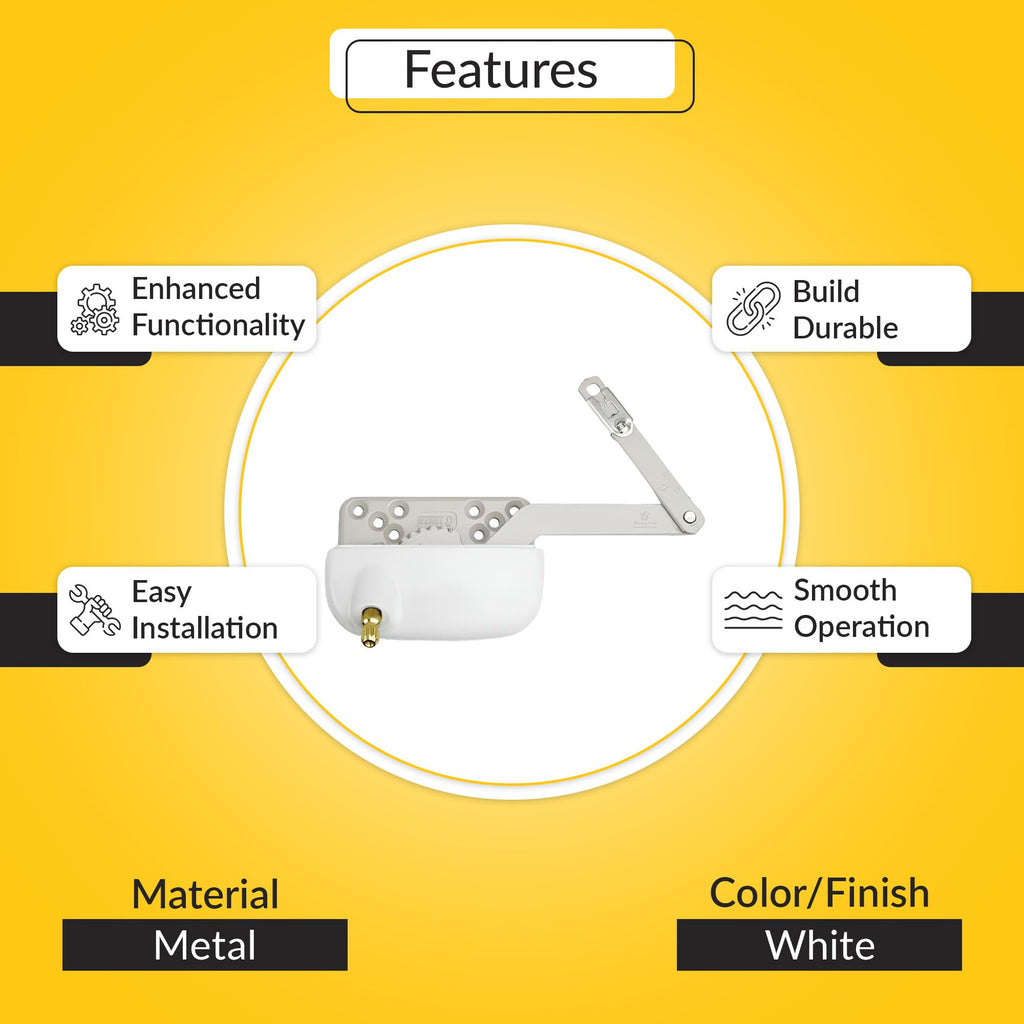

• WHITE FINISH ON METAL BODY: Constructed from metal with a white finish, the operator fits cleanly with white or painted window frames while supporting mechanical function and installation compatibility.
• LEFT HAND OPERATOR TYPE: Designed for casement windows hinged on the left side when viewed from indoors, this split arm operator supports steady sash control using a hand crank for consistent opening and closing performance.

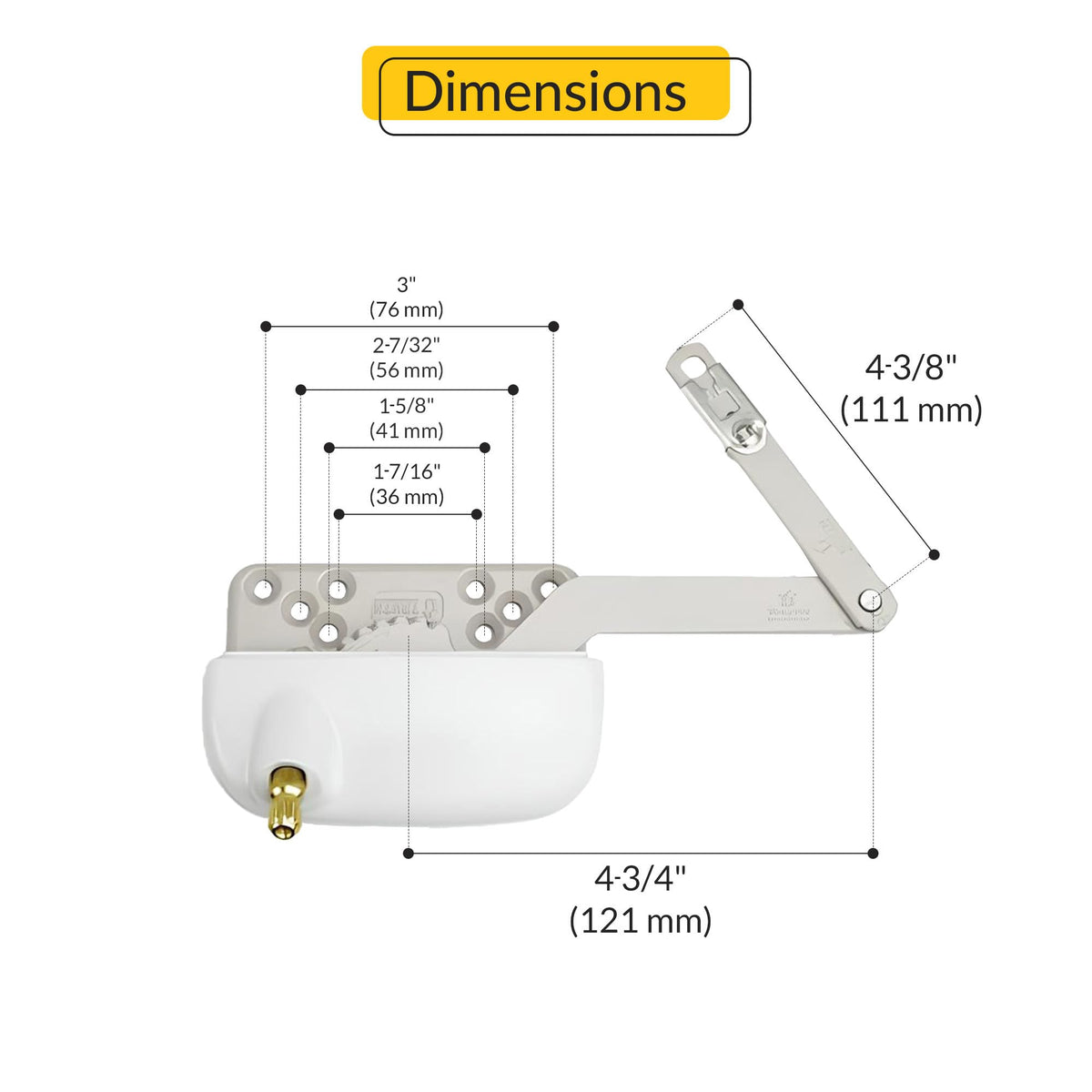

• 4-3/4" PRIMARY ARM LENGTH: Built with a 4-3/4" primary arm that connects to the window sash, guiding the movement during operation while supporting the sash evenly across its swing path without shifting or excessive pressure on the joints.
• 4-3/8" LINK ARM LENGTH: Includes a 4-3/8" link arm to assist in transferring motion from the crank to the sash. Helps maintain balance and smooth motion across the operator assembly, especially during frequent opening and closing cycles.
• THREE-ROW HOLE PATTERN: Features three hole rows with top spacing at 2-7/32", middle at 1-5/8", and bottom at 1-7/16". This layout ensures reliable frame attachment and helps align the operator properly during installation or replacement.
• 3" OUTER HOLE SPACING: The outer holes are spaced 3" apart, matching standard casement window mounting patterns. This allows for easier replacement of older units without the need to alter or drill new holes in the window frame.
