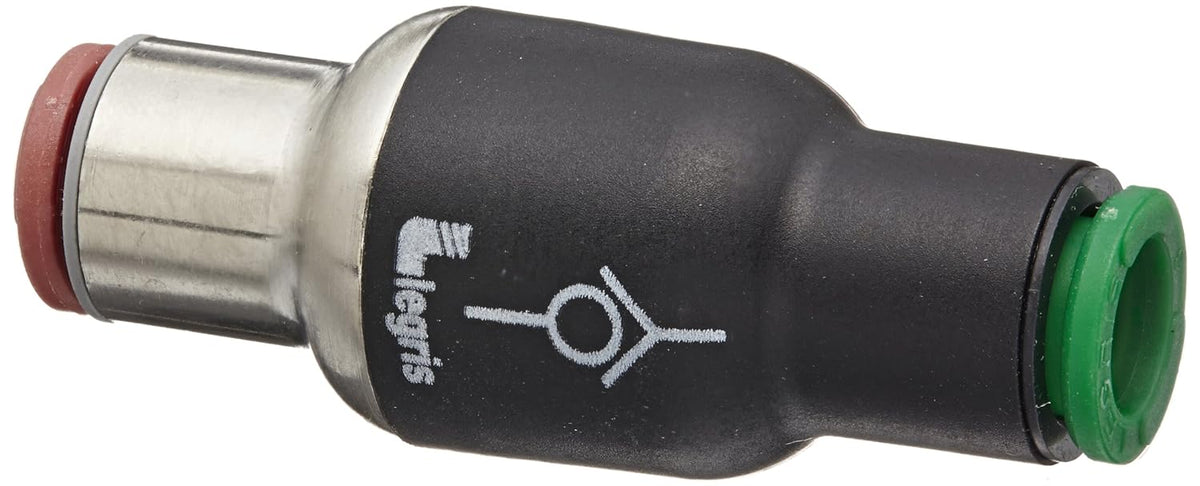

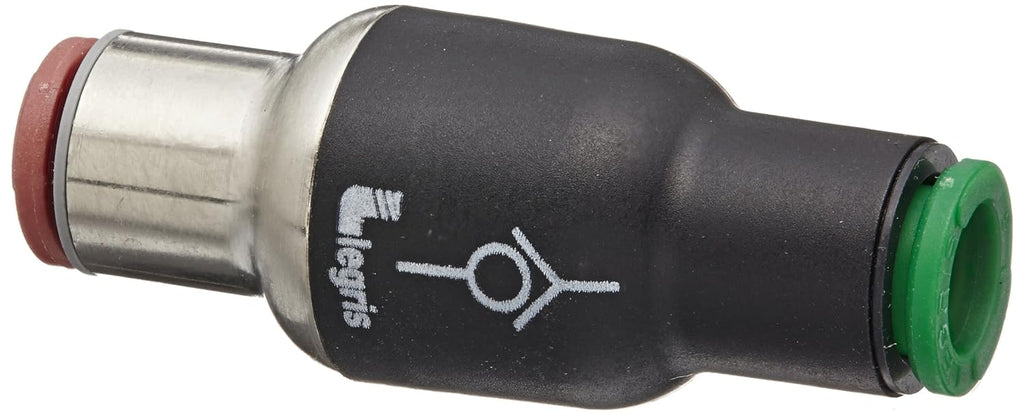

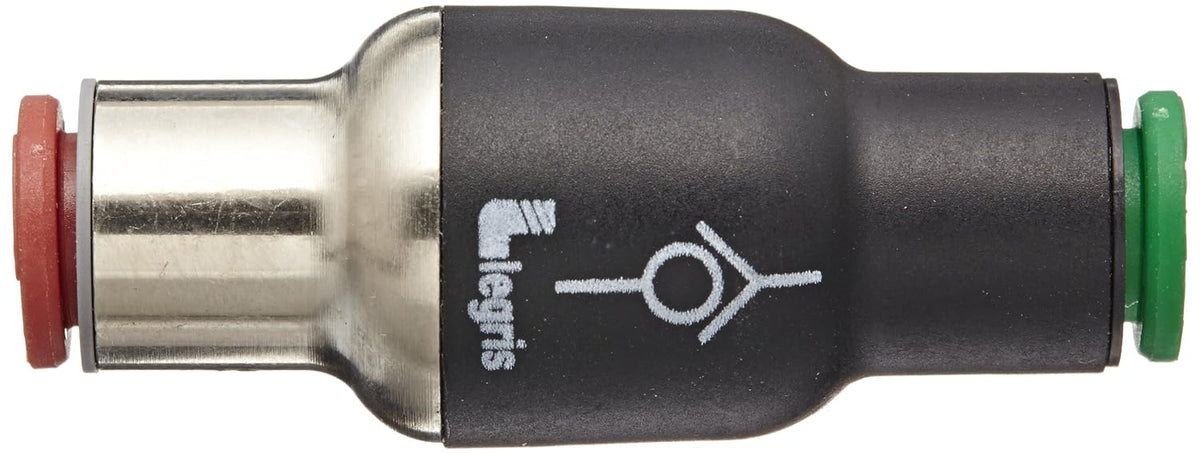

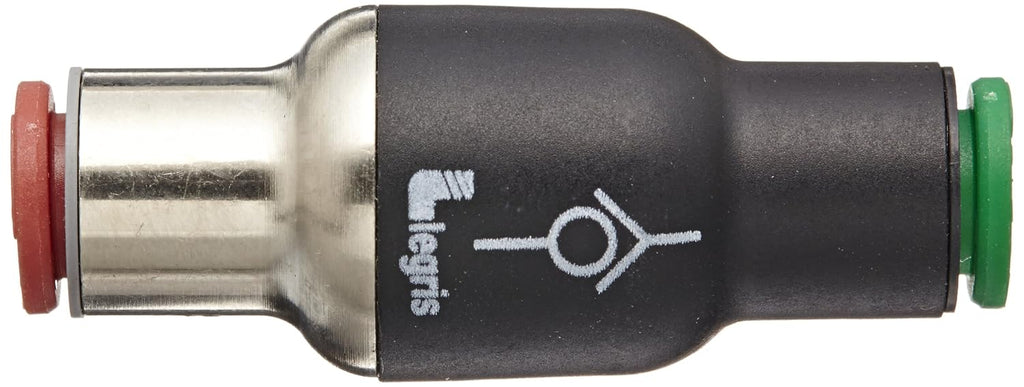

Legris 7996 06 00 Composite Check Valve, 6 mm Tube OD

Key features

• Inline check valve for use in controlling the direction of air flow
• Push-to-connect metric dimensions female receiver on both ends
• Composite body for resistance to impact and nickel-plated brass valve for resistance to corrosion
• Maximum operating pressure of 145 psi at a working temperature range of 32 to 158 degrees F
• Complies with Council of the European Union 2006/42/EC directive and PED 97/23/EC standards for safety

This Parker Legris 7996 series check valve is used inline and is suitable for use in controlling the direction of air flow in pneumatic applications. The composite body is impact-resistant, the nickel-plated brass valve and spring are corrosion-resistant, and the nitrile butadiene rubber (NBR) valve seat is resistant to oil and chemicals. The valve body has metric dimensions female push-to-connect tube fittings on both ends. It has a maximum operating pressure of 145 pounds per square inch (psi) and a working temperature range of 32 to 158 degrees F. The valve complies with the Council of the European Union 2006/42/EC directive and the Pressure Equipment Directive (PED) 97/23/EC standards for safety and complies with Reduction of Hazardous Substances (RoHS) regulations. This check valve is suitable for use in pneumatic applications such as in laboratories, food and beverage processing, and paint and printing industries.Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ba
