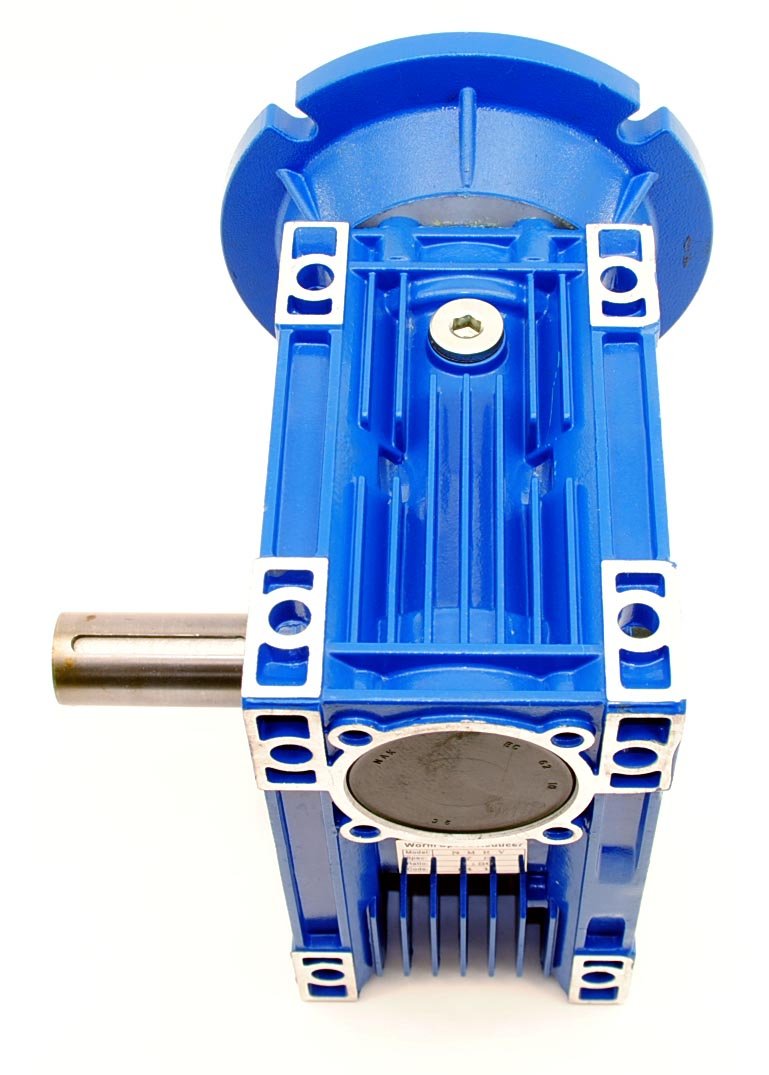

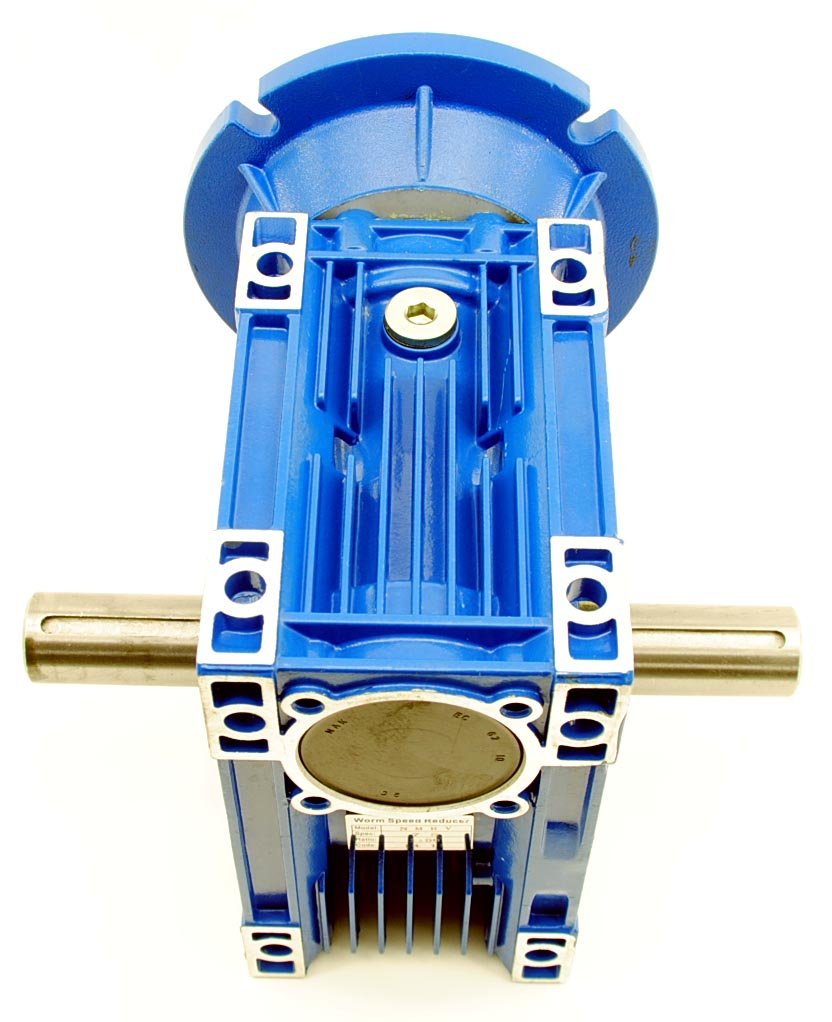

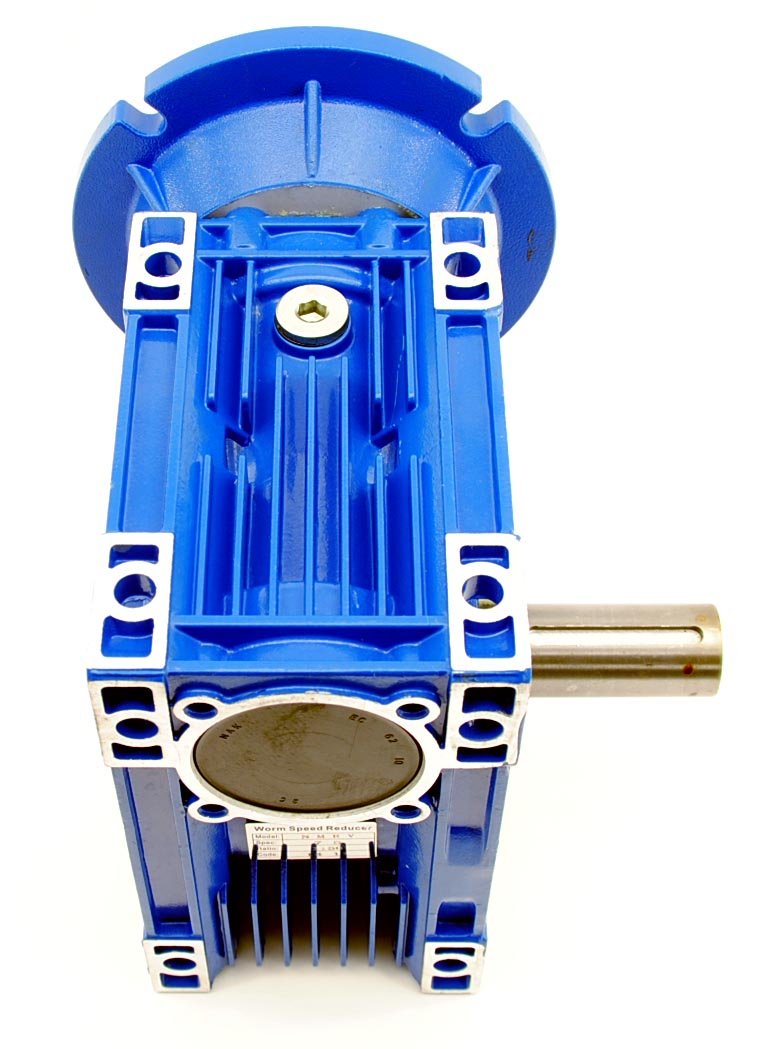

Lexar Industrial MRV075 Worm Gear 20:1 140TC Speed Reducer

Lexar Industrial MRV075 Worm Gear 20:1 140TC Speed Reducer

$773.99
$773.99 $992.99
Skip to product information
Lexar Industrial MRV075 Worm Gear 20:1 140TC Speed Reducer
  • Lexar Industrial MRV075 Worm Gear 20:1 140TC Speed Reducer
  • Lexar Industrial MRV075 Worm Gear 20:1 140TC Speed Reducer
  • Lexar Industrial MRV075 Worm Gear 20:1 140TC Speed Reducer
Lexar Industrial MRV075 Worm Gear 20:1 140TC Speed Reducer

Lexar Industrial MRV075 Worm Gear 20:1 140TC Speed Reducer

$773.99
$773.99 $992.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Ratio: 20:1
  • Input Shaft Diameter: 7/8
  • Output Shaft Diameter: 1-1/4
  • Mounting Flange: 140TC
  • Rated HP: 3.15

MRV075 series worm gear speed reducer. This 20:1 ratio speed reducer is rated for 3.15 HP input at 1750 RPM on a hollow 7/8" diameter x 2" long keyed shaft and 140TC mounting flange. Output is 1858 lb/in on a hollow 1-1/4" diameter x 4-3/4" long keyed shaft. High quality reducer has an all aluminum heat sinking designed housing with epoxy coating. Output shaft kits are not included and are sold separately.

Free shipping included. 30-day hassle-free returns.
