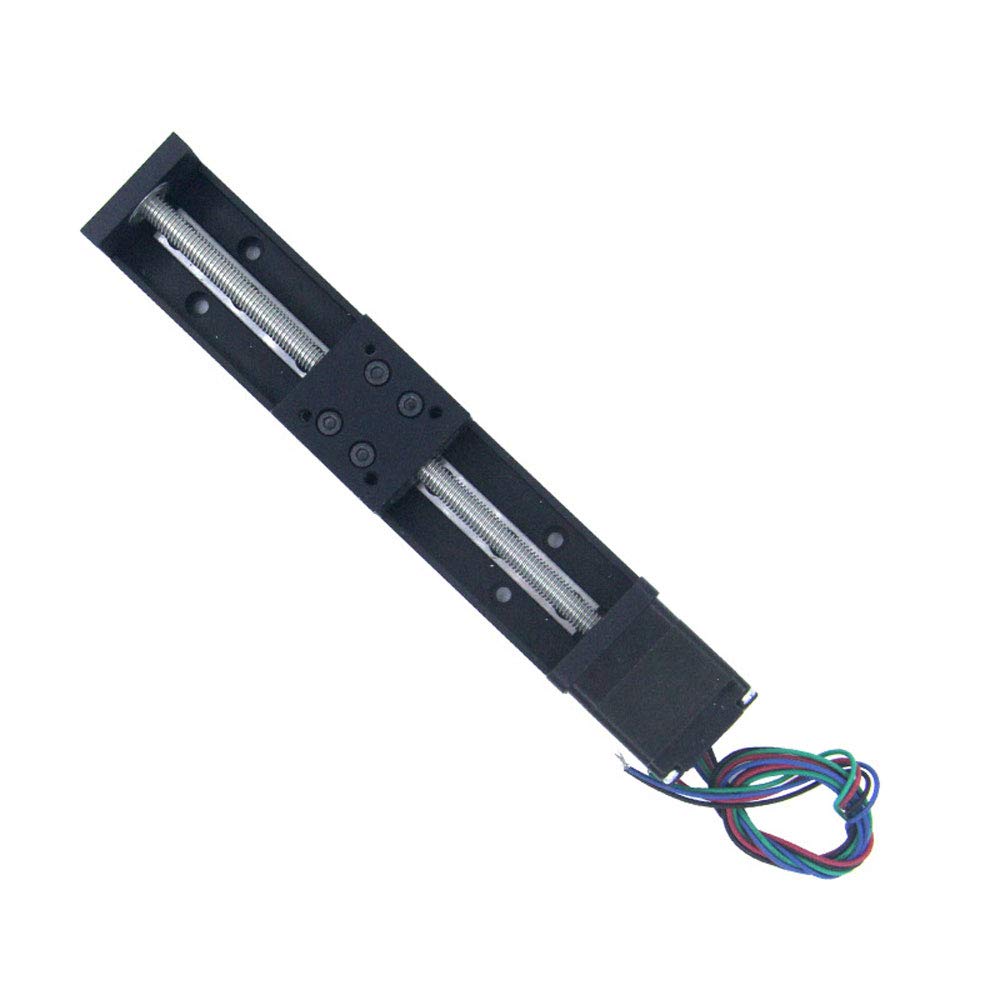

Linear Stage Actuator 50mm/100mm with Square Linear Rails Mini Slide Table
Linear Stage Actuator 50mm/100mm with Square Linear Rails Mini Slide Table
Key features
- Screw Specification: T6*1
Note: 1. Screw specifications T0601-50mm, the first two T6 represents the diameter of the screw 6 mm, the second two represents the screw guide (pitch) 1 mm, the last 50 mm represents the effective stroke of the slide. 2. this slider contains 28 linear motors by default. 3. it can fold horizontal cross, Longmen, three axis and four axis. Features Name: 28 step motor trapezoidal wire guide slide Travel Length: 50mm Screw specification: T6*1 ( We also have Screw specification T6*2 , T6*4 , T6*6 , T6*12 , if you need , please send us a message ) Screw precision: 0.1mm Fastest speed: 40mm/s Maximum load level: 3KG Vertical maximum load: 1KG Material: Aluminum alloy and stainless steel Voltage: 24V Motor current: 0.6A Torque: 0.07NM Step angle: 1.8 degrees Motor size: 28*28*30mm Package Included 1 x T0601-50 Stroke slide table (including motor)
