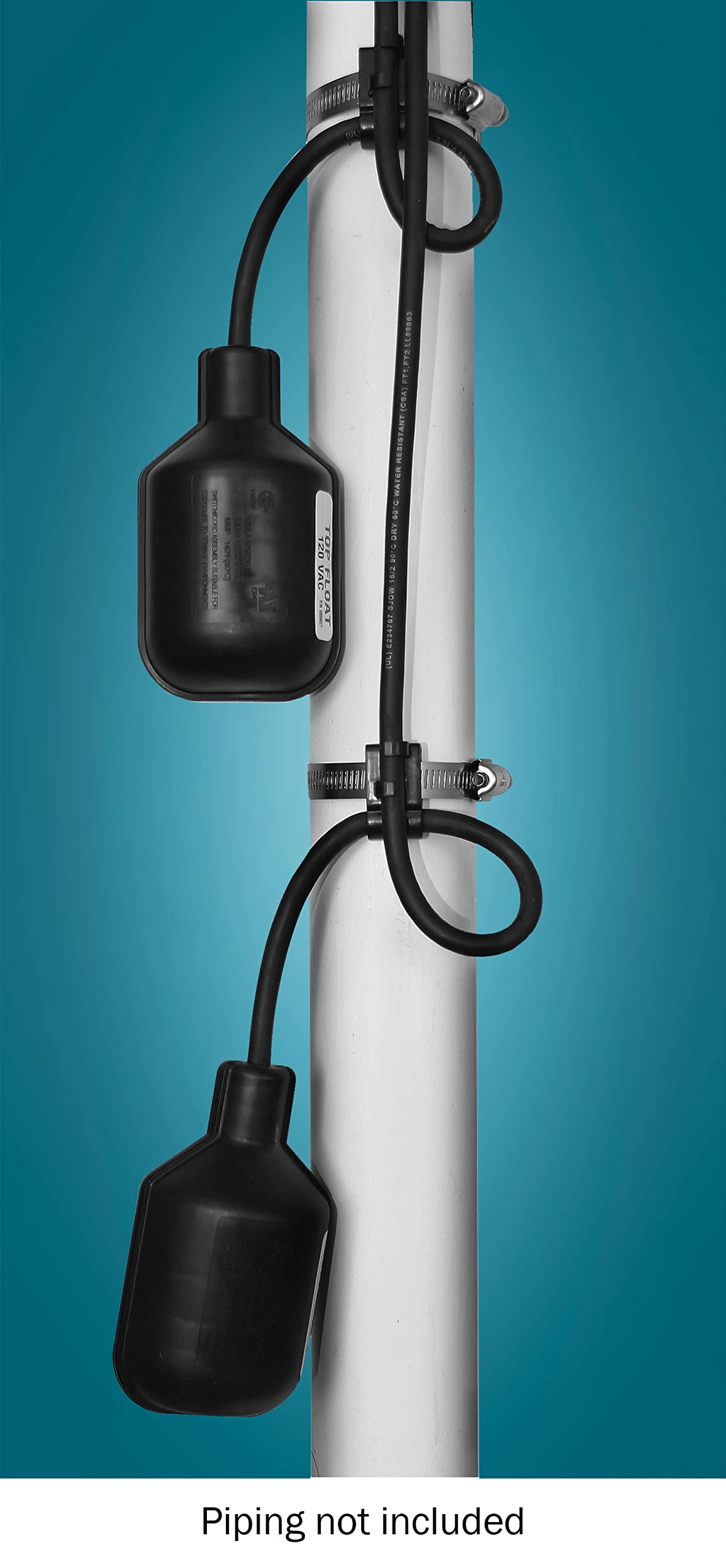

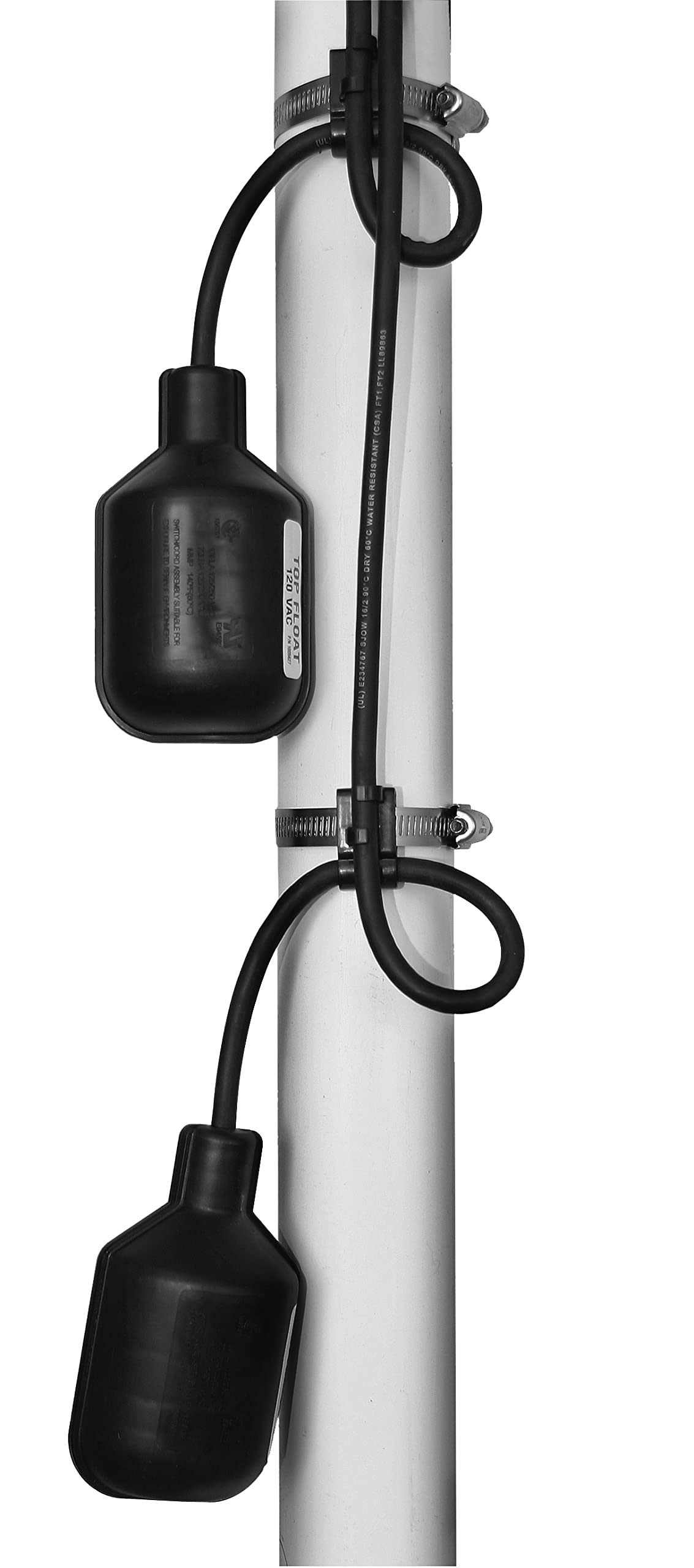

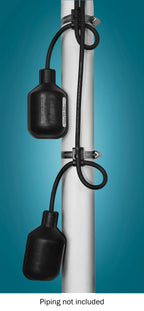

Little Giant 15DFMMD2WOP 230V Double-Float Mechanical Switch

Key features

• APPLICATIONS: ideal for use with small or large sump pumps; holding tanks; conversion of non-automatic pumps; or as a replacement for diaphragm or probe type controls
• SPECIFICATIONS: adjustable pump range from 10 in. to 56 in.; for use in liquids up to 140 degrees F; 16 gauge, 2 conductor, SJOW from float to splice; 50/60 Hz, 1 Phase
• LIMITATIONS: Maximum Starting Amps 78 Amps; Maximum Running Amps 13 Amps; Maximum HP: Controls pumps up to 2 HP; 230 Volt operation only - must be hard-wired
• FEATURES: Consists of 2 floats and a holding relay (enabling floats to function in a series); directly switches pump with high starting currents; self-contained switch - no control panel required
• BULT TO LAST: reliable, independntly-mounted switch; sealed, water and weather resistant; unique electrical circuit designed for long life; less sensitive to turbulence

Product Description The Little Giant 15DFMMD2WOP double-float mechanical switch is designed to control pumps up to 13 Amps, 2 HP (230 Volts) for non-potable water applications and sewage applications. This assembly consists of two mechanical floats and a splice tube containing a holding relay which enable the floats to function in a series. This is a plug-less switch, use with the correct voltage (230 Volts). Total cord length is 15-ft. From the Manufacturer This Little Giant float switch is a heavy duty mechanical type with a unique circuit to prevent relay contact arcing when starting or stopping the pump.
