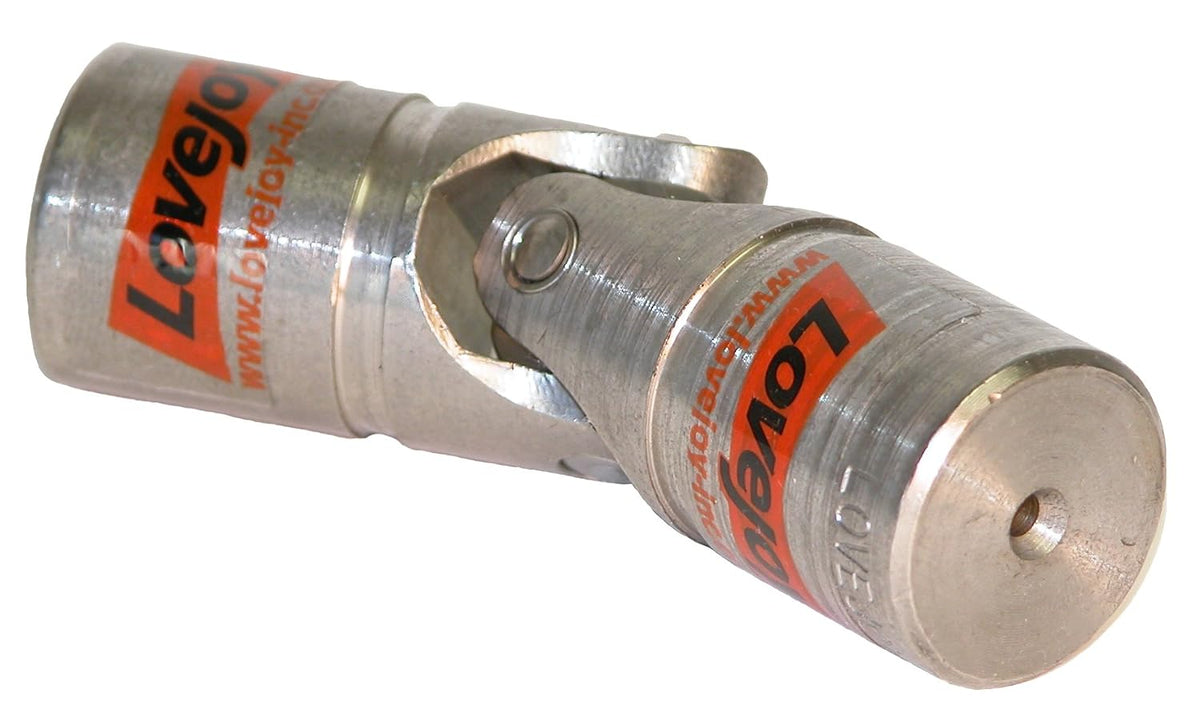

Lovejoy Size D8 Universal Joint, Stainless Steel 303, Solid Bore, 1.25" Outer Diameter, 3.75" Overall Length

Key features

• Single pin and block universal joint for applications with up to 25 degrees angular misalignment and speeds up to 1,750 rpm
• Compensates for angular misalignments and shaft separation
• 303 stainless steel for strength and resistance to corrosion
• Solid bore for specific machining
• Retaining groove for attaching boot

This Lovejoy D-Type universal joint is a single pin and block u-joint for connecting two rotating shafts with angles up to 25 degrees and speeds up to 1,750 rpm. It compensates for angular misalignment and shaft separation and has a single joint configuration for high torsional stiffness and torque capacity. The hubs, center block, and pins are made of 303 stainless steel for strength and resistance to corrosion. It has solid bore hubs for specific machining and a groove on each end for attaching a boot with a retaining ring. This universal joint provides a uniform speed ratio between driving and driven shafts, and is suitable for applications requiring moderate torque transmission, such as farm implements, material handling equipment, and drive shafts. Universal joints (also called U-joints, universal couplings, Cardan joints, Hooke's joints, or Hardy-Spicer joints) are used to transmit motion and rotational power, or torque, between two shafts that are offset at an angle. Most universal joints consist of two yokes and a middle assembly; the hub end of each yoke attaches to a shaft while the yoke ears attach to and pivot around the middle assembly to accommodate shaft misalignment
