Lovnewmax 63 Amp Ground Fault Circuit Breaker, 2 Pole AC 120-240V SPD

Key features

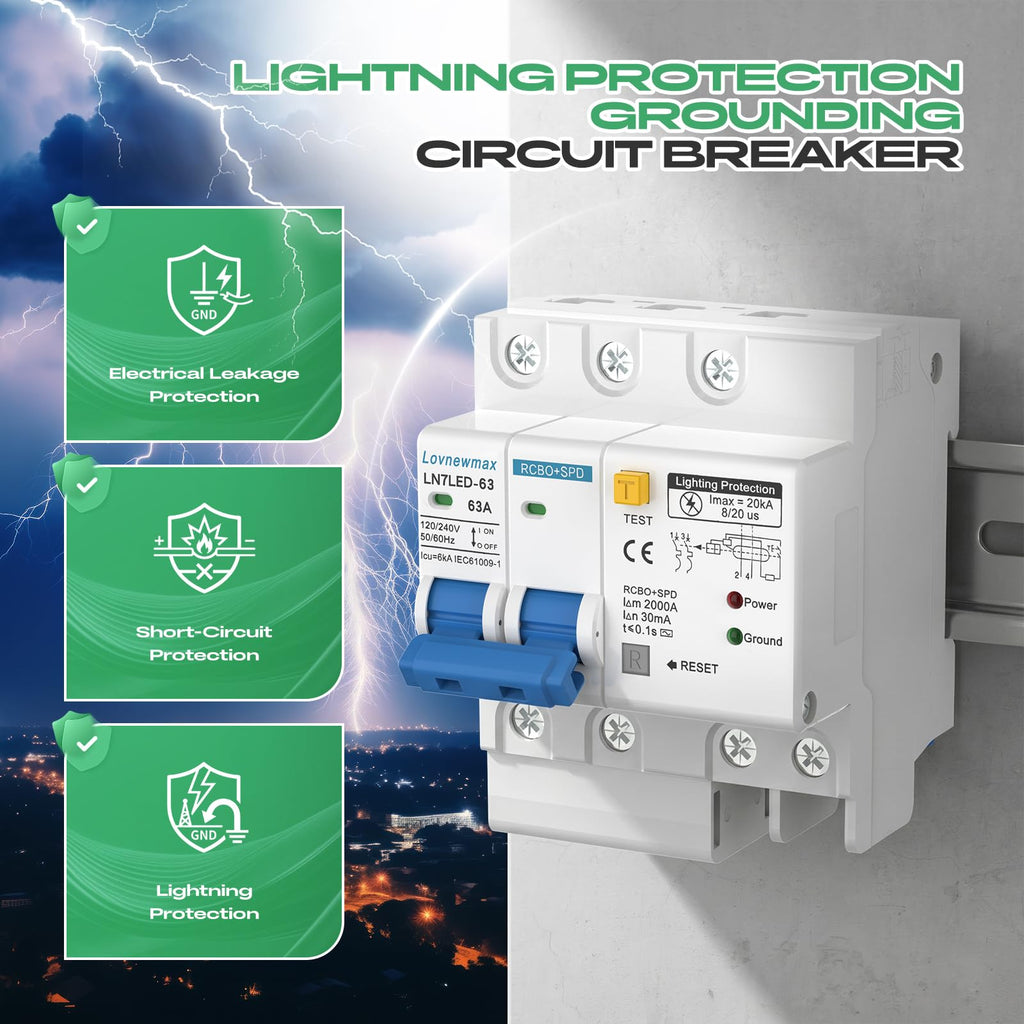

• [5-IN-1 CIRCUIT PROTECTION]:This 2-pole RCBO with SPD combines overcurrent protection, short-circuit protection, 30mA residual current protection, surge protection and circuit isolation in one compact unit, helping protect circuits and connected equipment from common electrical faults and transient voltage surges.
• 20KA SURGE PROTECTION:The built-in surge protection module supports an Imax of 20kA with an 8/20μs waveform, helping reduce the effects of lightning-induced surges and sudden voltage spikes. The breaker is equipped with an Icu rating of 6kA for reliable short-circuit protection.

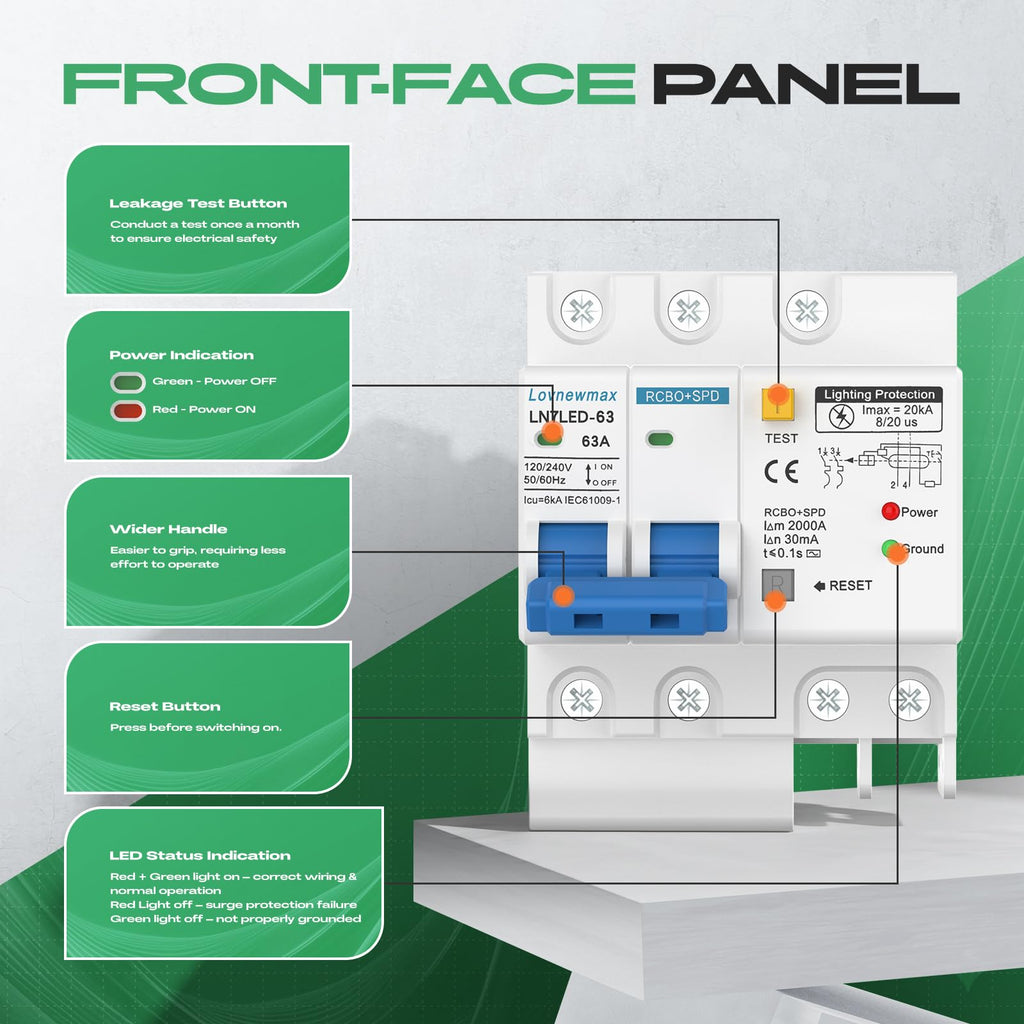

• 30MA LEAKAGE PROTECTION & LED INDICATORS:Provides 30mA residual current protection with a response time of ≤0.1 seconds. The yellow TEST button allows regular leakage-function checks, while the Power and Ground LED indicators help users check operating and grounding status.
• 120V/240V AC WIRING:Designed for 120V and 240V AC systems at 50/60Hz, supporting 120V L/N wiring and 240V L1/L2 wiring with a grounding connection. The device must be wired with top input and bottom output; reverse wiring may damage the equipment.

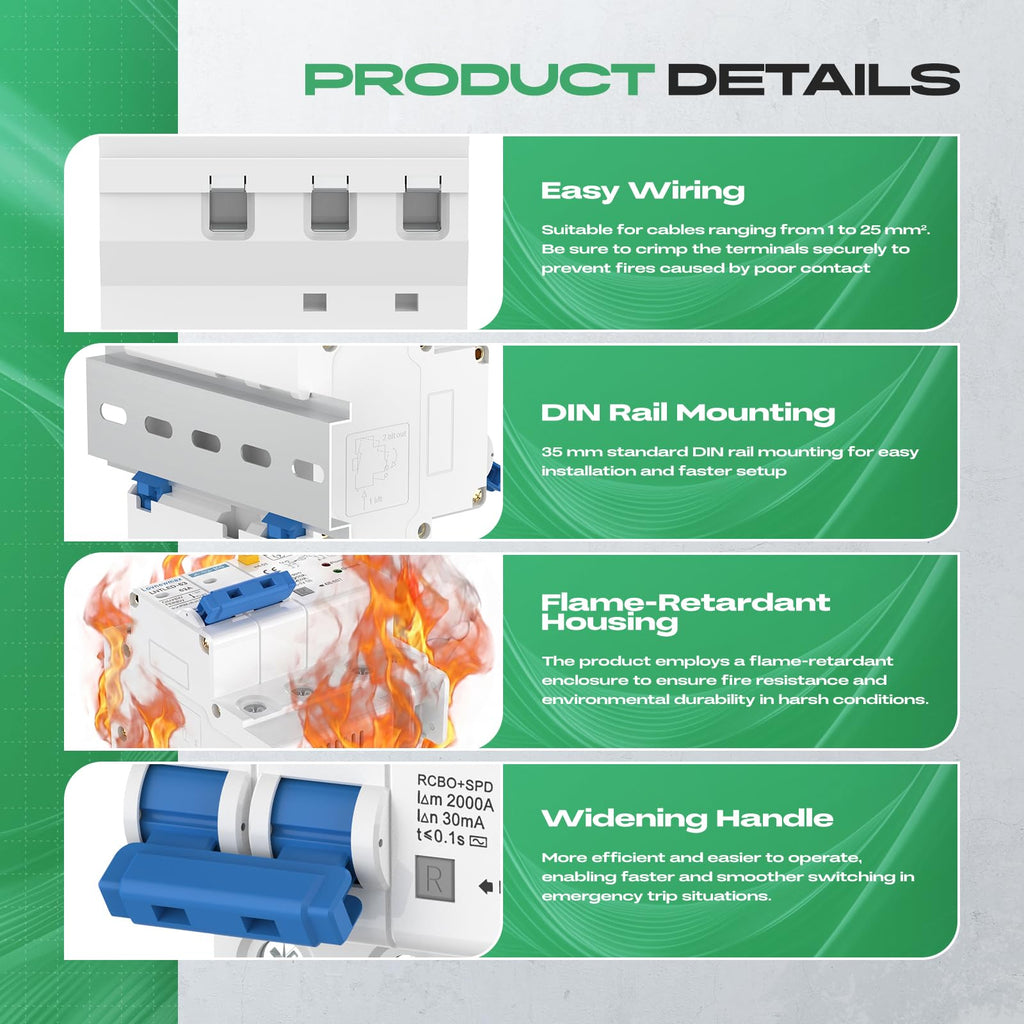

• 35MM DIN RAIL INSTALLATION:Mounts on a standard 35mm DIN rail and supports cables ranging from 1 to 25mm². The flame-retardant housing, widened operating handle, included DIN rail and crimp terminals provide convenient installation in compatible residential and commercial electrical panels.
