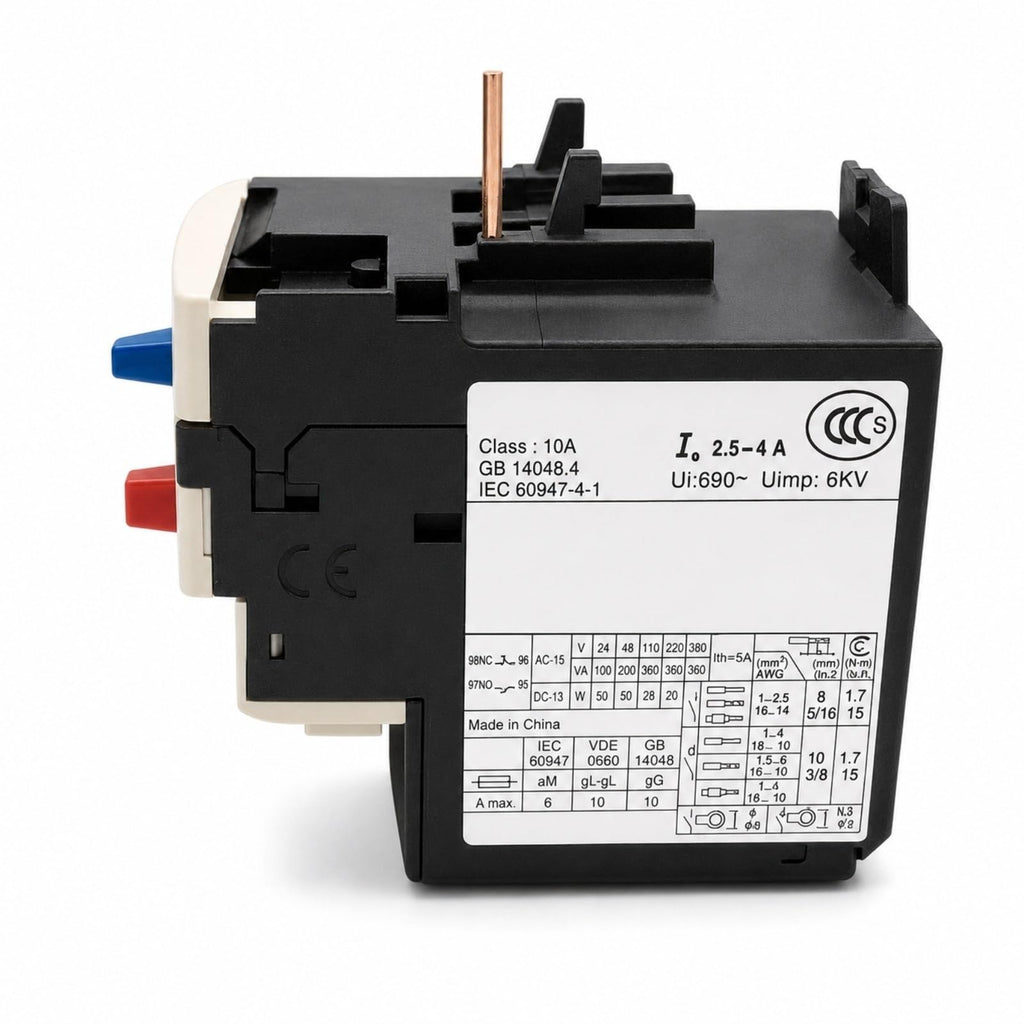

LRD Thermal Overload Relay, Adjustable Motor Overload Protection, 1-Pack

Key features

• Motor Overload Protection: Designed for motor starter control circuits, this adjustable thermal overload relay responds to sustained overload conditions through its thermal trip mechanism.
• 13 Current Range Options: Choose the model that matches your motor's rated current, from 0.1-0.16A through 16-24A. Each version has its own adjustable dial range for application-specific selection.
• NO and NC Auxiliary Contacts: Features 95-96 normally closed and 97-98 normally open screw terminals for overload signaling and control circuit integration, with clearly labeled connections.

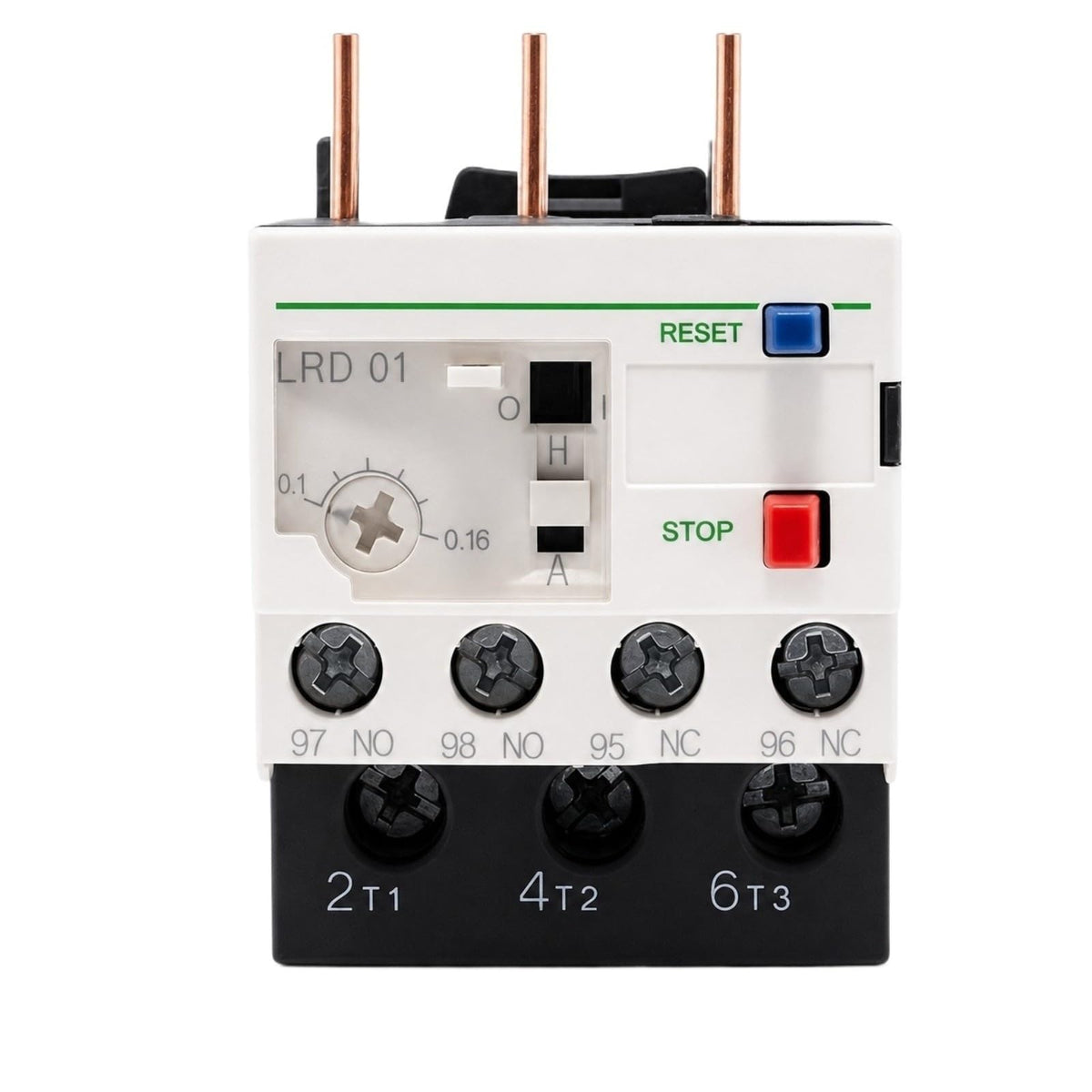

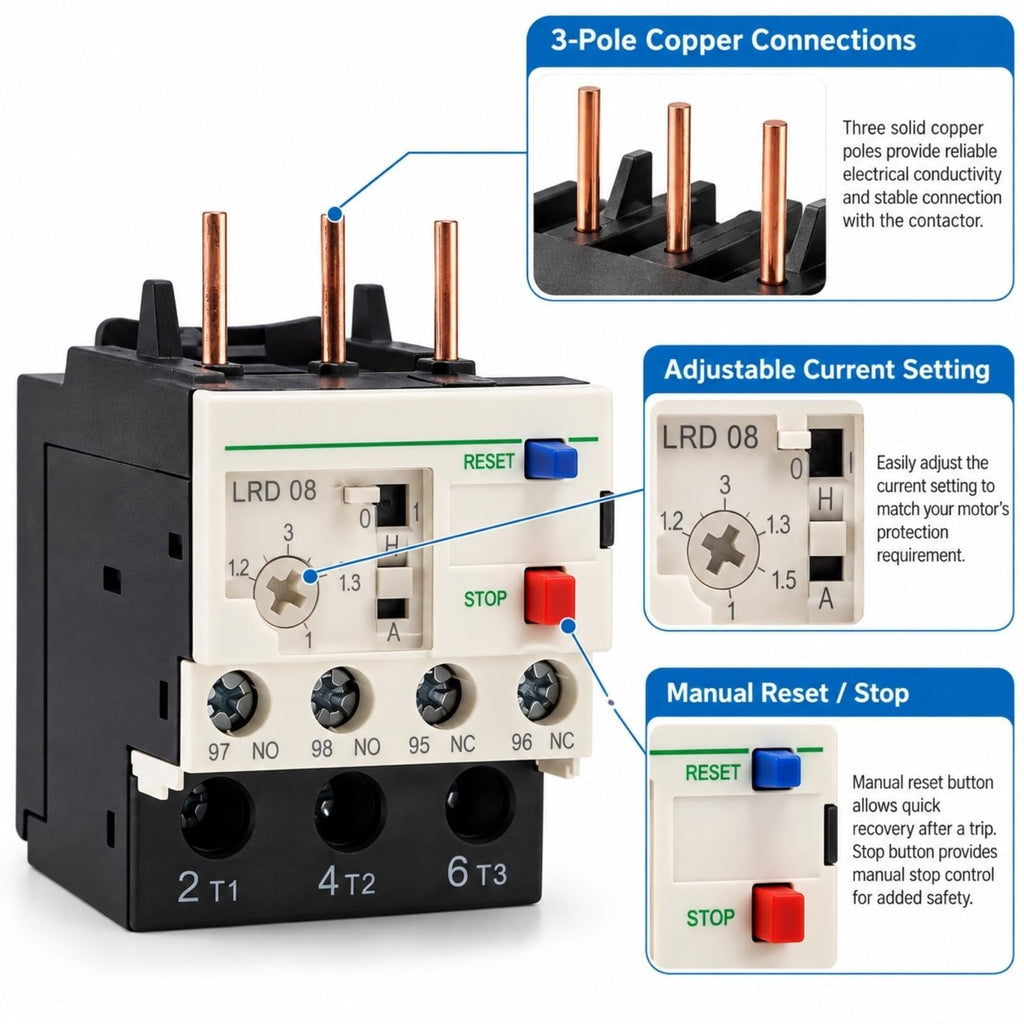

• Accessible Front Controls: An adjustable current dial, RESET button, STOP button and operating mode selector provide access to setup and operation without removing the relay from its installed position.
• Three-Pole Connection Design: Upper connection pins and lower 2/T1, 4/T2 and 6/T3 terminals support motor starter circuit integration. Includes one relay; mating contactor compatibility depends on the connection interface.

Free shipping included. 30-day hassle-free returns.
