MakerFocus Nano V3.0 Board ATmega328P MCU CH340 USB-UART Chip
MakerFocus Nano V3.0 Board ATmega328P MCU CH340 USB-UART Chip
Key features
- Main Chip: Nano V3.0 board uses ATMEGA328P as main chip. Support ISP download, USB download and power supply. Fully compatible with Arduino Nano, Windows, MAC and Linux operating systems

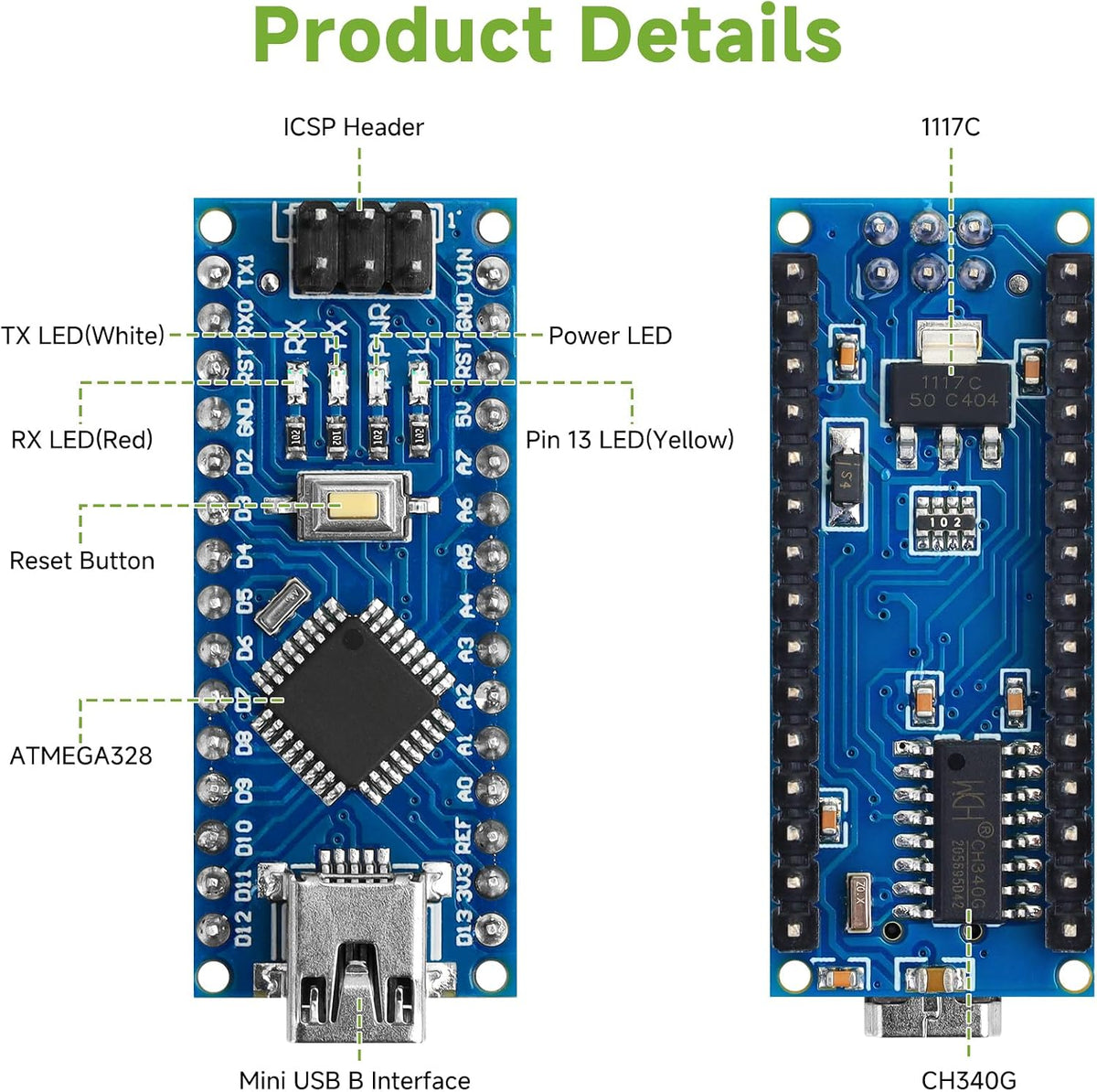

- Upgrade USB Bus Adapter Chip: Upgrade CH340 chip, not FT232, please install the driver first. CH340G supports full-speed USB device interface, compatible with USB V2.0, achieve USB to serial or USB to print port implementation
- Power Supply: Nano board can be powered via Mini USB B port, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source, without the need for a power selection jumper

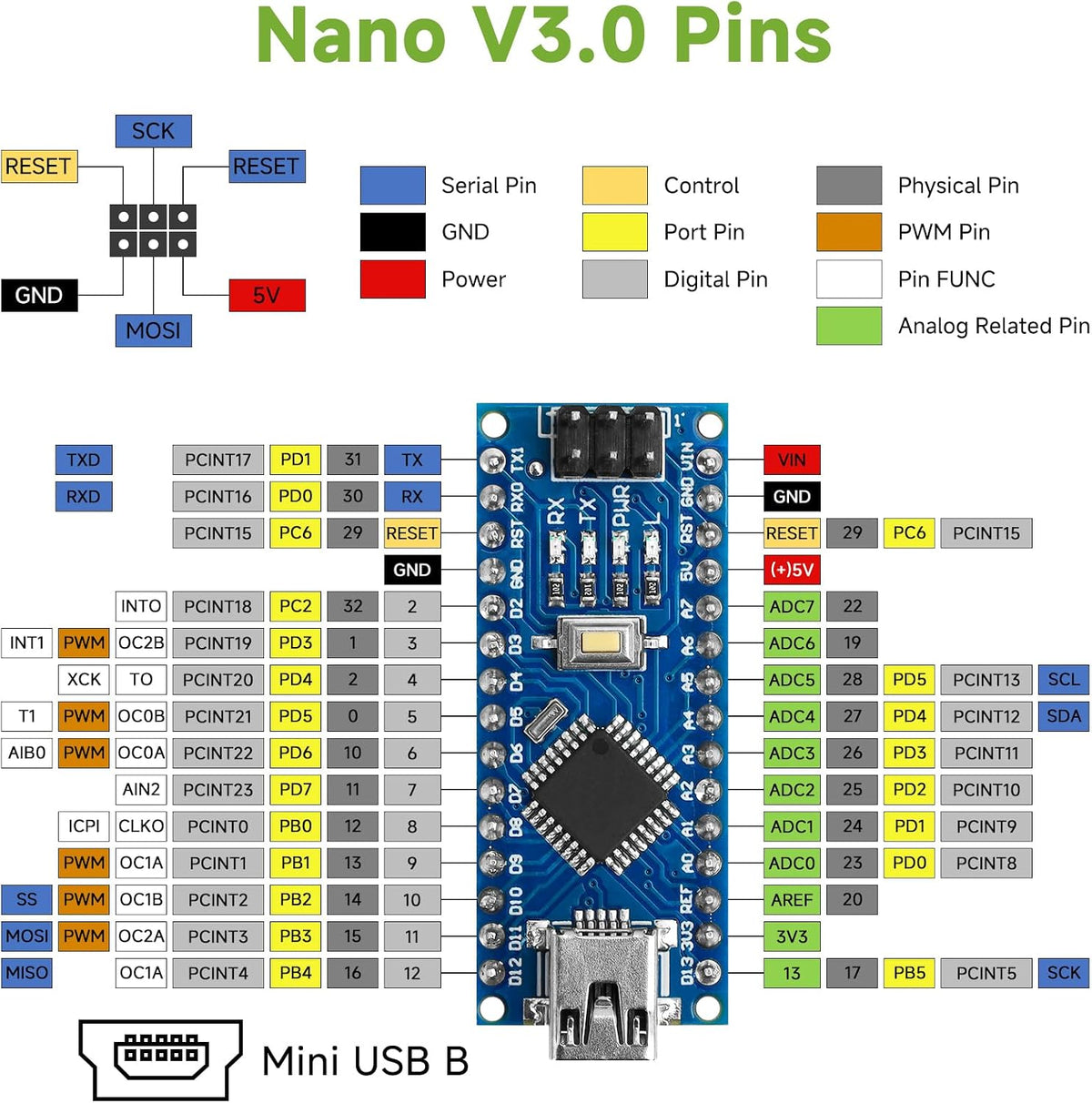

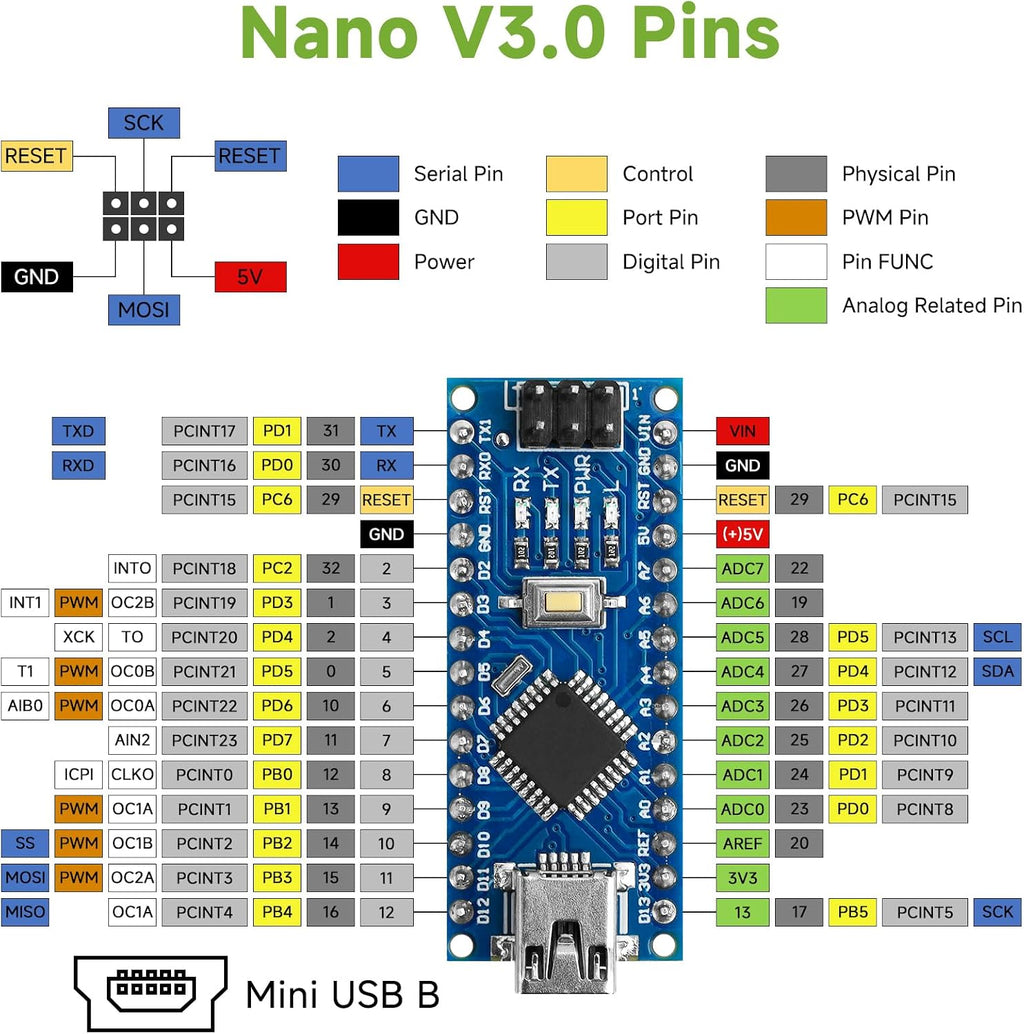

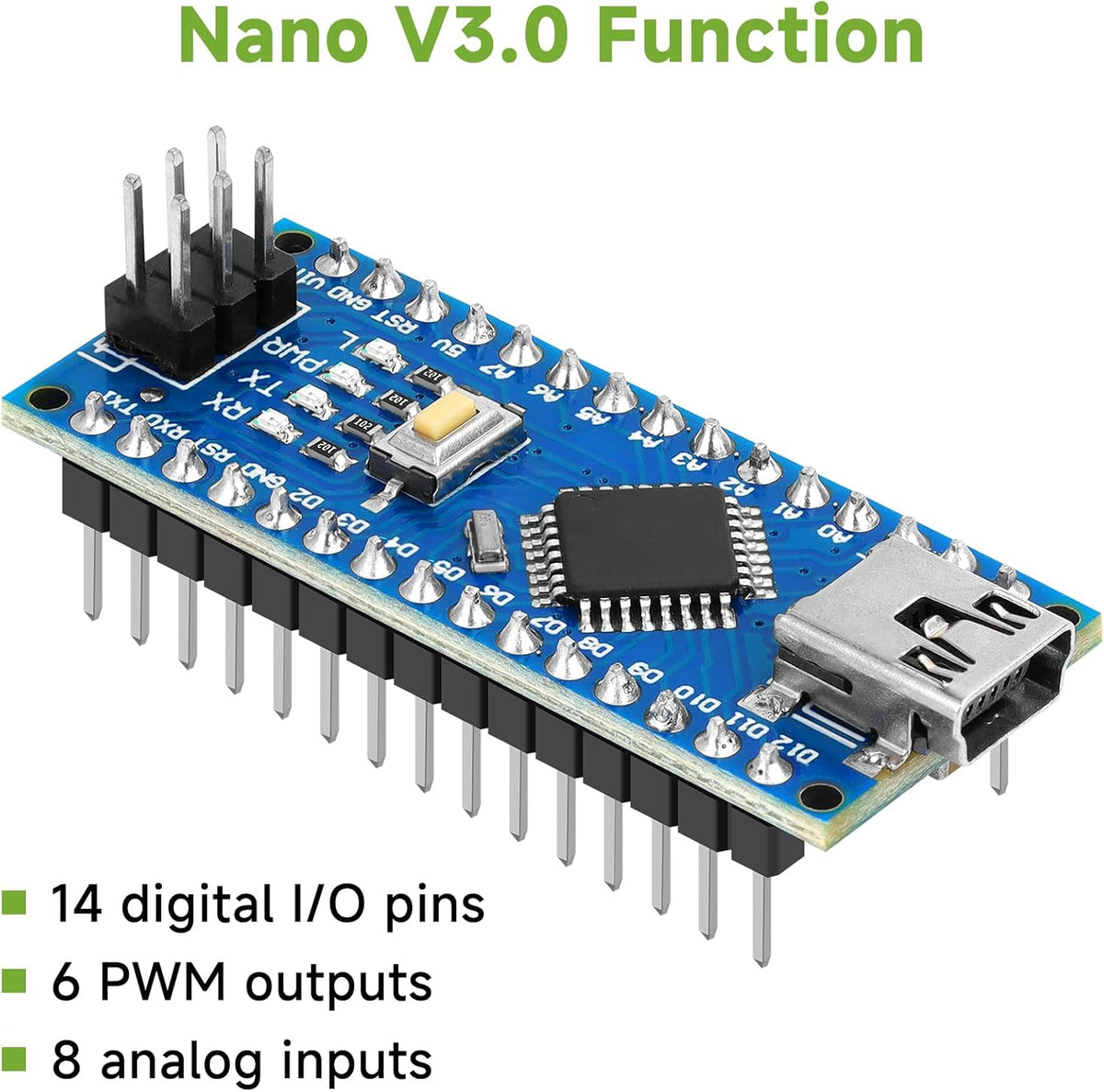

- Perfect Design: Nano V3.0 is a smallest, complete and breadboard friendly board. The board has 14 digital I/O pins, 6 PWM outputs, 8 analog inputs. It is enough for most applications

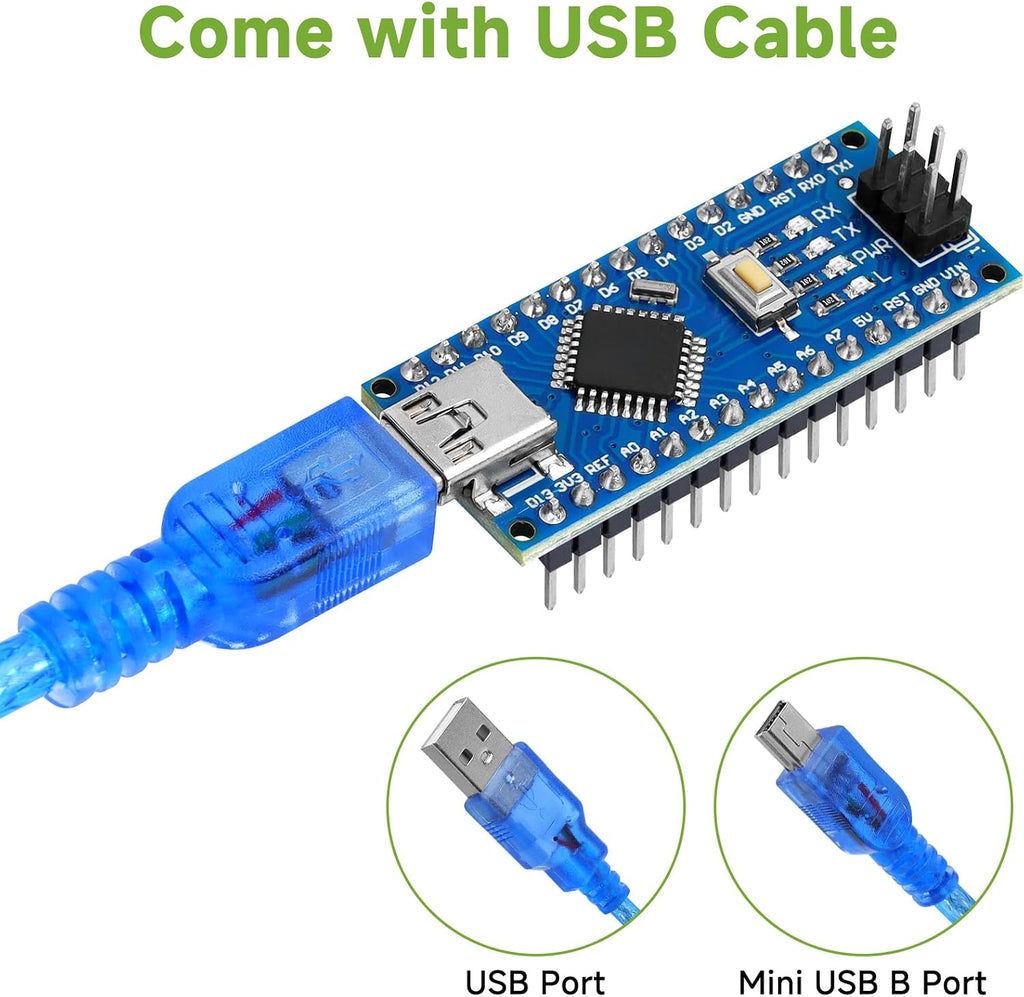

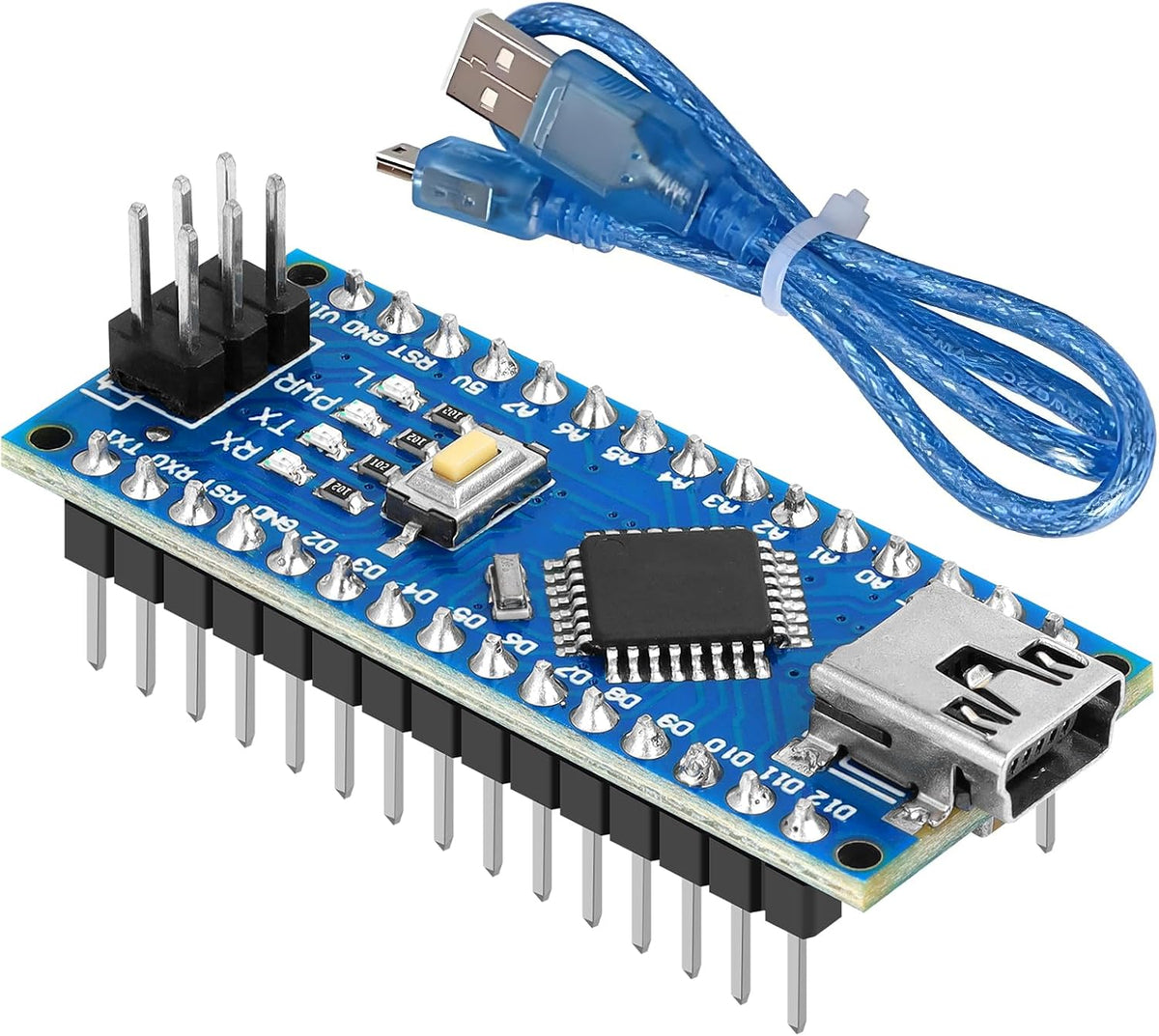

- What You Get? You will get 1pcs pre-soldered Nano board and 1pcs 30cm/11.81-inch Mini USB B cable
Nano V3.0 ATmega328P Microcontroller Board w/USB Cable for Arduino Features: Fully compatible with Arduino Nano V3.0 ATmega328P-AU ATmega328 Microcontroller Bootloader installed, ready to upload sketches from Arduino software Microcontroller: ATmega328P-AU Operating Voltage: 5V Input Voltage (recommended): 7V-12V Input Voltage (limits): 6V-20V Digital I/O Pins 14 (of which 6 provide PWM output) Analog Input Pins 8 DC Current per I/O Pin: 40mA DC Current for 3.3V Pin: 50mA Flash Memory: 32 KB (ATmega328) of which 2 KB used by bootloader SRAM: 2 KB EEPROM: 1 KB Clock Speed: 16 MHz Dimension: Approx. 45x17x19mm Cable Length: 245mm Color: Blue(as the picture shows) How to use: 1.Download IDE of Arduino Download link: http://arduino.cc/en/Main/Software (Copy to open) 2.Download USB Chip driver Download link: https://www.wch-ic.com/downloads/category/30.html?page=1 3.Plug NANO development board, the driver will automatically install 4.Choose the NANO board in the die 5.Select the COM port, this can be in My Computer inquiries, just inside your UNO development board port 6.The best choice, Arduino comes with the routine program, burning into it Youtu be video: https://www.youtube.com/
Free shipping included. 30-day hassle-free returns.
