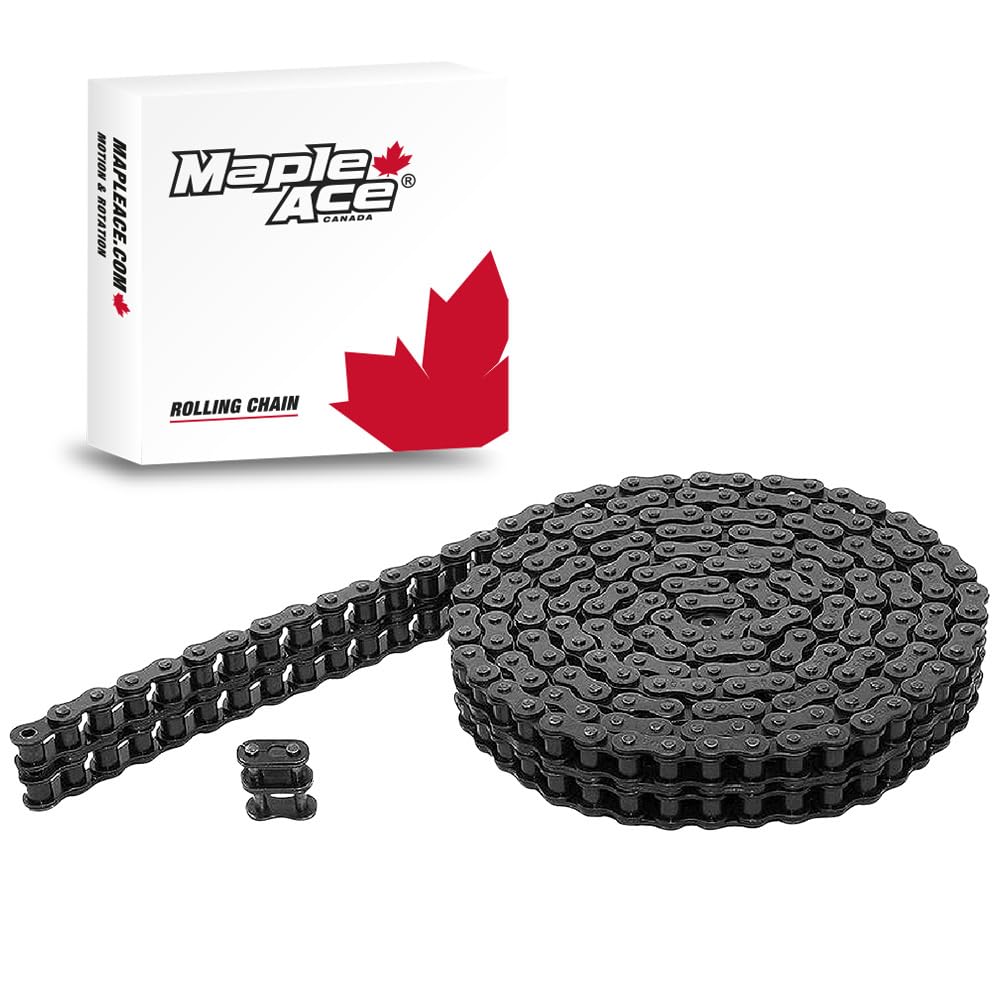

MAPLE ACE 10B-2 Roller Chain Double Strand 10 Feet Plus Connecting Master Link

Key features

• 10B-2 Roller Chain is a 5/8 inch pitch BS Standard Roller Chain Duplex Double Strand
• Interchange to BS/ISO No. 10B-2, RS10B-2, PHC10B-2
• The Roller Chains are Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
• Application: Industrial Machinery, Conveyor Systems, Packaging Equipment, Agricultural Equipment, Construction Equipment, Material Handling Equipment, Food & Beverage Industry, Textile Industry,Power Transmission Systems,ATVs
• Specializing in the Exclusive Production of Chains with High Performance and Long Life.

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant. Higher tensile strength for superior impact resistance. Heat treatment to achieve ideal hardness. Every package contains a 10-feet chain and 2 connecting links. Additional connecting and offset links can be bought separately at our store. The chain can be cut to desired length using a Chain Breaker. - Specification: Item 10B-2, BS/ISO Chain number 10B-2, Chain Length 10 ft, Number of Links 191L, Number of Strands 2, Chain Pitch Metric 15.875 mm, Chain Pitch Inch 0.625 in, Roller diameter d1 max Metric 10.16 mm, Roller diameter d1 max Inch 0.4 in, Width between inner plates b1 min Metric 9.65 mm, Width between inner plates b1 min Inch 0.38 in, Pin diameter d2 max Metric 5.08 mm, Pin diameter d2 max Inch 0.2 in, Pin length L max Metric 36.1 mm, Pin length L max Inch 1.42 in, Pin length Lc max Metric 37.5 mm, Pin length Lc max Inch 1.48 in, Plate height h2 max Metric 14.7 mm, Plate height h2 max Inch 0.58 in, Plate thickness T max Metric 1.7 mm, Plate thickness T max Inch 0.07 in, Ultimate Tensile Strength Q min 44.5 kN, Average Tensile Strength Q0 56.2 kN, Weight (kg/m) 1.840 kg,

Free shipping included. 30-day hassle-free returns.
