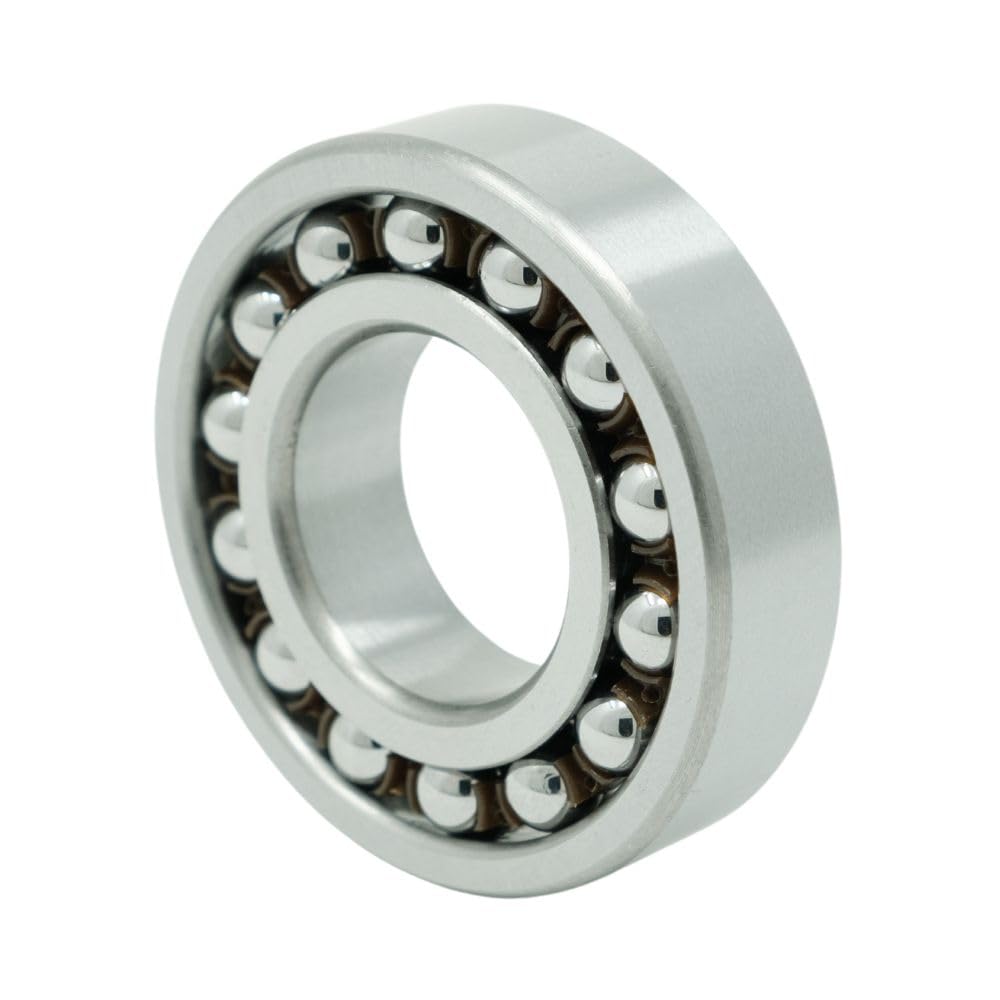

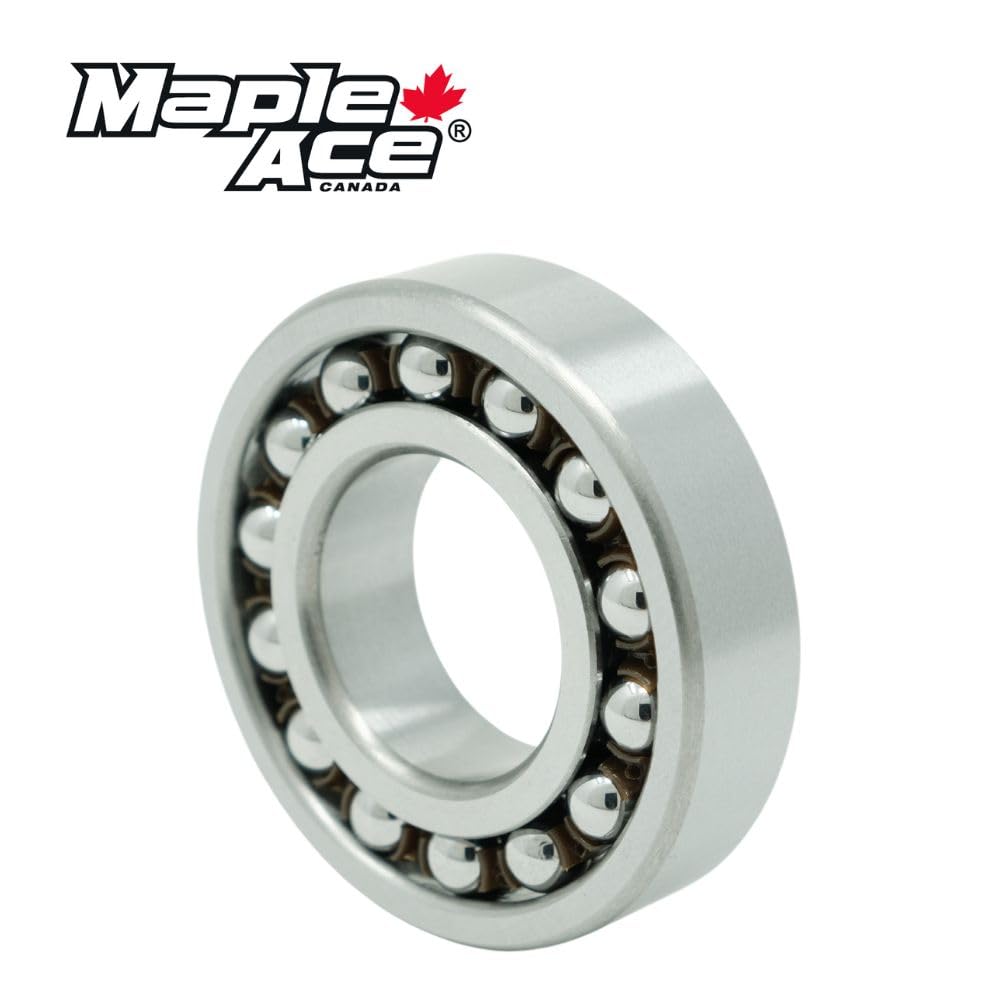

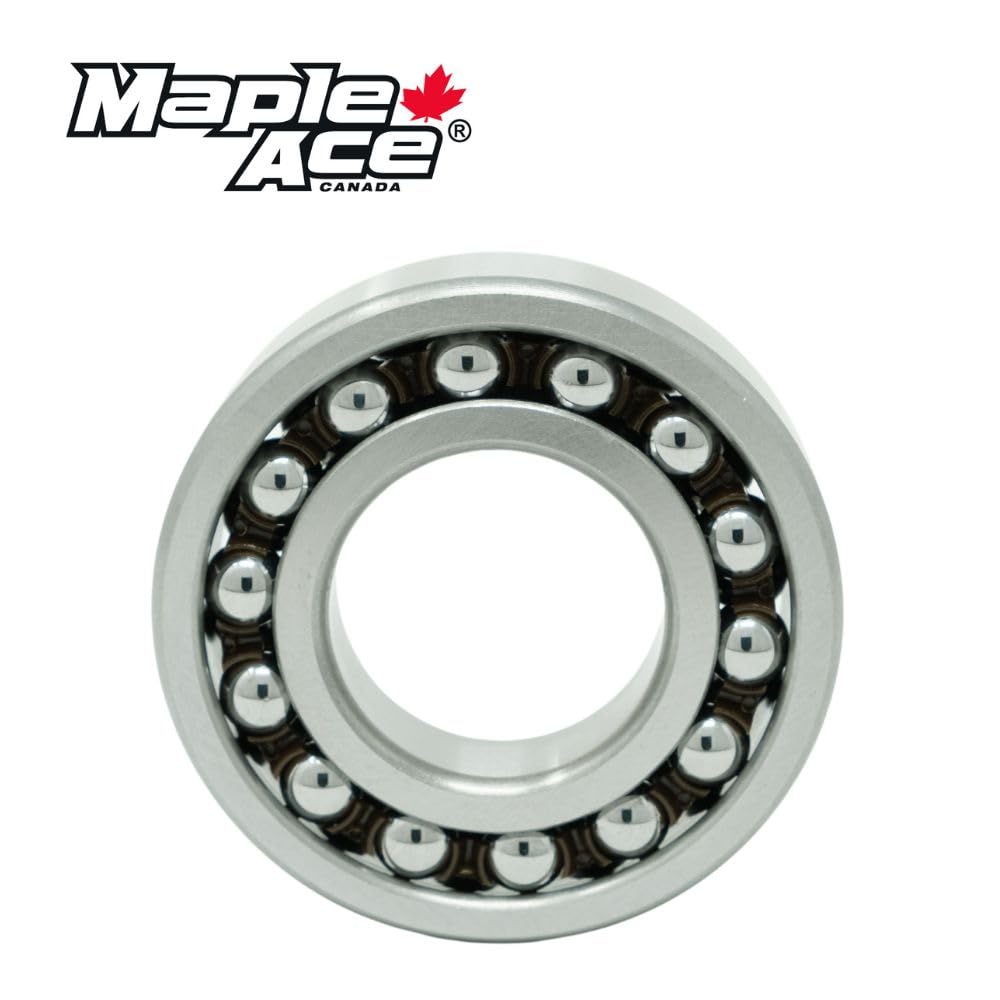

MAPLE ACE 1205, 1205 TV, 1205 ETN9 Self-aligning Ball Bearing 25x52x15mm (Qty 1)

Key features

• 1205 Self-aligning Ball Bearing dimensions: Bore Diameter 25mm, Outside Diameter 52mm, Width 15mm. 100% Chrome Steel.
• Interchange to 1205, 1205 TV, 1205 TVH, 1205 ETN9, 1205 TNG

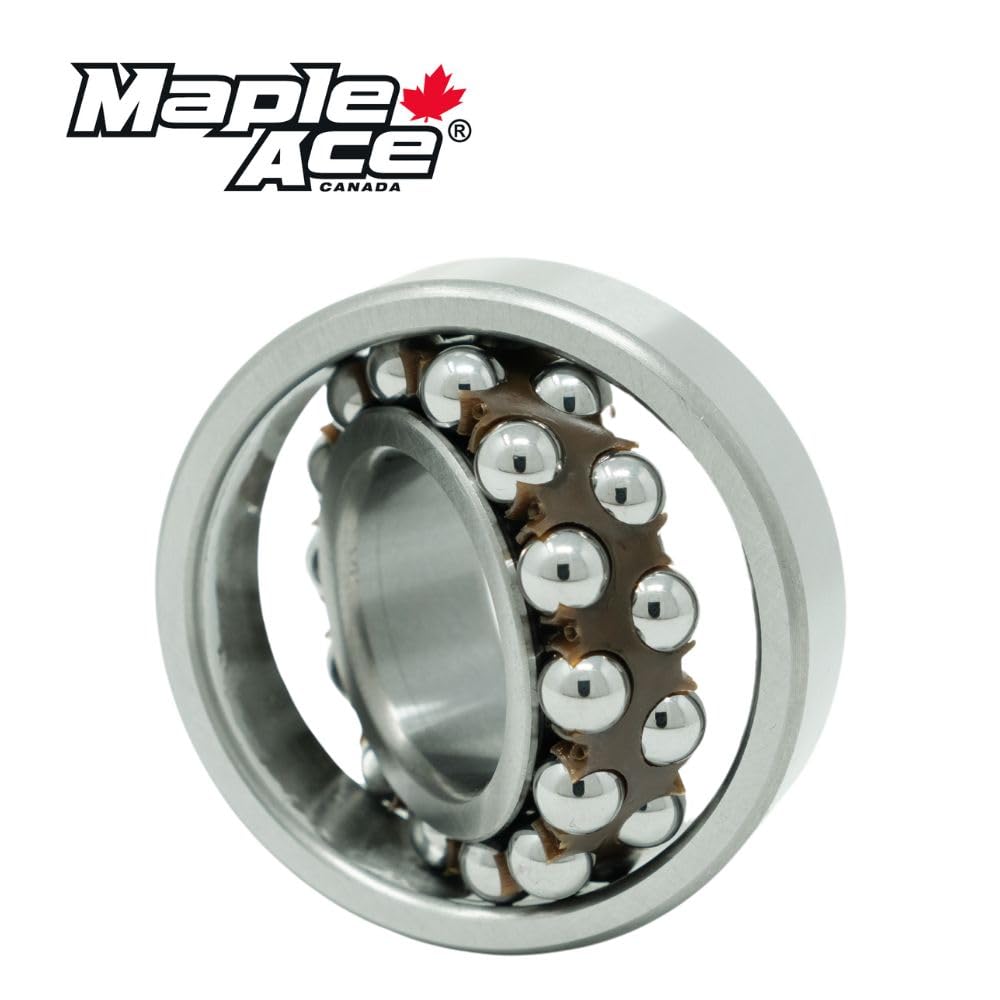

• This self-aligning ball bearing has two rows of balls and a common spherical outer raceway.
• Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

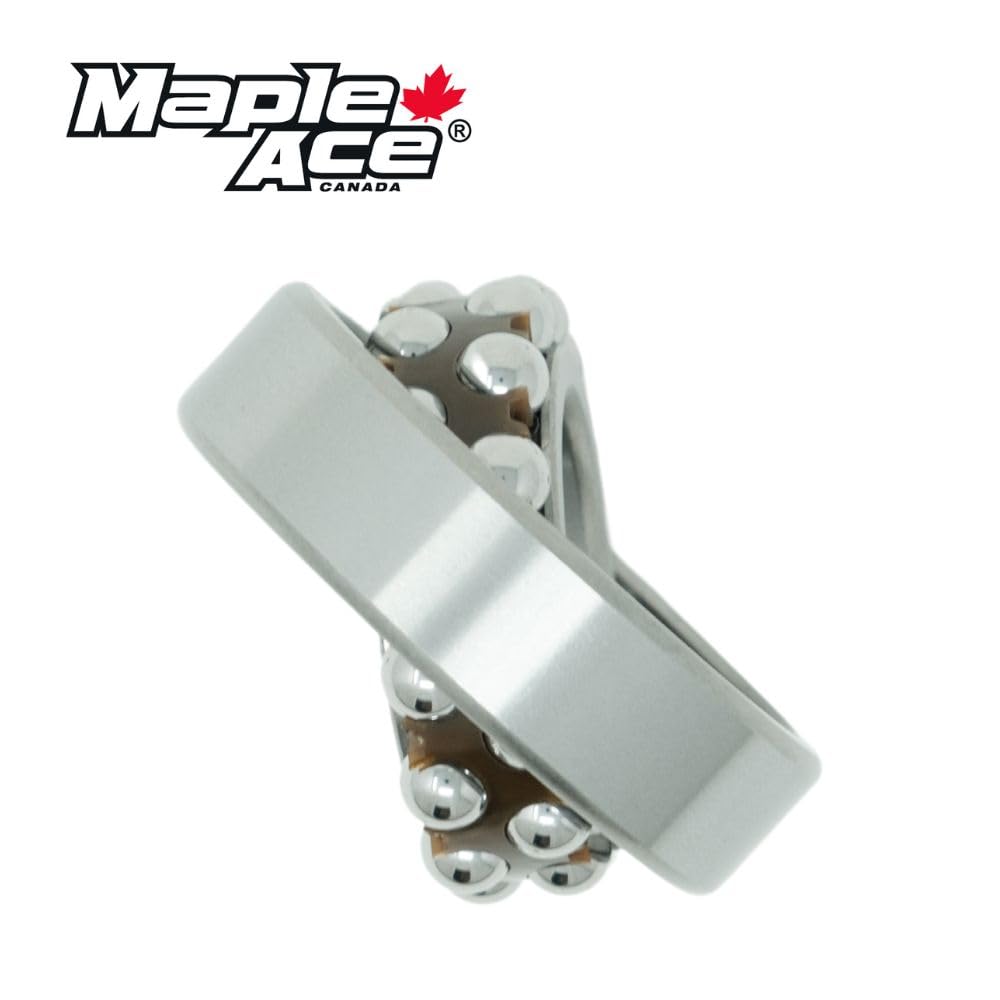

Self-aligning ball bearings have two rows of balls, constructed with a common sphered raceway in the outer ring and two deep, uninterrupted raceway grooves in the inner ring. These bearings are insensitive to angular misalignment of the shaft relative to the housing, making them highly effective for compensating for shaft deflection or misalignment. They accommodate both static and dynamic misalignment and offer excellent high-speed and light load performance. With low friction, they ensure smoother operation and reduced wear, enhancing overall efficiency and reliability. - Specification: Item 1205 TV, Bearing Type Self-aligning ball bearing, Bearing Type 1200, Bore Diameter 25.00mm, Outside Diameter 52.00mm, Width 15.00mm, Dynamic Load Rating Cr 14300N, Static Load Rating Cor 4000N, Limiting Speed 18000 r/min, Clearance CN, Tolerance Classes P5, Cage Non-metallic, Closures Without, Lubrication Type None, Rolling Element Indicator Ball, Material Gcr15, Product Weight 0.140 KG.

Free shipping included. 30-day hassle-free returns.
