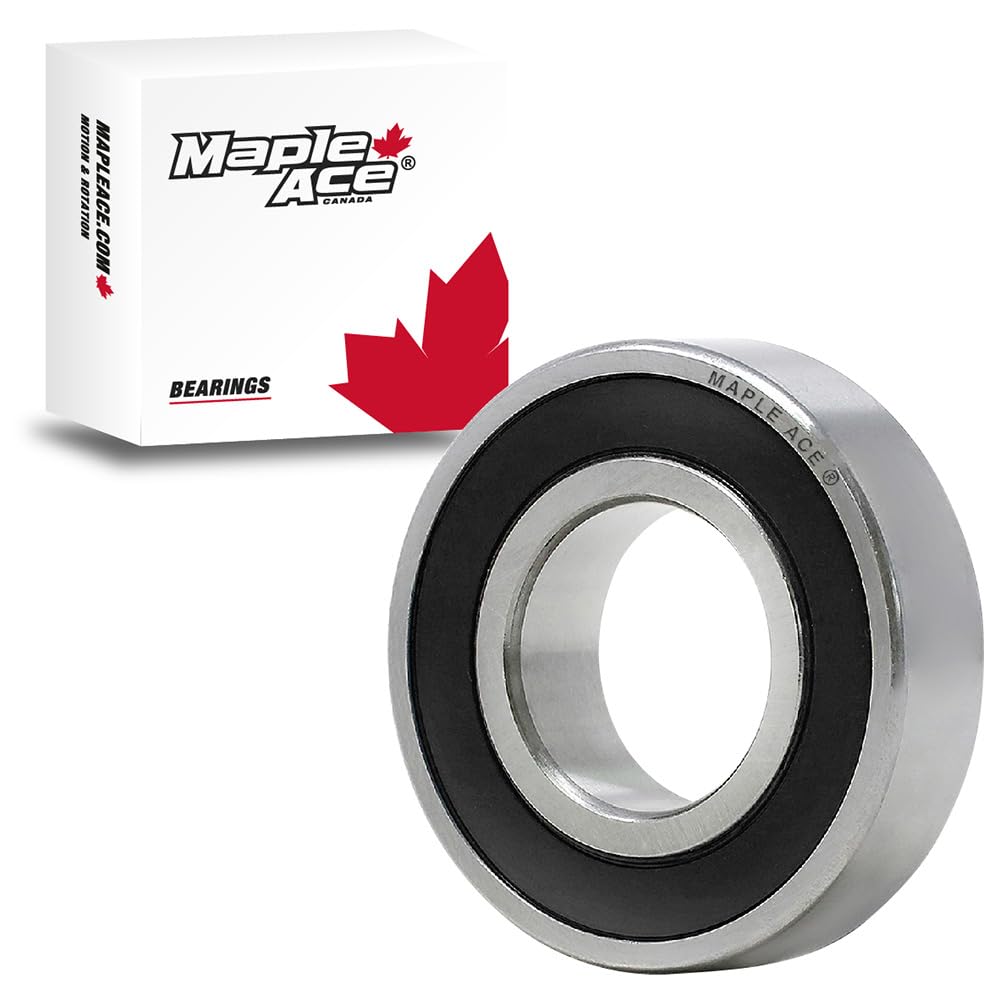

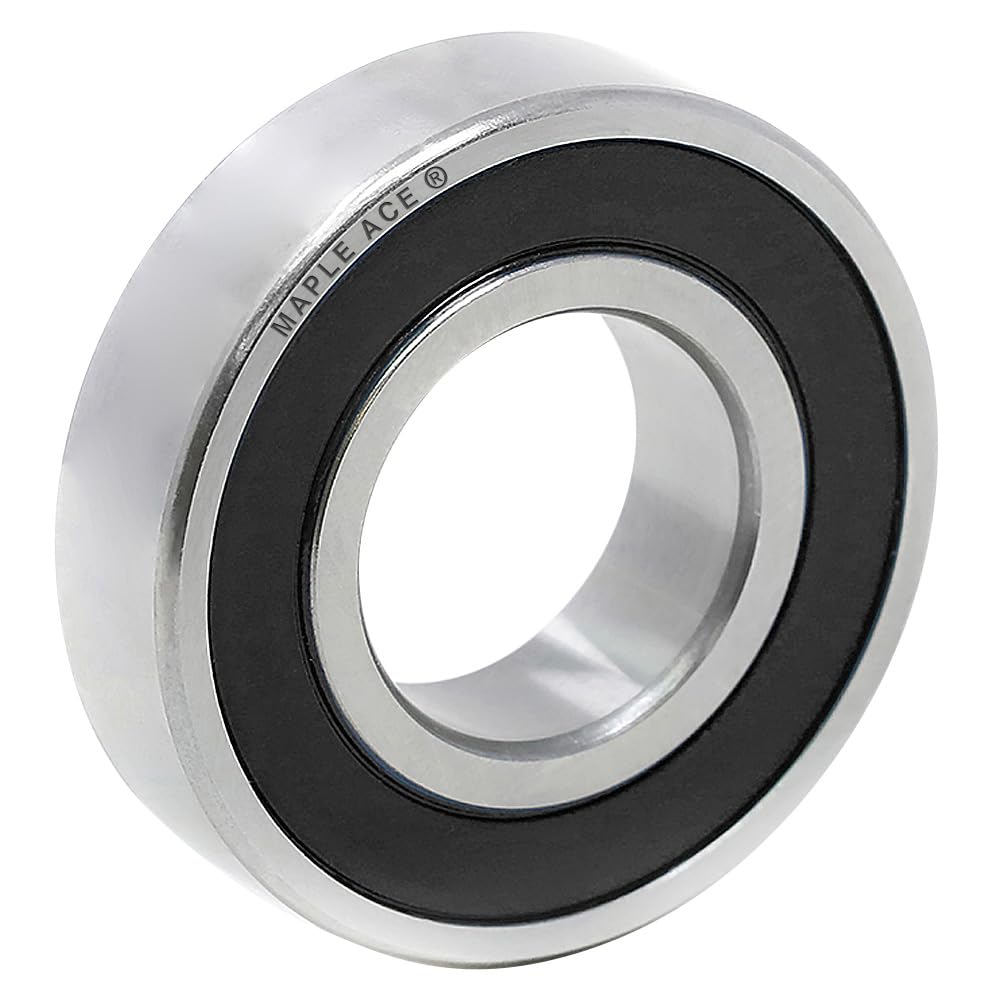

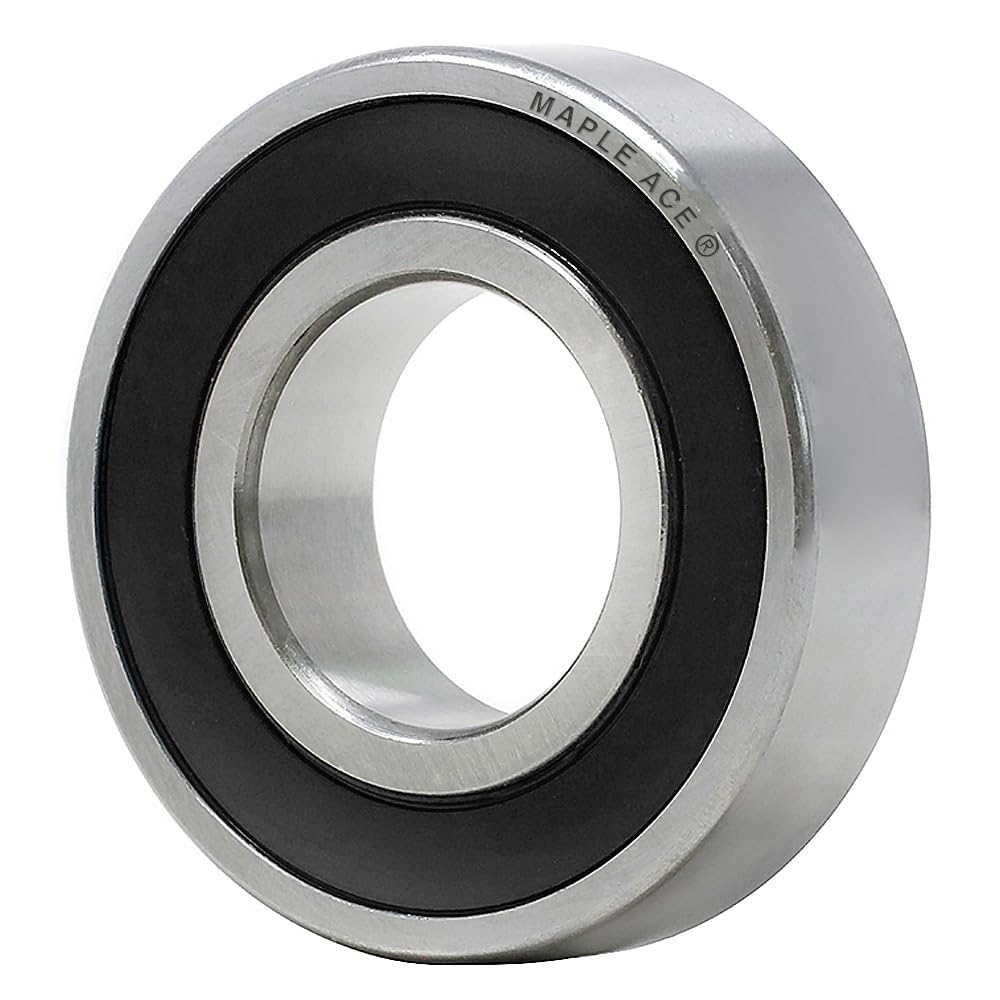

MAPLE ACE 6217-2RS C3 Ball Bearing 85x150x28mm 6217 2RS C3 Rubber Sealed (Qty 1)
MAPLE ACE 6217-2RS C3 Ball Bearing 85x150x28mm 6217 2RS C3 Rubber Sealed (Qty 1)
Key features
- 6217 2RS C3 Deep Groove Ball Bearing dimensions: Bore Diameter 85mm, Outside Diameter 150mm, Width 28mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High, and Low-temperature settings.
- Interchange to 6217, 6217 RS, 6217 RSR, 6217 2RSR, 6217 RS1, 6217 2RS1, 6217 2RSJEM, 6217 LU, 6217 LLU, 6217 DU, 6217 DDU, 6217 2NSL, 6217 2NSE, 6217 EE
- This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to stop dust from entering. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
- Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile, offering low friction and optimized performance for low noise, low vibration, and high rotational speeds. They can accommodate both radial and axial loads in both directions, making them suitable for a wide range of applications. These bearings are easy to mount and require less maintenance than many other types. The integral sealing system significantly prolongs bearing service life by keeping lubricant within the bearing and keeping out dust. - Specification: Item 6217-2RS-C3; Bore Diameter 85 mm; Outside Diameter 150 mm; Width, Total 28 mm; Width, Inner Ring 28 mm; Width, Outer Ring 28 mm; Basic Dynamic Load Rating (Cr) 87.1 kN; Basic Static Load Rating (C₀r) 64 kN; Limiting Speed 2,800 r/min; Rolling Element Ball; Number of Rows 1; Locating Feature (Outer Ring) None; Bore Type Cylindrical; Cage Material Sheet metal; Radial Internal Clearance C3; Tolerance Class P6; Bearing Material GCr15; Sealing Seal on both sides; Sealing Type Contact; Lubrication Grease; Relubrication Feature Without; Product Weight 1.80 kg.
Free shipping included. 30-day hassle-free returns.
