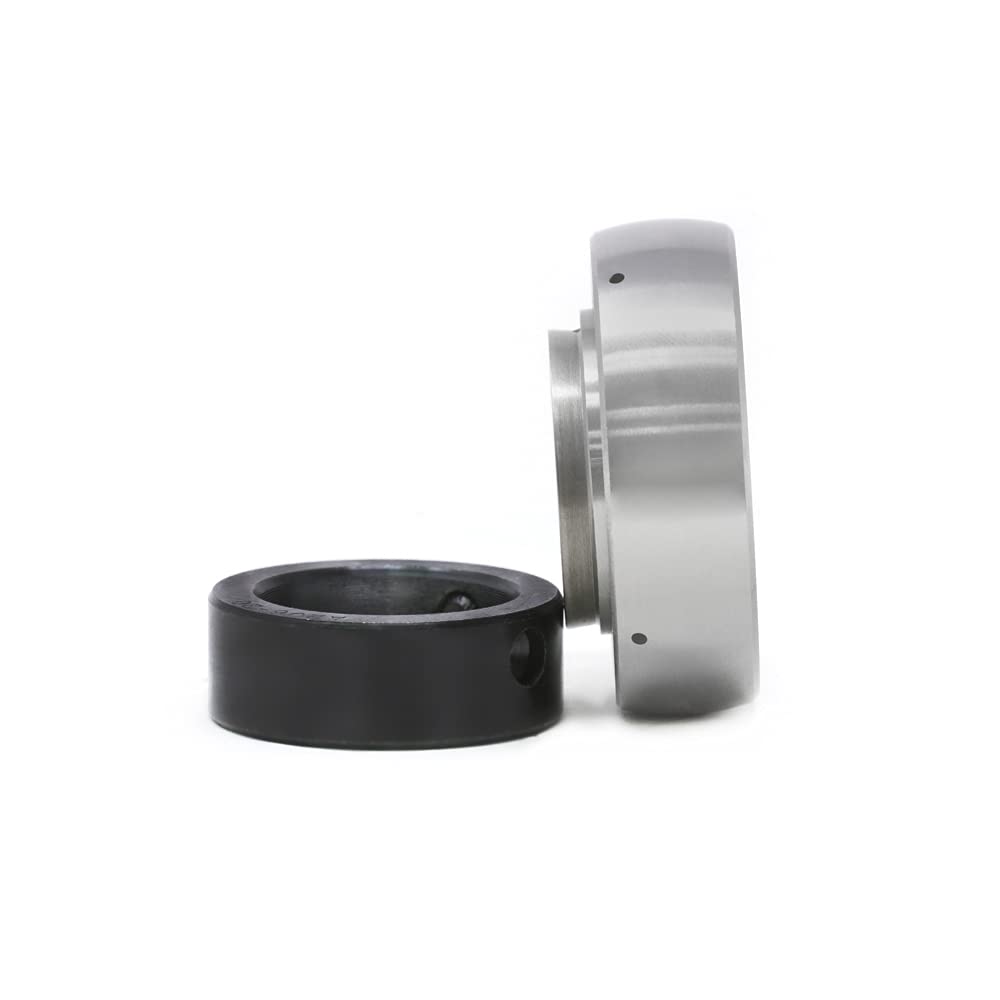

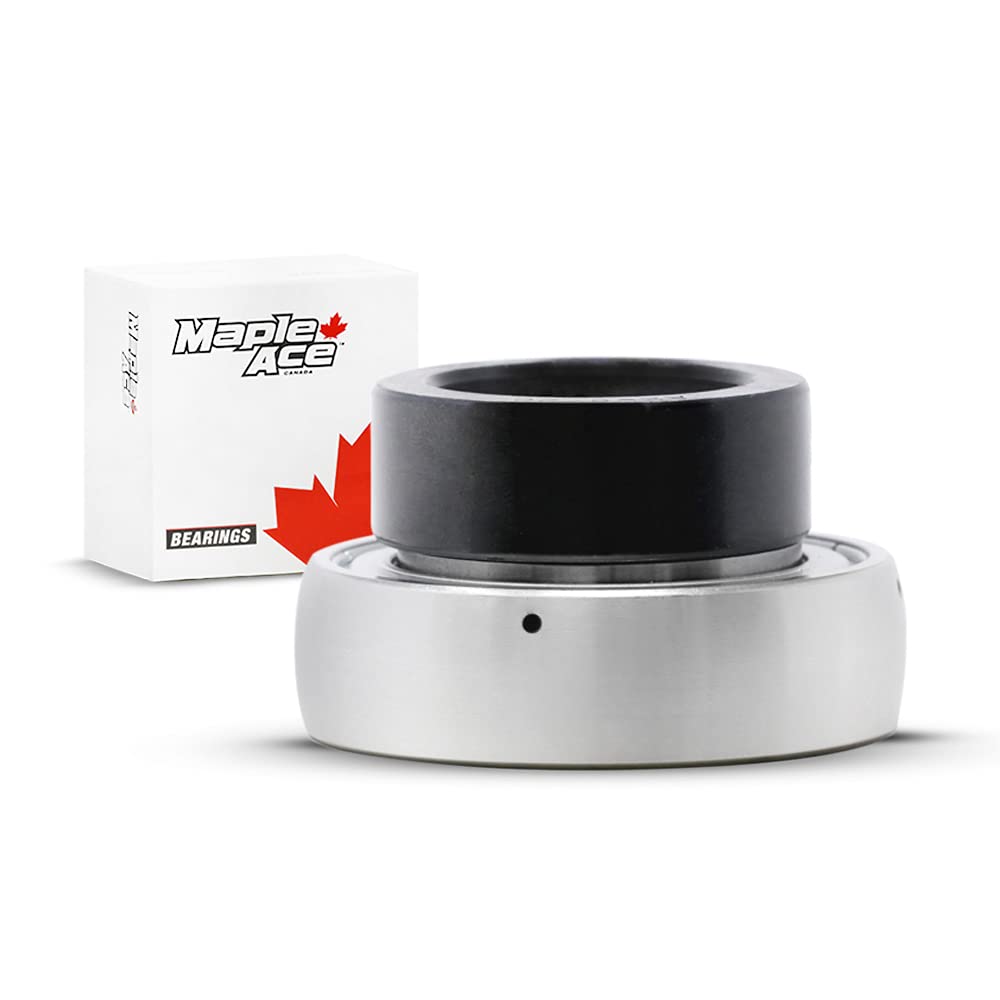

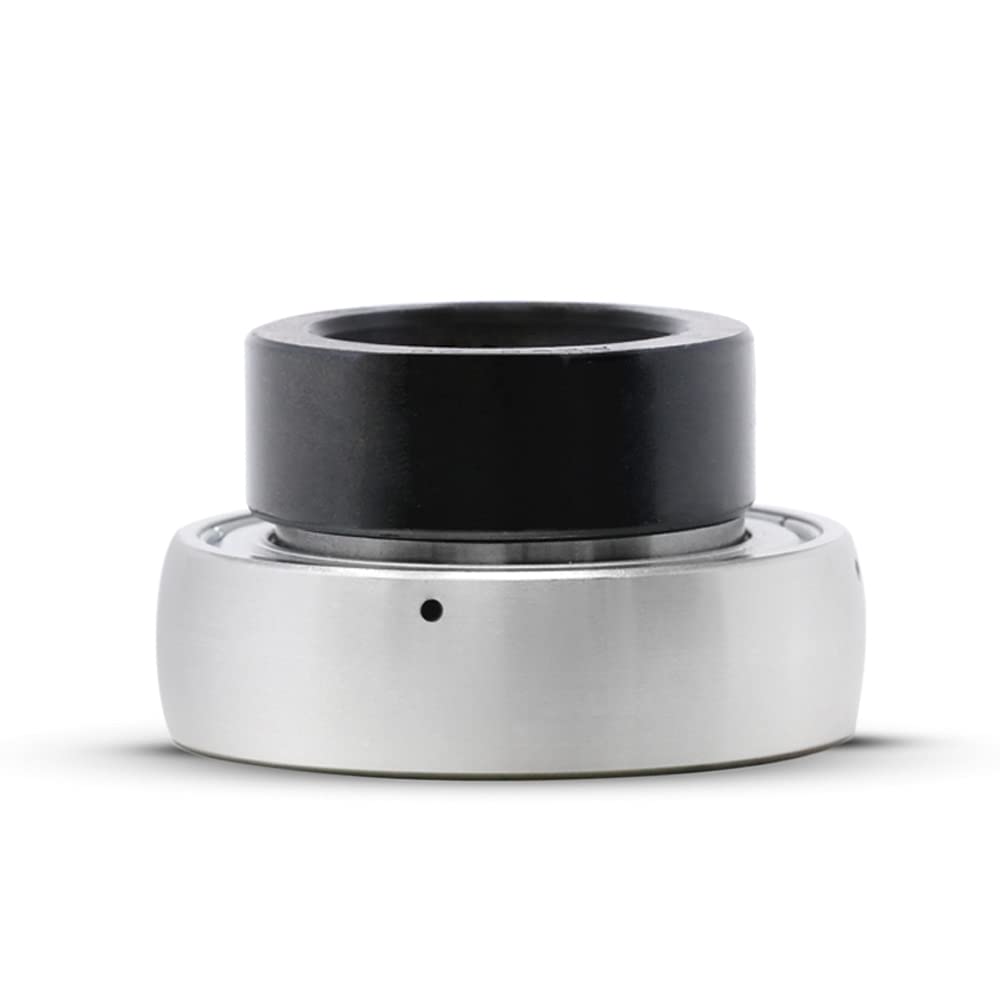

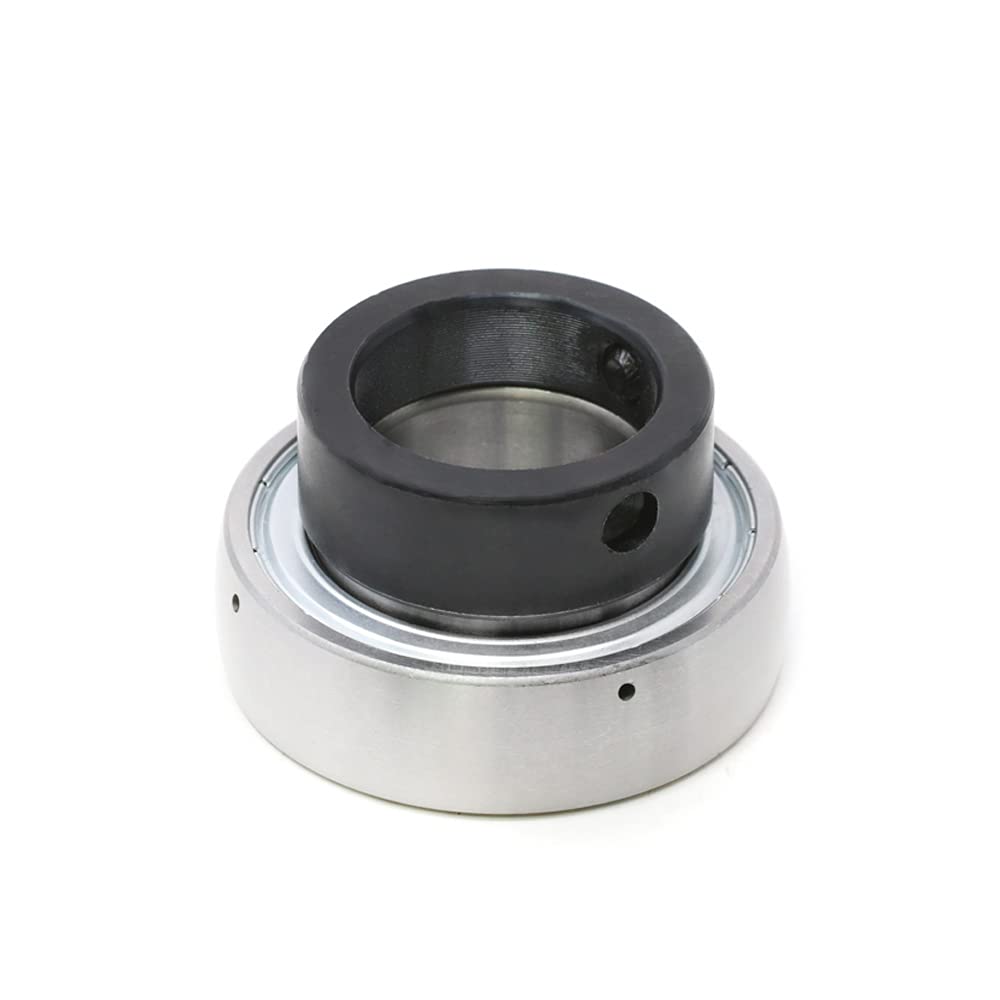

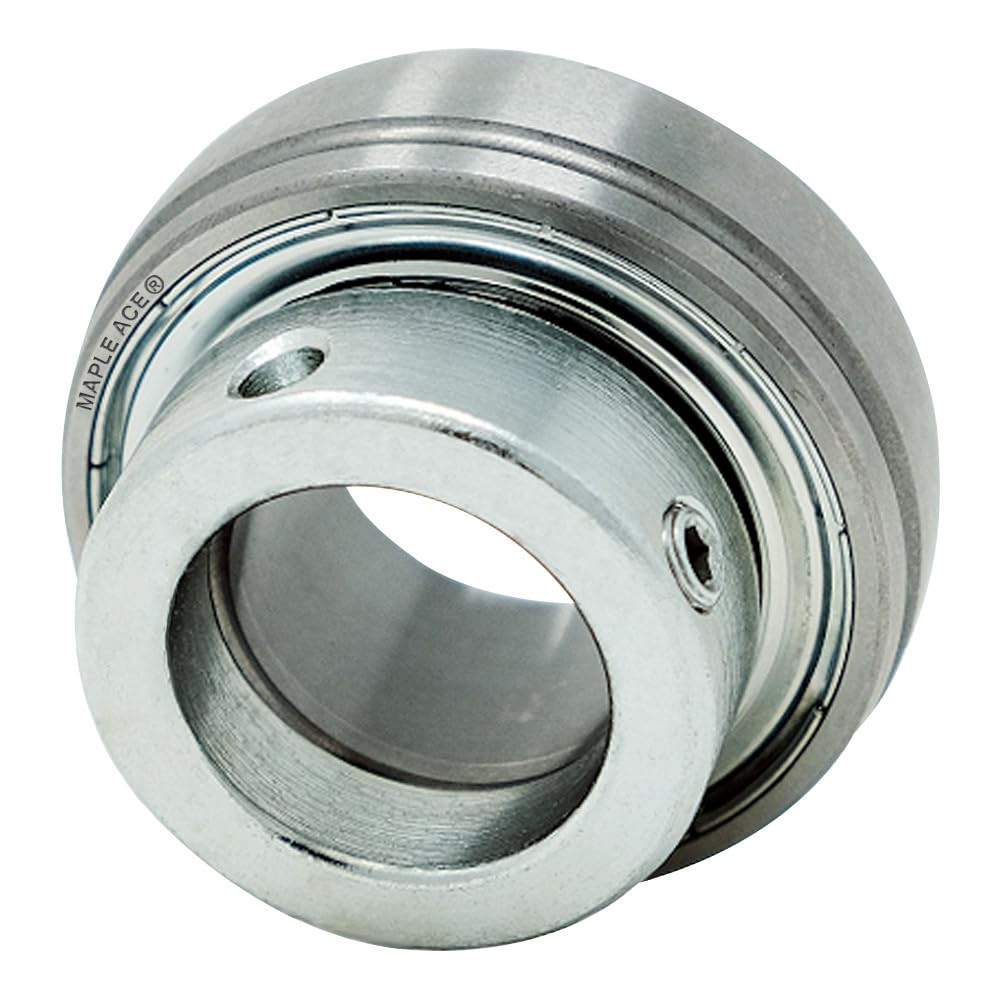

MAPLE ACE SA204-12 / GRA012-NPPB / GRA012RRB Insert Bearing 3/4" Bore Qty 2

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

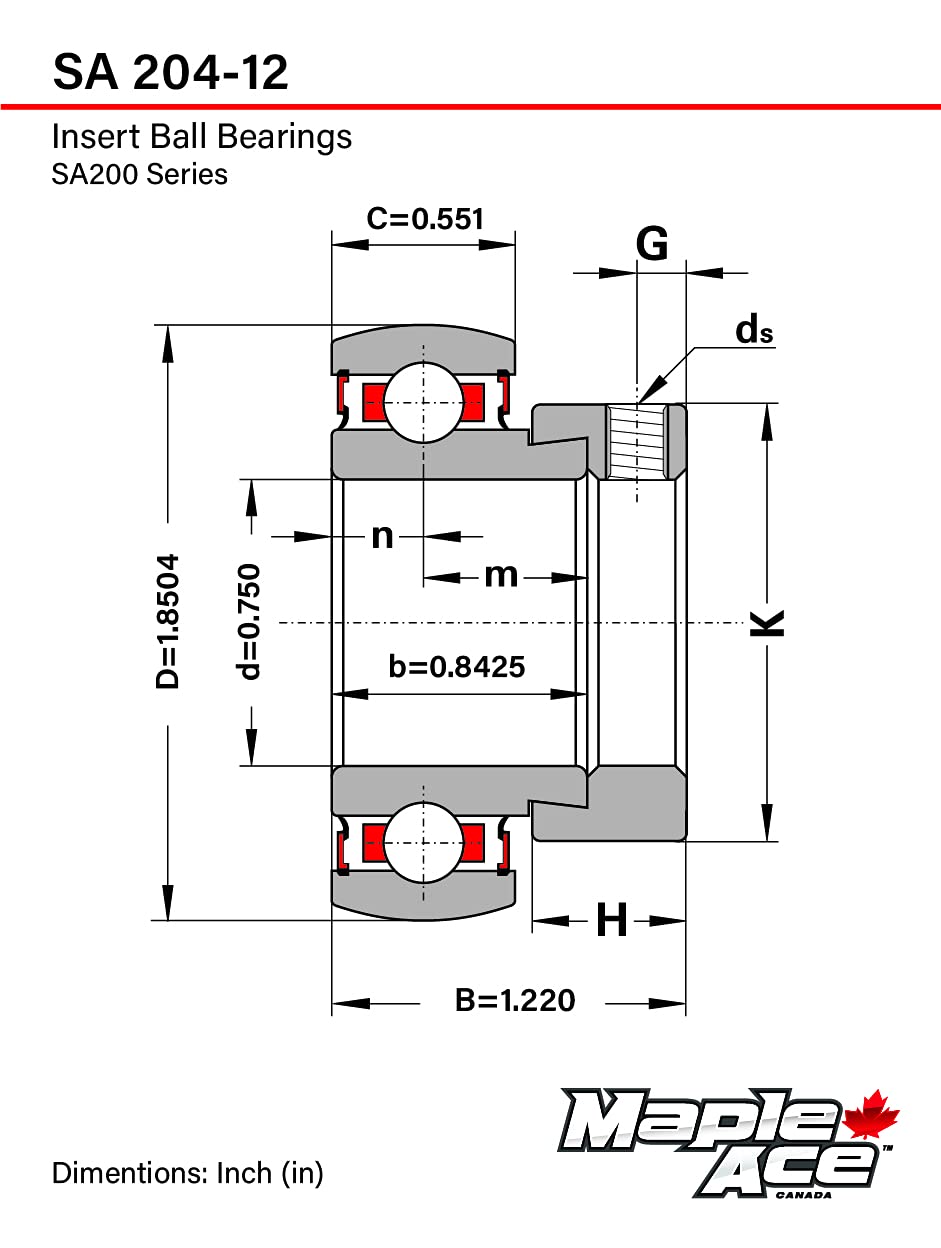

Insert bearing with eccentric locking collar and narrow inner ring. Based on a sealed deep groove ball bearing design, it provides smooth operation. The spherical outer ring is designed for use in self-aligning mounted bearing arrangements, helping accommodate minor misalignment. Intended for applications operating in a constant direction of rotation, the bearing features a narrow inner ring extended on one side and an eccentric locking collar for quick and secure shaft mounting. Designed for long service life in a wide range of operating conditions. - Specification: Item SA204-12 G, Series SA200, Outer ring type Spherical, Bore Diameter Metric 19.05 mm, Bore Diameter Inch 3/4 in, Outside Diameter Matric 47.00 mm, Outside Diameter Inch 1.850 in, Width with Collar Matric 31 mm, Width with Collar Inch 1.22 in, Width Inner Ring Matric 21.40 mm, Width Inner Ring Inch 0.843 in, Width Outer Ring Matric 14.00 mm, Width Outer Ring Inch 0.551 in, Dynamic Load Rating Cr 12700 N, Static Load Rating Cor 6550 N, Limiting Speed 8500 r/min, Clearance Normal, Closures Shield on both sides, Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Re

Free shipping included. 30-day hassle-free returns.
