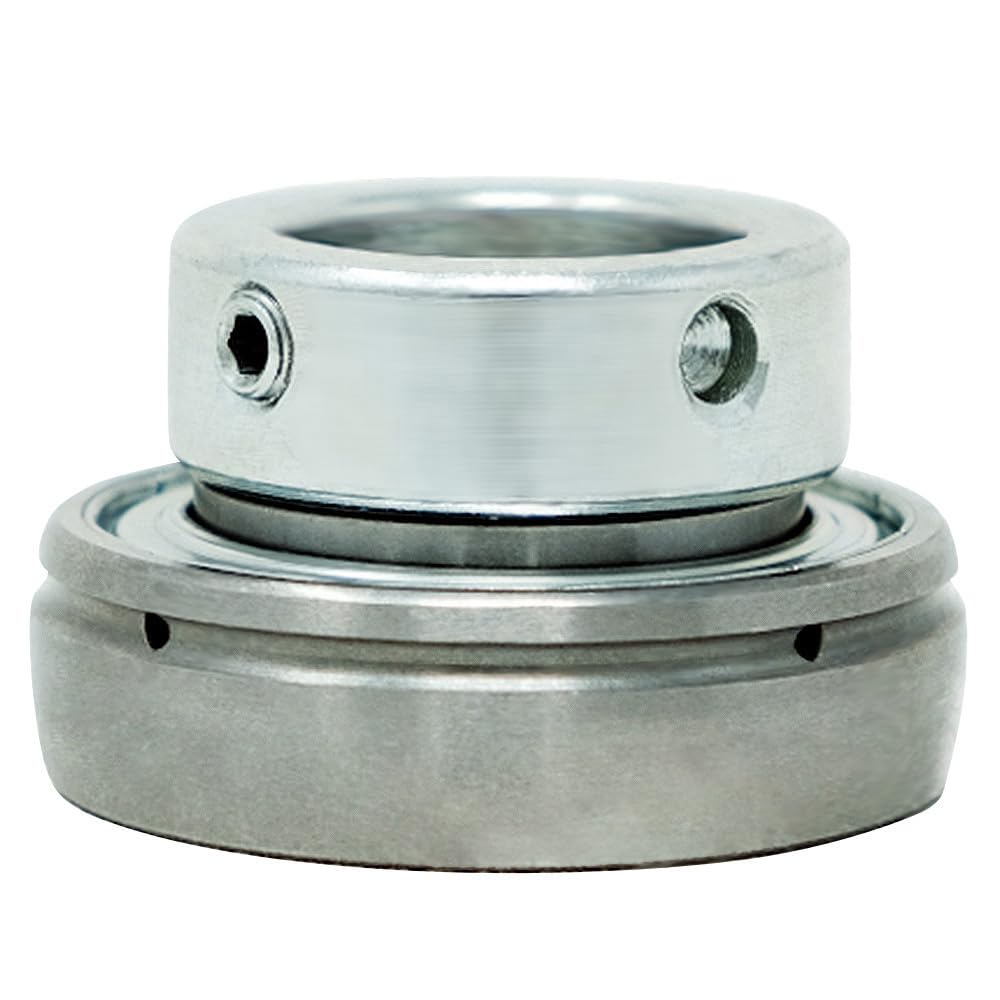

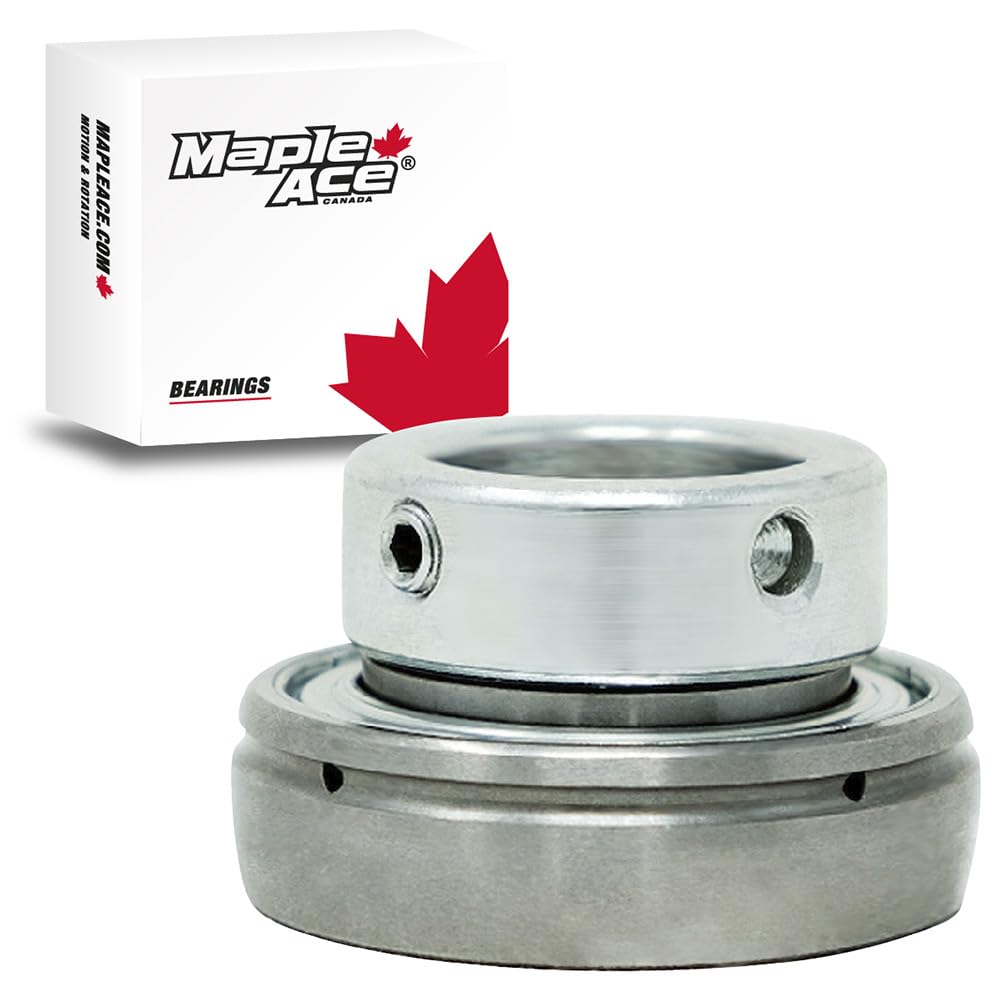

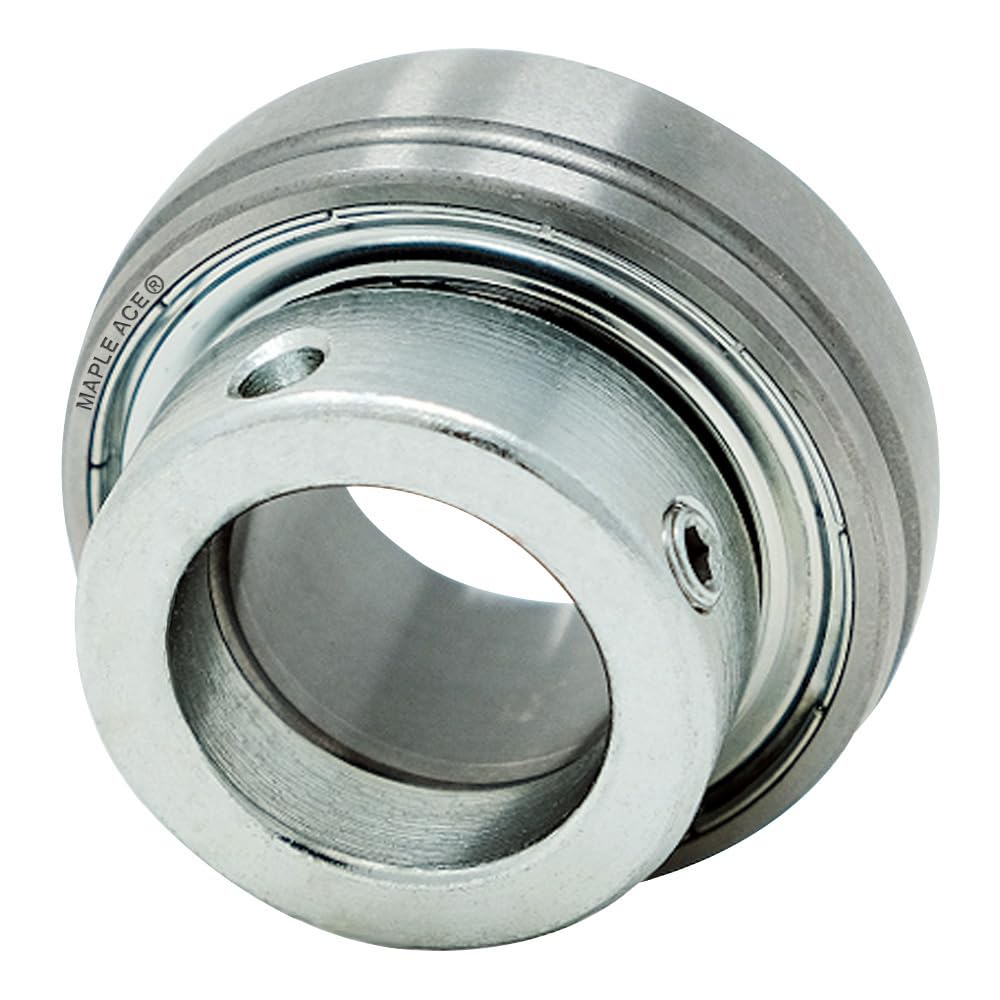

MAPLE ACE SA207-22 / GRA106-NPPB / GRA106RRB Insert Bearing 1-3/8" Bore

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

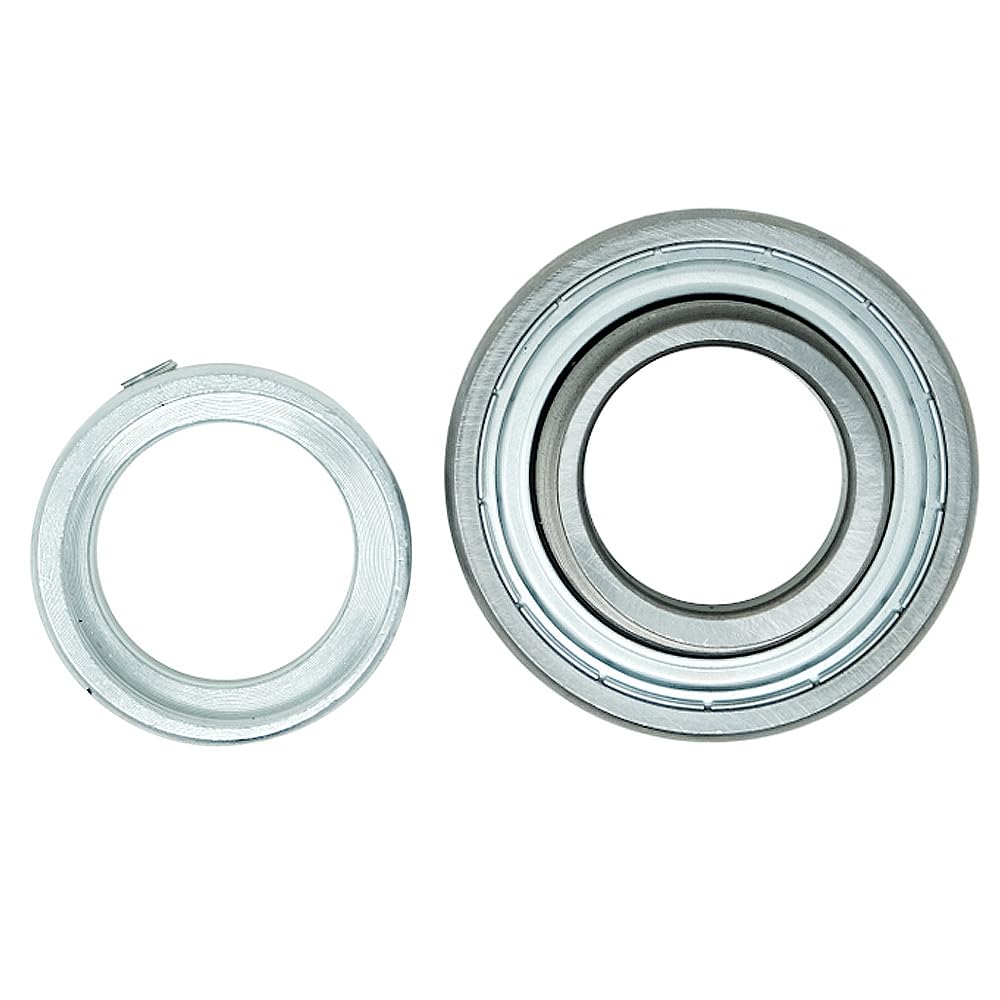

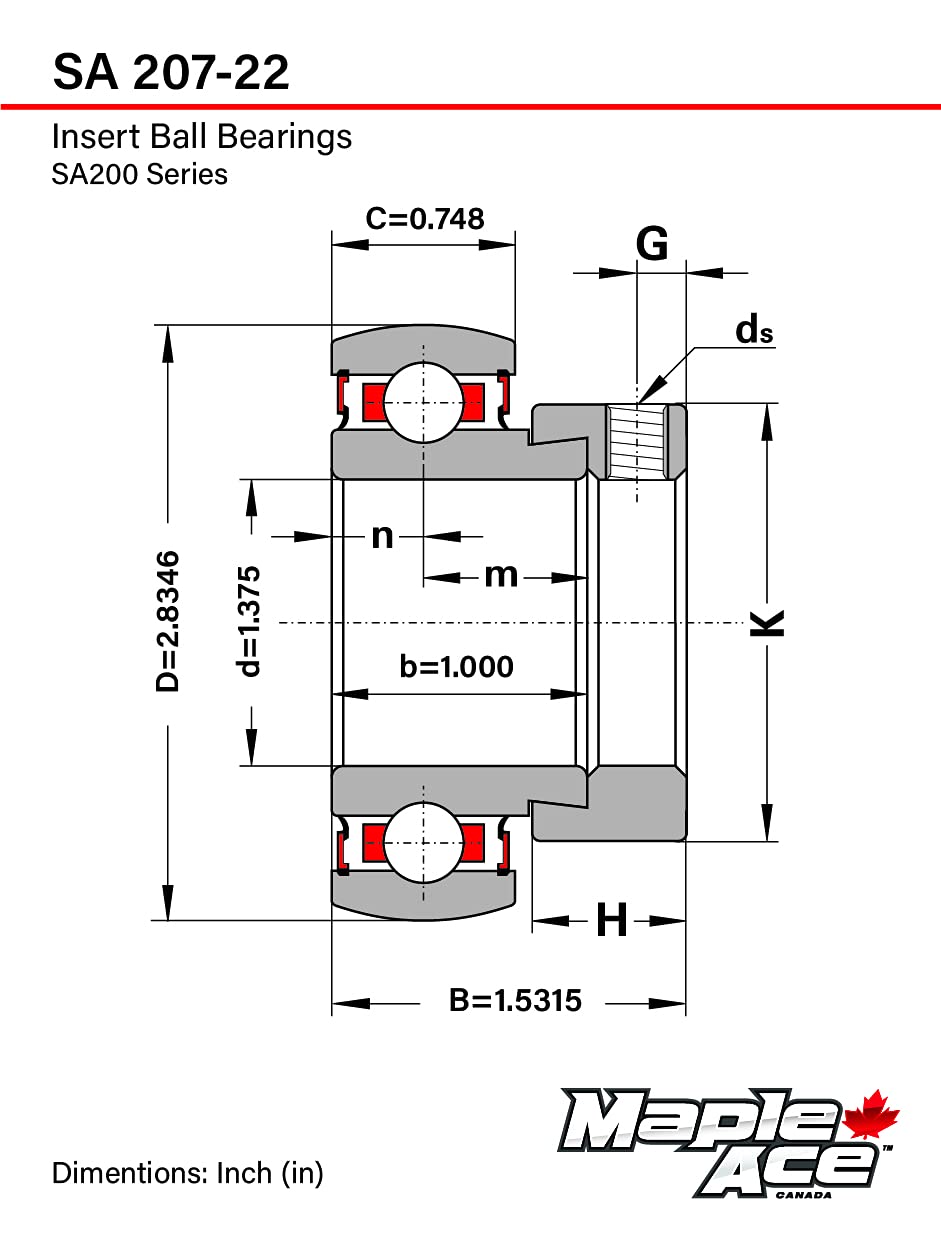

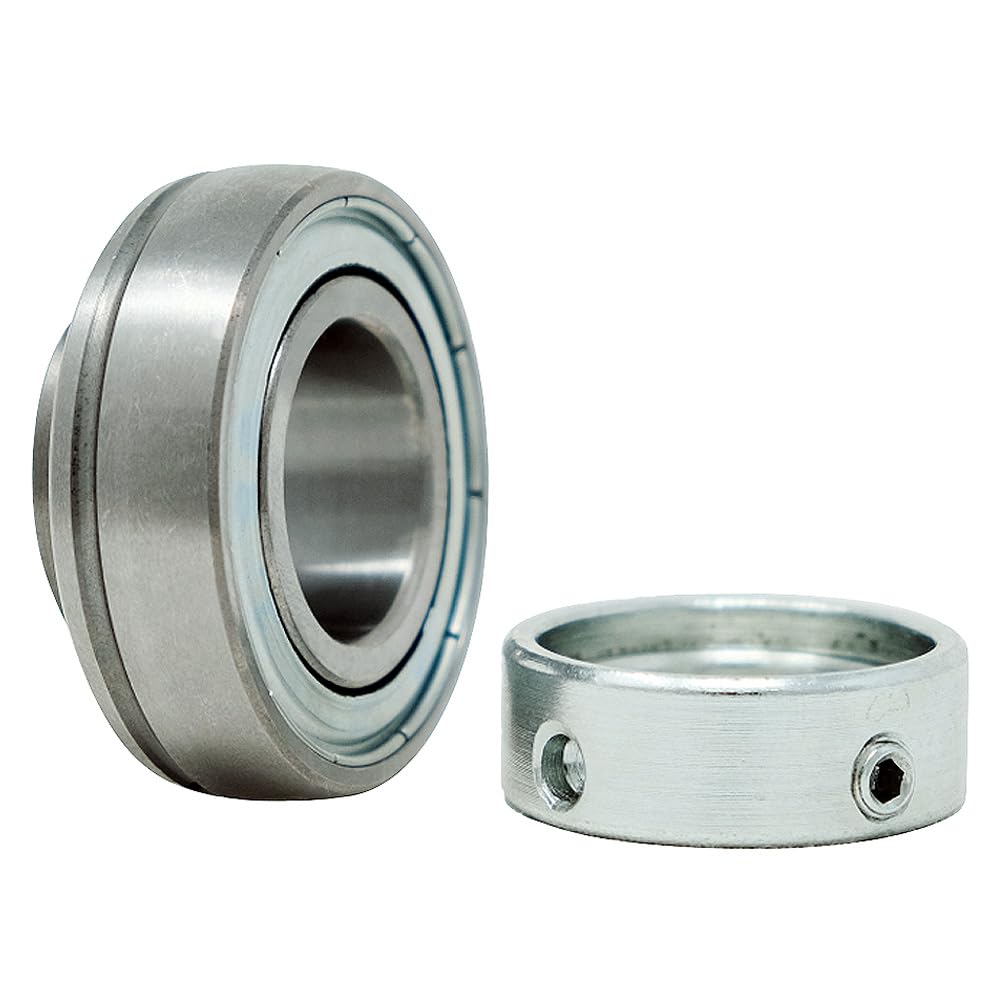

Insert bearing with eccentric locking collar and narrow inner ring. Based on a sealed deep groove ball bearing design, it provides smooth operation. The spherical outer ring is designed for use in self-aligning mounted bearing arrangements, helping accommodate minor misalignment. Intended for applications operating in a constant direction of rotation, the bearing features a narrow inner ring extended on one side and an eccentric locking collar for quick and secure shaft mounting. Designed for long service life in a wide range of operating conditions. - Specification: Item SA207-22 G, Series SA200, Outer ring type Spherical, Bore Diameter Metric 34.925 mm, Bore Diameter Inch 1.375 in, Outside Diameter Matric 72.00 mm, Outside Diameter Inch 2.8346 in, Width with Collar Matric 38.90 mm, Width with Collar Inch 1.5315 in, Width Inner Ring Matric 25.40 mm, Width Inner Ring Inch 1.00 in, Width Outer Ring Matric 19.00 mm, Width Outer Ring Inch 0.748 in, Dynamic Load Rating Cr 25500 N, Static Load Rating Cor 15300 N, Limiting Speed 5300 r/min, Clearance Normal, Closures Shield on both sides, Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +
