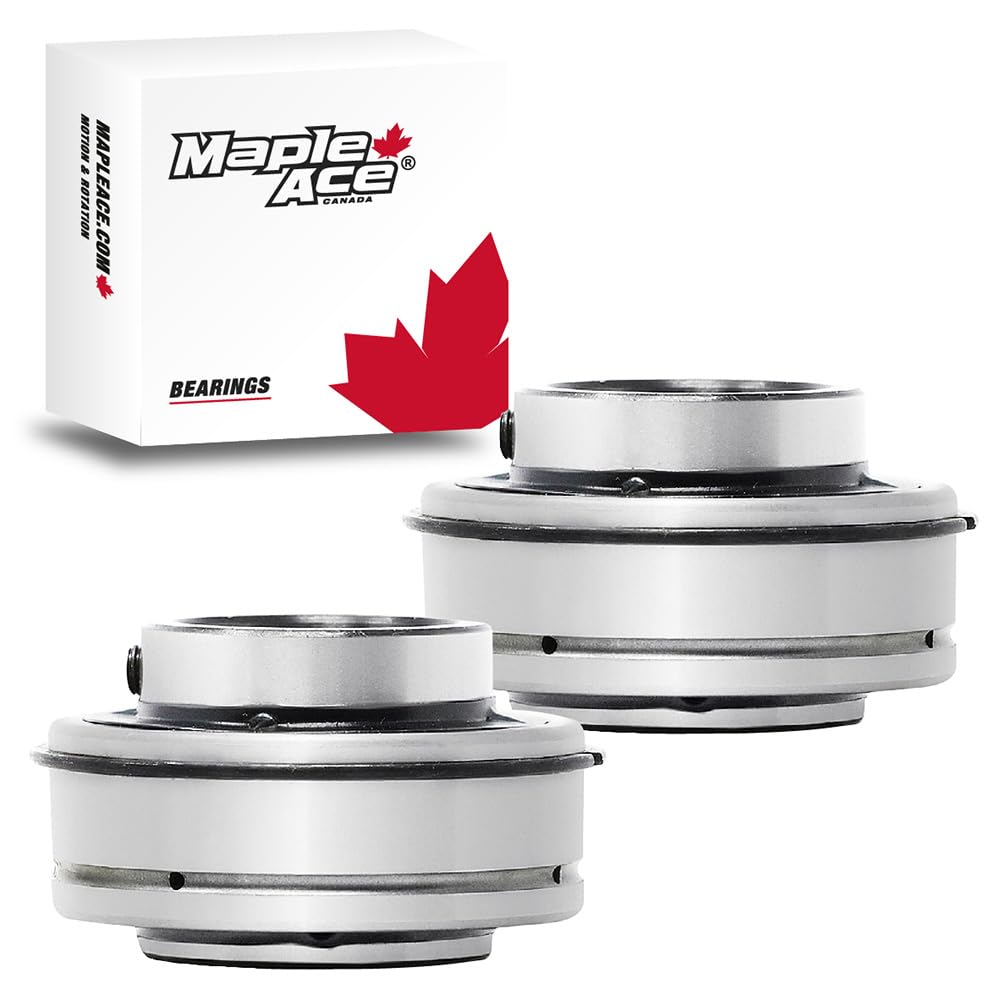

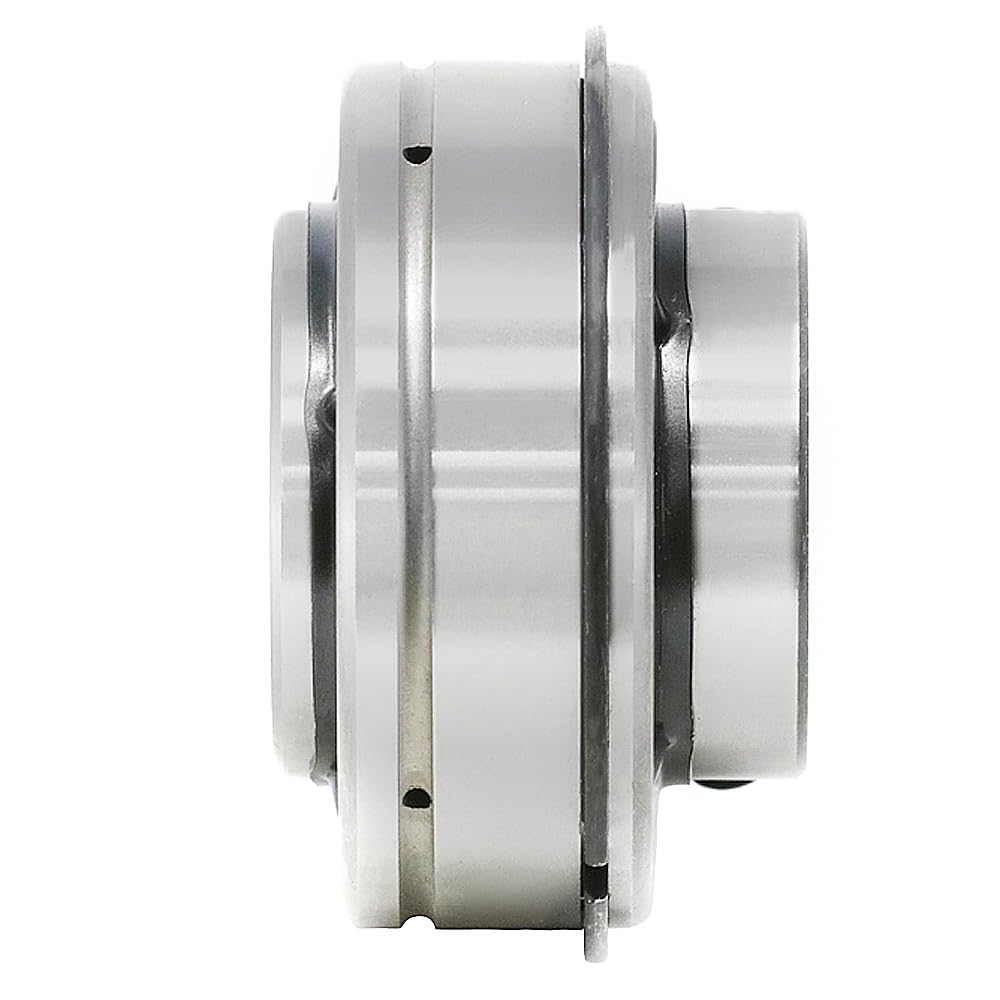

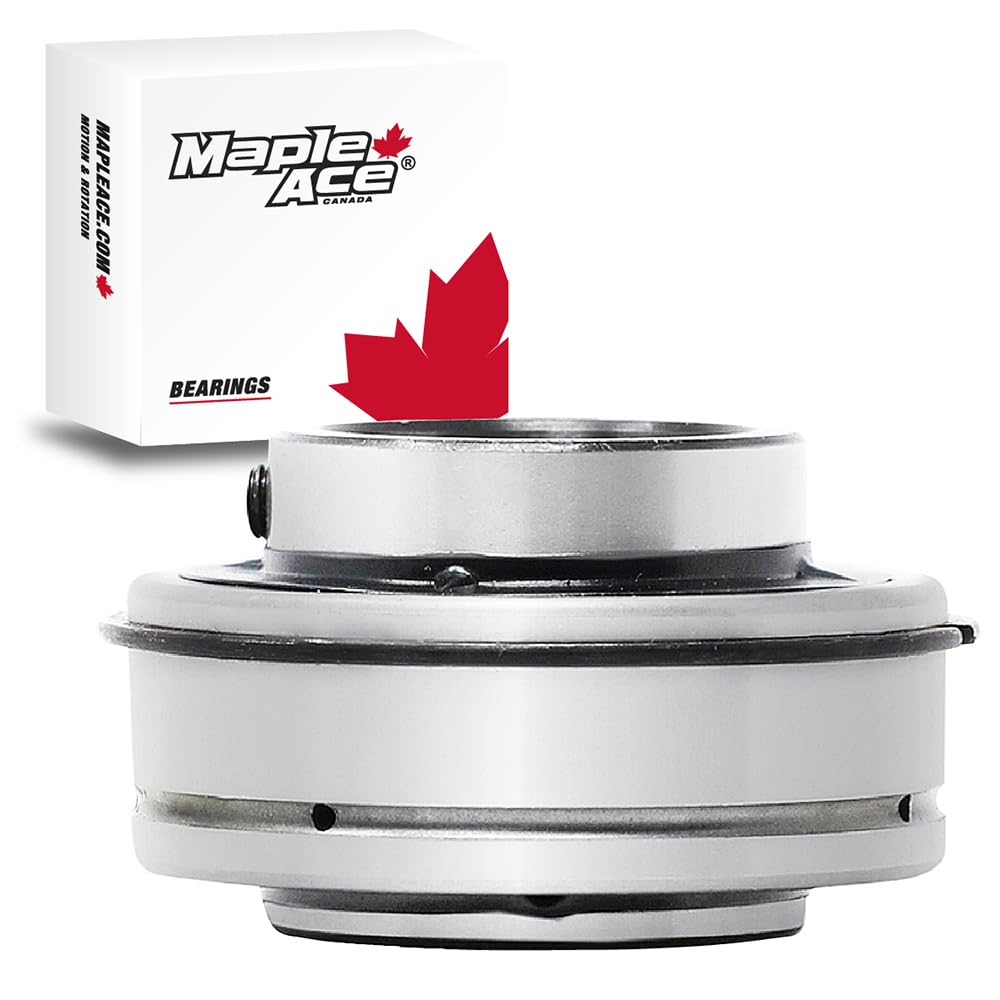

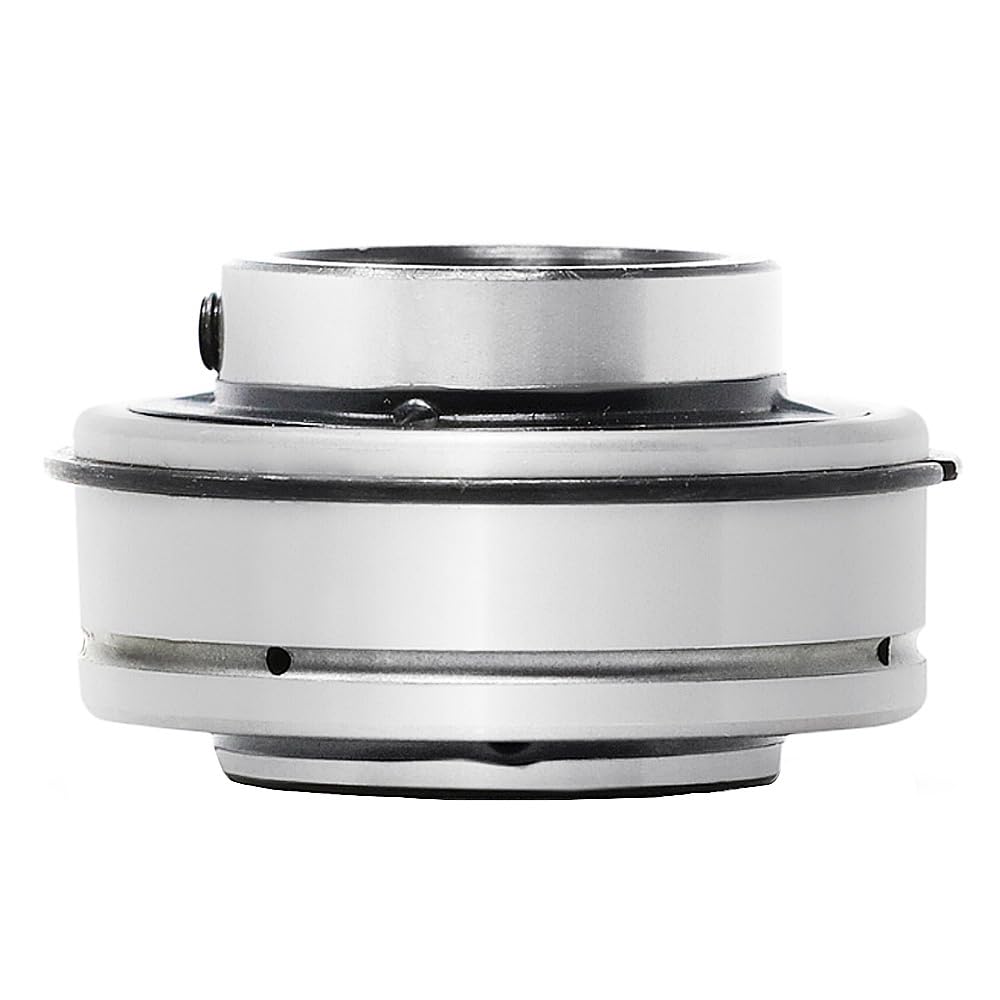

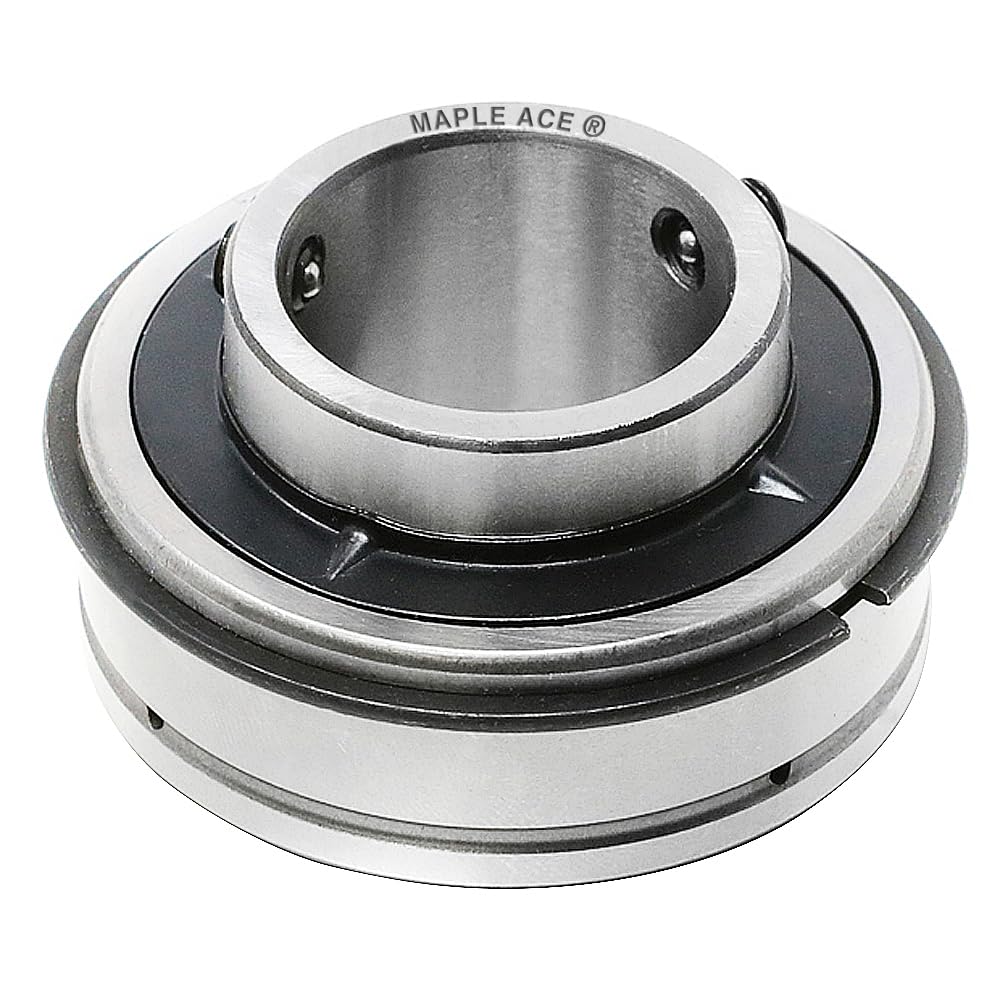

MAPLE ACE SER204 / ER204 Insert Bearing 20mm Bore

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

Insert bearing with standard inner ring. Based on a sealed deep groove ball bearing design, it provides smooth operation. The cylindrical outer ring is designed for use in applications requiring precise housing fits. The relubricatable design supports extended service life, while optional Shaft Guarding Technology helps protect the shaft, reduce replacement time, and prolong shaft life. Engineered for applications requiring low starting torque and low running torque for smooth and efficient operation. - Specification: Item SER204, Series SER200, Outer ring type Cylindrical, Bore Diameter Metric 20.00 mm, Bore Diameter Inch 0.787 in, Outside Diameter Matric 47.00 mm, Outside Diameter Inch 1.8503 in, Width Inner Ring Matric 31.00 mm, Width Inner Ring Inch 1.220 in, Width Outer Ring Matric 16.00 mm, Width Outer Ring Inch 0.630 in, Dynamic Load Rating Cr 12800 N, Static Load Rating Cor 6550 N, Locating feature Snap ring (fitted), Clearance Normal, Locating feature, bearing outer ring Snap ring (fitted) in, Closures Shield on both sides, Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Relubrication feature With, Rolling Element

Free shipping included. 30-day hassle-free returns.
