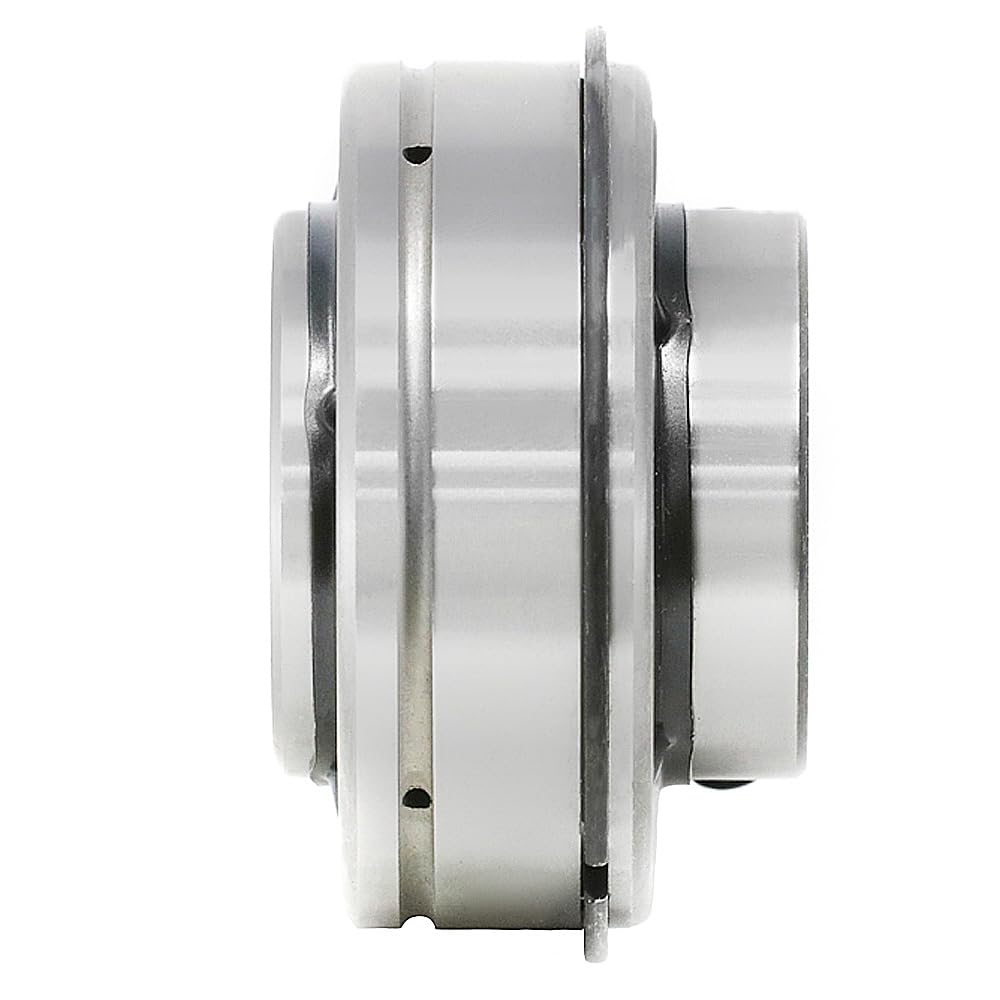

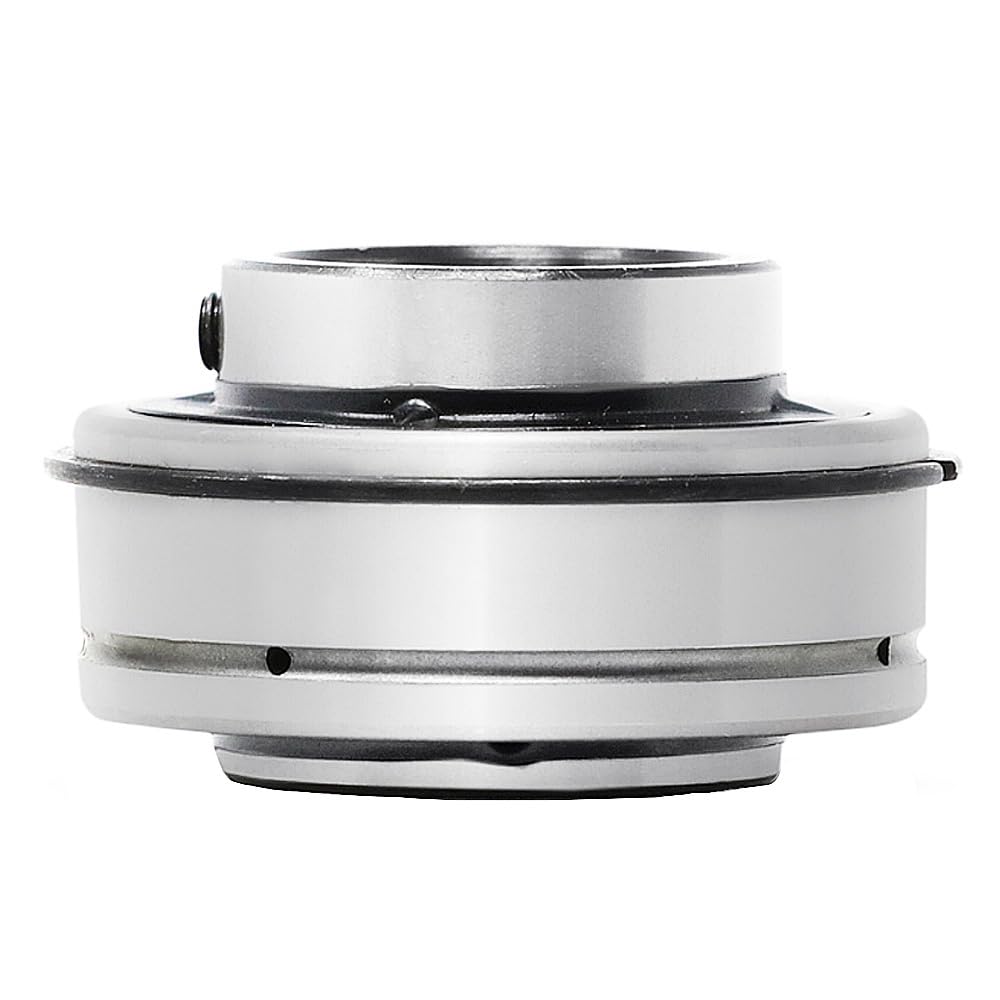

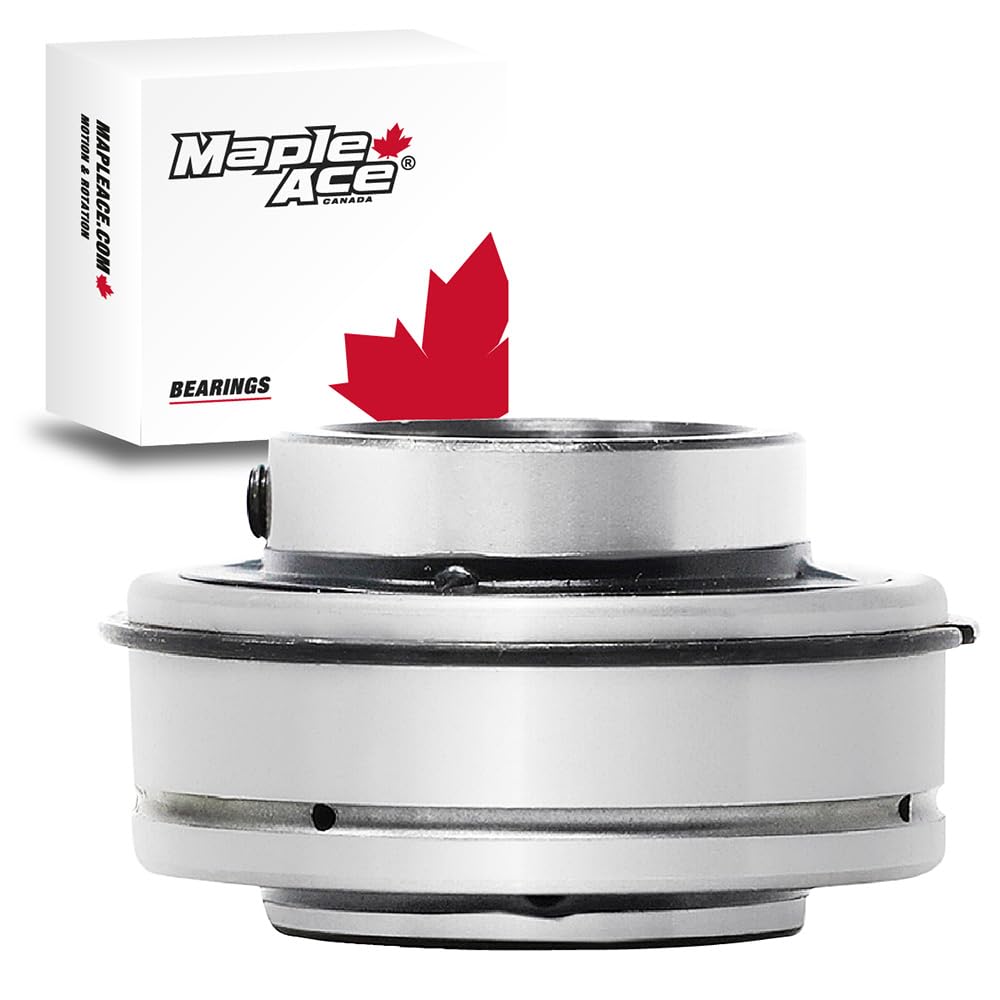

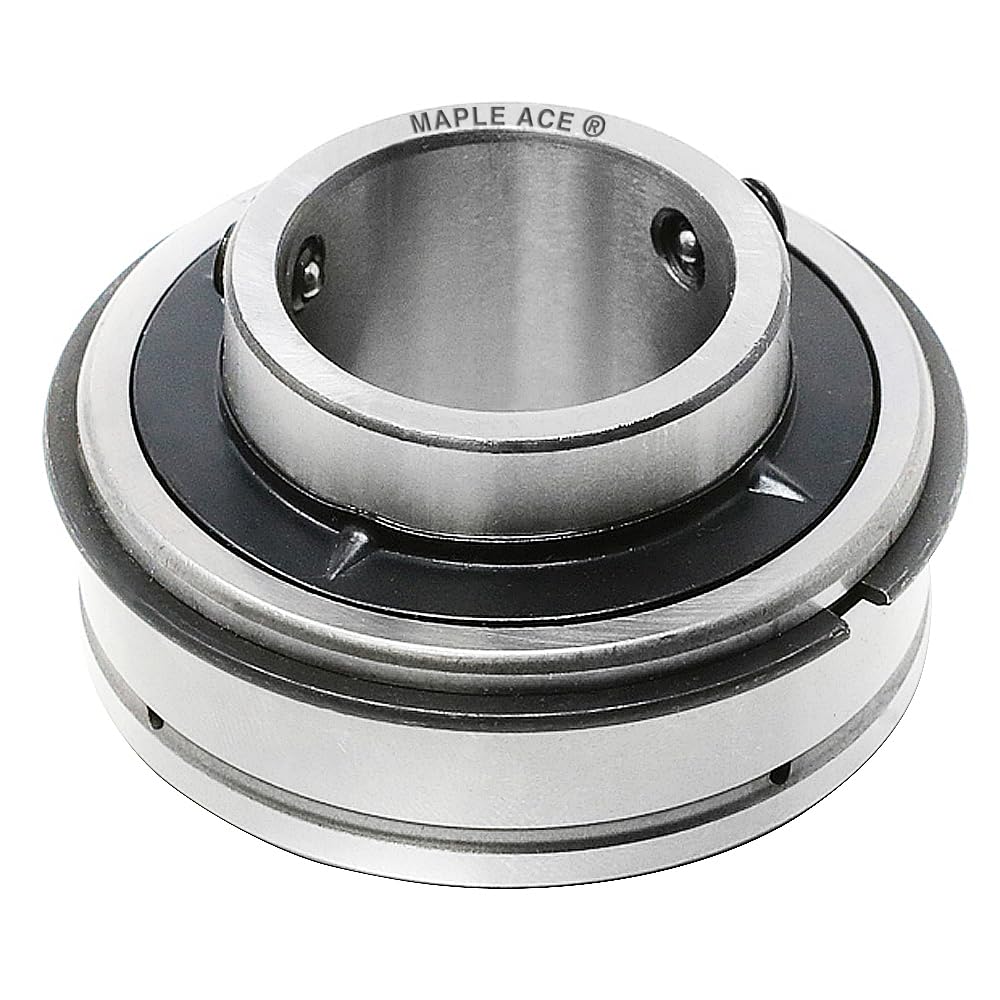

MAPLE ACE SER205-16 / ER16 Insert Bearing 1" Bore (Qty 1)

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

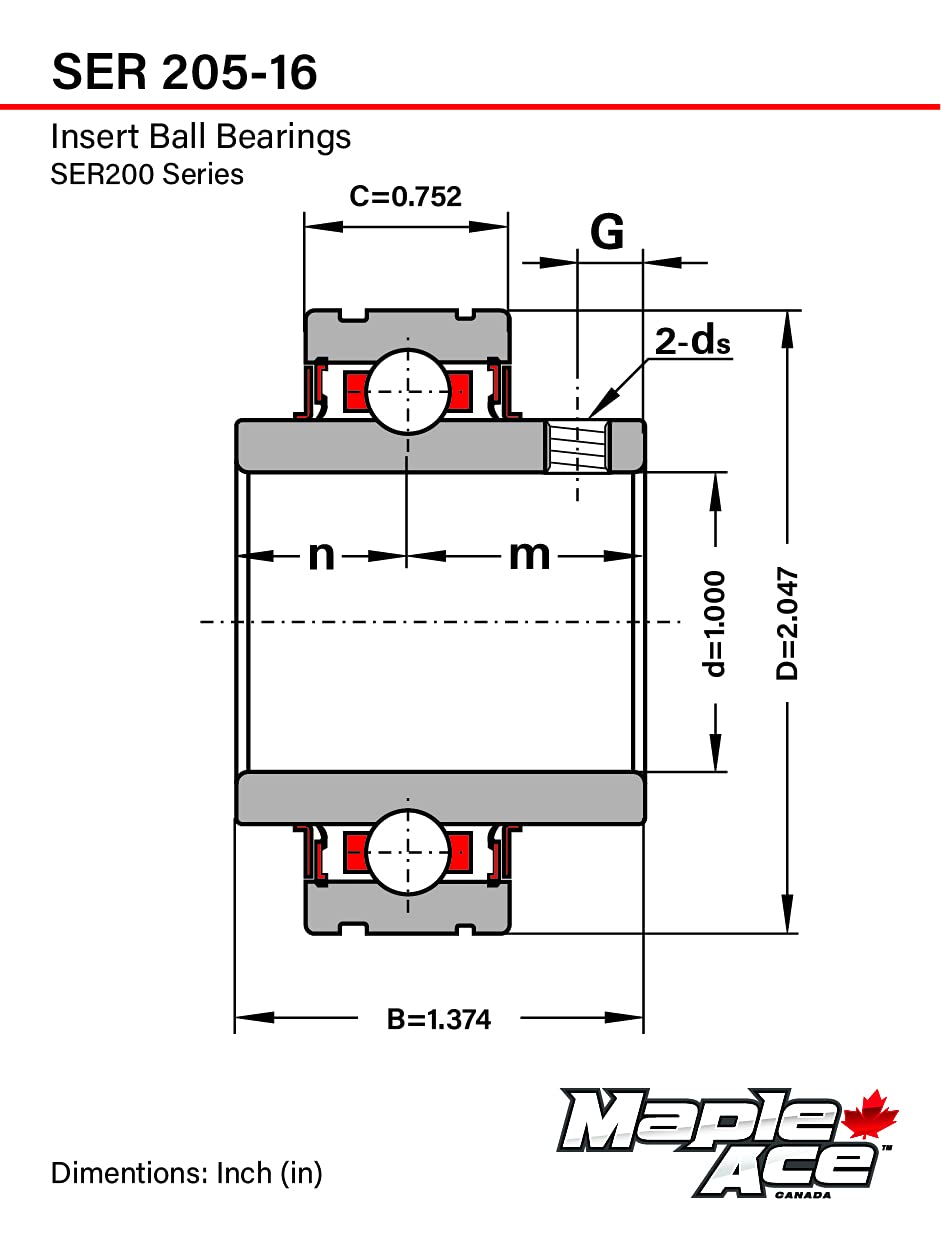

Insert bearing with standard inner ring. Based on a sealed deep groove ball bearing design, it provides smooth operation. The cylindrical outer ring is designed for use in applications requiring precise housing fits. The relubricatable design supports extended service life, while optional Shaft Guarding Technology helps protect the shaft, reduce replacement time, and prolong shaft life. Engineered for applications requiring low starting torque and low running torque for smooth and efficient operation. - Specification: Item SER205-16, Series SER200, Outer ring type Cylindrical, Bore Diameter Metric 25.40 mm, Bore Diameter Inch 1.00 in, Outside Diameter Matric 52.00 mm, Outside Diameter Inch 2.0472 in, Width Inner Ring Matric 34.90 mm, Width Inner Ring Inch 1.374 in, Width Outer Ring Matric 19.10 mm, Width Outer Ring Inch 0.752 in, Dynamic Load Rating Cr 15400 N, Static Load Rating Cor 7800 N, Clearance Normal, Locating feature, bearing outer ring Snap ring (fitted) in, Closures Shield on both sides, Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Relubrication feature With, Rolling Element Indicator Ball, Material Gcr15, Loc

Free shipping included. 30-day hassle-free returns.
