MAPLE ACE UCF202 Square Flange Bearing 15mm Bore Self-Aligning (Qty 1)

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

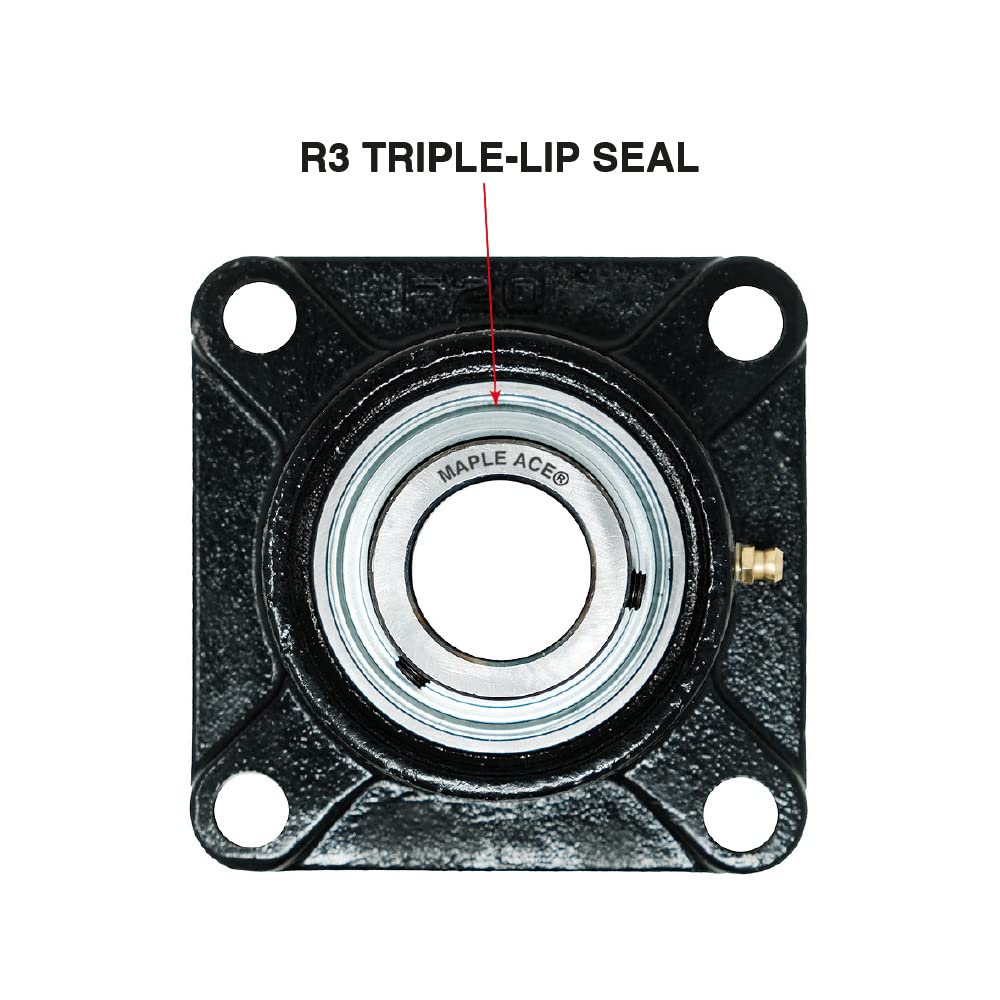

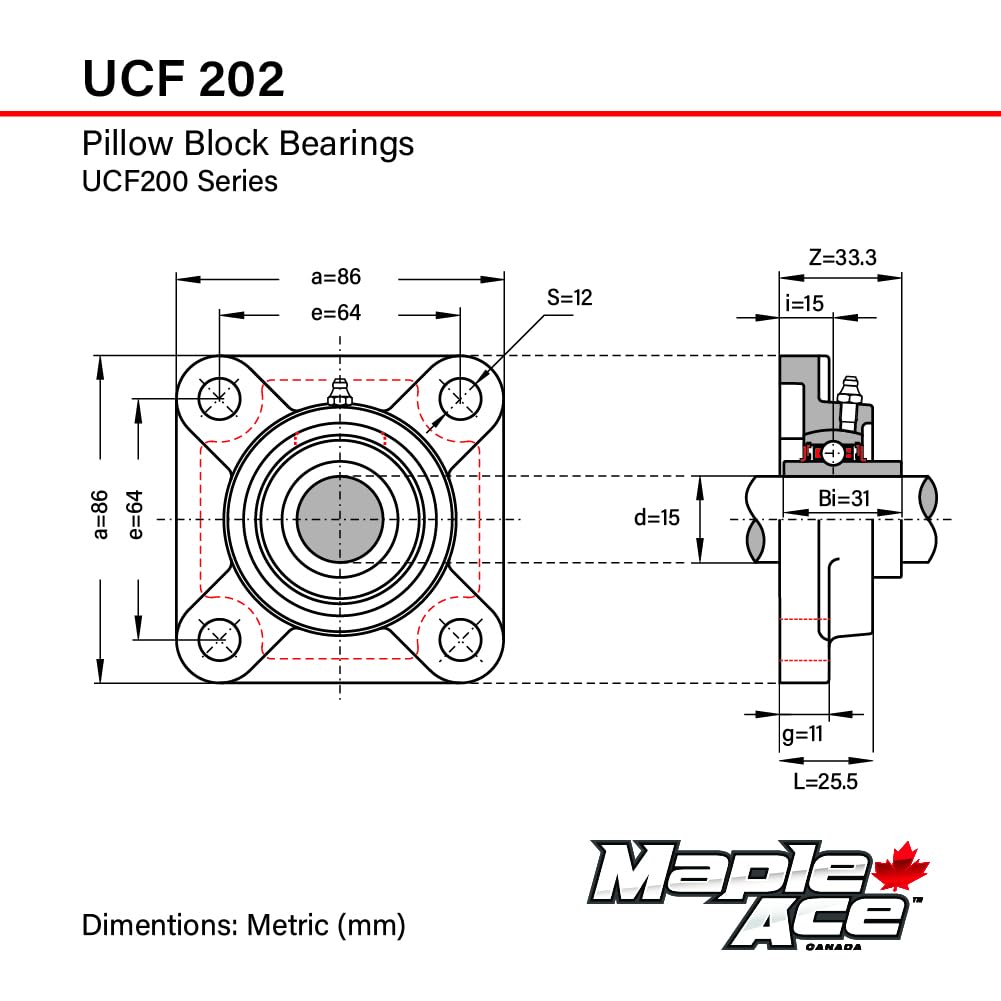

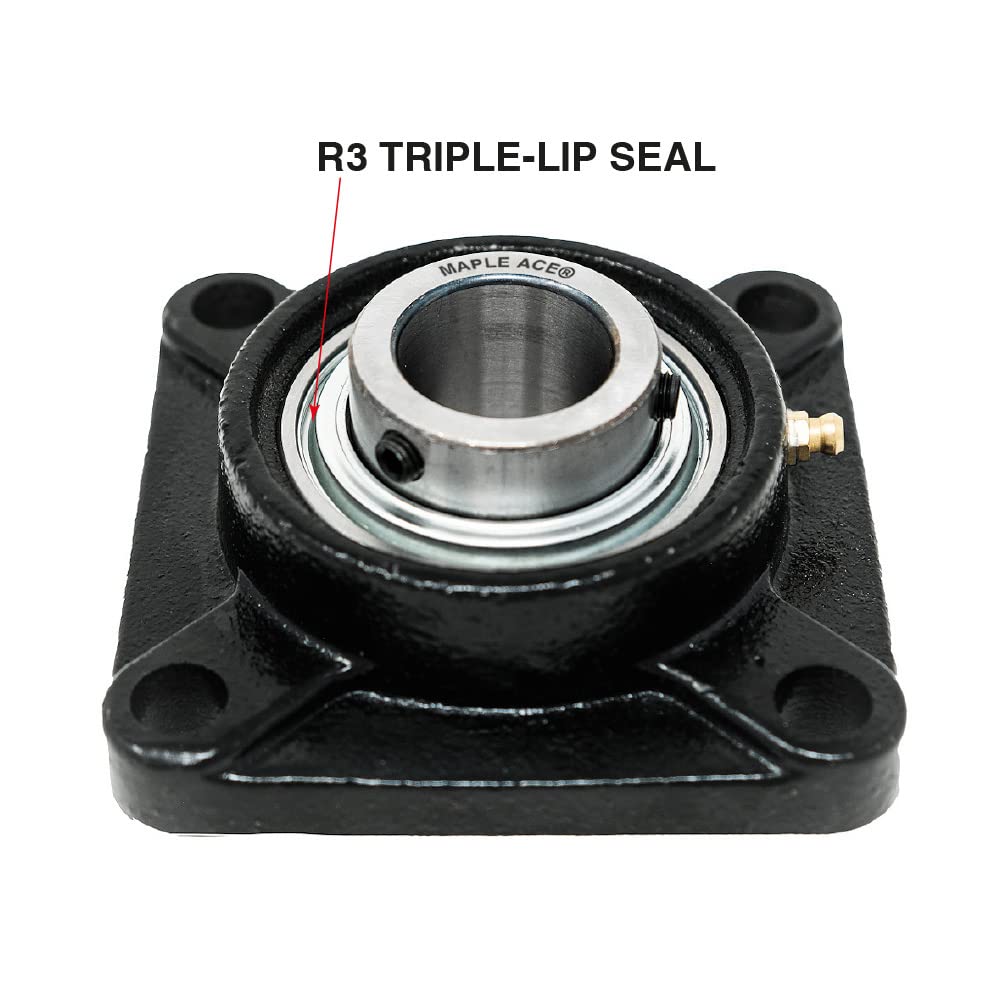

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes. Grease Fitting Offset on top, to Relubricate the bearing. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCF202 R3, Series UCF200, Bearing Number UC202 R3, Housing Number F203, Number of Bolts 4, Bolt Size (S) 3/8 in, bearing Bore Diameter (d) Metric 15.00 mm, Bearing Bore Diameter (d) Inch 0.590 in, Bearing Width Inner Ring (Bi) Matric 31.00 mm, Bearing Width Inner Ring (Bi) Inch 1.220 in, Bolt Hole Center to Center (e) Matric 64 mm, Bolt Hole Center to Center (e) Inch 2.519 in, Flange width (a) Matric 86 mm, Flange width (a) Inch 3.385 in, Overall Height (Z) Matric 33.3 mm, Overall Height (Z) Inch 1.311 in, Dynamic Load Rating Cr 9560 N, Static Load Rating Cor 4750 N, Limiting Speed 9500 r/min, Clearance Normal, Bearing Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lub

Free shipping included. 30-day hassle-free returns.
