MAPLE ACE UCF205 Square Flange Bearing 25mm Bore Self-Aligning (Qty 1)

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

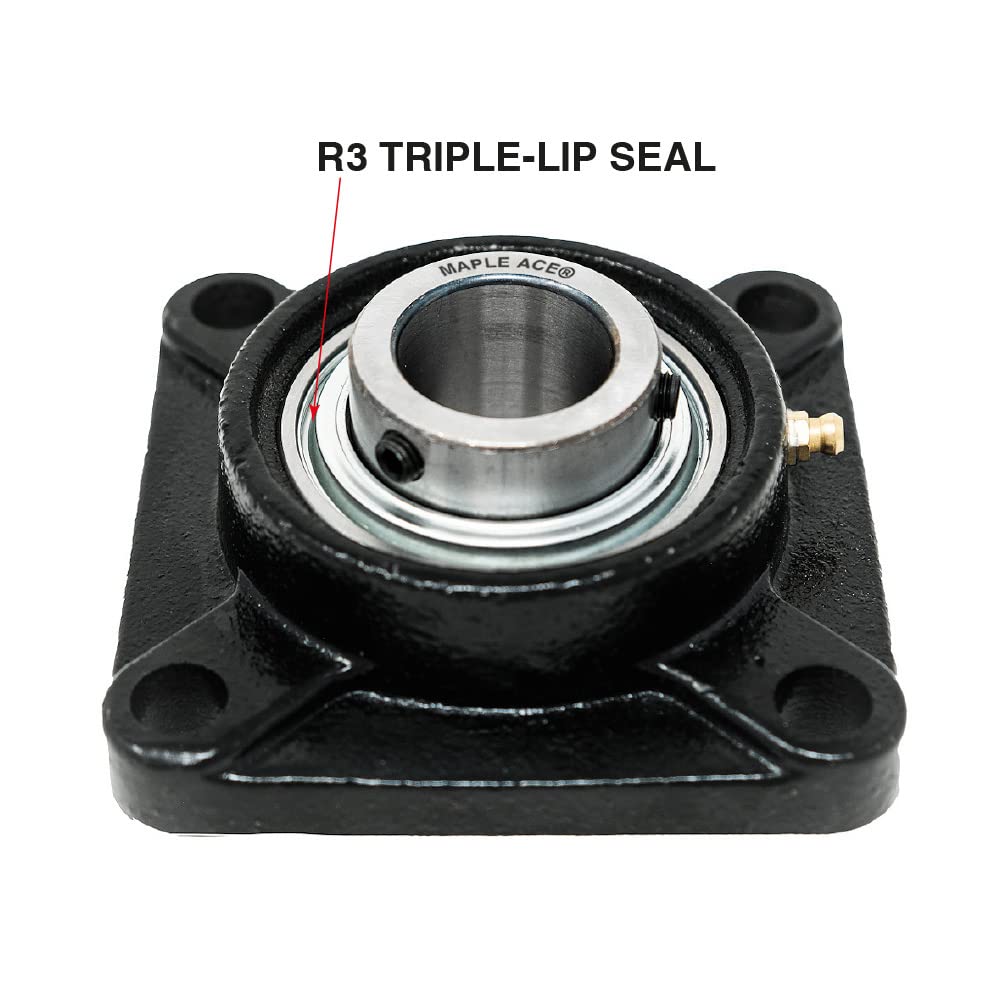

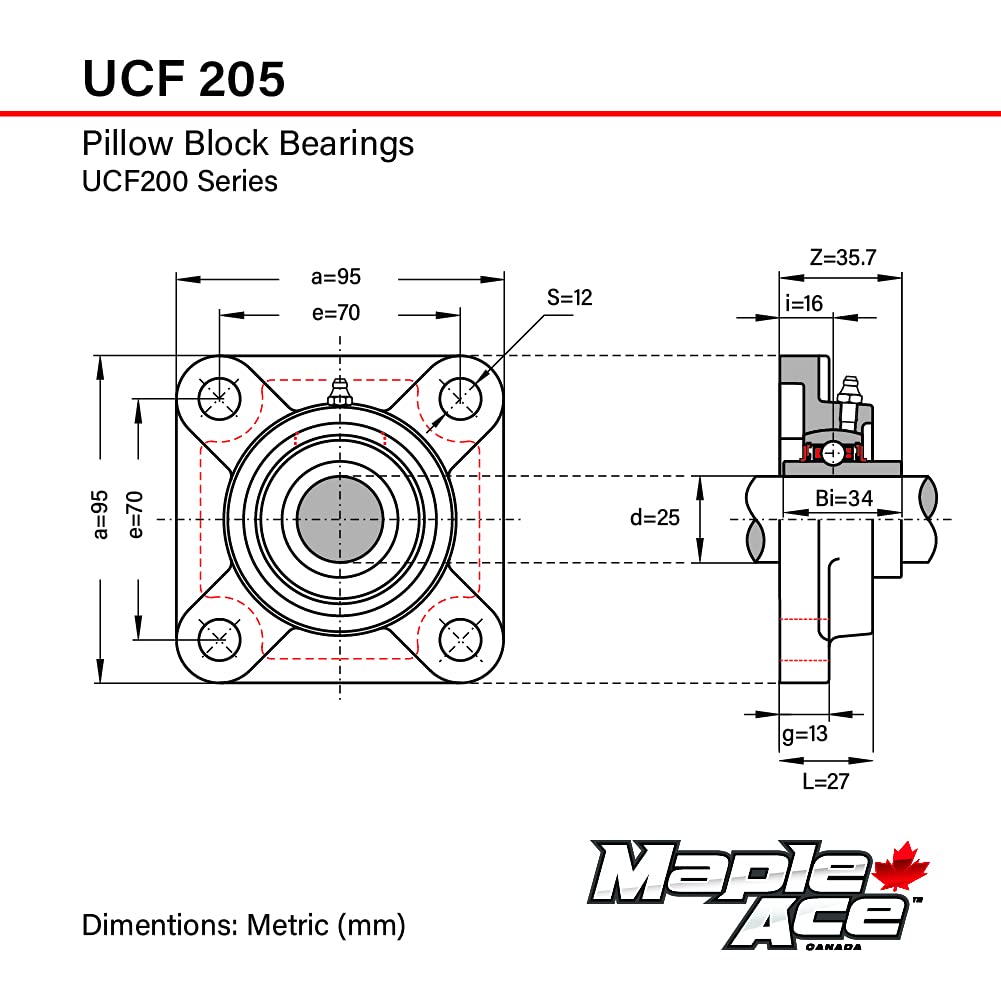

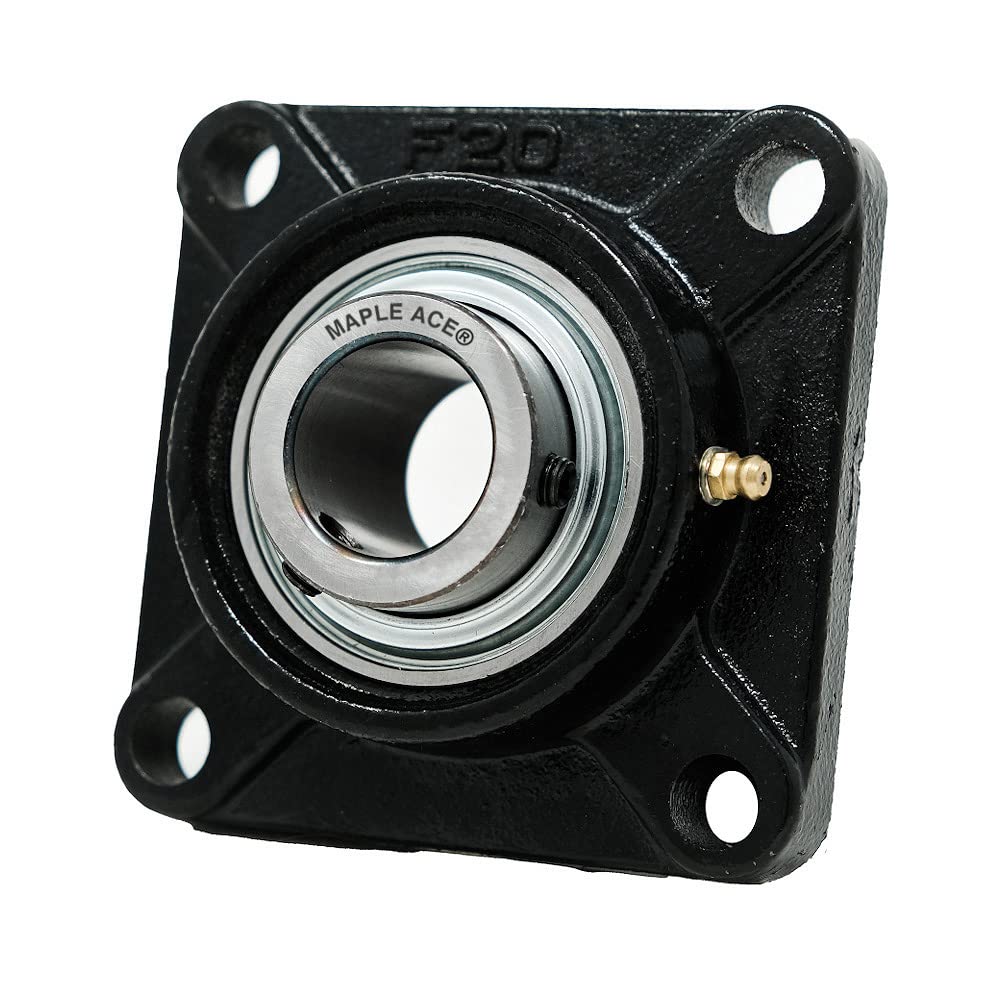

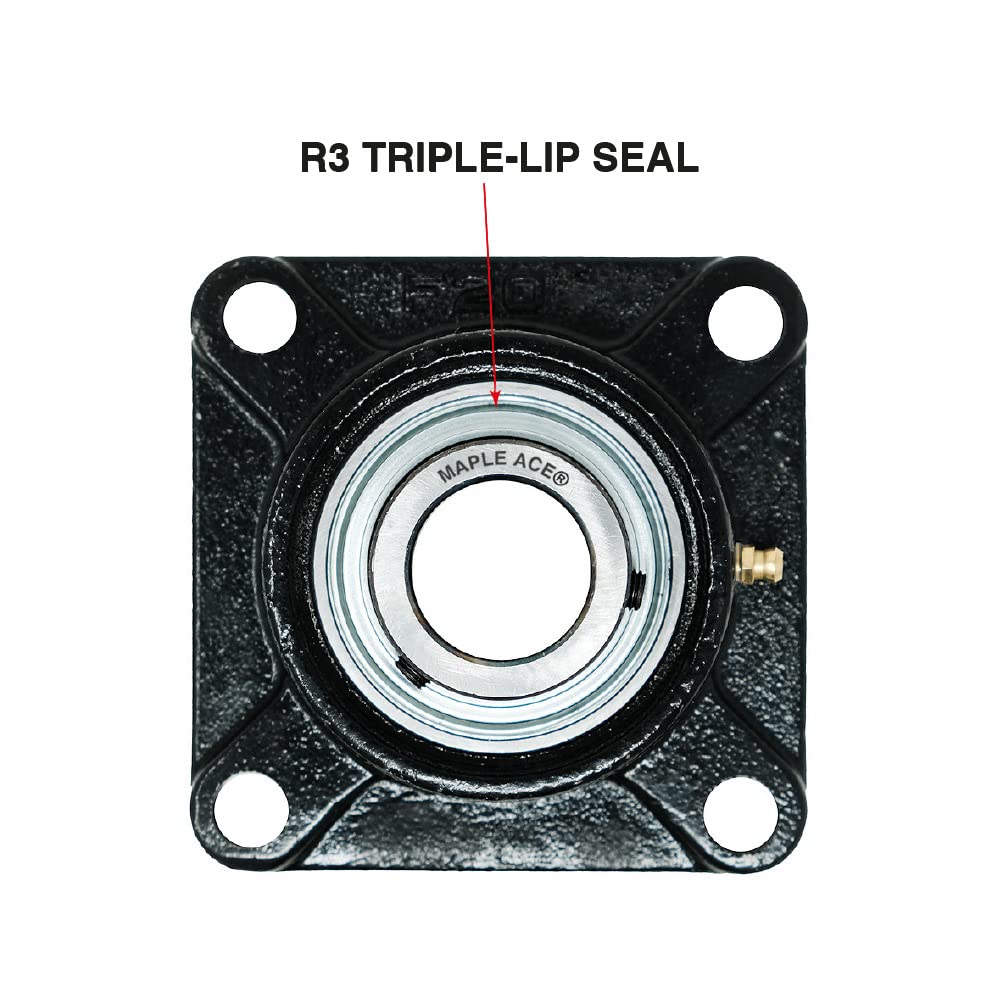

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes. Grease Fitting Offset on top, to Relubricate the bearing. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCF205R3, Series UCF200, Bearing Number UC205R3, Housing Number F205, Number of Bolts 4, Bolt Size (S) 3/8 in, Bearing Bore Diameter (d) Metric 25.00 mm, Bearing Bore Diameter (d) Inch 3/4 in, Bearing Width Inner Ring (Bi) Matric 34.00 mm, Bearing Width Inner Ring (Bi) Inch 1.338 in, Bolt Hole Center to Center (e) Matric 70 mm, Bolt Hole Center to Center (e) Inch 2.755 in, Flange width (a) Matric 95 mm Flange width (a) Inch 3.74 in, Overall Height (Z) Matric 35.7 mm, Overall Height (Z) Inch 1.405 in, Dynamic Load Rating Cr 14000 N, Static Load Rating Cor 7800 N, Limiting Speed 7000 r/min, Clearance Normal, Bearing Sealing type R3 Triple-Lip Seal, Lubrication Type Grease Shell RL2, Lubric
