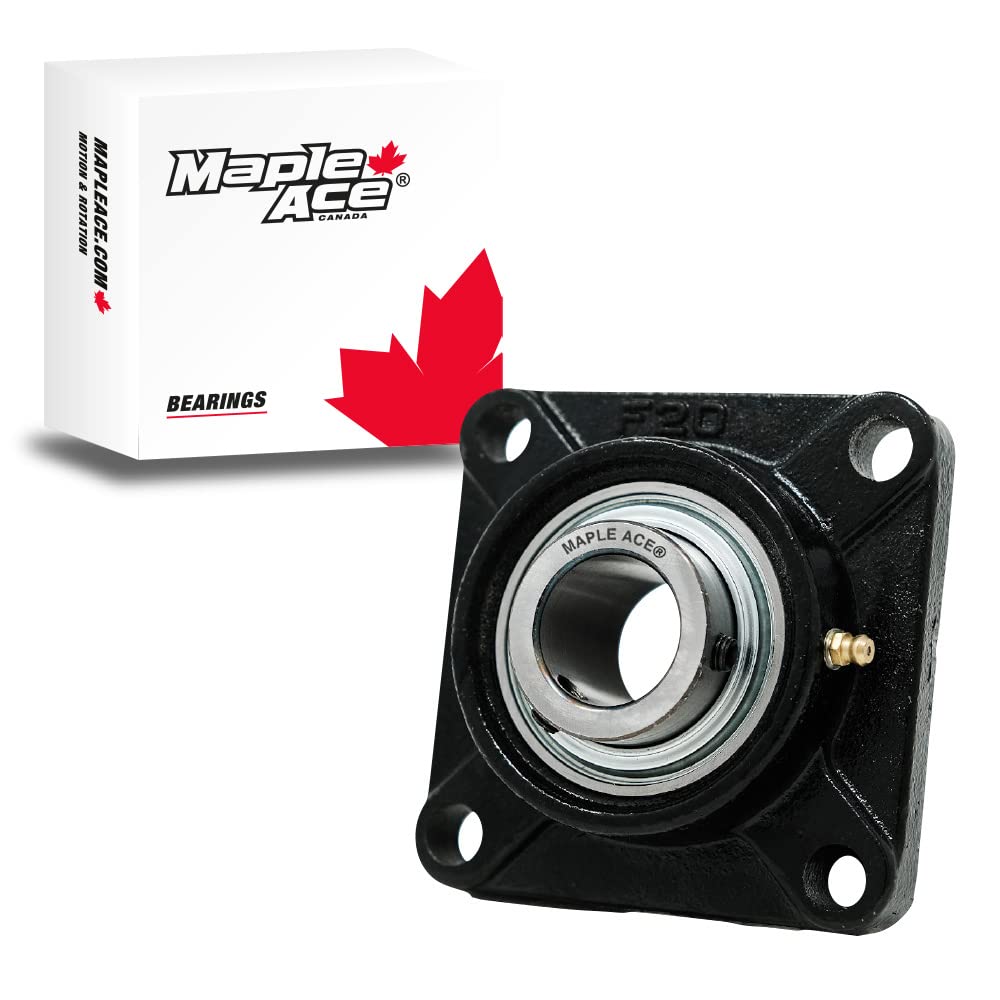

MAPLE ACE UCF212 Square Flange Bearing 60mm Bore Self-Aligning (Qty 1)

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

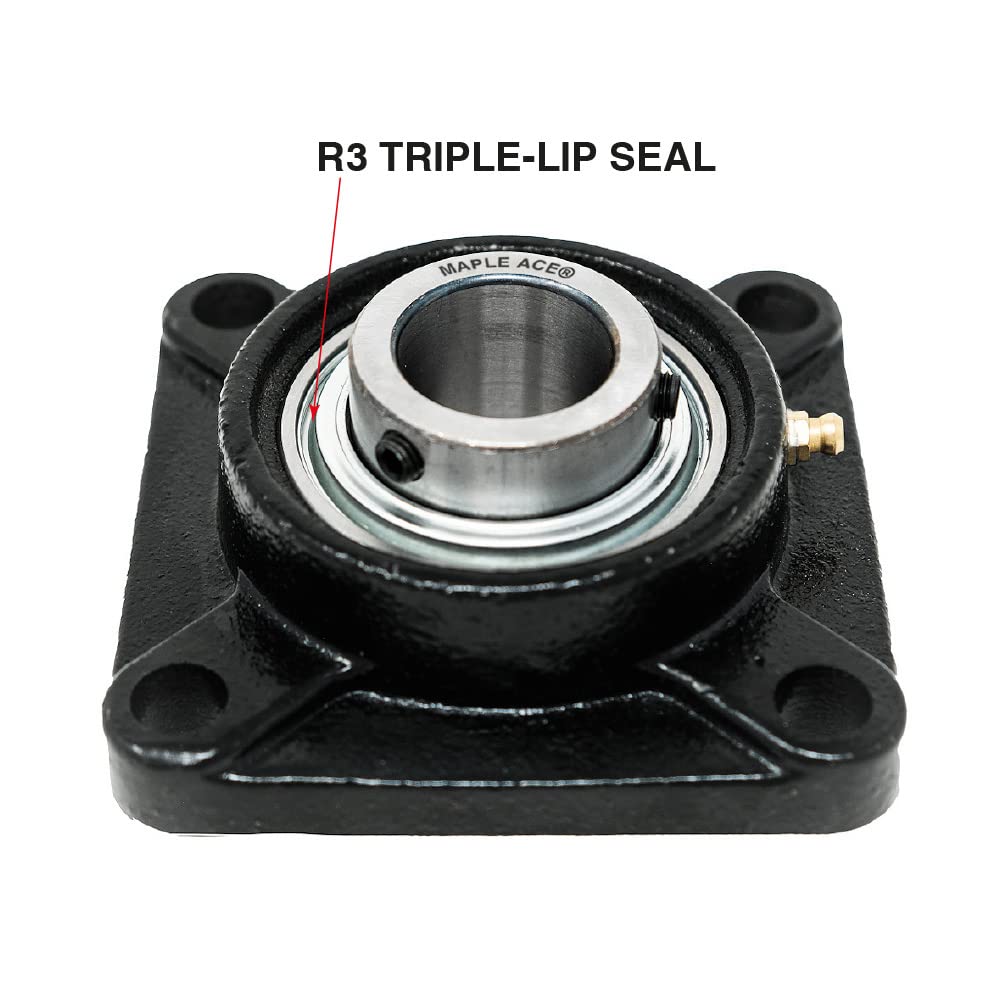

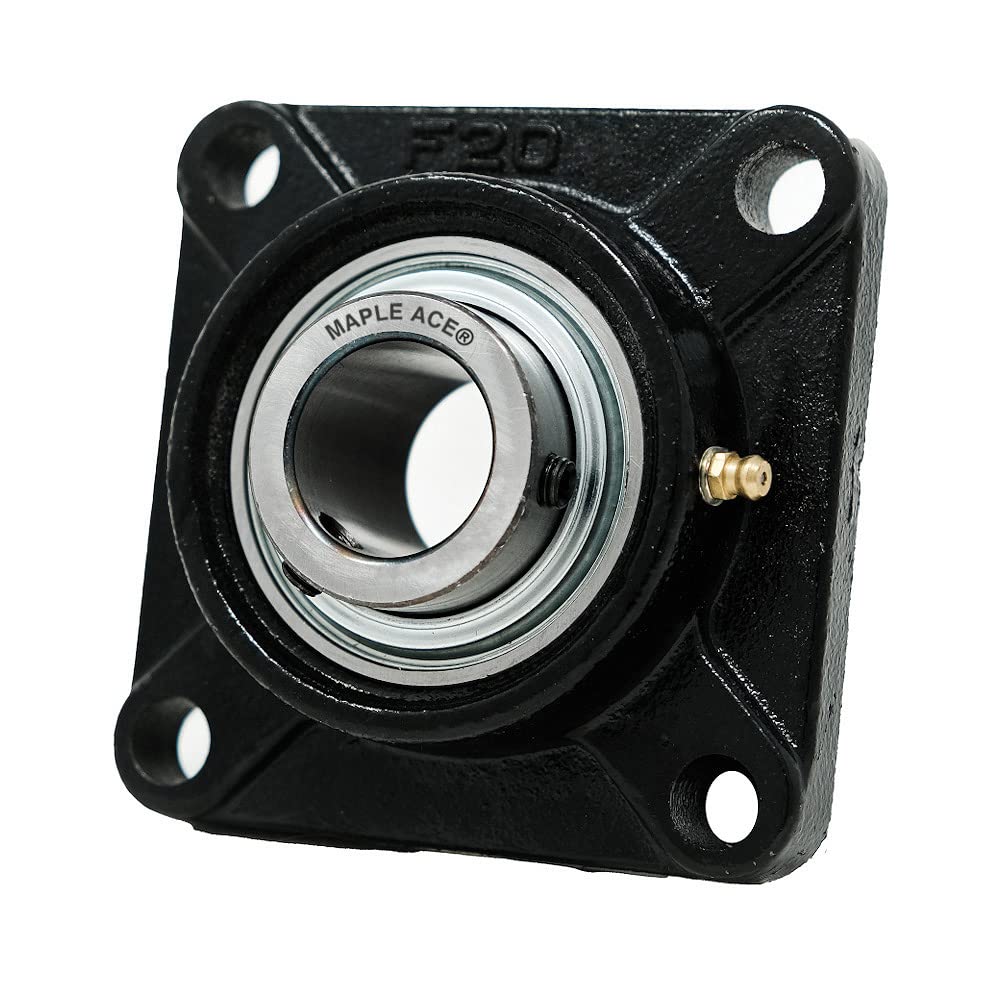

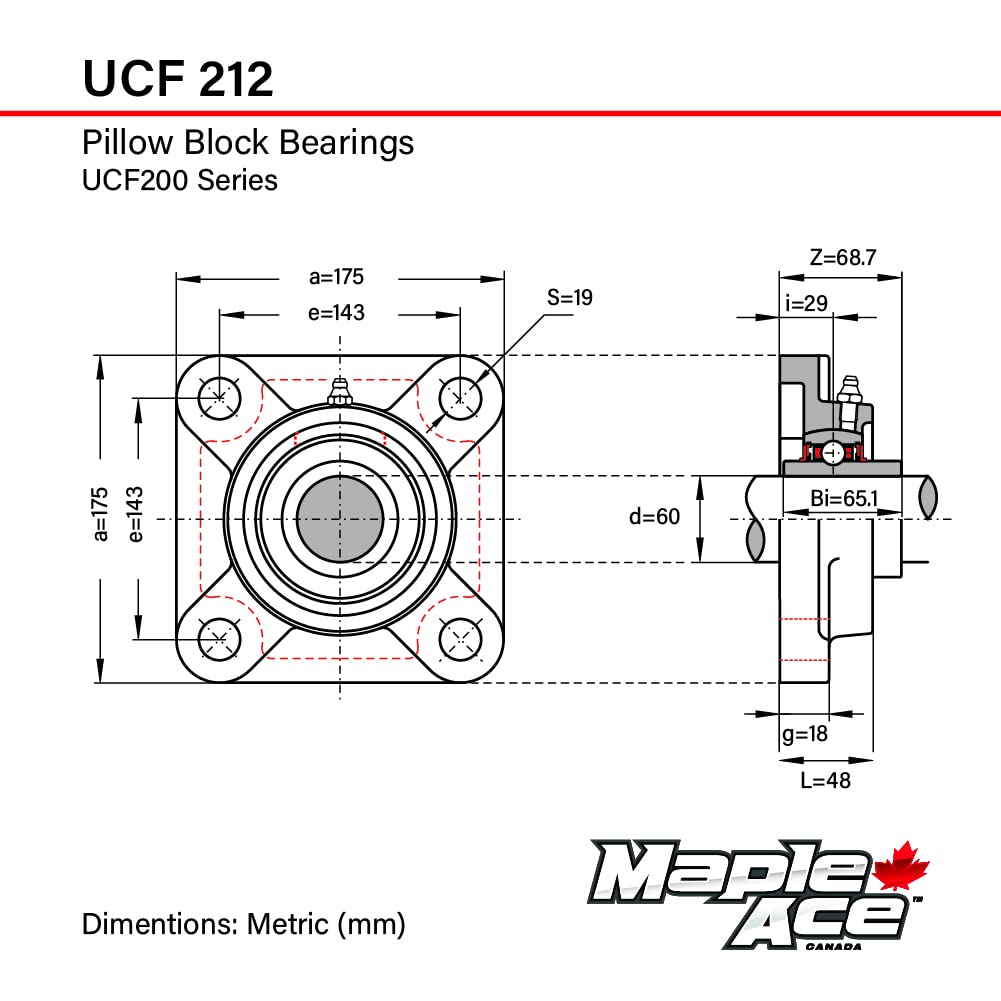

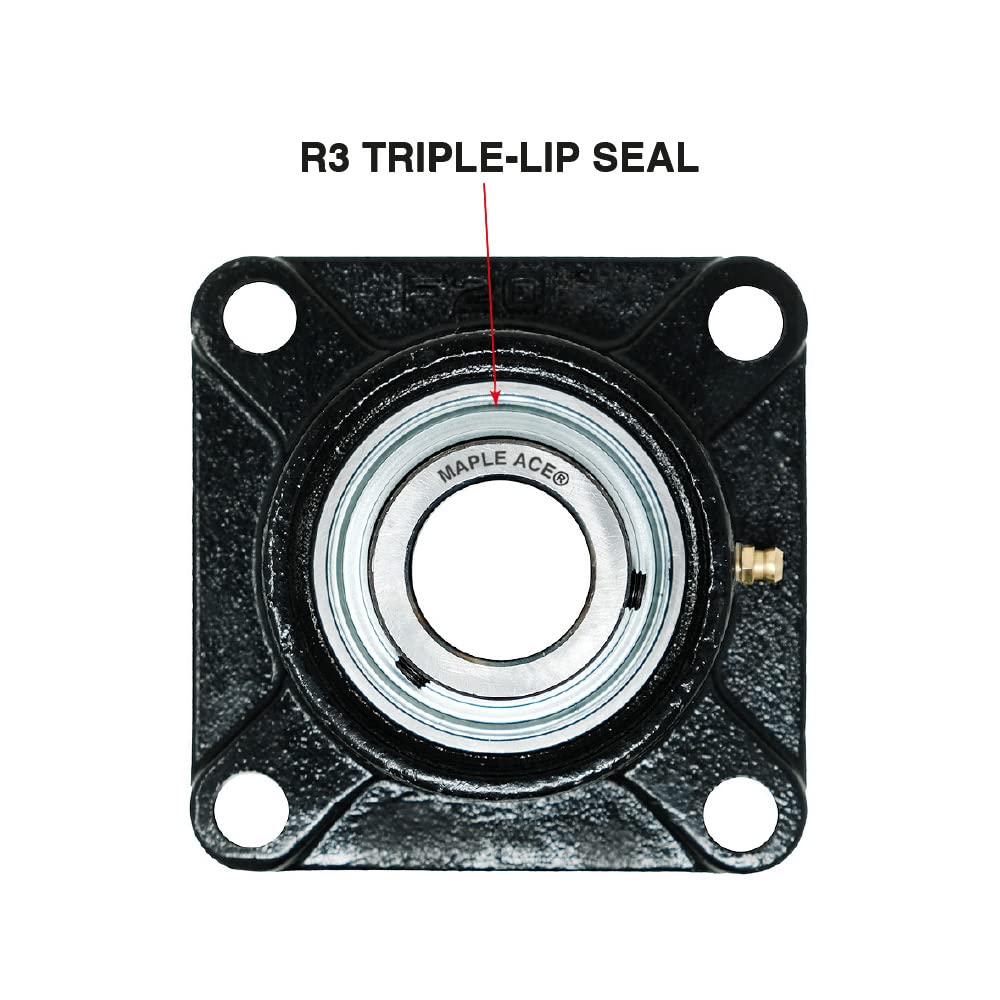

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes. Grease Fitting Offset on top, to Relubricate the bearing. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCF212 R3, Series UCF200, Bearing Number UC212 R3, Housing Number F212, Number of Bolts 4 Bolt, Size (S) 3/4 in, Bearing Bore Diameter (d) Metric 60.00 mm, Bearing Bore Diameter (d) Inch 2.362 in, Bearing Width Inner Ring (Bi) Matric 65.1 mm, Bearing Width Inner Ring (Bi) Inch 2.563 in, Bolt Hole Center to Center (e) Matric 143 mm, Bolt Hole Center to Center (e) Inch 5.63 in, Flange width (a) Matric 175 mm, Flange width (a) Inch 6.89 in, Overall Height (Z) Matric 68.7 mm, Overall Height (Z) Inch 2.705 in, Dynamic Load Rating Cr 52700 N, Static Load Rating Cor 36000 N, Limiting Speed 2700 r/min, Clearance Normal, Bearing Sealing type R3 Triple-Lip Seal, Lubrication Type Grease Shell RL2,

Free shipping included. 30-day hassle-free returns.
