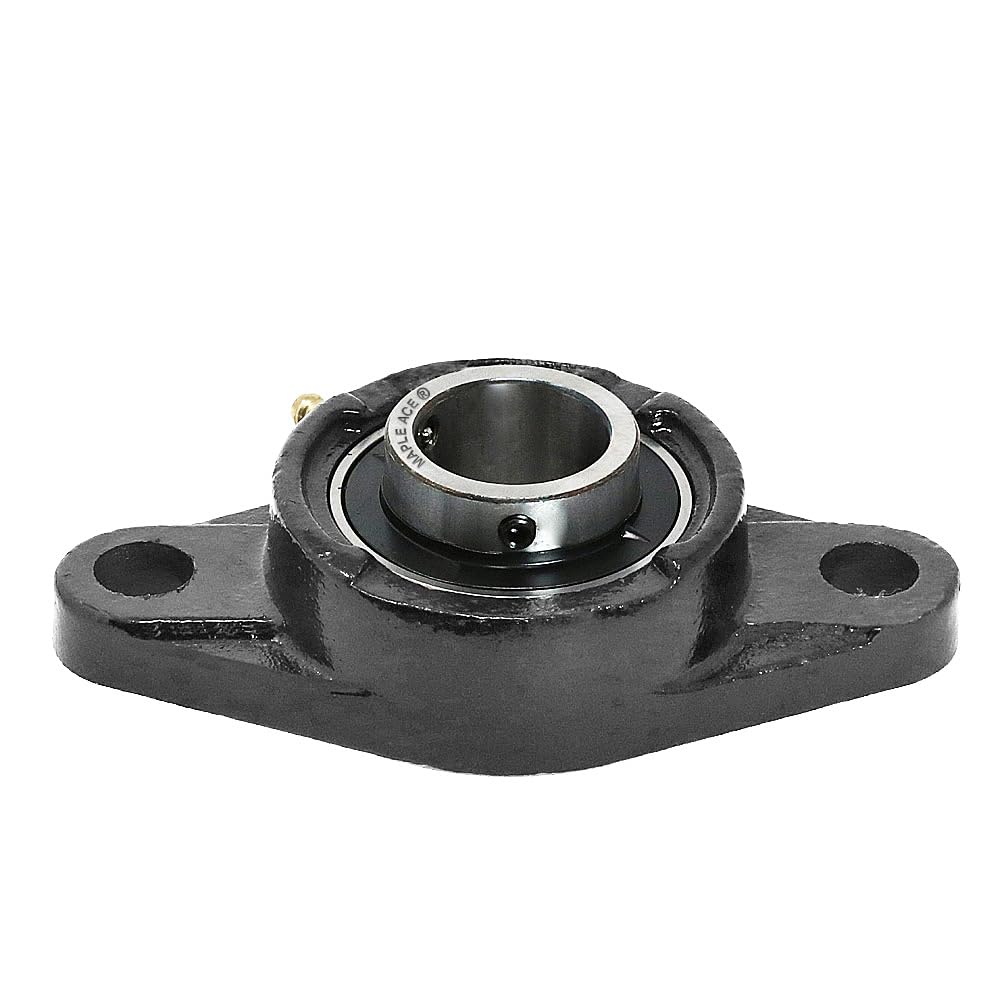

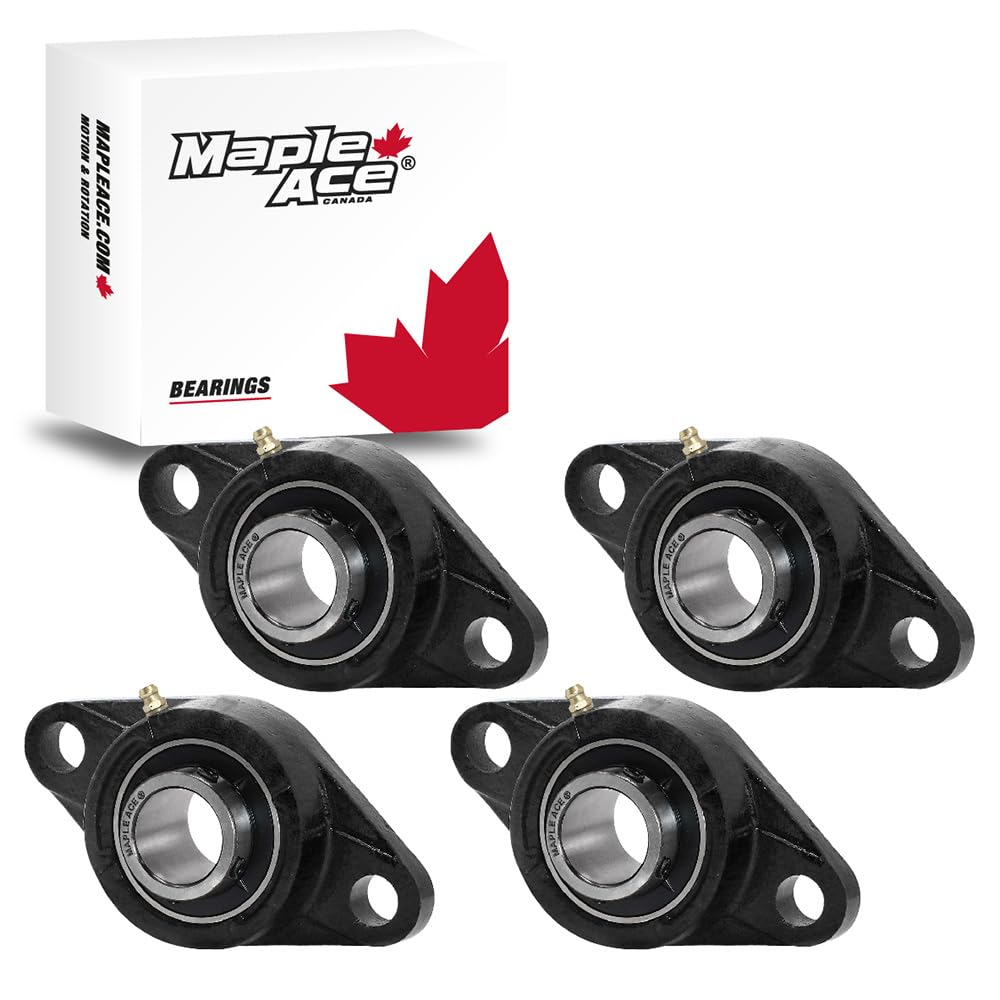

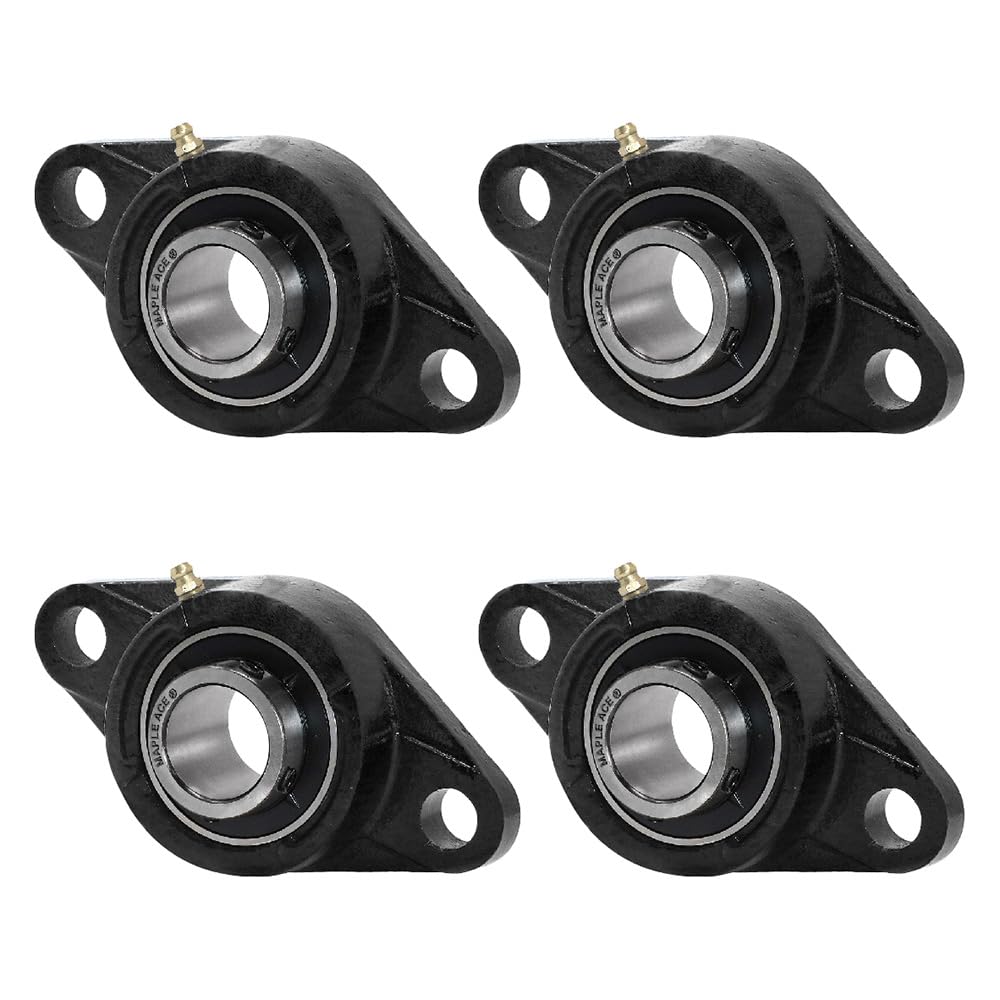

MAPLE ACE UCFL201-8 Flange Bearing 1/2" Bore, Oval 2-Bolt Self-Aligning, Solid Base, Heavy Duty (Qty 4)

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

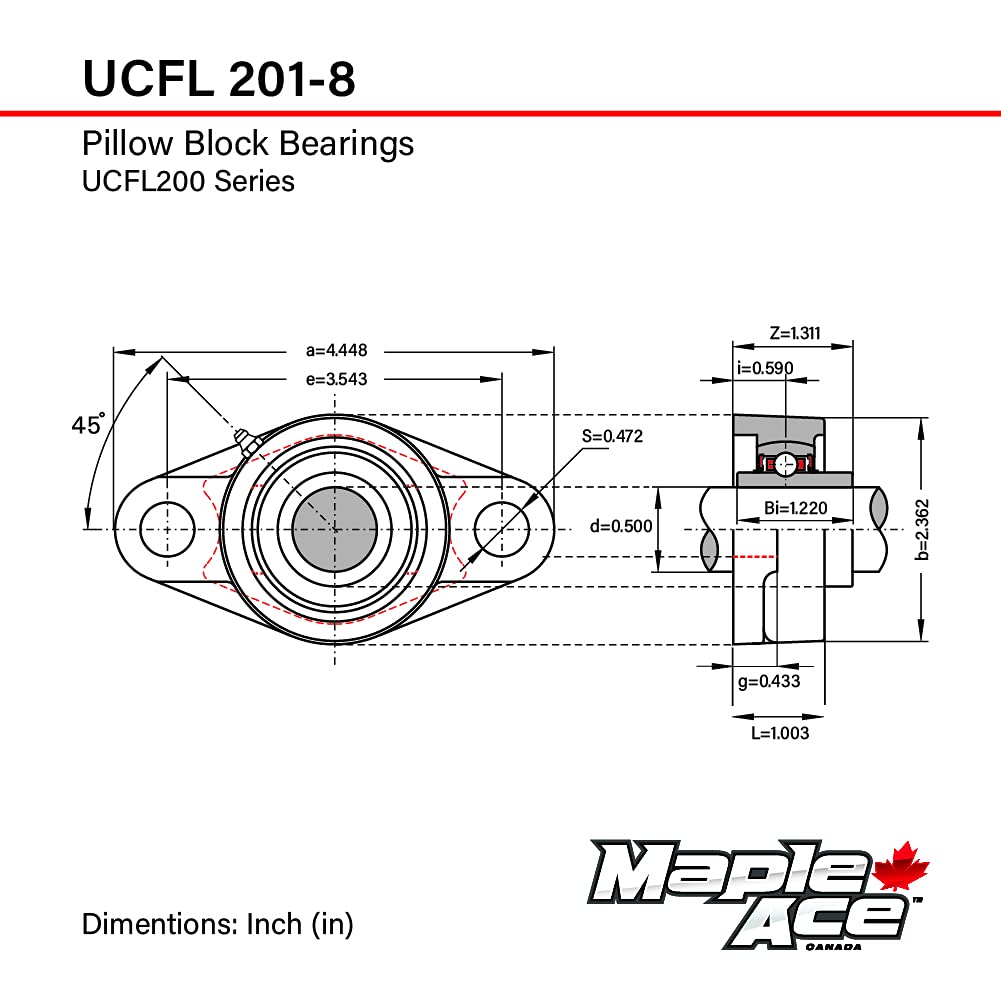

This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Has a Set Screw Lock on its surface for securing the shaft. - Specification: Item UCFL201-8, Series UCFL200, Bearing Number UC201-8, Housing Number FL203, Number of Bolts 2, Bolt Size (S) 3/8 in, Bearing Bore Diameter (d) Metric 12.7 mm, Bearing Bore Diameter (d) Inch 1/2 in, Bearing Width Inner Ring (Bi) Matric 31.00 mm, Bearing Width Inner Ring (Bi) Inch 1.220 in, Bolt Hole Center to Center (e) Matric 90 mm, Bolt Hole Center to Center (e) Inch 3.543 in, Flange width (a) Matric 113 mm, Flange width (a) Inch 4.448 in, Overall Height (Z) Matric 33.3 mm, Overall Height (Z) Inch 1.311 in, Dynamic Load Rating Cr 9560 N, Static Load Rating Cor 4750 N, Limiting Speed 9500 r/min, Clearance Normal, Bearing Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearin

Free shipping included. 30-day hassle-free returns.
