MAPLE ACE UCP208-24 Pillow Block Bearing 1-1/2” Bore Self-Aligning (Qty 1)

Key features

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED

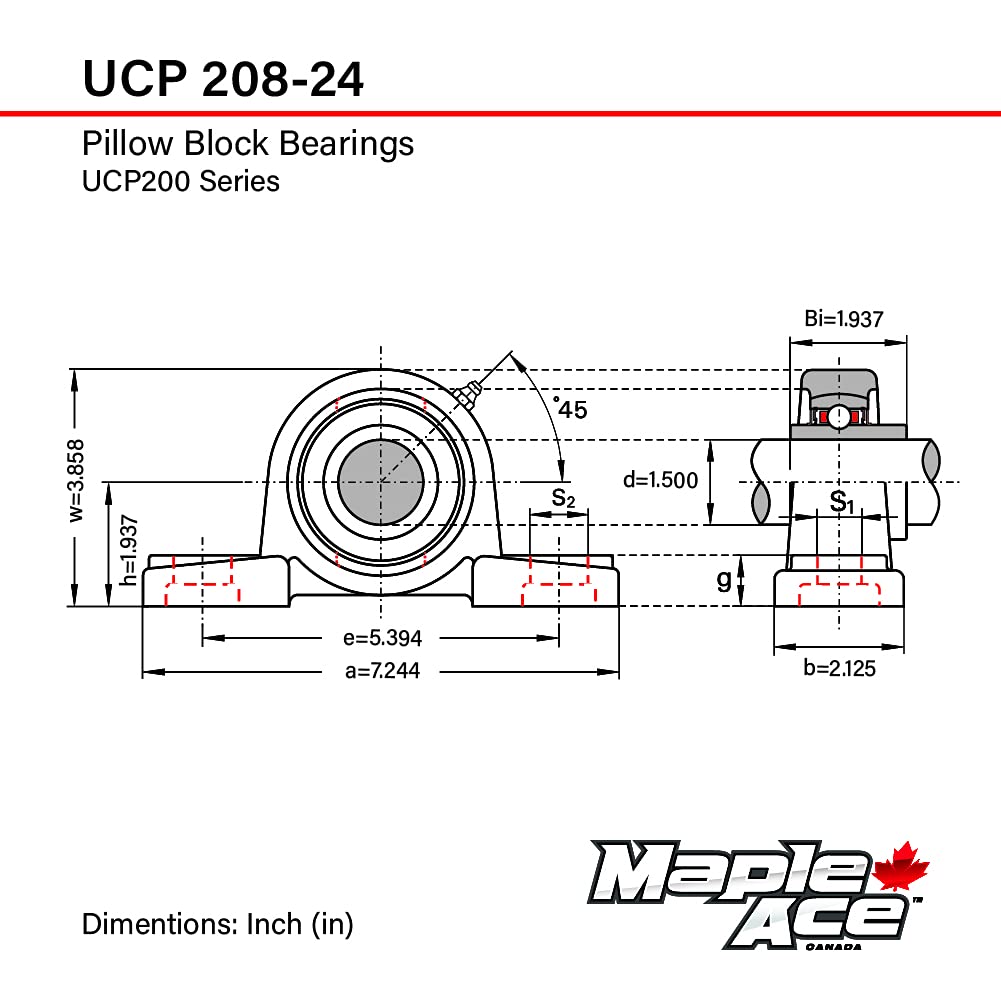

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing. The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top, to Relubricate the bearing. The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCP208-24, Series UCP200, Bearing Number UC208-24, Housing Number P208, Bearing Bore Diameter Metric 38.10 mm, Bearing Bore Diameter Inch 1-1/2 in, Bearing Width Inner Ring Matric 49.20 mm, Bearing Width Inner Ring Inch 1.937 in, Bolt Size 1/2 in Number of Bolts 2, Bolt Hole Center to Center (e) Matric 137 mm, Bolt Hole Center to Center (e) Inch 5.394 in, Overall Length (a) Matric 184 mm, Overall Length (a) Inch 7.244 in, Overall Height (w) Matric 98 mm, Overall Height (w) Inch 3.858 in, Overall Width (b) Matric 54 mm, Overall Width (b) Inch 2.125 in, Mounting Surface to Shaft Center (h) Matric 49.20 mm, Mounting Surface to Shaft Center (h) Inch 1.937 in, Dynamic Load Ra
