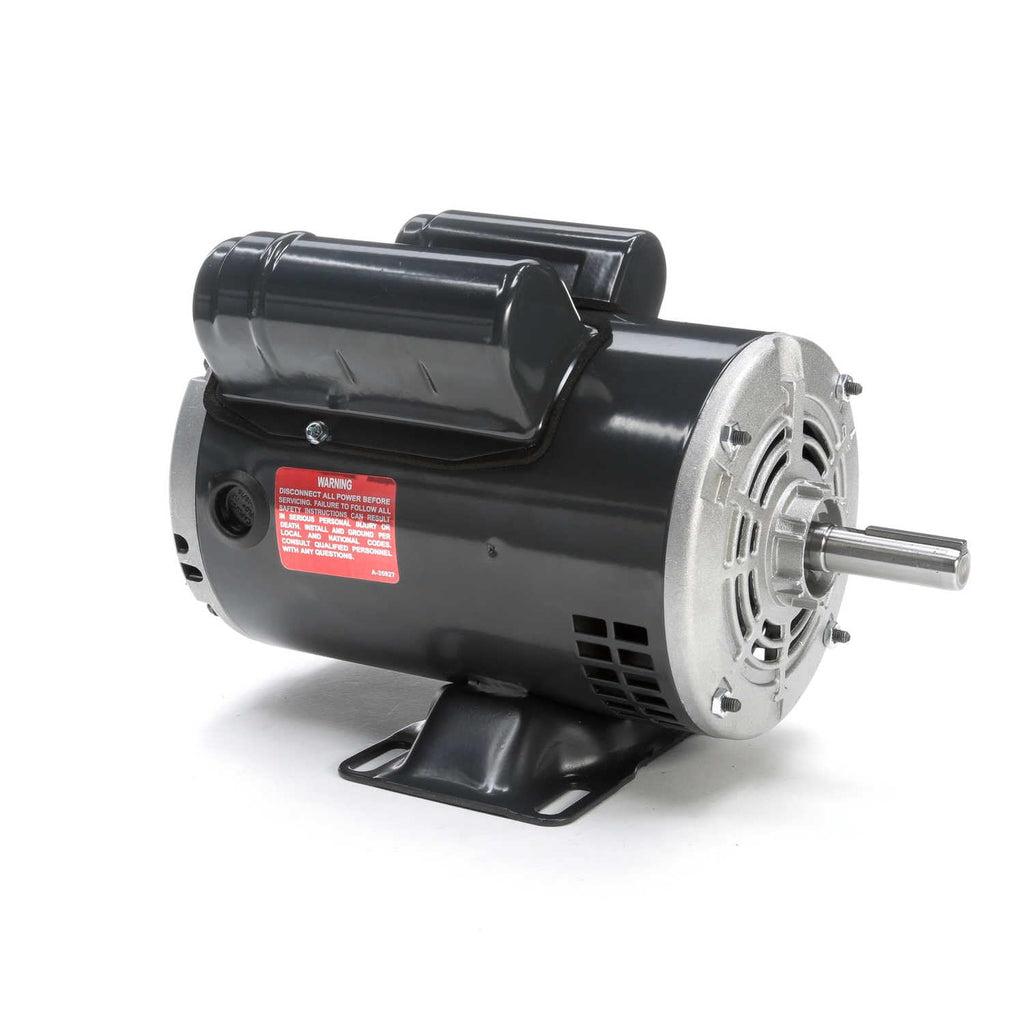

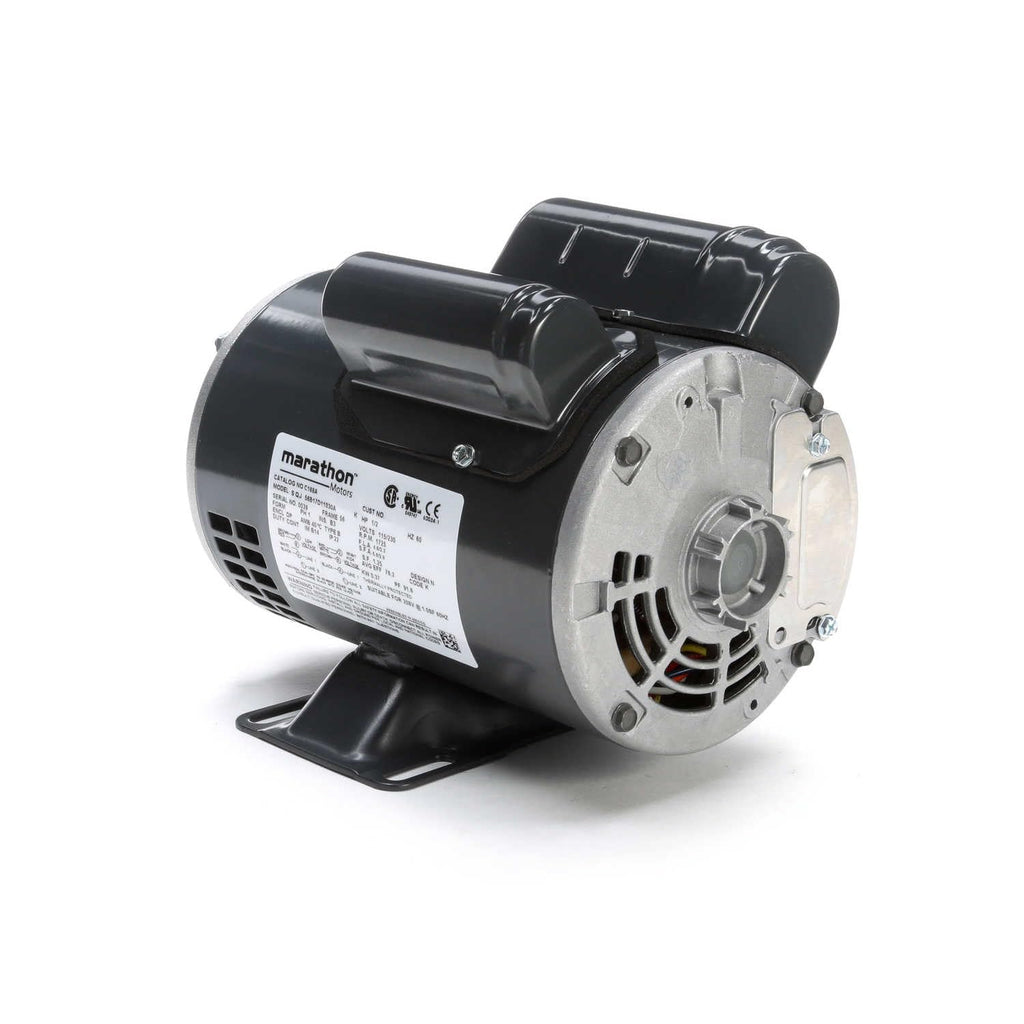

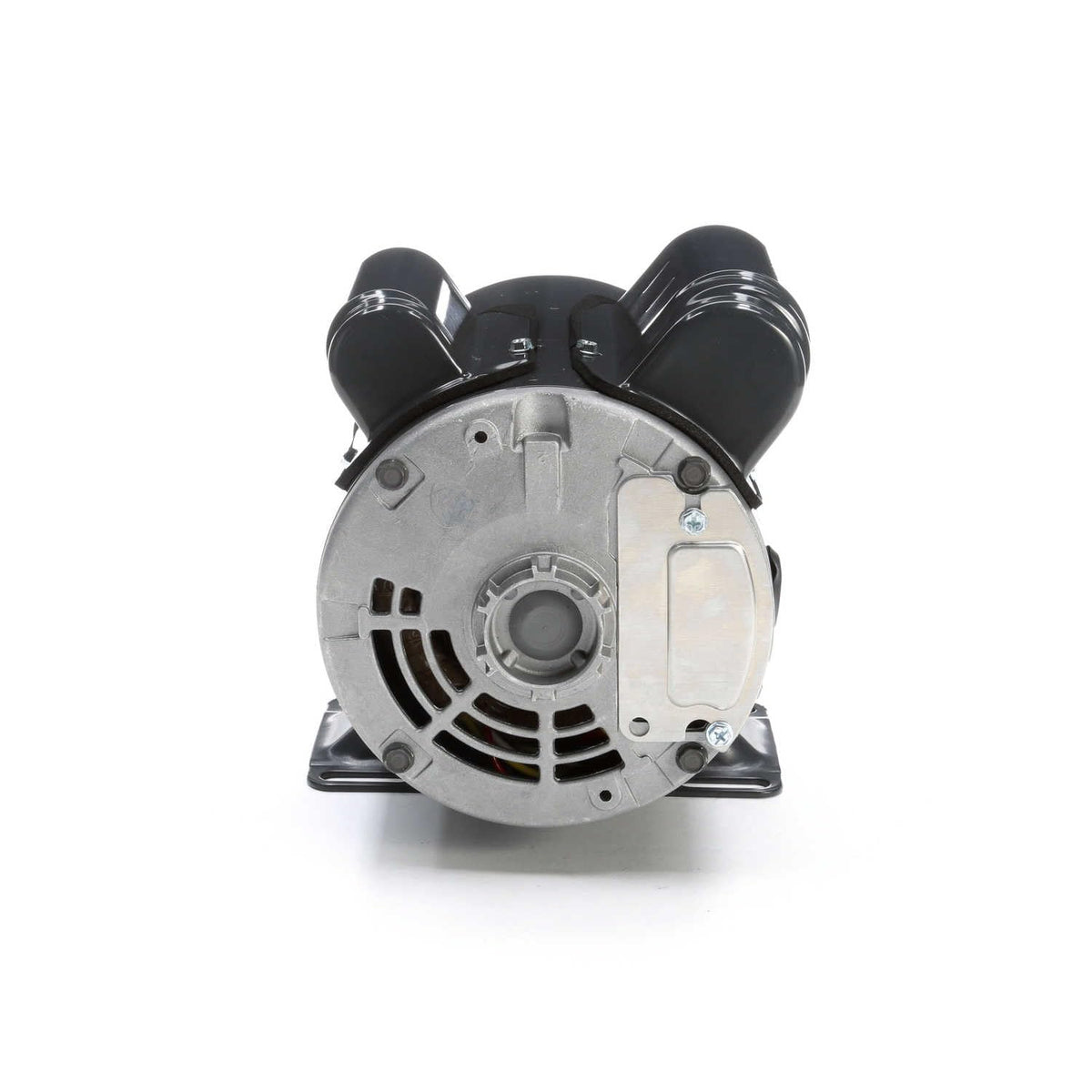

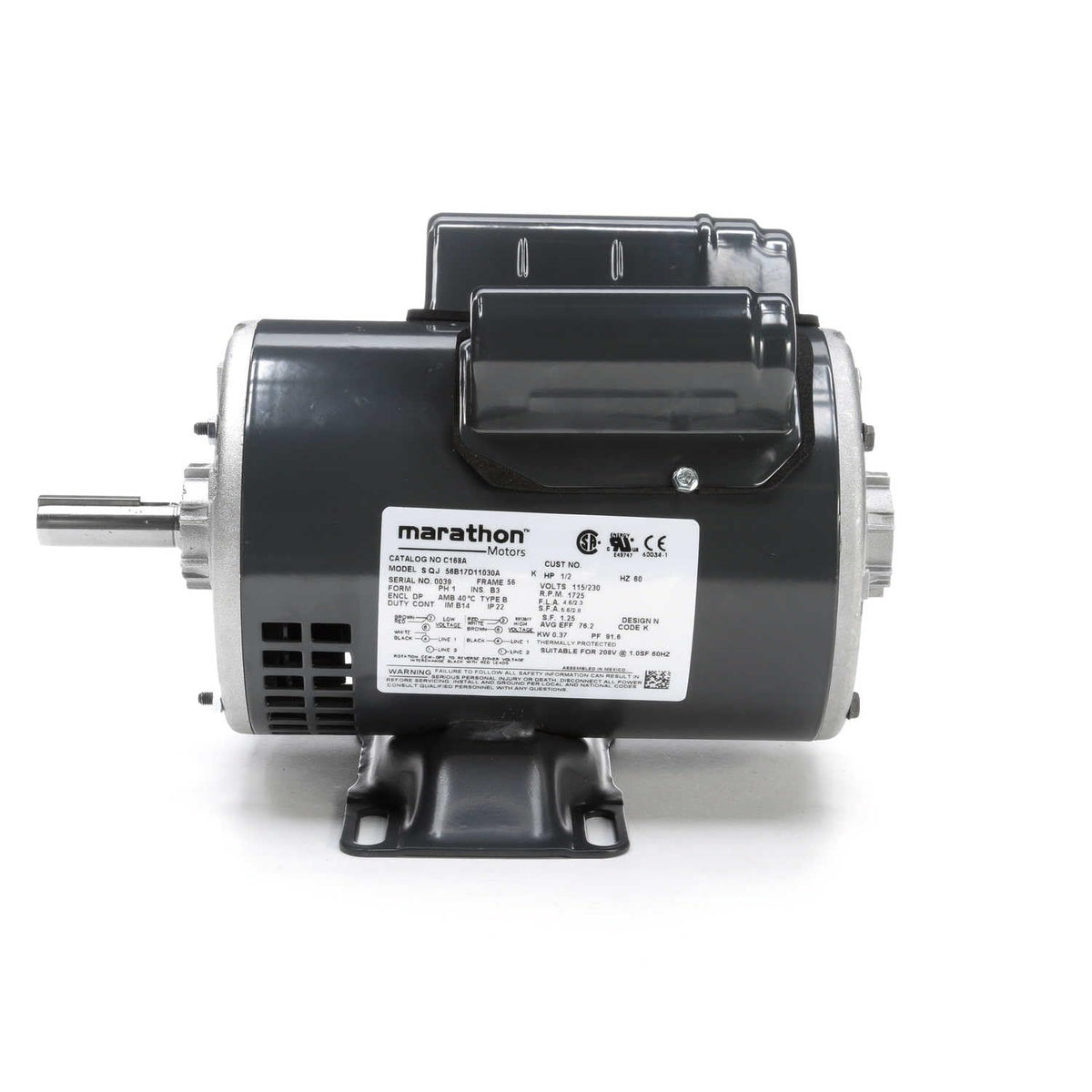

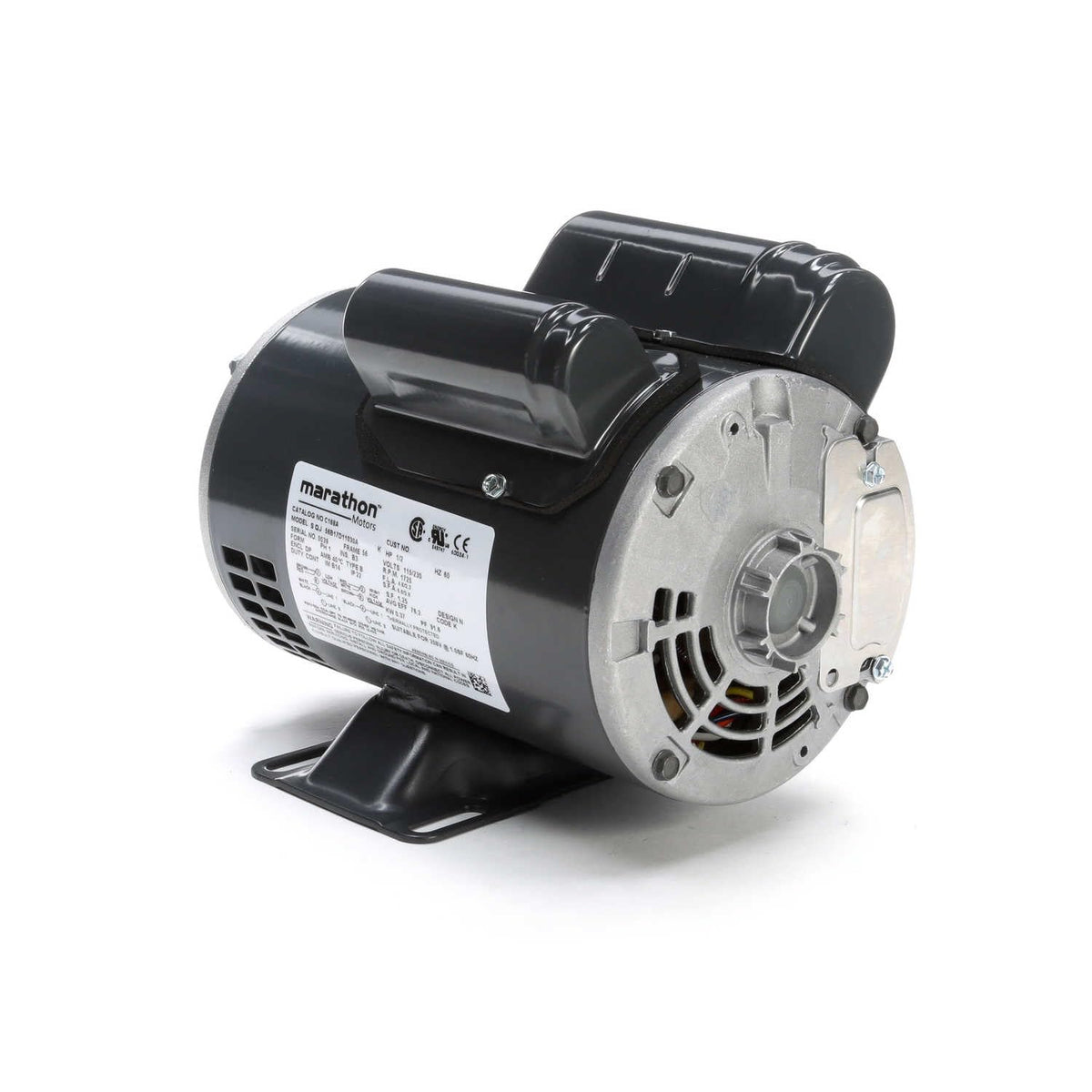

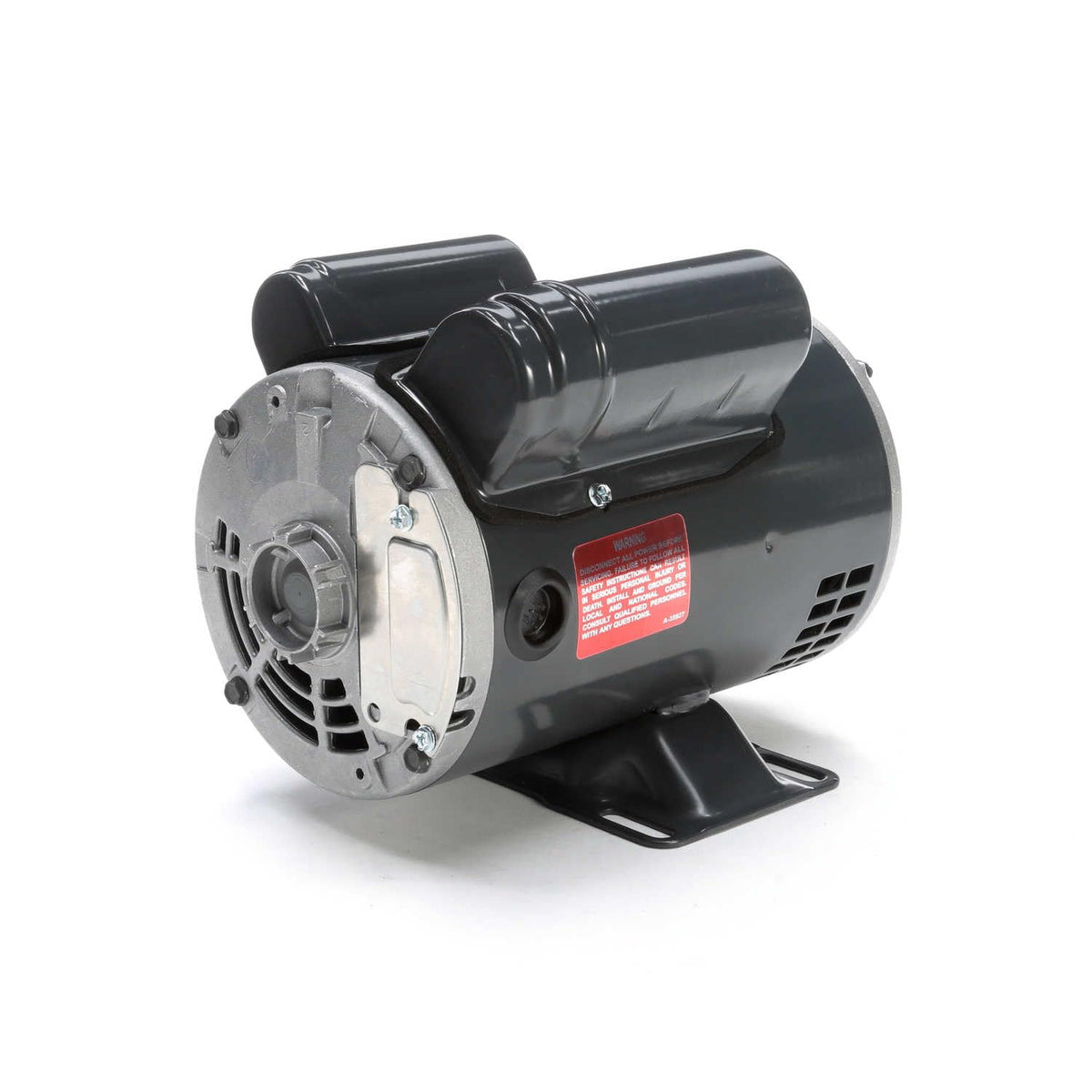

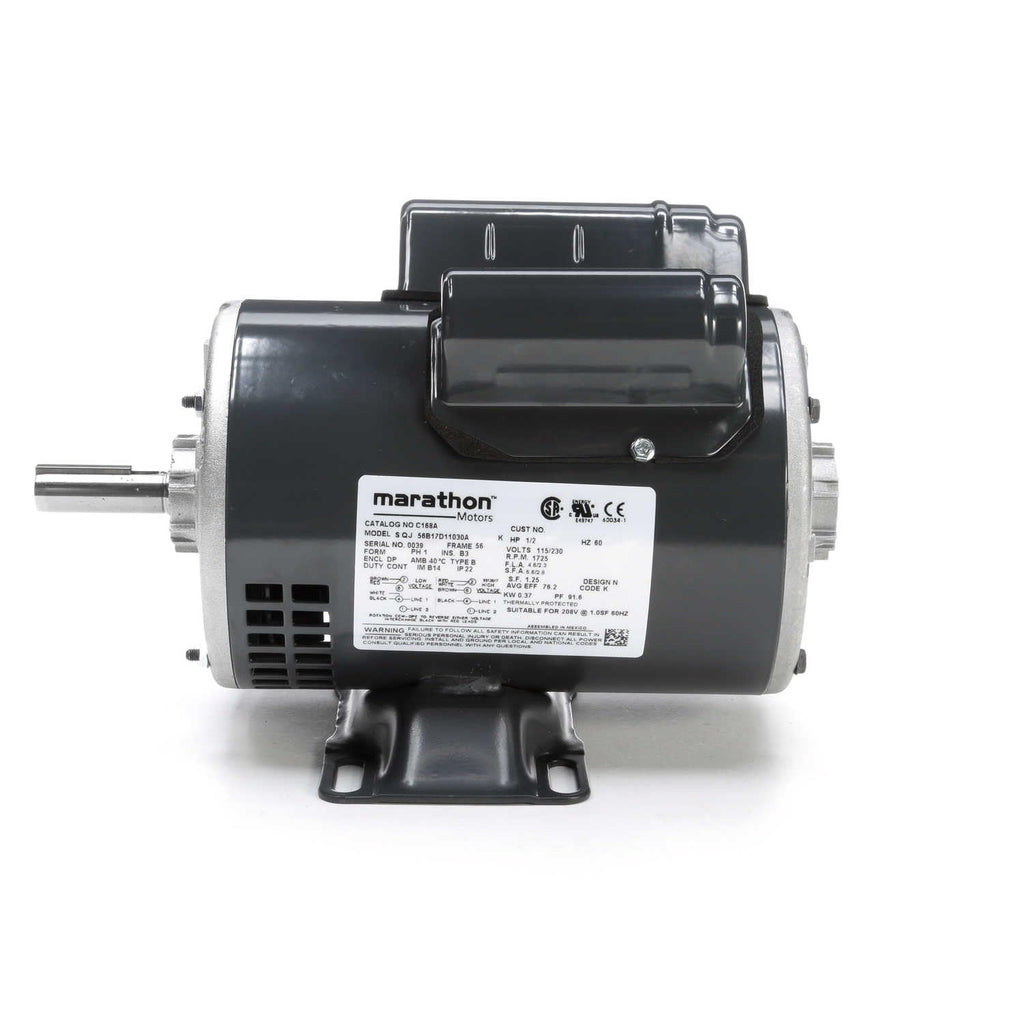

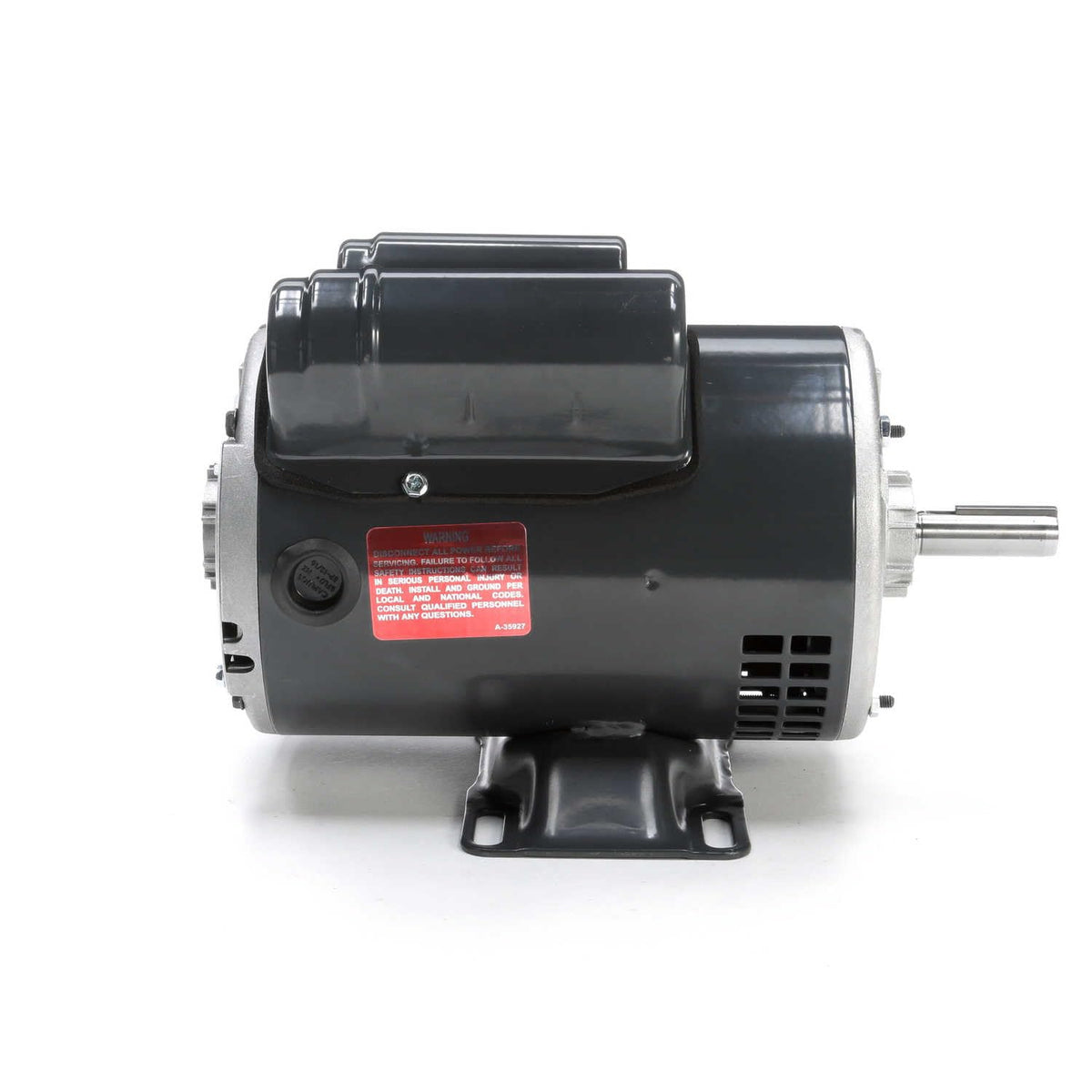

Marathon Motors, C168A, 5KC49GN0010X, 1/2HP, 1725RPM, 115/230V, 1PH, 56 FR, DP
Marathon Motors, C168A, 5KC49GN0010X, 1/2HP, 1725RPM, 115/230V, 1PH, 56 FR, DP
Key features
- HORSEPOWER: 1/2
- ENCLOSURE: DP
- FRAME: 56
- MOUNTING: Rigid
- NAMEPLATE RPM: 1725
Marathon Motors, C168, 5KC49GN0010X, 1/2HP, 1725RPM, 115/230V, 1PH, 56 FR, DP Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP. Specification: HORSEPOWER: 1/2 ENCLOSURE: DP FRAME: 56 MOUNTING: Rigid NAMEPLATE RPM: 1725 PHASE: 1 MOTOR RPM 60Hz: 1725 VOLTAGE: 115/230 DUTY: Continuous SERVICE FACTOR: 1.25 THERMAL PROTECTION: Automatic AMBIENT TEMP C: 40 ROTATION: CCW WEIGHT: 21 UL: Y CSA: Y RPM RANGE: 1701-1800 MODEL NUMBER: 5KC49GN0010X BEARING-DRIVE-END: 6203 BEARING-OPP-DRIVE-END: 6203 INSULATION CLASS: B FL AMPS: 8.8/4.4 KVA-CODE: N DRIVE END BEARING SIZE: 6203 OPPOSITE END BEARING SIZE: 6203 STARTING TYPE: Switch and Mech BRAND: Marathon Motors MANUFACTURER PART #: C168 ORIENTATION: Horizontal or Vertical is_motor: Yes ENCLOSURE TYPE: Open/Drip Proof
Free shipping included. 30-day hassle-free returns.
