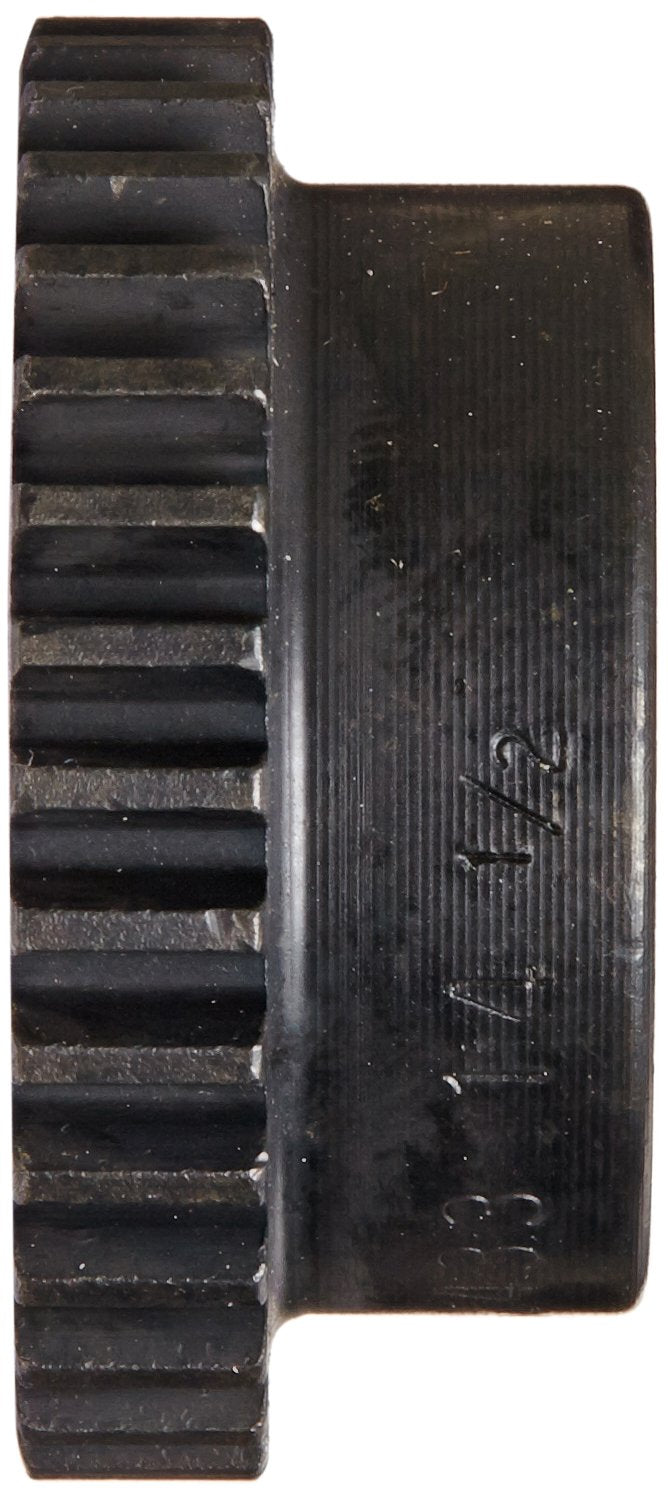

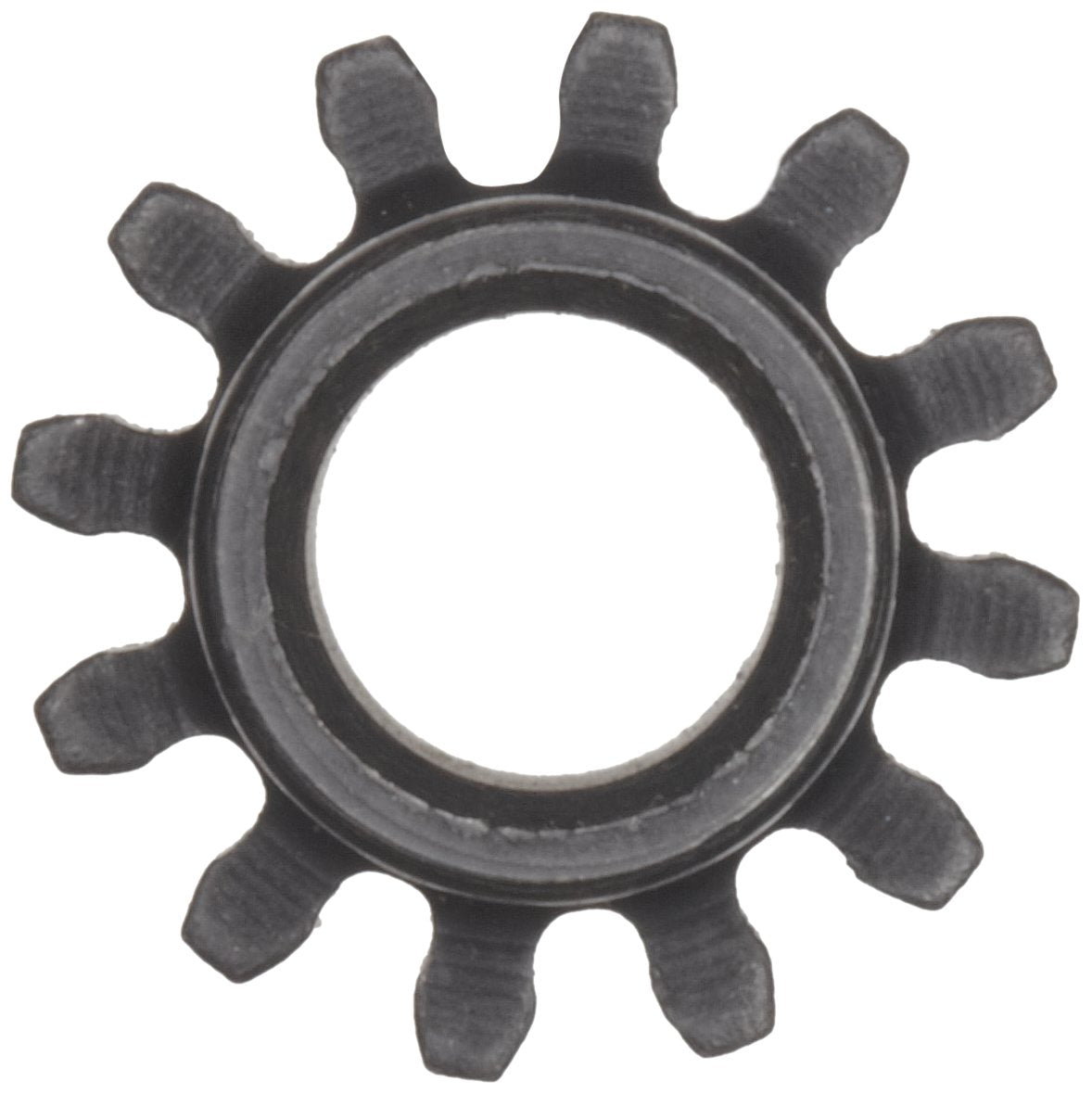

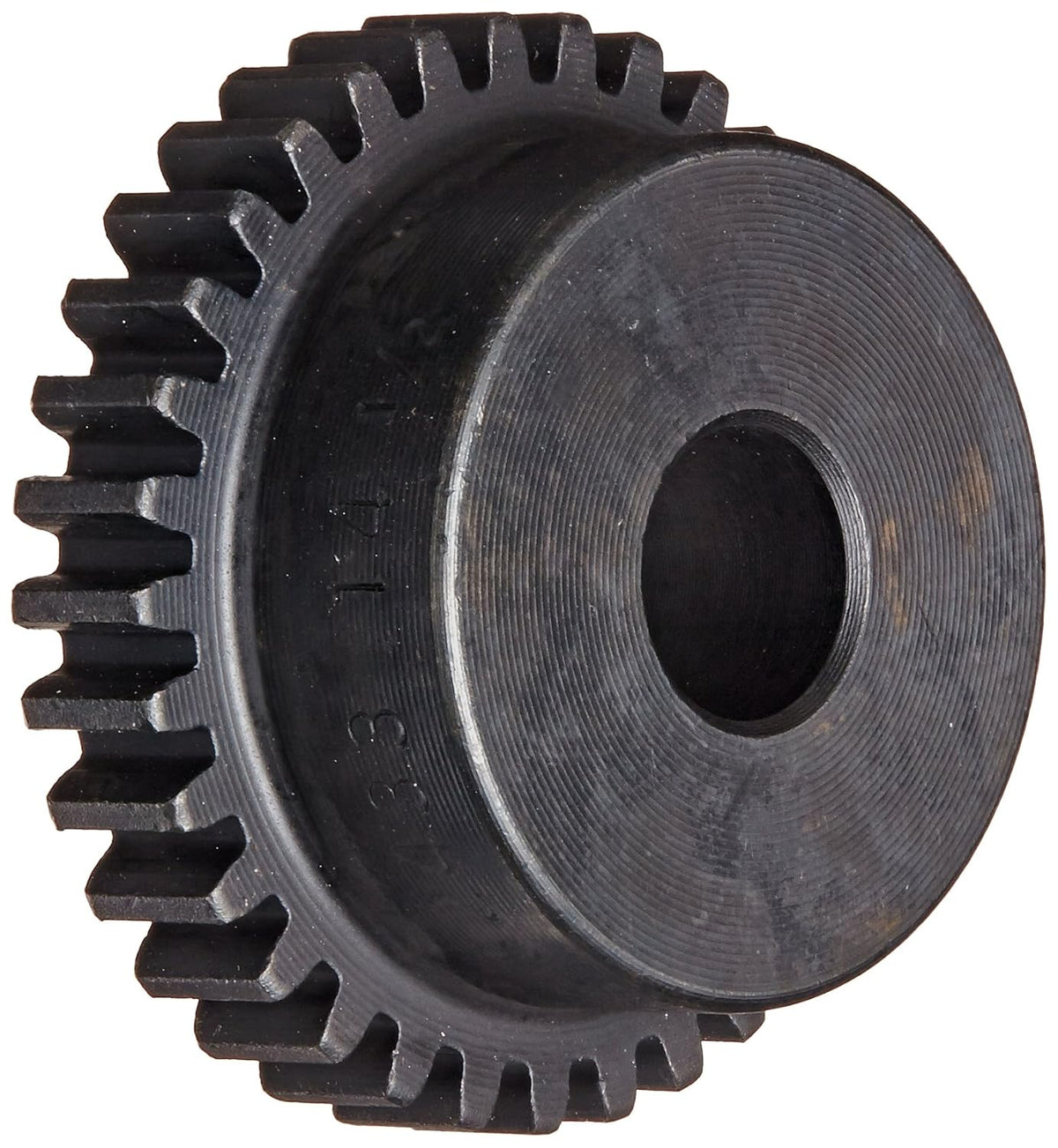

Martin S24120 Spur Gear, 14.5° Pressure Angle, High Carbon Steel, Inch, 24 Pitch, 1/2" Bore, 5.083" OD, 0.250" Face Width, 120 Teeth

Key features

• Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
• Pressure angle of 14.5 degrees for a higher contact ratio between gears, resulting in quieter operation than larger pressure angles
• Diametral pitch of 24 for applications where controlling changes in speed and direction of rotation with precision is more important than transferring torque
• High carbon steel for tensile strength and hardness

The Martin high carbon steel spur gear with 14.5-degree pressure angle (PA) and a diametral pitch (DP) of 24 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 14.5-degree pressure angle for a higher contact ratio between gears than larger pressure angles, resulting in quieter operation, and a 24-diametral pitch for applications for applications where controlling changes in speed and direction of rotation with precision is more important than transferring torque. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of high carbon steel for tensile strength and hardness. This Martin spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (also called DP or pitch), and its mat
