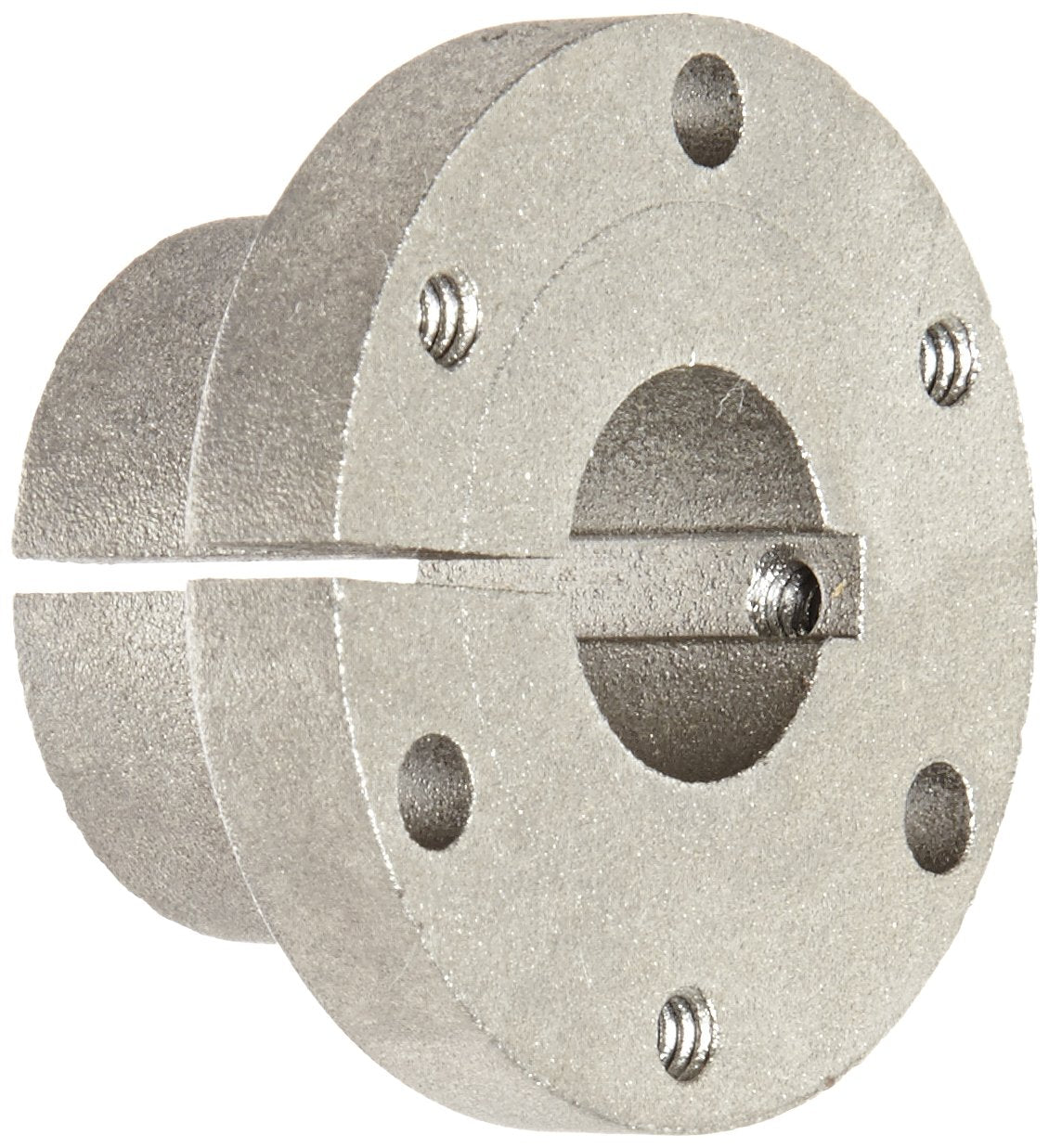

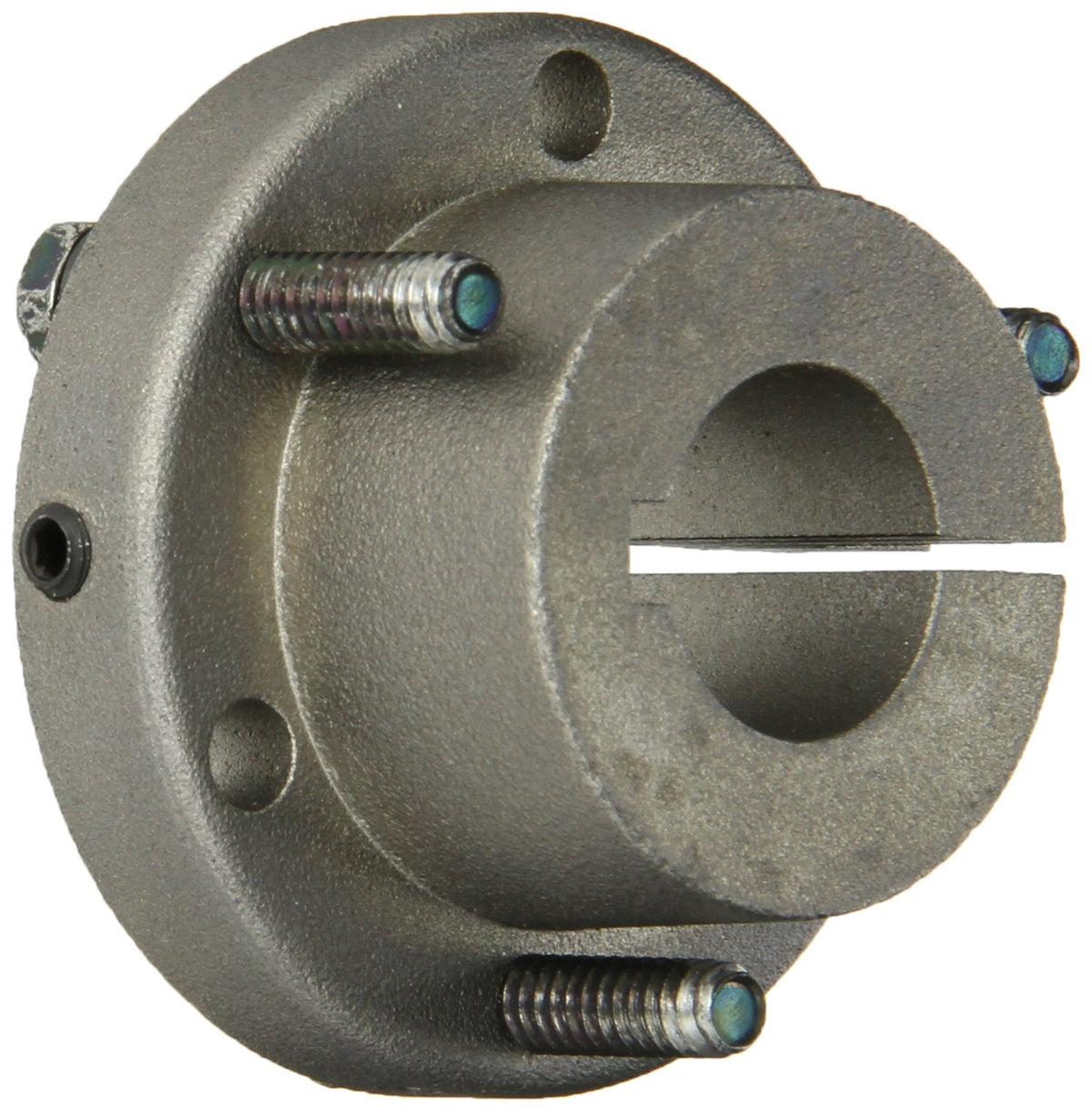

MARTIN SPROCKET & GEAR INC JA 7/8 BUSHING

Key features

• Quick disconnect bushing for mounting a pulley, sheave, or sprocket on a drive shaft
• Split through flange and taper to provide strong clamping on the shaft
• Sintered steel for greater strength and resistance to wear than steel
• Keyed to the shaft to prevent the shaft from rotating in the bushing
• Set screw over keyway to help keep key in place on vertical shafts and with vibrating loads

This Martin JA quick disconnect bushing is made of sintered steel and is used for mounting a quick disconnect pulley, sheave, or sprocket on a drive shaft. It is split through the flange and taper to provide strong clamping on the shaft. The bushing is made of sintered powder steel for greater strength and wear resistance than plain carbon steel. It is keyed to the shaft to prevent the shaft from rotating in the bushing, and it has a set screw over the keyway to help keep the key in place on vertical shafts and with vibrating loads. This quick disconnect bushing is used in automobiles, construction equipment, agricultural machinery, and home appliances, among others.Bushings are cylindrical parts used to mount pulleys, sheaves, sprockets, or other components to drive shafts for the transmission of mechanical power. Most bushings are split and have a tapered outside surface so they will clamp to the shaft when tightened against the tapered bore of the driven component. They are made of durable metals such as cast iron and steel. Bushings are used in automobiles, construction equipment, and machine tools, among others.Martin Sprocket & Gear manufactures power transmission and conveyi
