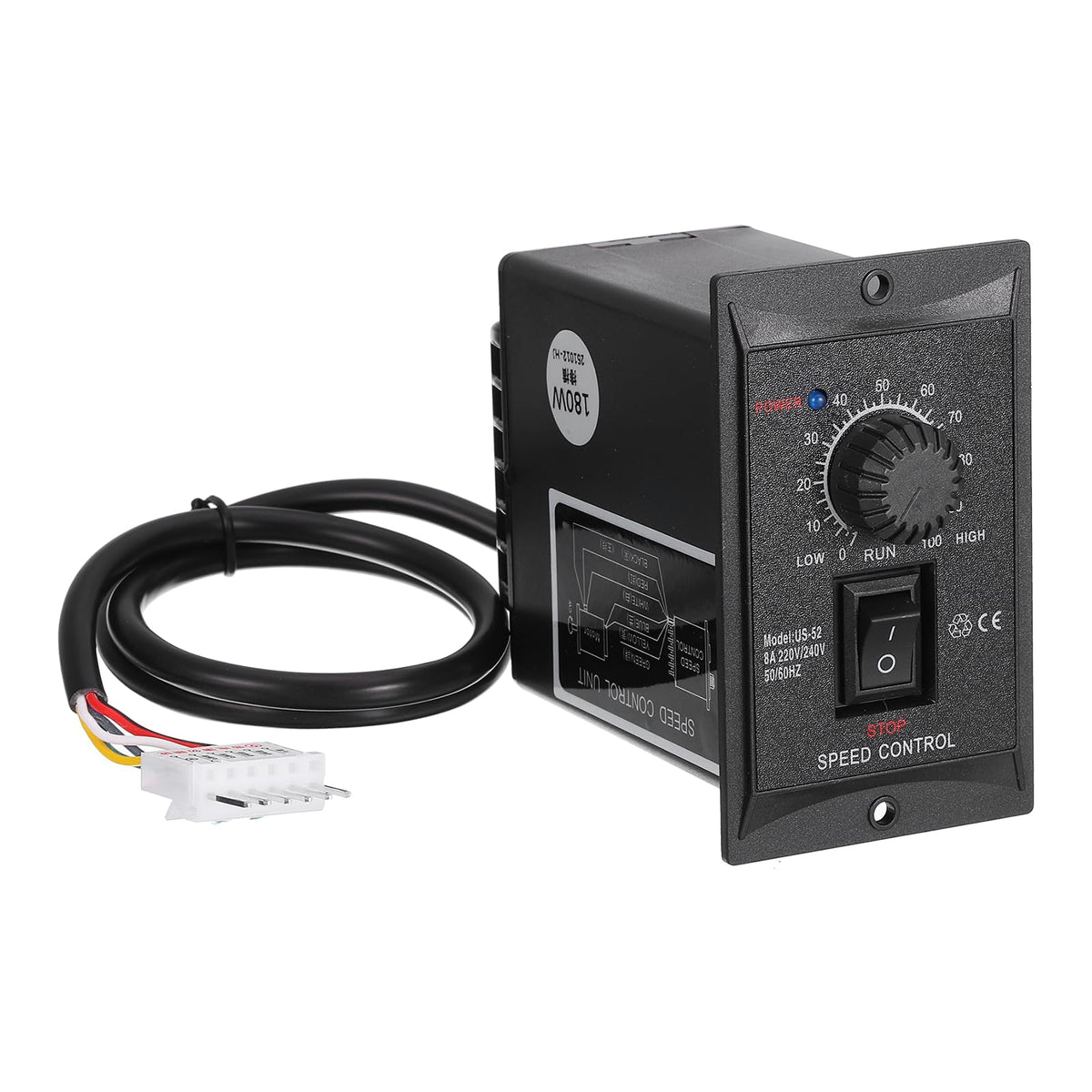

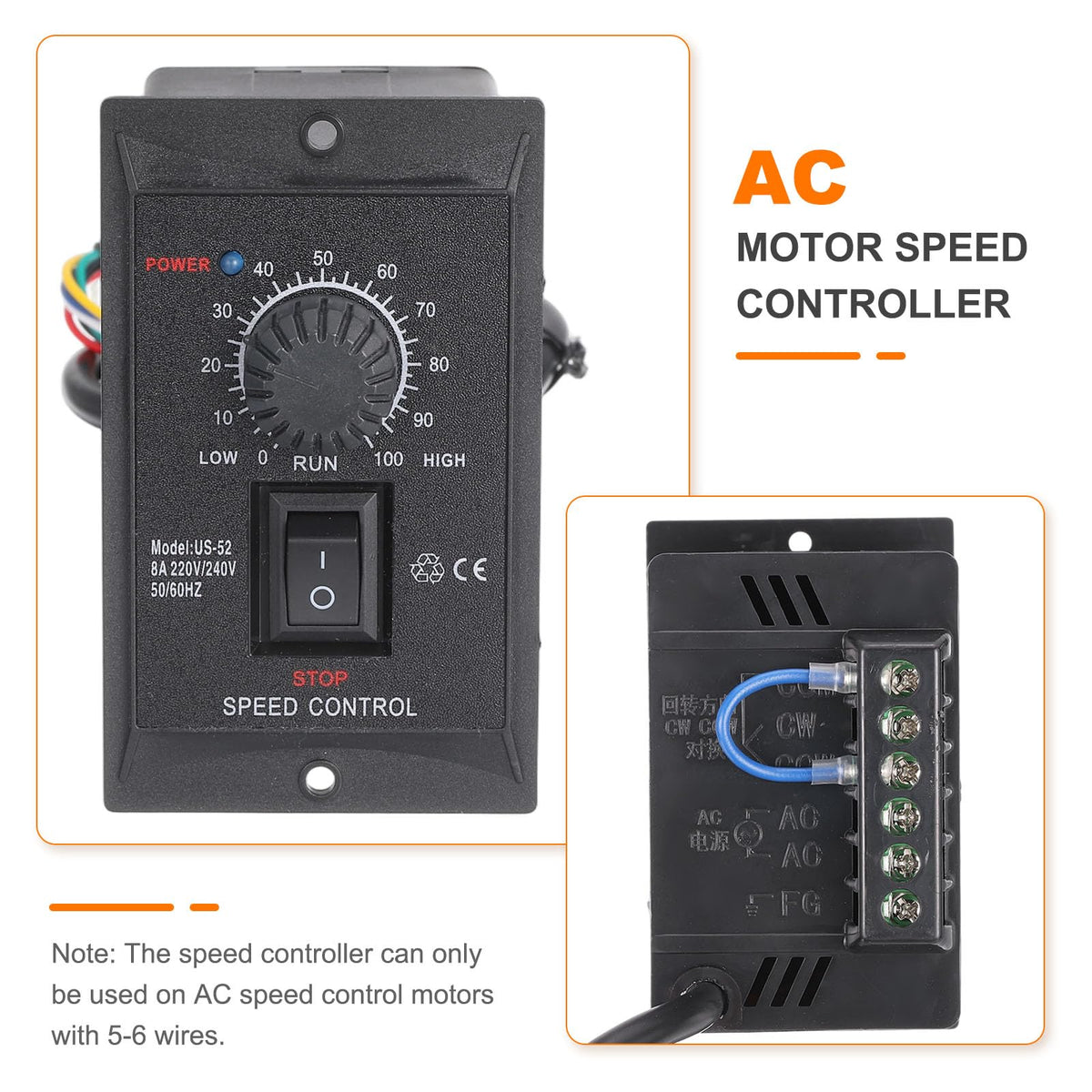

MECCANIXITY AC Motor Speed Controller 180W 220V US-52 50/60Hz

Key features

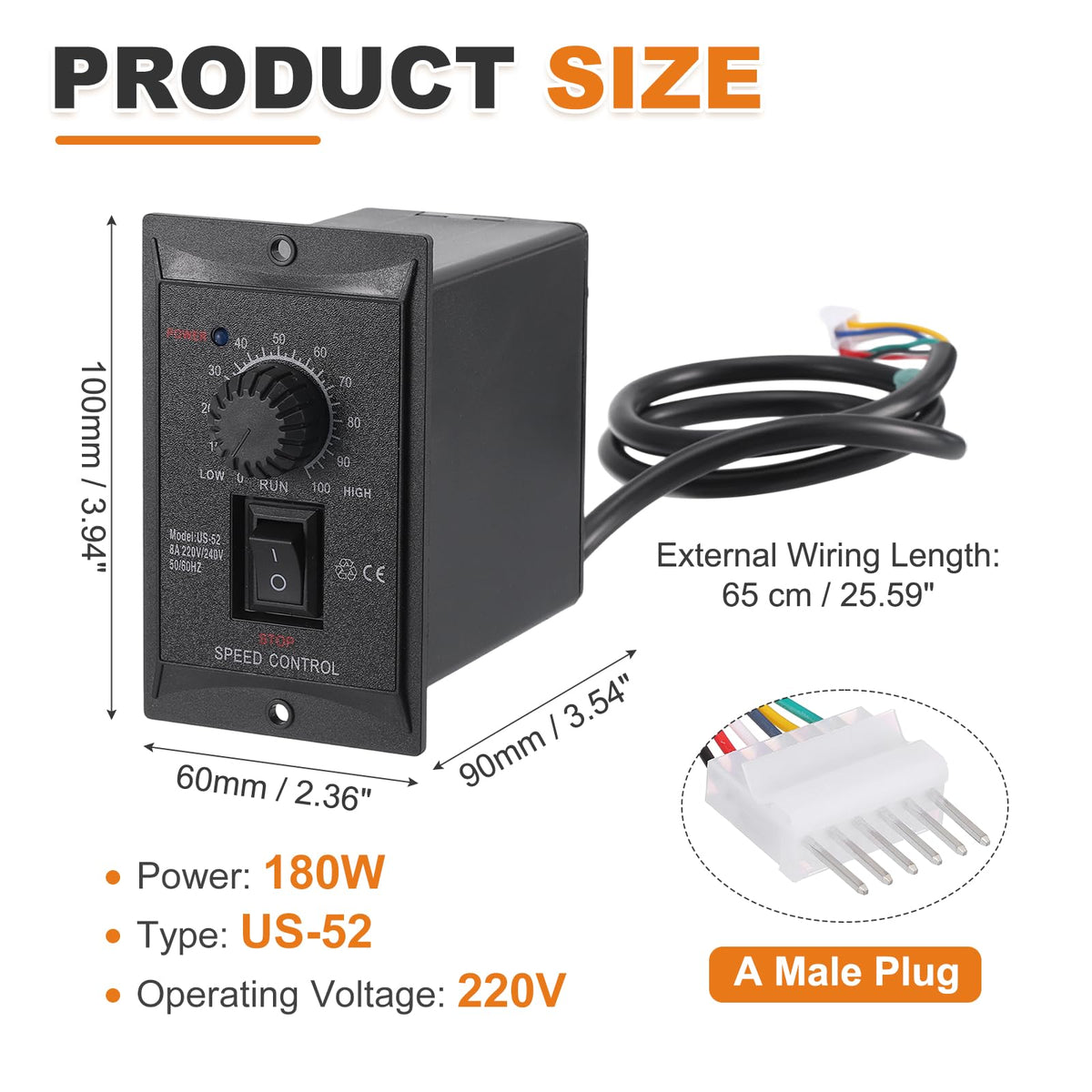

• Shell Material: Plastic; Power: 180W; Type: US-52; External PLC Plug: Terminal Block Male Plug; Operating Voltage: 220V; Control Method: Forward/Reverse; External Wiring Length: 65 cm / 25.59 Inch; Dimensions: 100x60x90 mm / 3.94x2.36x3.54 Inch (LxWxH); Package Contents: 1 Pcs x Backward Variable Governor Regulator
• This motor speed controller is designed for automated industrial equipment and machinery in various environments, and is suitable for automated equipment in industries such as packaging, printing, textile machinery, instrumentation, and clothing.

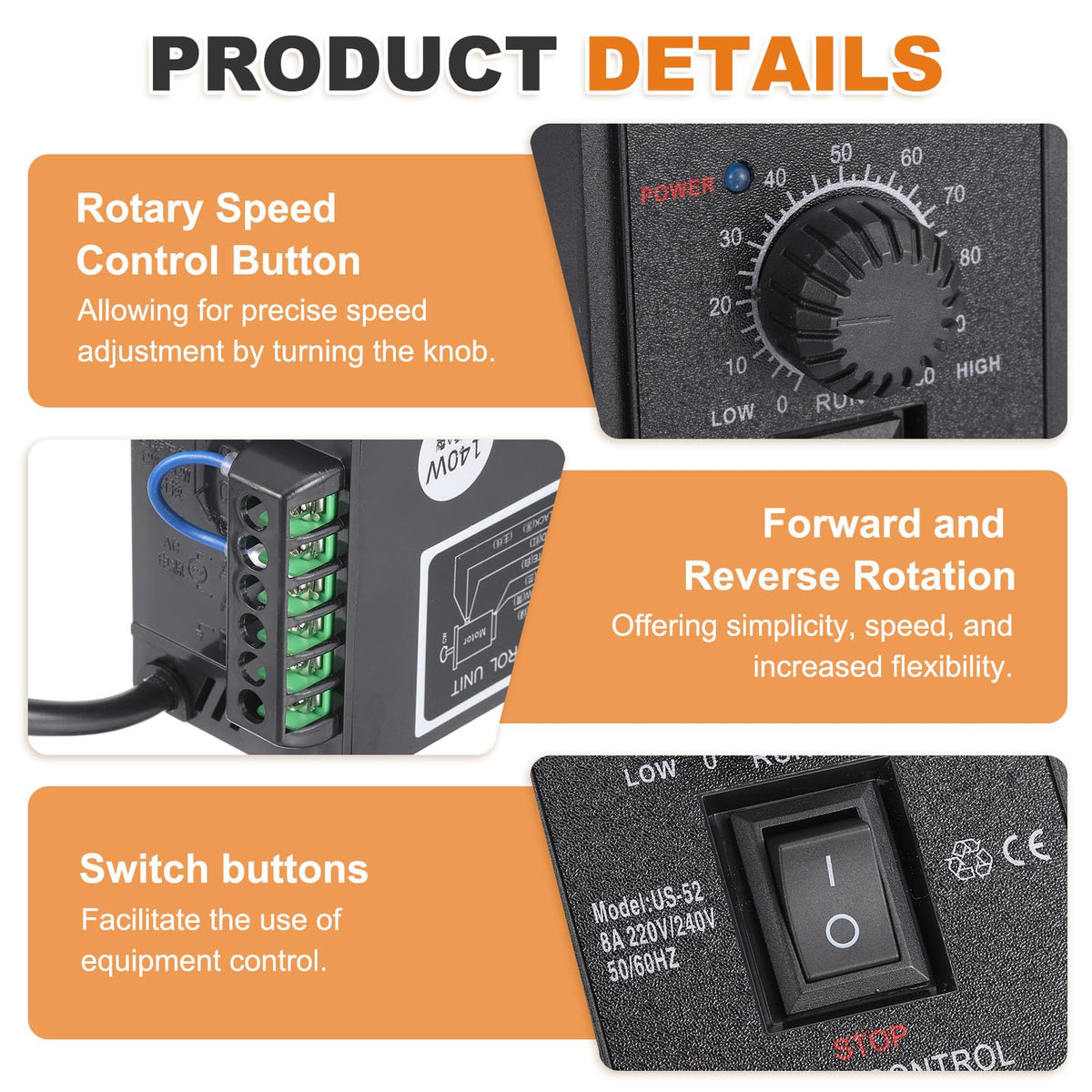

• This motor controller features a rotary speed control button, allowing for precise speed adjustment by turning the knob. Forward and reverse rotation can be achieved by changing the wiring ports, offering simplicity, speed, and increased flexibility. The variable speed controller for electric motor has a compact design, making it easy to integrate into control panels or mechanical devices.

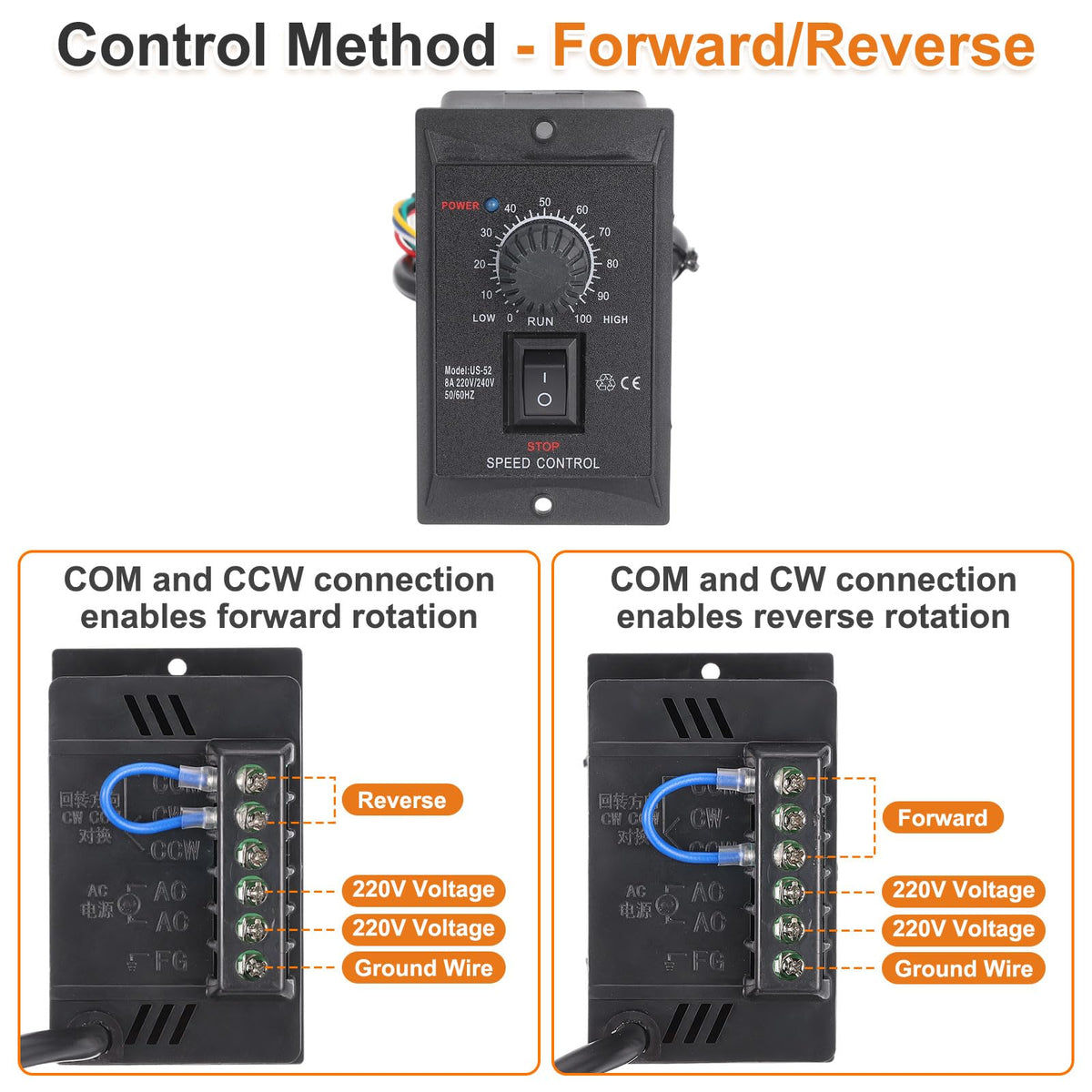

• During installation, simply secure the speed control switch using the screw holes on the panel (screws not included). Connect the AC power input cable and motor output cable to the corresponding ports, and connect the motor's plug to a compatible socket or control circuit. COM and CCW connection enables forward rotation; COM and CW connection enables reverse rotation.
• To prevent overload, please ensure that the rated power of the connected motor does not exceed the controller's capacity and your local voltage before purchasing. When starting the system, always keep the speed adjustment knob in the minimum position.
