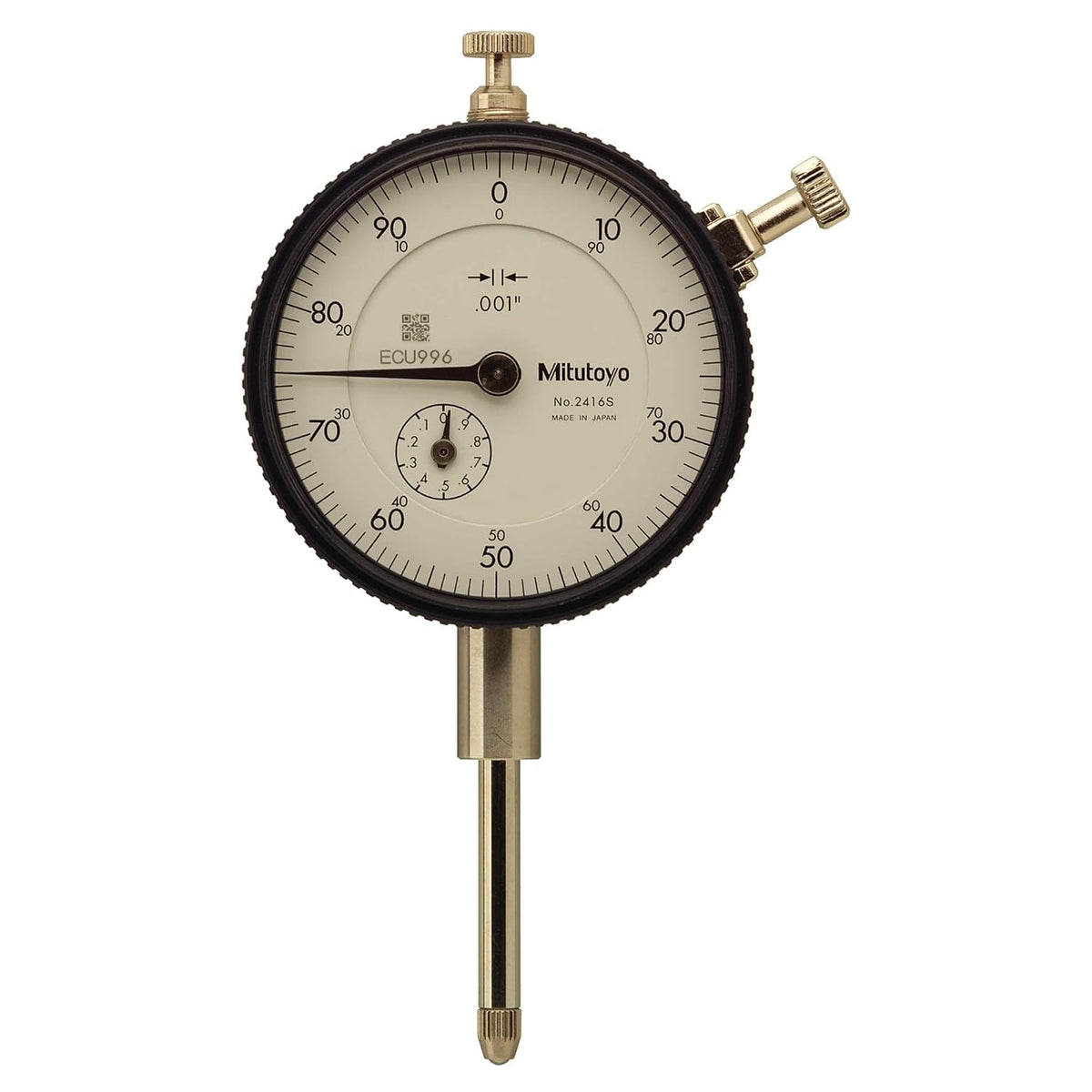

Mitutoyo 2416S-10 Dial Indicator, #4-48 UNF Thread, 3/8" Stem Dia., Lug Back, White Dial, 0-100 Reading, 57mm Dial Dia., 0-1" Range, 0.001" Graduations, +/-0.002" Accuracy

Key features

• Standard dial indicator measures 0 to 1.0", with 0.001" graduations, + or - 0.002" accuracy, and 0.1" range per revolution, for measuring surface variations
• Dial has a white face with contrasting hand, units displayed in inches, and a rotating bezel and limit markers
• Stem design provides long clamping range, no through screw-hole on the frame for dust- and water-resistance, and a lug back for mounting from the rear of the indicator
• Stem is 3/8" diameter with a #4-48 UNF contact point thread mount
• Jeweled bearing type for accuracy

The Mitutoyo 2416S-10 dial indicator is used to measure surface variations. It has a measurement range of 0 to 1.0", graduations of 0.001", an accuracy of + or - 0.002", and a range per revolution of 0.1". The dial is white with a contrasting hand for readability. The stem design provides a long clamping range, there are no through screw-holes on the frame for dust- and water-resistance, and it has a lug back for mounting from the rear of the indicator. This unit has a 3/8" diameter stem and a #4-48 UNF contact point thread mount. The dial has a jeweled bearing for accurate readings. This model is a continuous dial with a reading of 0-100, for direct readings. It has a force of 1.8 Newtons (N) or less.SpecificationsRange0 to 1.0"Graduations0.001"Accuracy+ or - 0.002" (overall)Range per revolution0.1"Measuring force1.8N or lessStem#4-48 UNF contact point thread mount with 3/8" diameter spindleFaceDial, white face, jeweled bearing, lug on backDial reading0-100Dimensions115.7 x 57 x 25.3mm (H x W x D), not including lugShipping weight0.57lb.H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horiz
