MOT18687 Condenser Fan Motor Fits for American Standard Trane

Key features

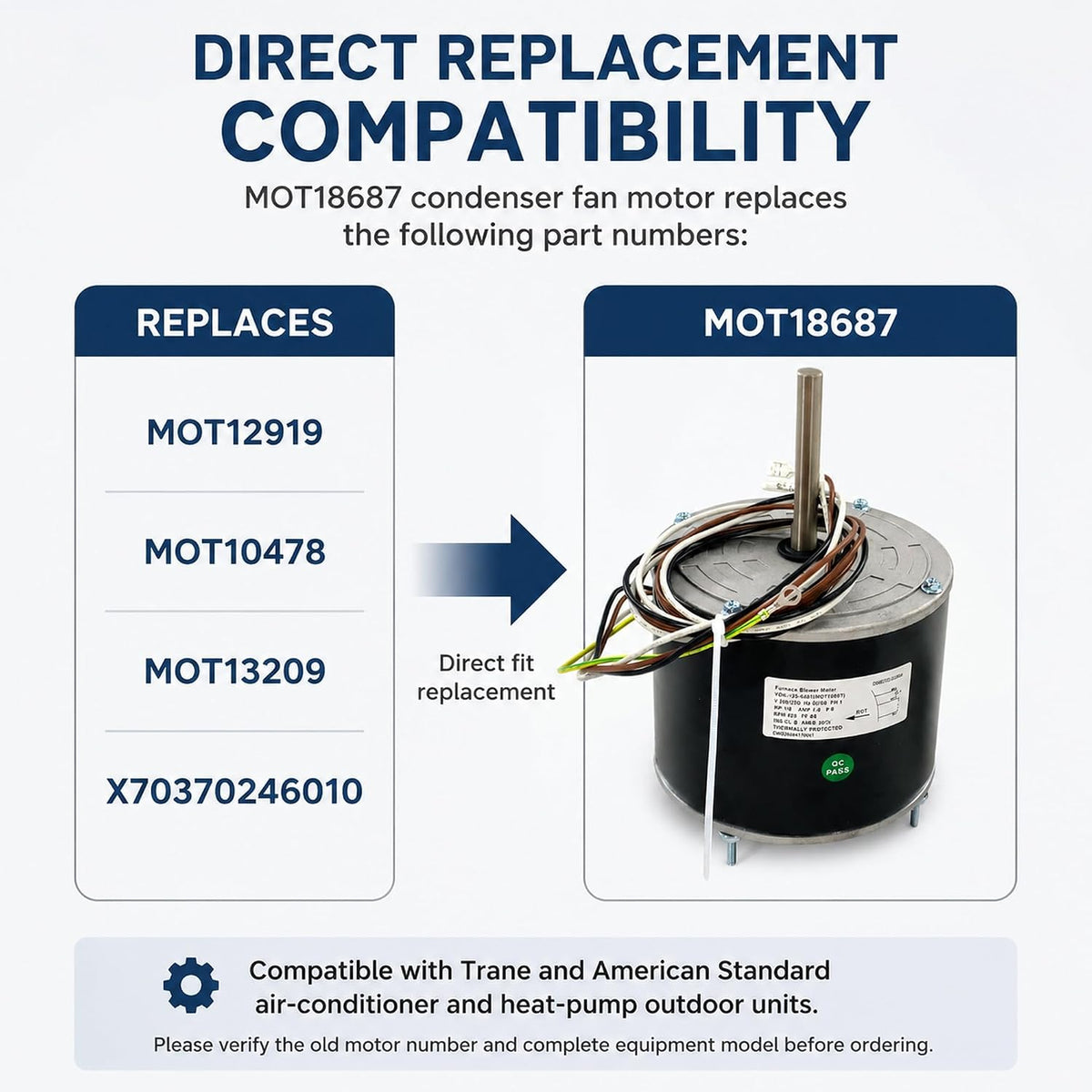

• Replacement Part Numbers: MOT18687 condenser fan motor is replaces MOT12919, MOT10478, MOT13209, MOT11051, MOT03347, MOT18623, MOT03125, MOT3125, MOT02952, MOT2952, X70370246010. Compatible with Trane and American Standard air-conditioner and heat-pump outdoor units. Verify the old motor number and complete equipment model before ordering

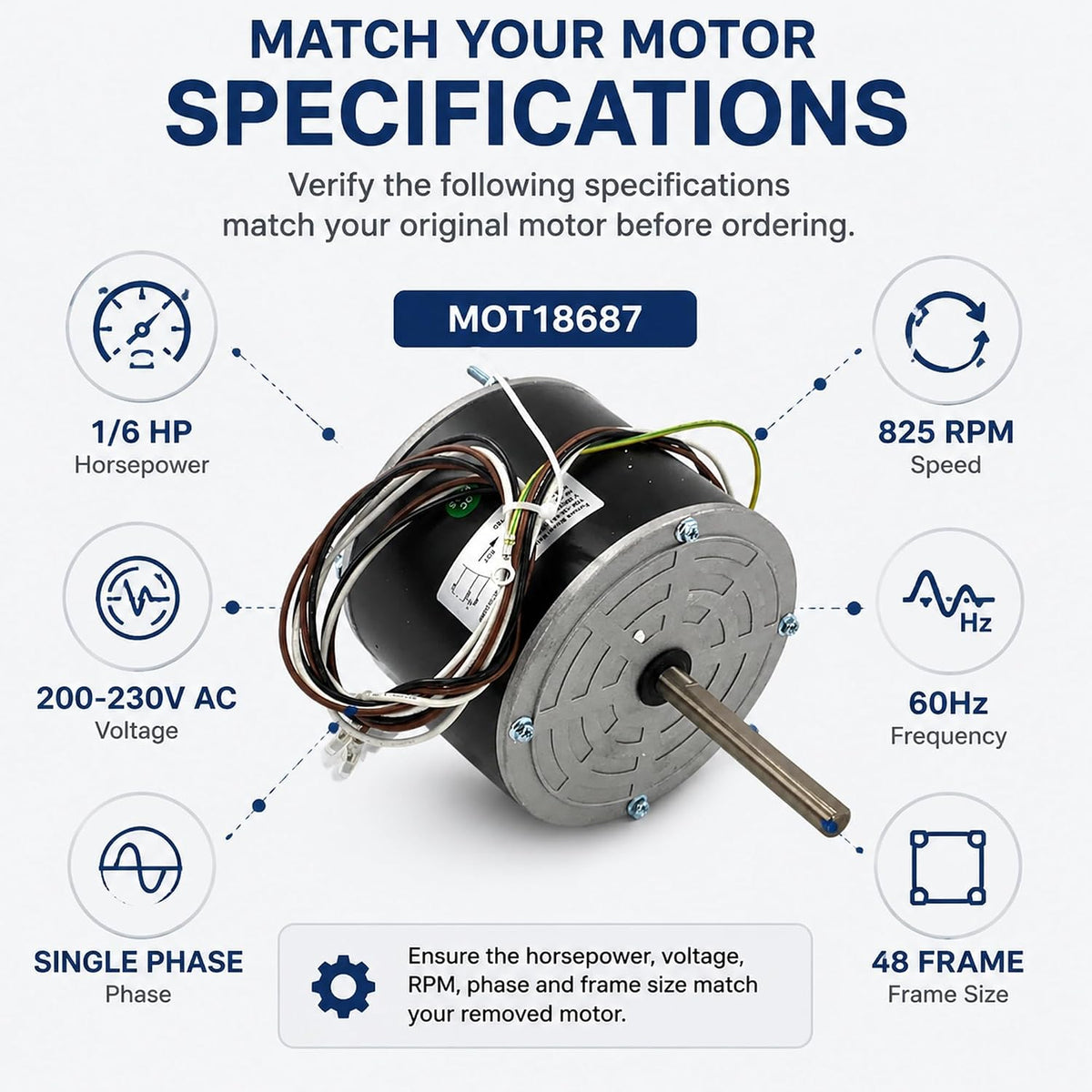

• Motor Specifications: Rated at 1/6 HP, 200-230V AC, 60Hz, single phase and nominal 825 RPM. Features a single-speed PSC configuration and 48-frame motor body for compatible condenser fan assemblies. Match the horsepower, voltage, RPM, phase and frame size with the removed motor

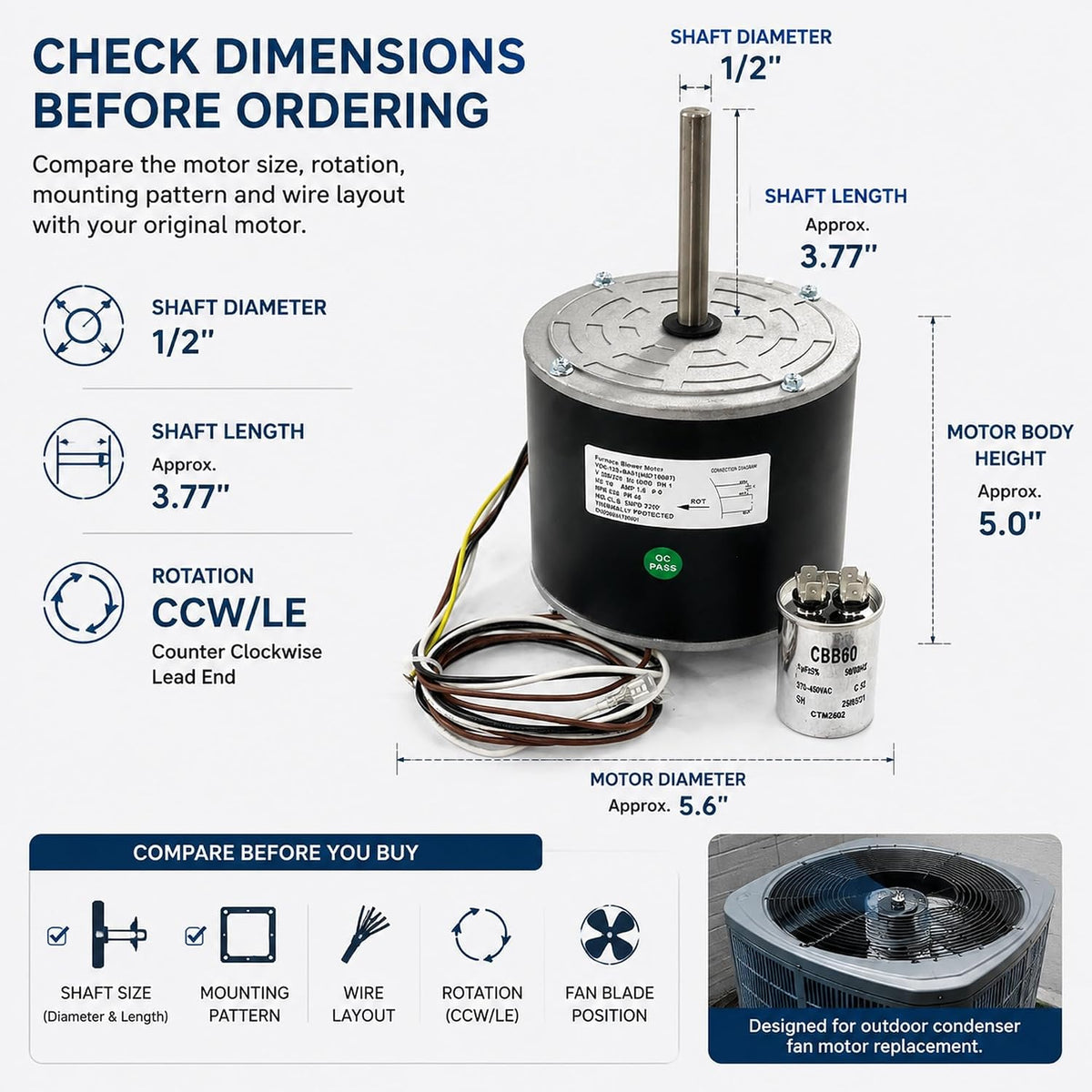

• Size And Rotation Check: Reference configuration includes a 1/2-inch shaft diameter, approximately 3.77-inch shaft length and CCW/LE rotation. Compare the motor-body diameter, usable shaft length, mounting pattern, lead-end rotation, wire layout and fan-blade position before purchase

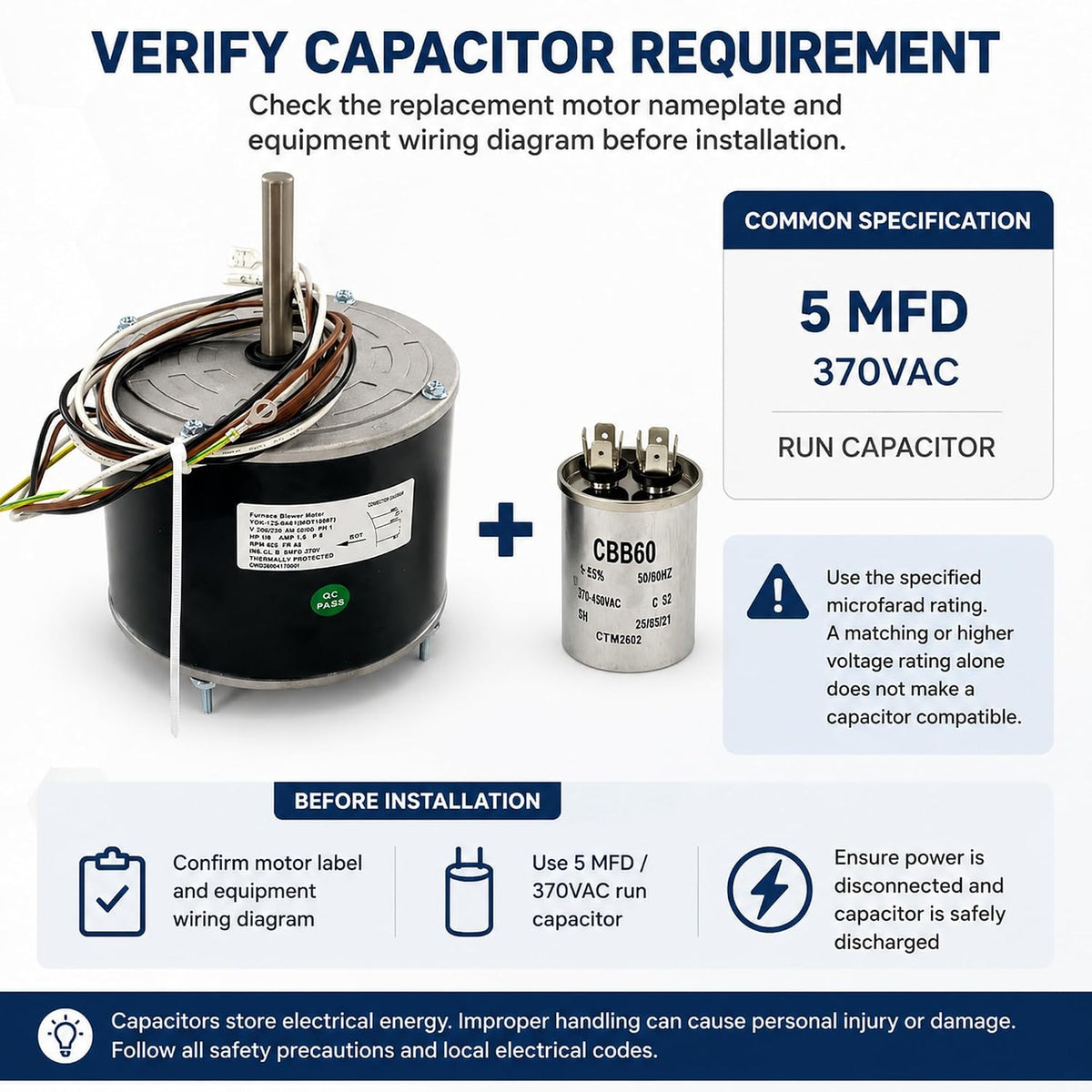

• Capacitor Requirement: MOT18687 applications commonly specify a 5 MFD/370VAC run capacitor. Check the replacement motor nameplate and equipment wiring diagram before installation. Use the specified microfarad rating; a matching or higher voltage rating alone does not make a capacitor compatible

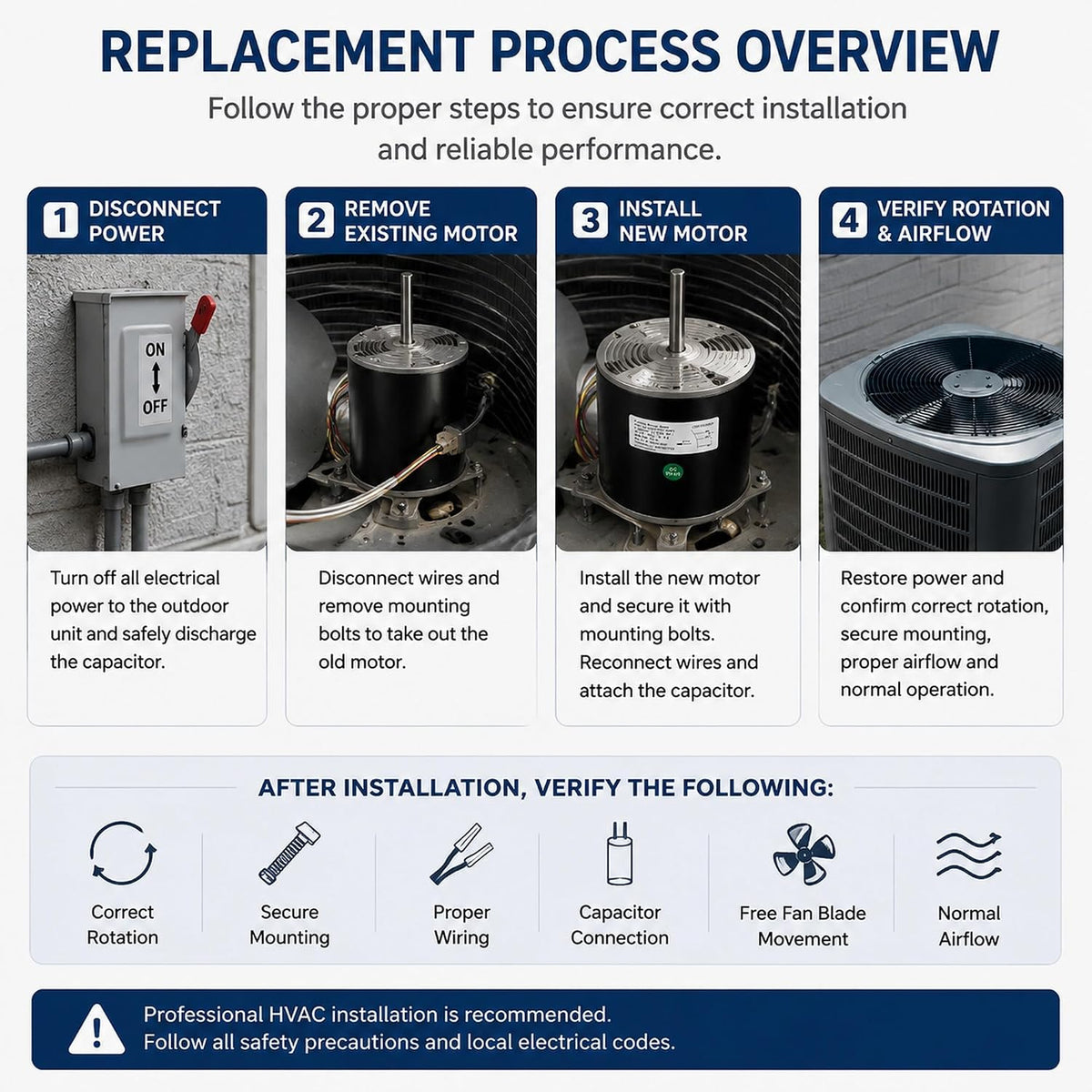

• Easy Installation: Disconnect all electrical power and safely discharge the existing capacitor before service. Professional HVAC installation is recommended. After installation, confirm correct rotation, secure mounting, proper wiring, capacitor connection, free fan-blade movement and normal airflow before continuous operation
