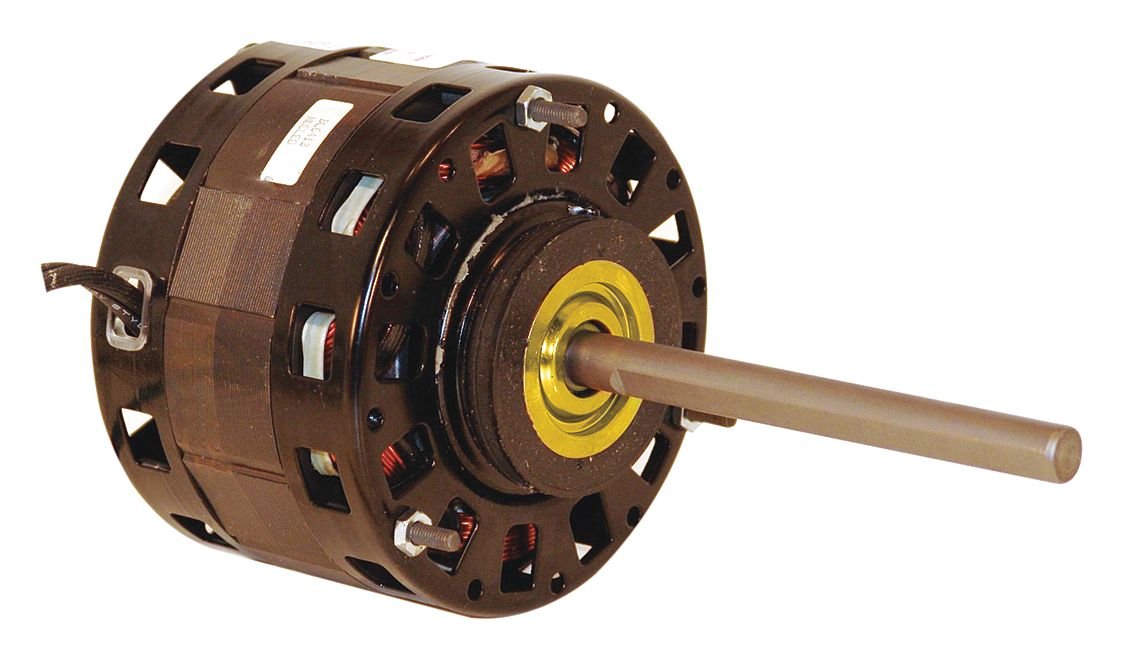

Motor, PSC, 1/5 HP, 1075 RPM, 115V, 42Y, OAO

Key features

• Price For: Each Body Dia.: 5" Motor Shaft Design: Flat Hz: 60 Motor Service Factor: 1.00 Motor Shaft Rotation: CW/CCW Frame: 42Y Motor Bearings: Sleeve Includes: Resilient Mounting Rings Standards: UL Recognized, CSA Certified Motor Application: HVAC/R Resilient Ring Dia.: 2-1/2" Ins. Class: B Phase: 1 Capacitor Required: 2MDV6
• Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Direct Dr Fan/Blower Application: Blowers, Fans and Air Circulators Motor Enclosure Design: Open Air-Over Item: Direct Drive Blower Motor Motor Mounting Position: All Angle Nameplate RPM: 1075 HP: 1/5 Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Shaft Dia.: 1/2" Duty: Continuous No. of Speeds: 3
• Ring to Ring Center: 4-9/16" Length Less Shaft: 4-15/16" Stud Size: #10-32 Bolt Circle Dia.: 4-7/16" Voltage: 115 Shaft Length: 5" Full Load Amps: 3.2 Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Mounting Stud Pattern: 3-1/8" x 3-1/8" Motor Mounting Type: Ring Country of Origin (subject to change): Mexico

' Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/5 HP, 1075 Nameplate RPM, Voltage 115, 3.2 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Ring, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5 In., Length Less Shaft 4-15/16 In., Shaft Dia. 1/2 In., Shaft Length 5 In., Shaft Type Flat, Includes Resilient Mounting Rings '
