MRV090 Worm Gear 100:1 56C Speed Reducer

MRV090 Worm Gear 100:1 56C Speed Reducer

$899.99
$899.99 $1,249.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Ratio: 100:1
  • Input Shaft Diameter: 5/8
  • Output Shaft Diameter: 1-3/8
  • Mounting Flange: 56C
  • Rated HP: 1.12

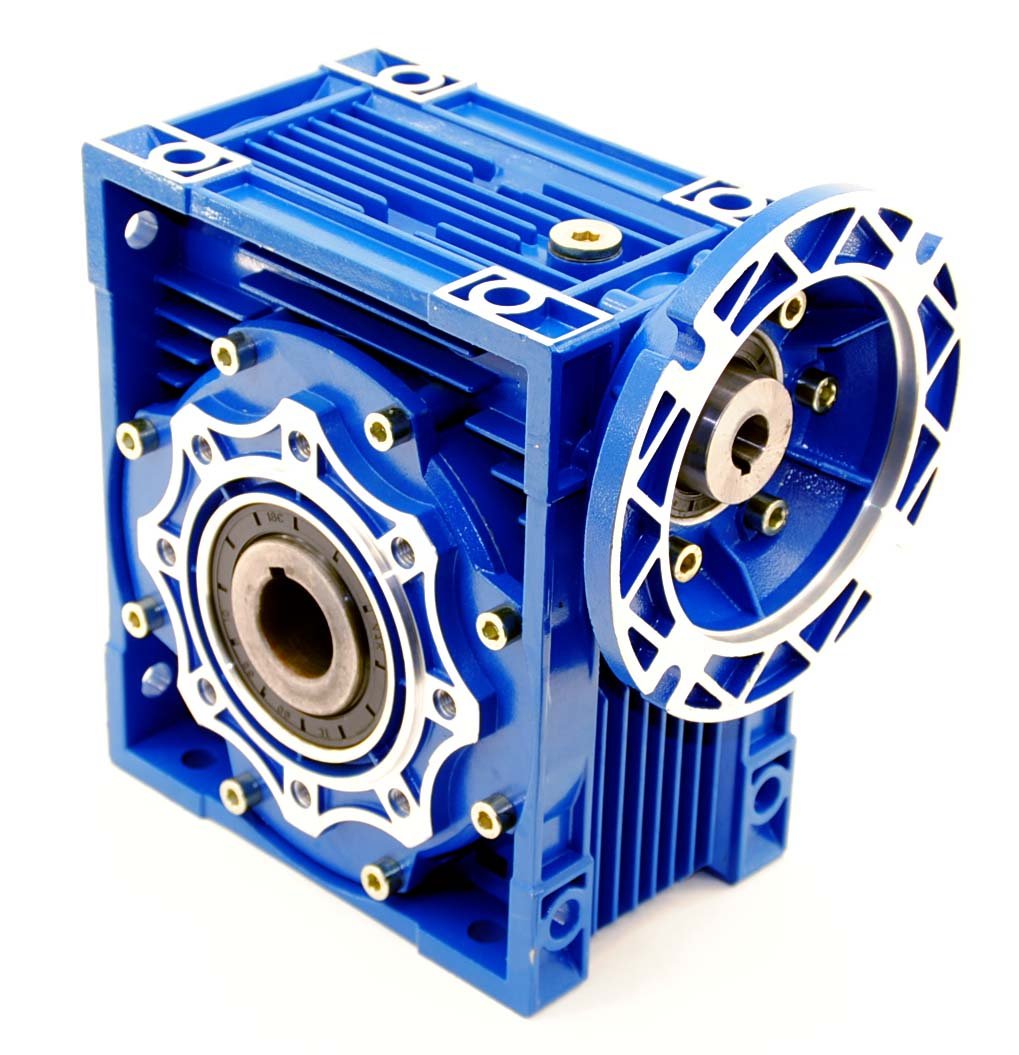

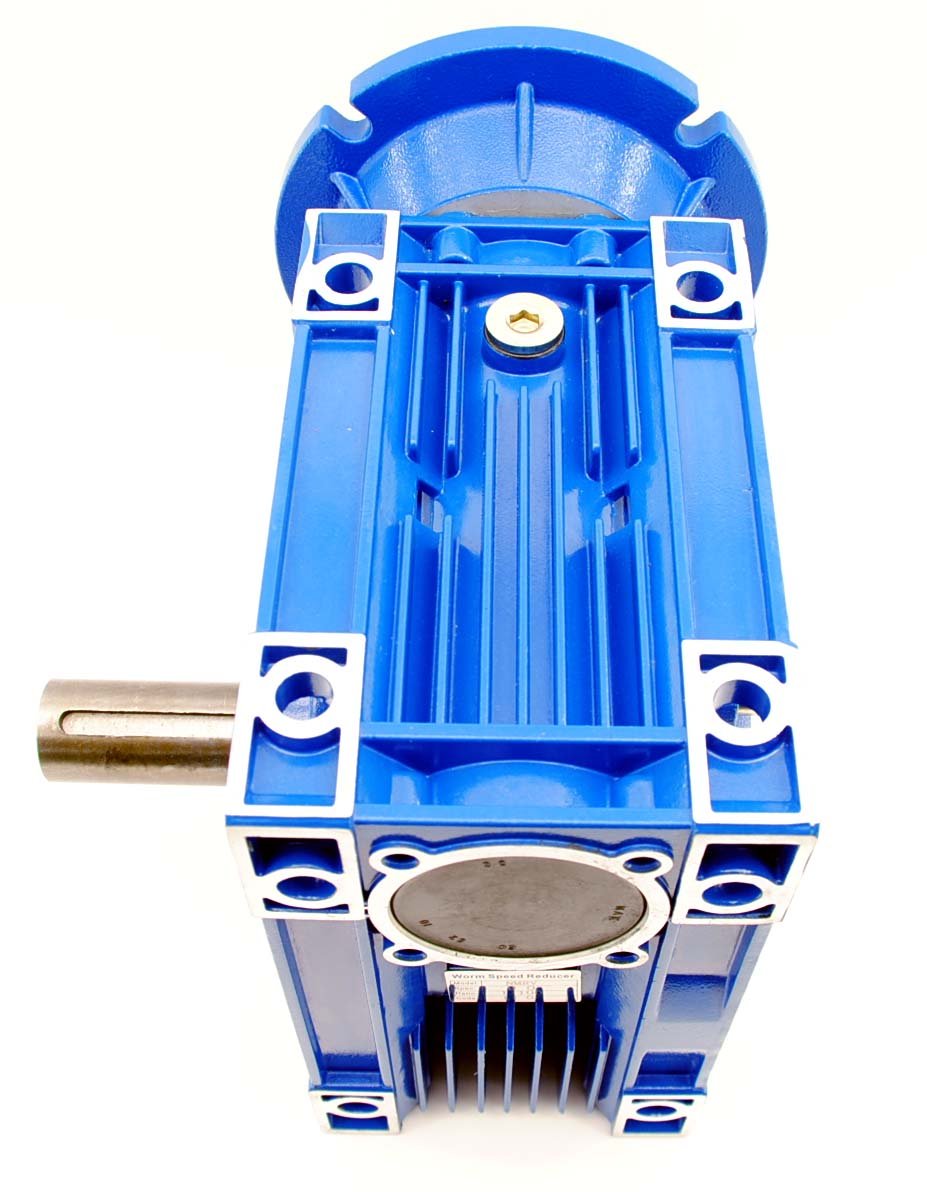

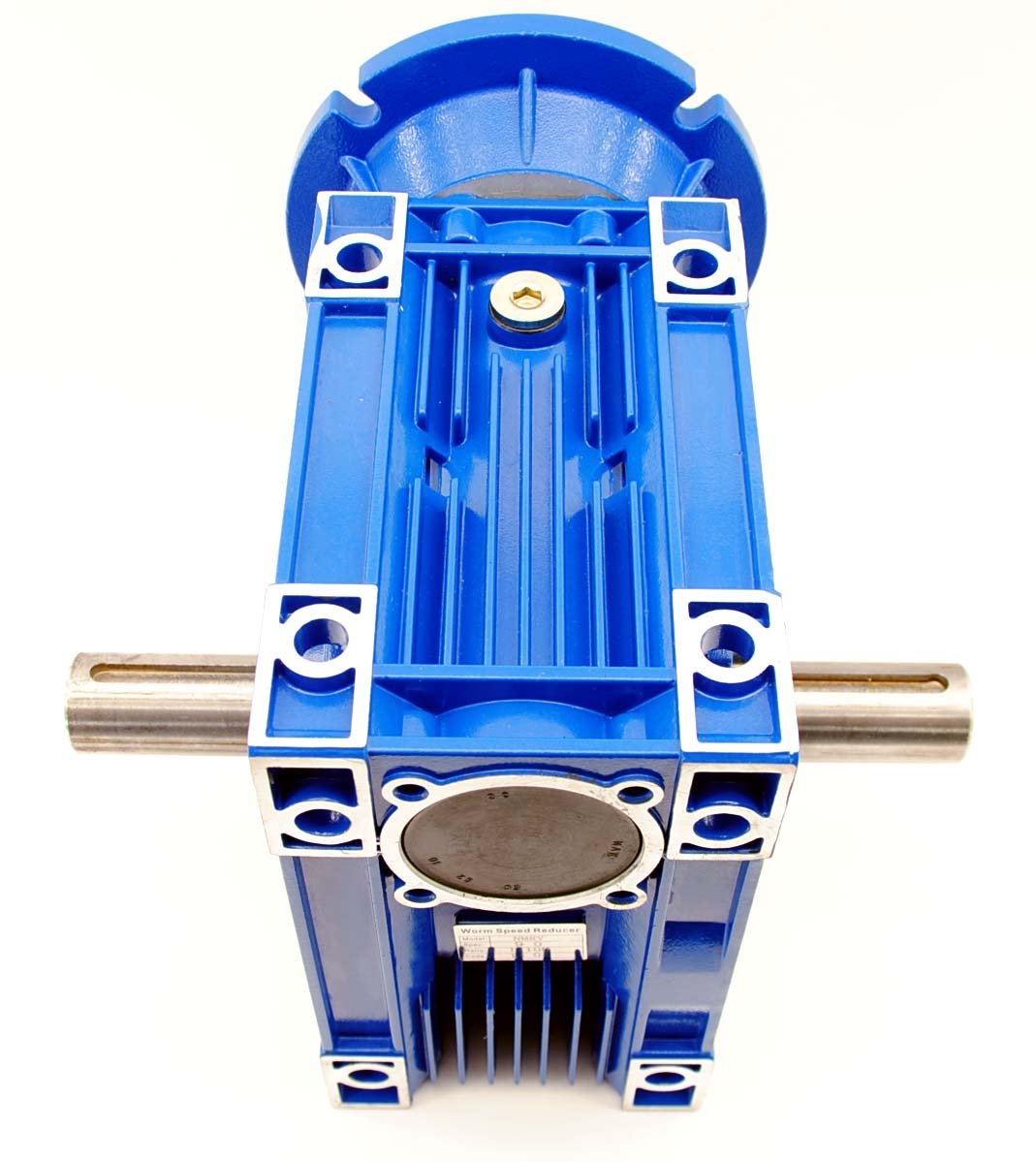

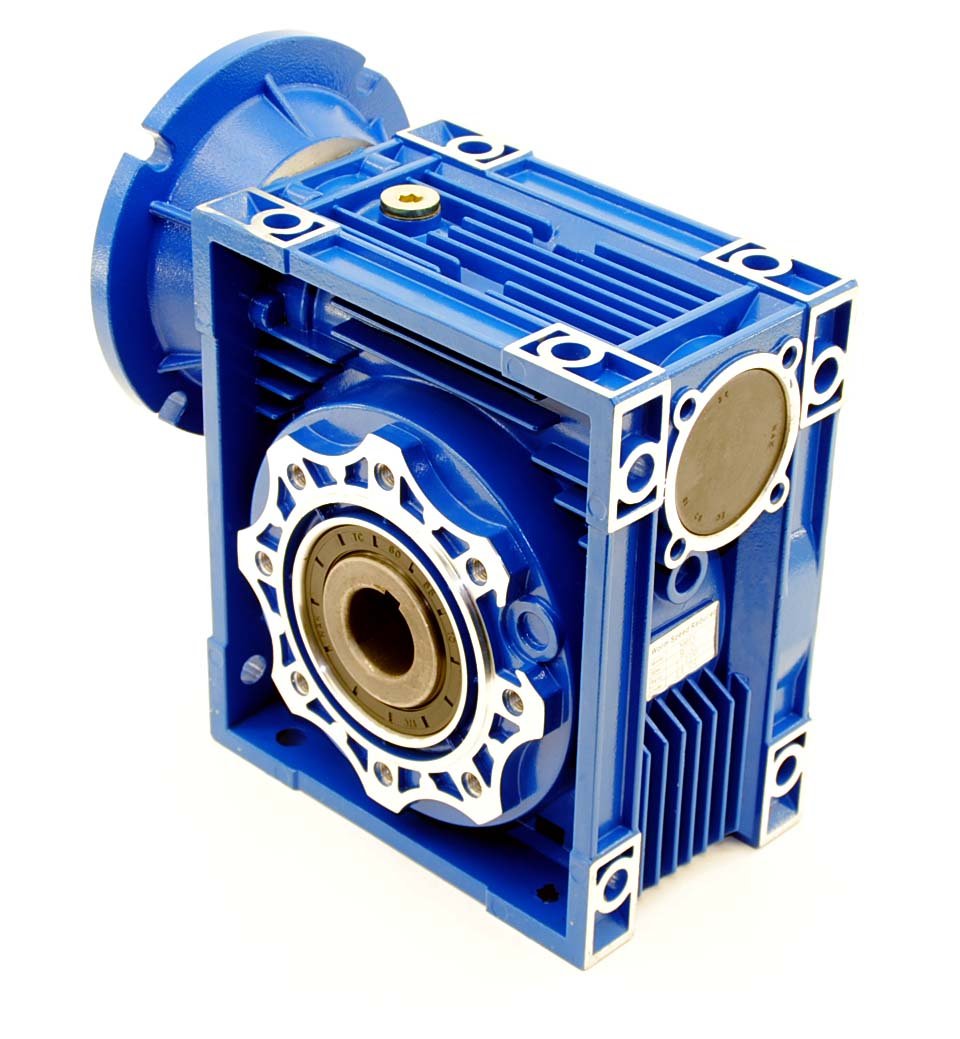

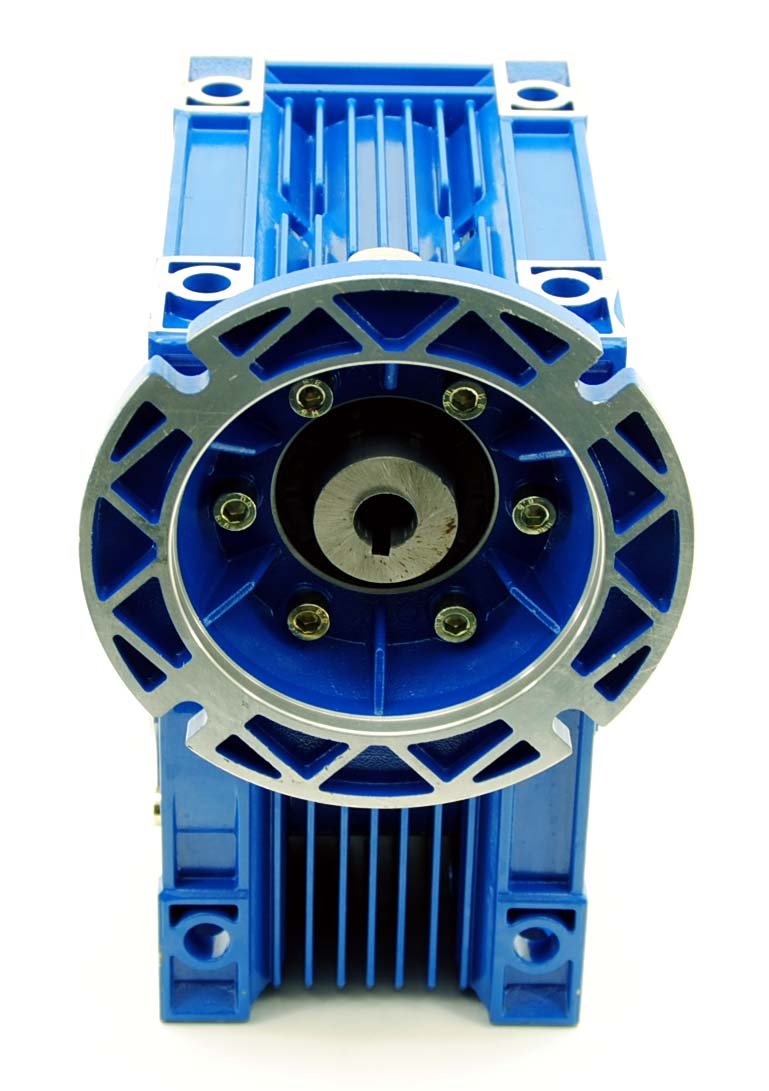

MRV090 series worm gear speed reducer.This 100:1 ratio speed reducer is rated for 1.12 HP input at 1750 RPM on a hollow 5/8" diameter x 1-7/8" long keyed shaft and 56C mounting flange.Output is 2389 lb/in on a hollow 1-3/8" diameter x 5-1/2" long keyed shaft.High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.Output shaft kits are not included and are sold separately.

Free shipping included. 30-day hassle-free returns.
