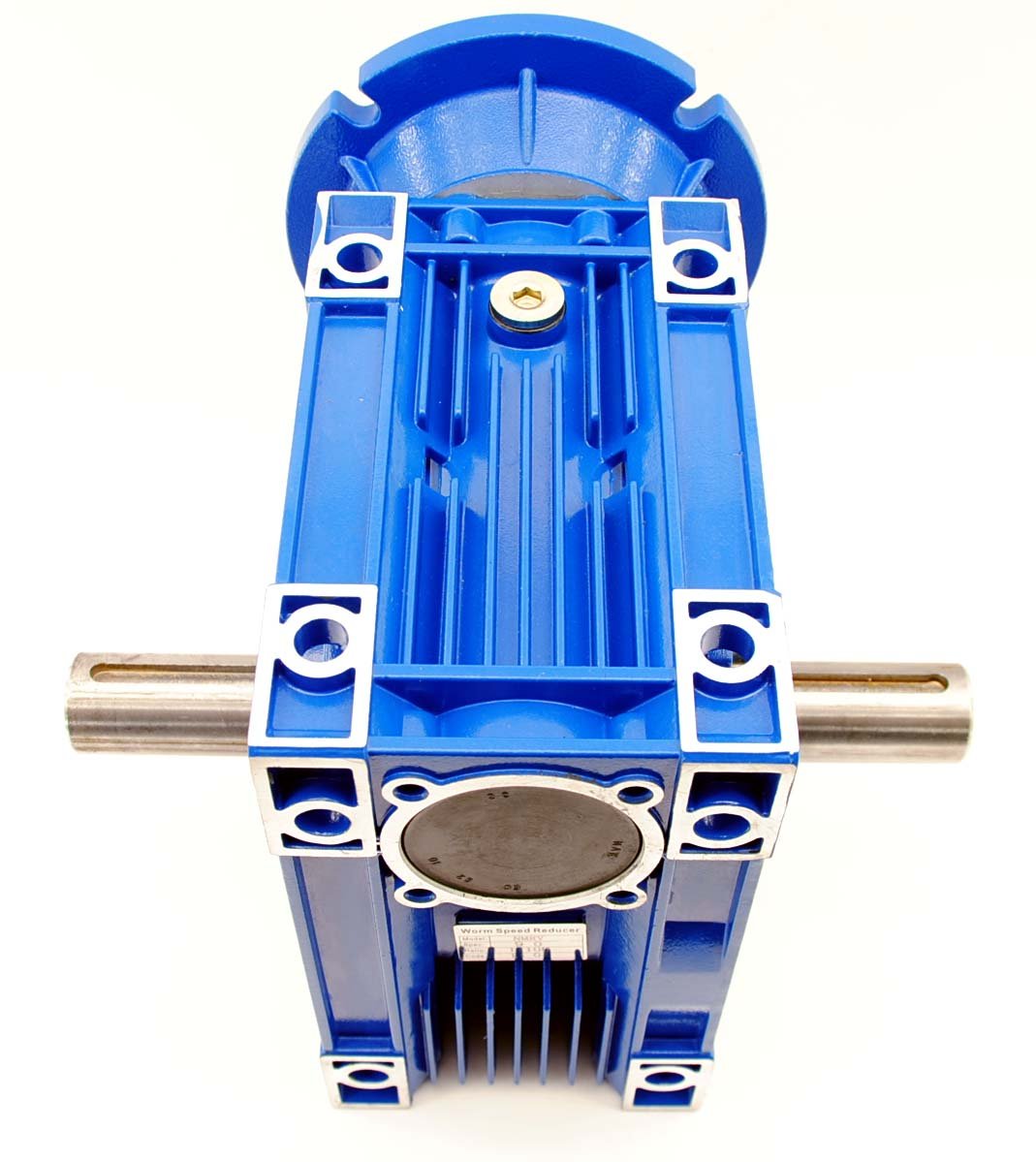

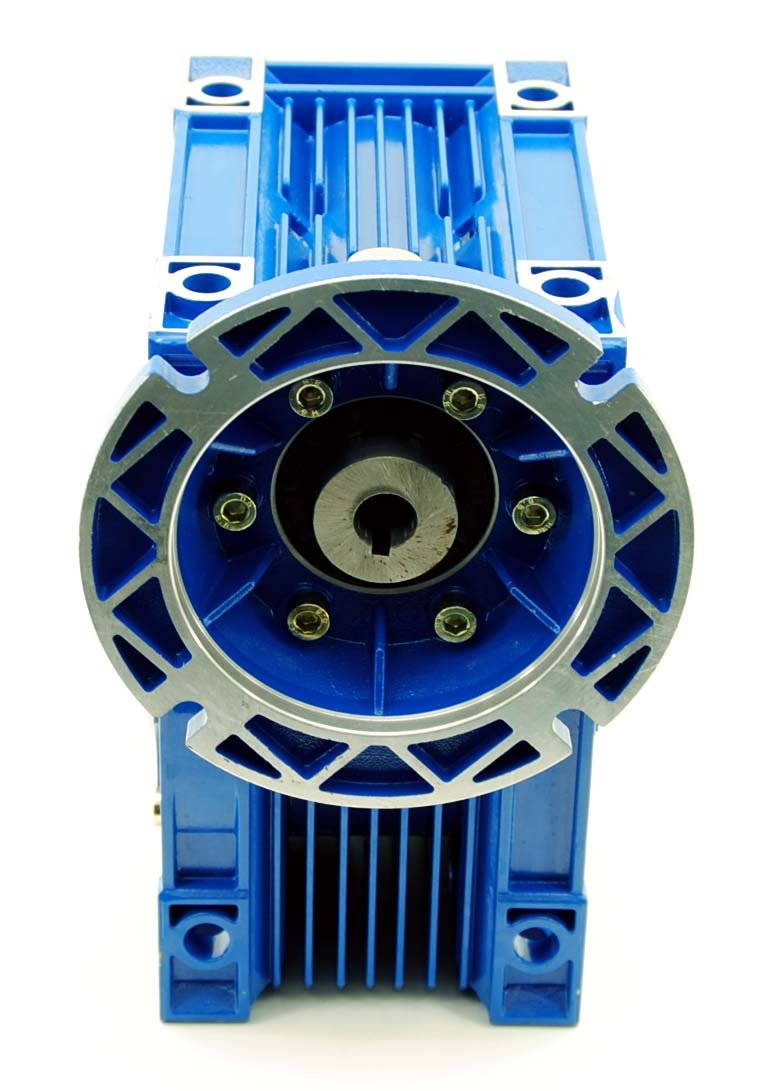

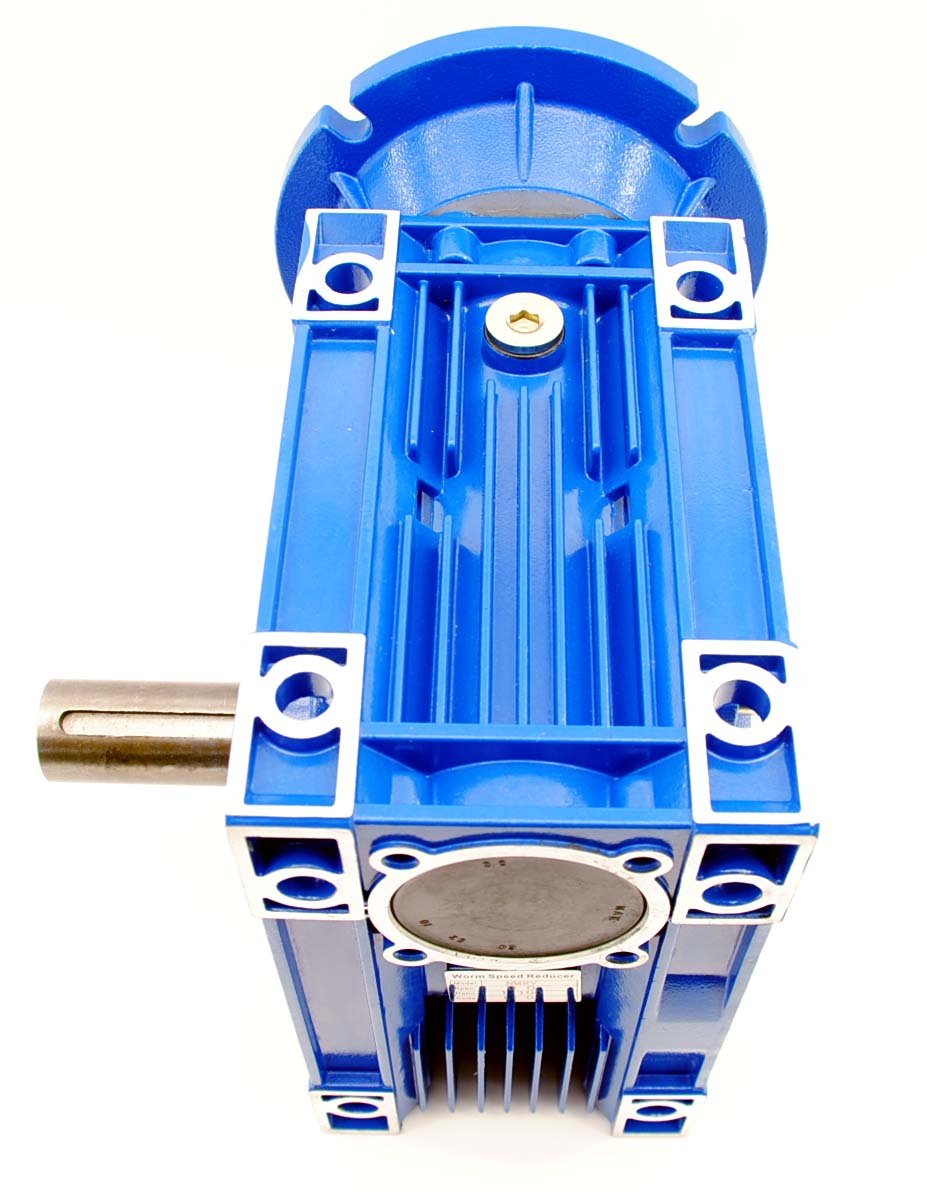

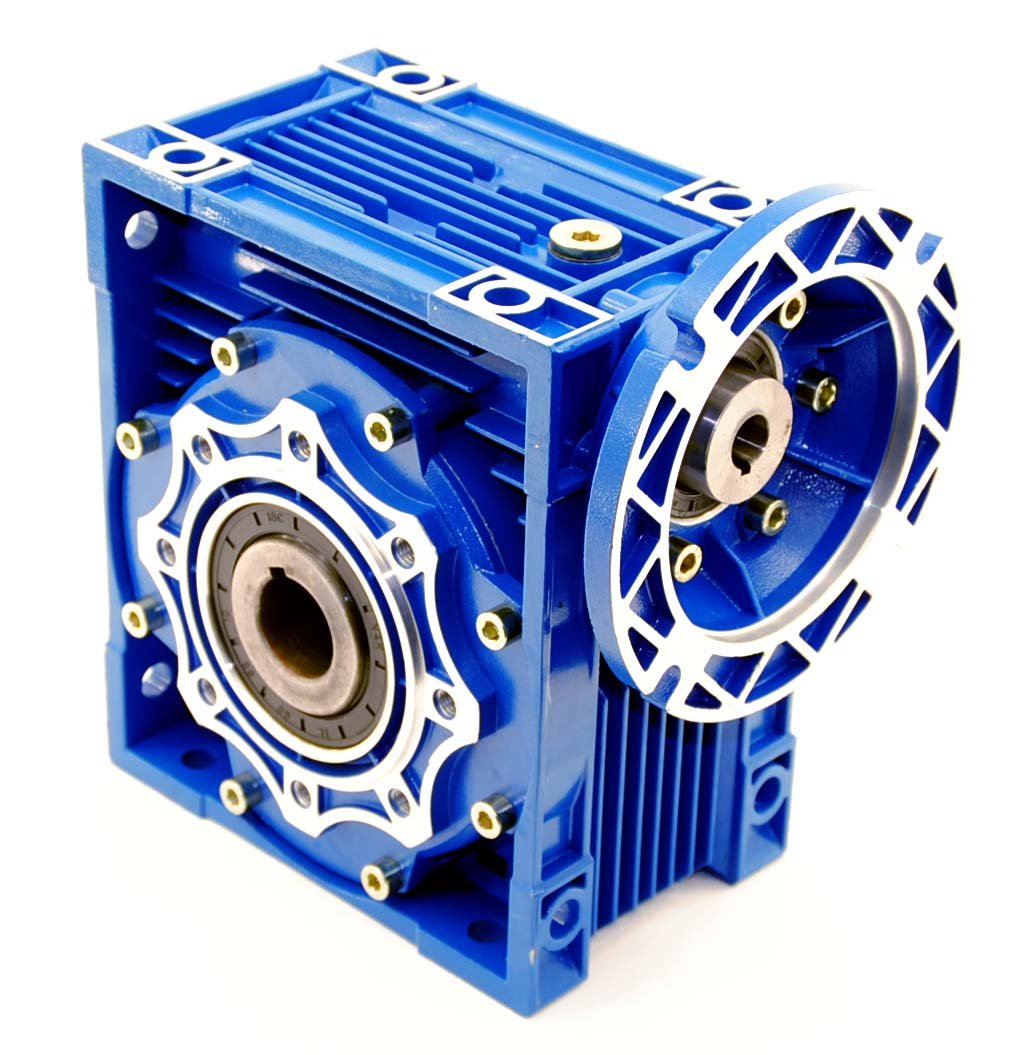

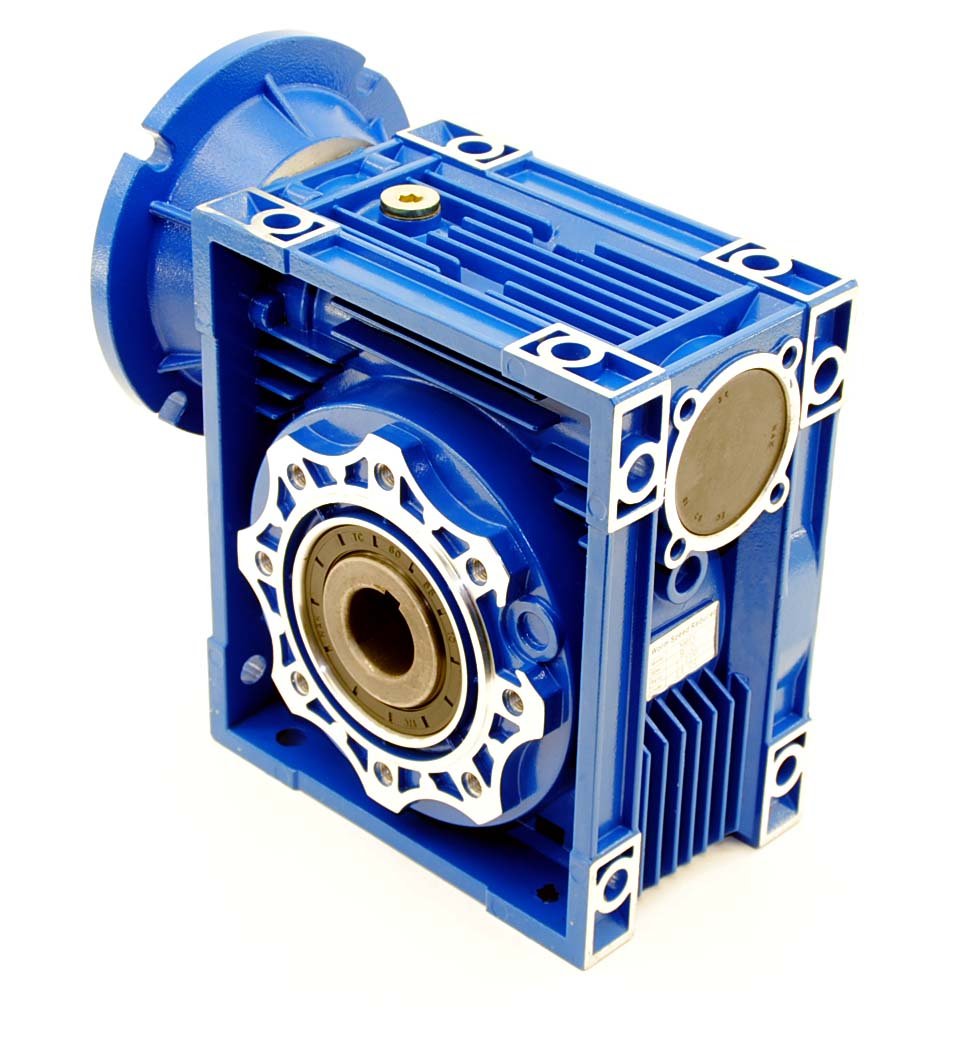

MRV090 Worm Gear 40:1 140TC Speed Reducer

MRV090 Worm Gear 40:1 140TC Speed Reducer

$899.99
$899.99 $1,249.99
Skip to product information
MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
  • MRV090 Worm Gear 40:1 140TC Speed Reducer
MRV090 Worm Gear 40:1 140TC Speed Reducer

MRV090 Worm Gear 40:1 140TC Speed Reducer

$899.99
$899.99 $1,249.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Ratio: 40:1
  • Input Shaft Diameter: 7/8
  • Output Shaft Diameter: 1-3/8
  • Mounting Flange: 140TC
  • Rated HP: 2.95

MRV090 series worm gear speed reducer.This 40:1 ratio speed reducer is rated for 2.95 HP input at 1750 RPM on a hollow 7/8" diameter x 2" long keyed shaft and 140TC mounting flange.Output is 3185 lb/in on a hollow 1-3/8" diameter x 5-1/2" long keyed shaft.High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.Output shaft kits are not included and are sold separately.

Free shipping included. 30-day hassle-free returns.
