Nema 34 Closed Loop Stepper Motor 12Nm with HBS86H V4 Driver Kit

Key features

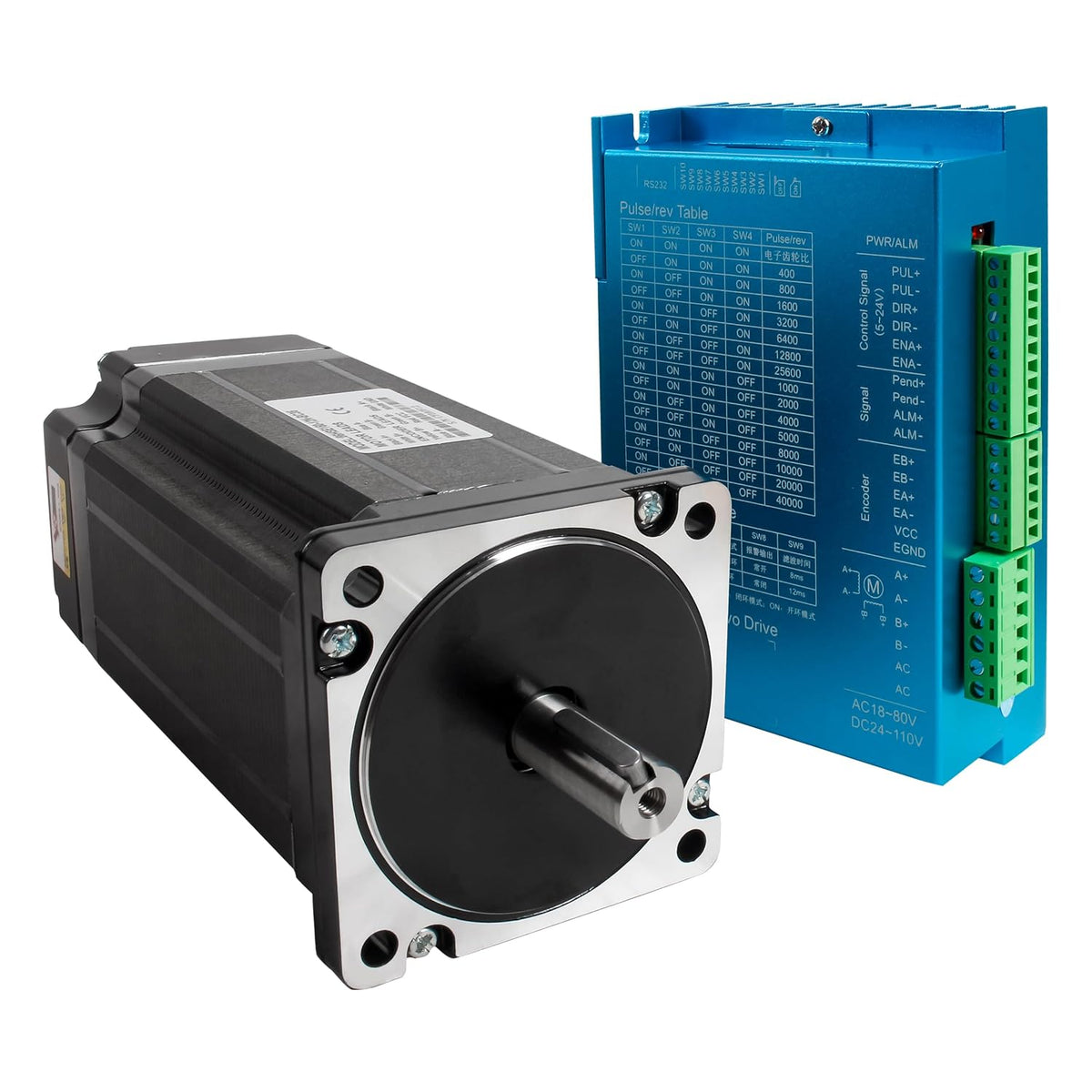

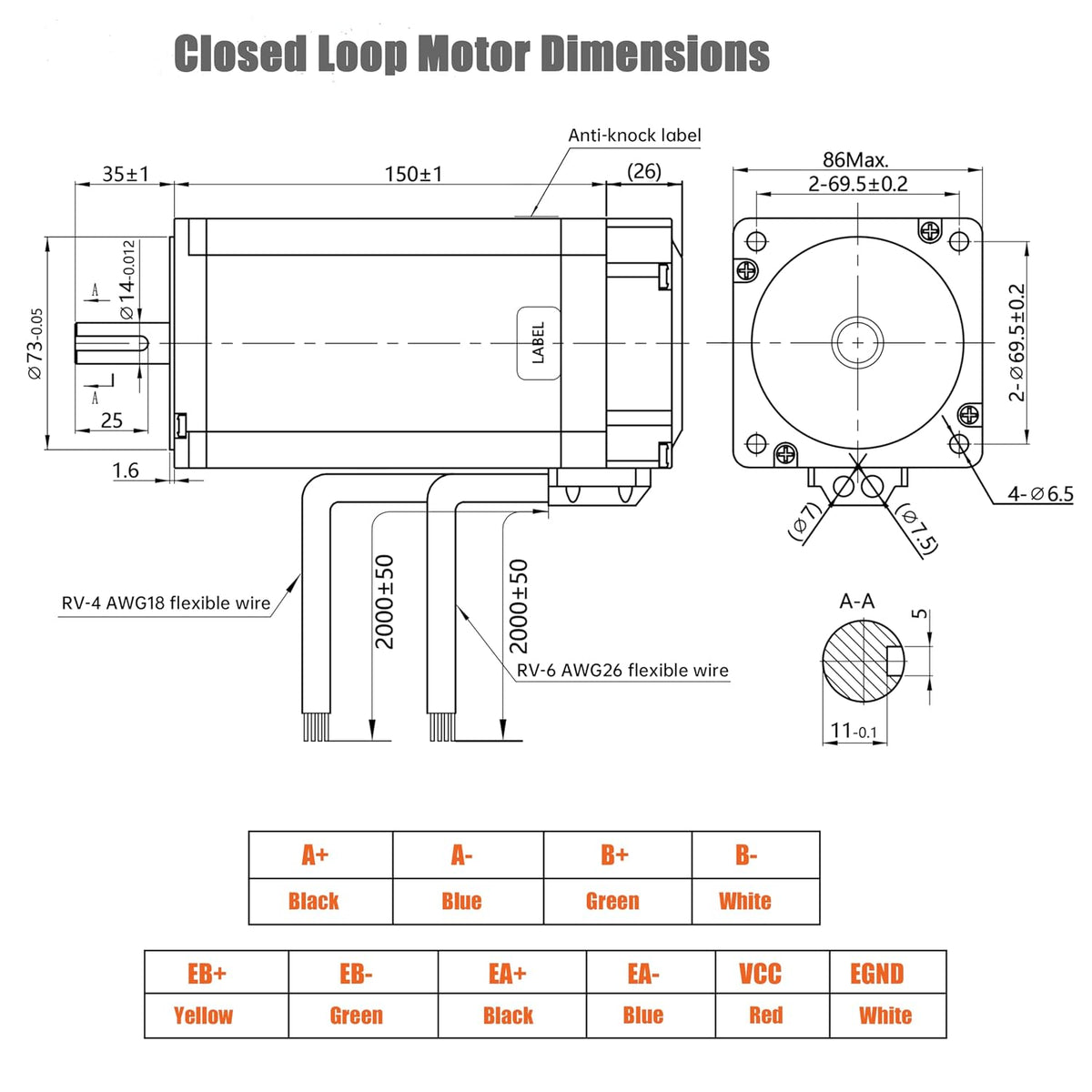

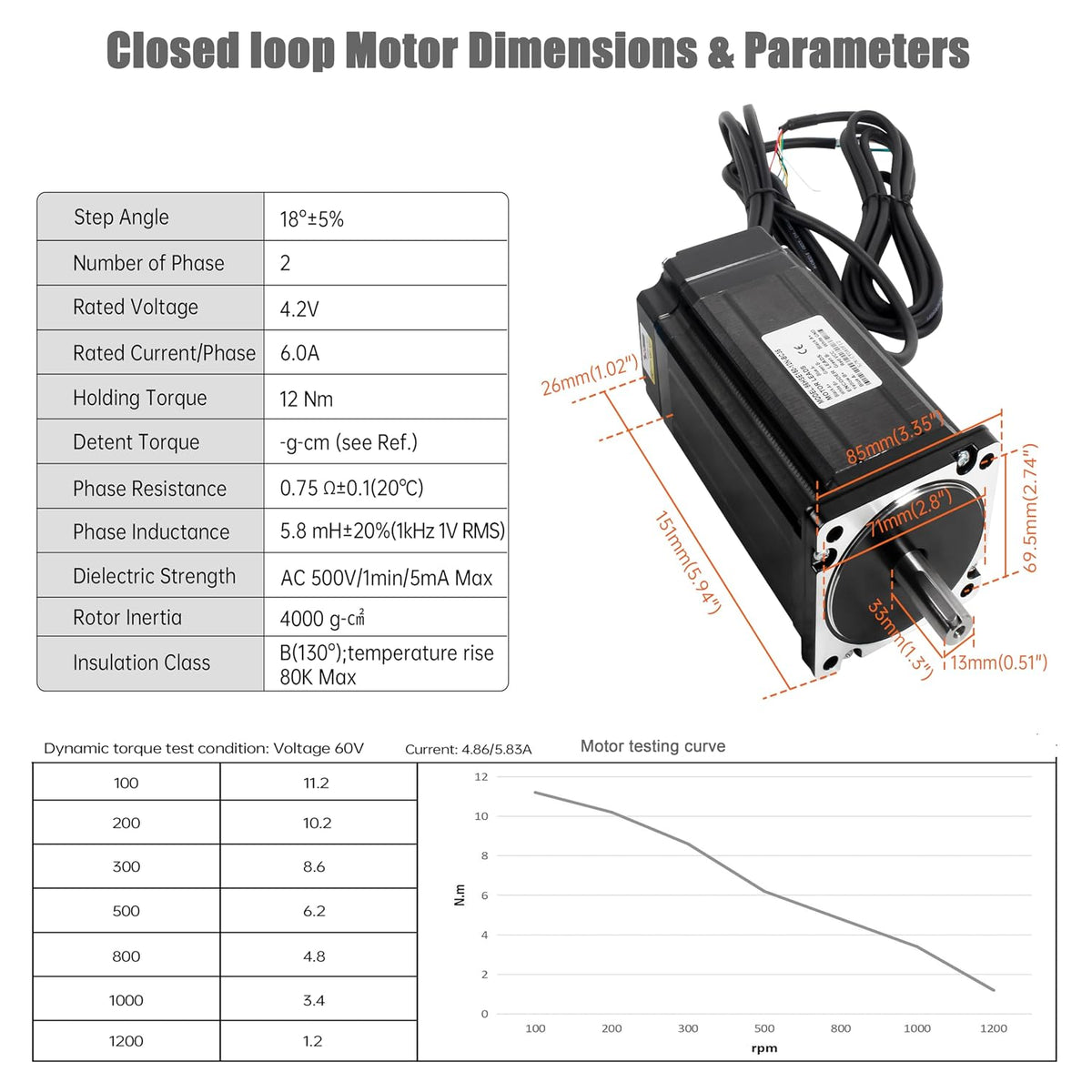

• 〖Complete Nema34 Closed Loop Stepper Kit〗The kit includes 1pcs 86HSE150-12N-BC35 closed loop stepper motor and 1pcs HBS86H V4 closed loop stepper driver. The motor features 12Nm holding torque, 6A rated current, 1.8° step angle, 2-phase, 4.2V rated voltage, 0.75Ω phase resistance, 5.8mH inductance, 4000g.cm² rotor inertia, and 5.4kg weight for stable heavy-duty performance

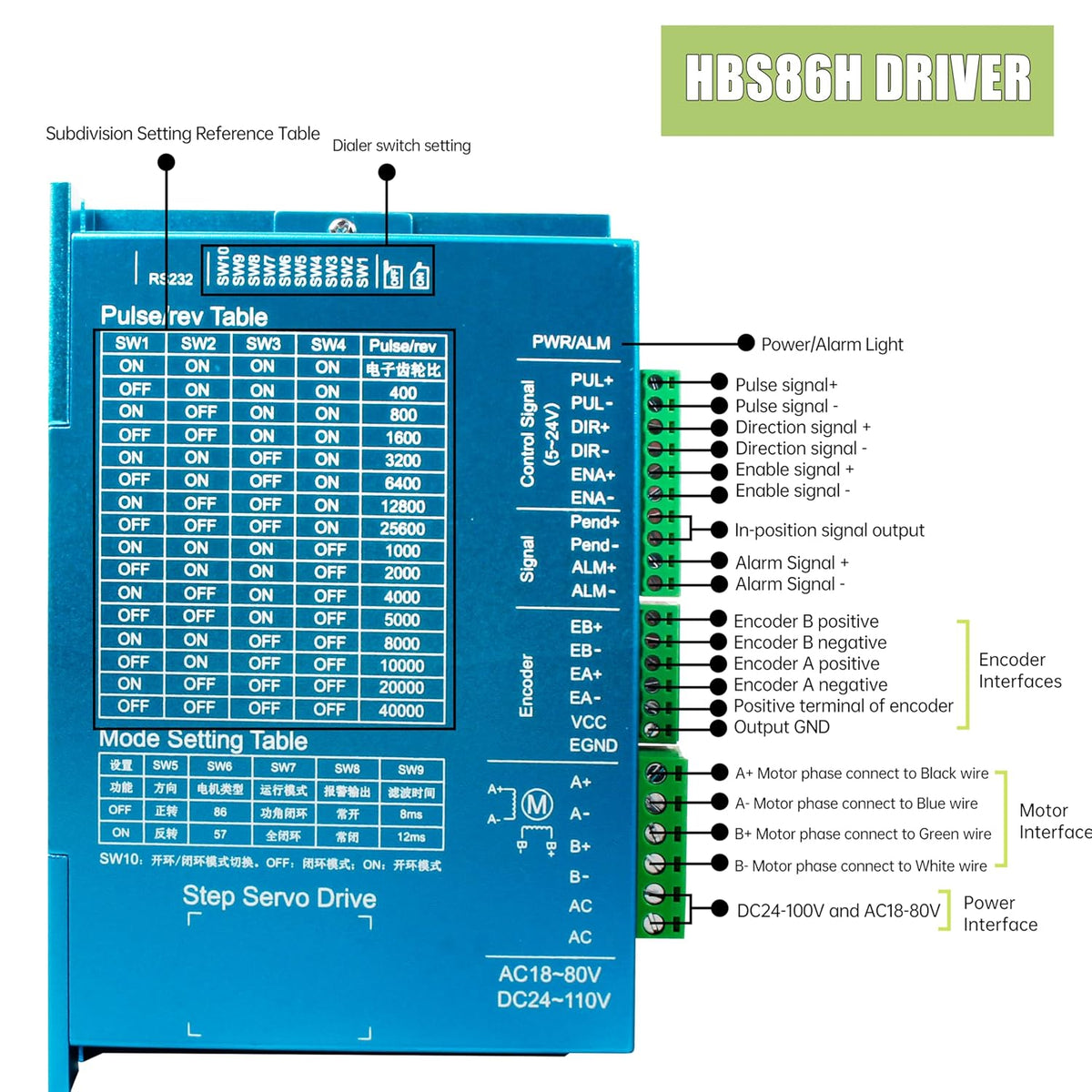

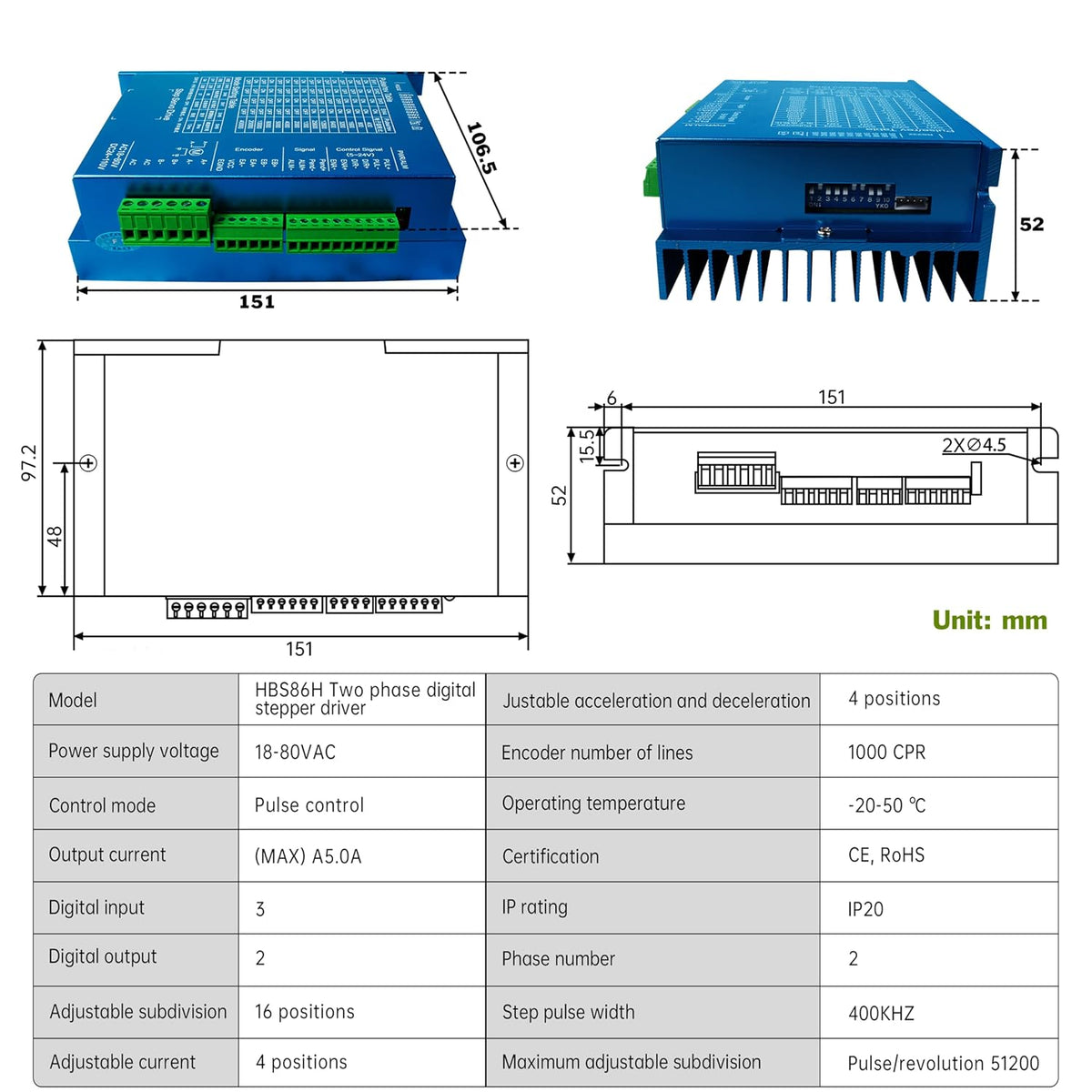

• 〖HBS86H V4 Driver with Wide Compatibility〗The closed loop driver supports 18–80VDC power supply, max 6.0A output current, 1000CPR encoder, pulse control mode, and step pulse width up to 400KHz. With 16 optional microsteps and IP20 protection level, it delivers strong anti-interference and reliable performance in various automation environments
• 〖High Performance Closed-Loop Control System〗 Adopts a new generation 32-bit DSP chip and vector control technology to realize true closed-loop control with no lost steps. The driver automatically adjusts current based on load, improves output torque and operating speed, supports pulse response frequency up to 200KHz, and provides up to 51200 microsteps per revolution for ultra-precise positioning
• 〖Comprehensive Safety Protection Functions〗Built-in overvoltage protection, overcurrent protection, and position over-tolerance protection ensure safe and stable operation. Position signal and alarm output allow real-time monitoring by the host computer, while position deviation alarm effectively prevents equipment damage and improves operational safety
• 〖 Wide Application for Automation Equipment 〗 Ideal for a variety of small and medium-sized automated machines, including screw locking machines, wire stripping machines, winding machines, terminal machines, laser machines, inkjet printers, engraving machines, electronic processing equipment, automatic handling devices, CNC machine tools, packaging machinery and other high-speed & low-noise automation applications
