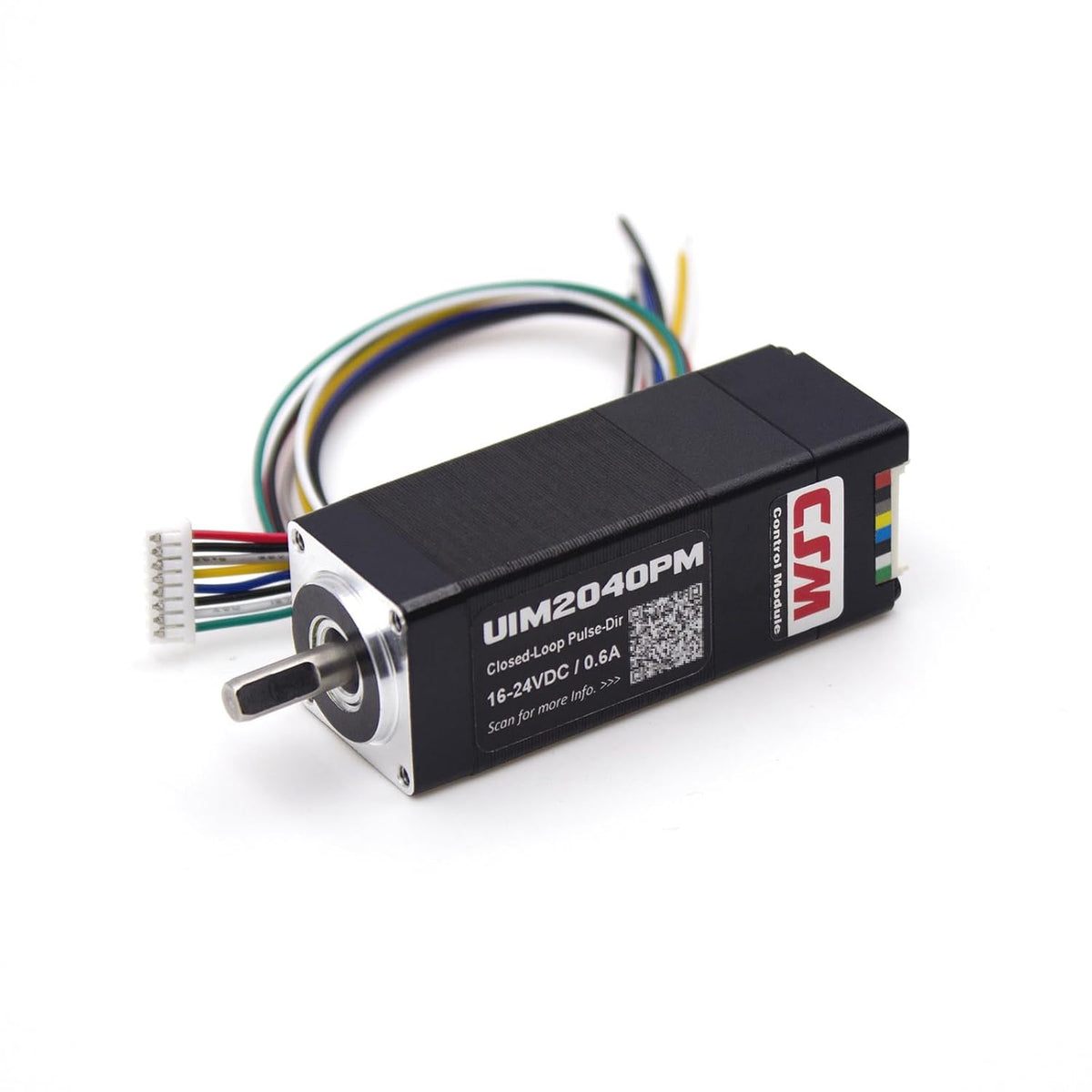

NEMA 8 Integrated Closed Loop Stepper Motor,Pulse Direction Control

Key features

• HIGHLY INTEGRATIONOur motor is features a nema8 (20x20mm) closed-loop integrated smart stepper motor. It includes pulse-direction control interface and comprises a stepper motor, encoder, driver and closed-loop controller.
• EXCELLENT DESIGN UIROBOT motor boasts a closed-loop design for high positioning accuracy, rapid response, and speeds of up to 3000 RPM. It delivers a torque of 0.038 N·m and supports a wide voltage input range of 16-24 VDC, with an adjustable phase current of up to 0.6 Amp, PWM constant current. Additionally, it features micro-stepping capabilities with resolutions from 1 to 1/128.
• SELF-COMPENSATION These high-precision motors have a high response, and their closed-loop controller can achieve accurate positioning even in stalling situations. The motors can perform step compensation on their own.
• EASY TO OPERATE This stepper motor features simple wiring and is easy to install and use. It is suitable for a wide range of applications, including electric CNC router machines, 3D printer kit, engraving kits, PLC training kits, dispensers, automation applications, stripping machines, marking machines, cutting machines, graph plotters, and more. Please refer to the official latest updates for the product user manual, wiring diagram, and compatible software.
• SAFE AND STABLE This CNC machine motor features a fully enclosed die-cast aluminum alloy frame. This design provides rugged, durable protection and improves heat dissipation. It operates with minimal vibration and noise at low speeds.
