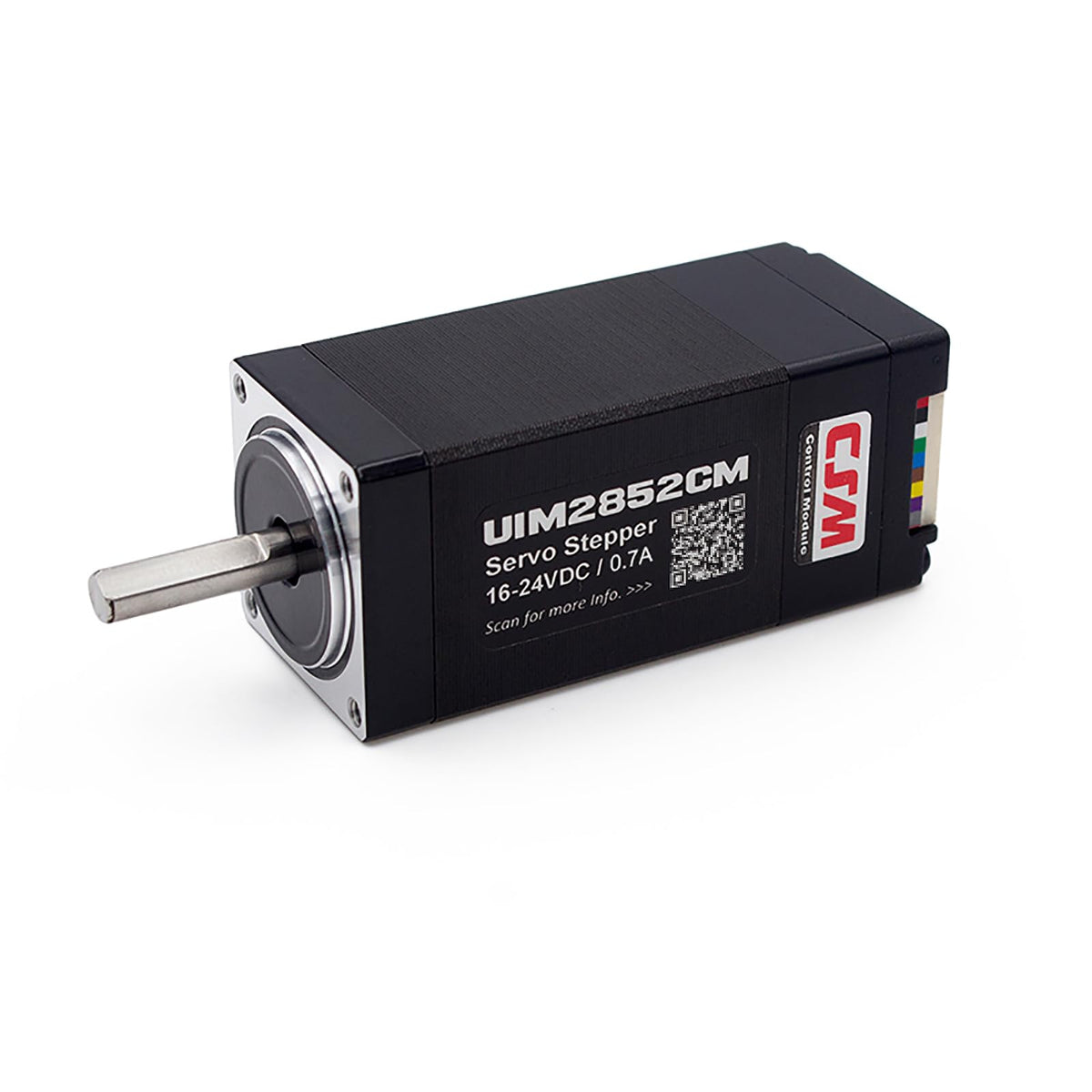

NEMA11 Integrated Servo Stepper Motor,CAN Bus,w/Encoder,Controller

Key features

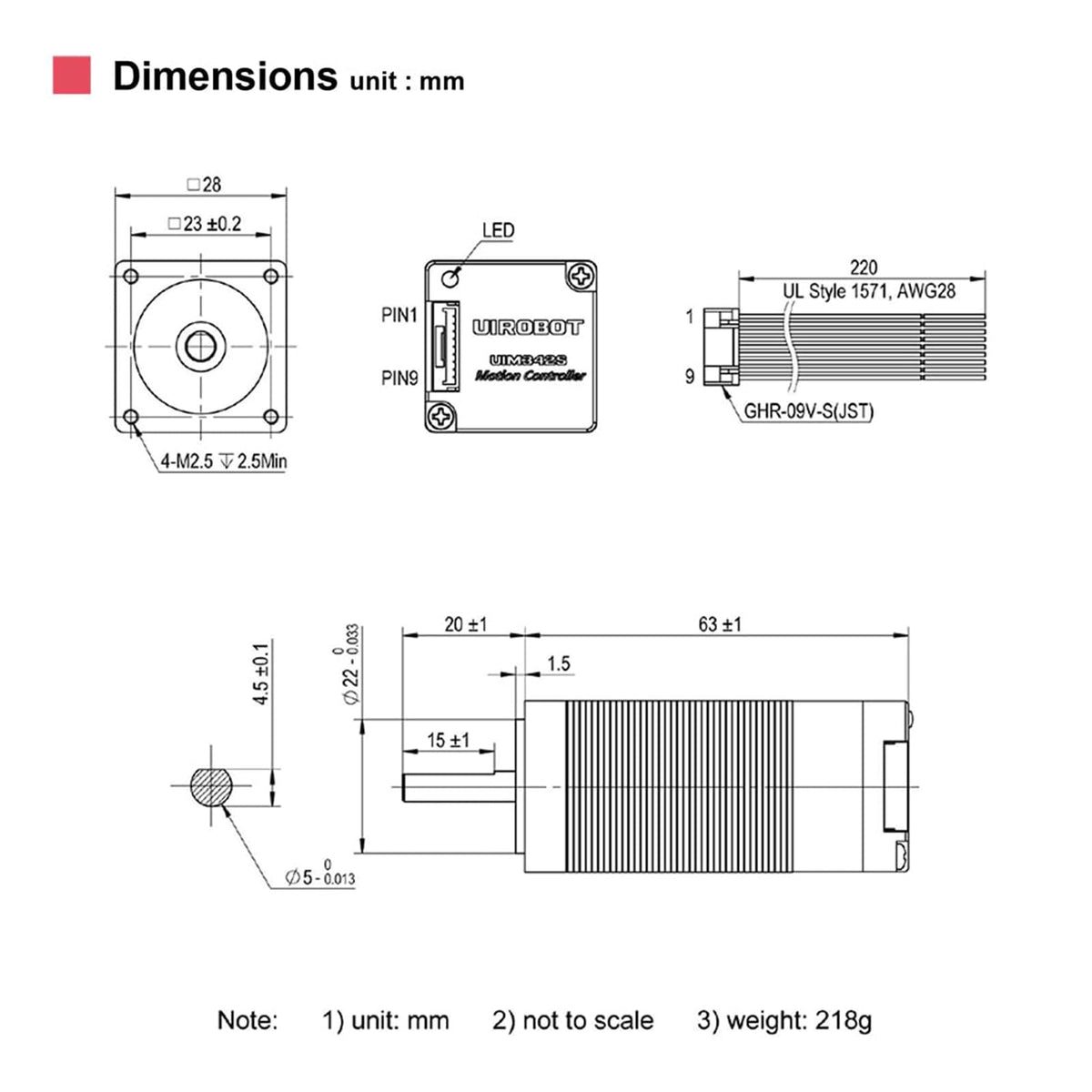

• Compact: Integrated NEMA 11 smart servo (28×28 mm) stepper, encoder, driver, and motion controller with a CAN bus interface. Multi-drop networking enables synchronized multi-axis control in a minimal footprint.
• Teck Support: DSP-based control core, built-in fault handling and safe-state interface, PC tuning/diagnostic software, plus a complete SDK with libs/DLLs and sample projects for C++ and C#.
• High-precision: Closed-loop control for accurate positioning, rapid response, and speeds up to 3000 rpm. Supports velocity and position modes, backlash compensation, stall detection, and additional motion features.

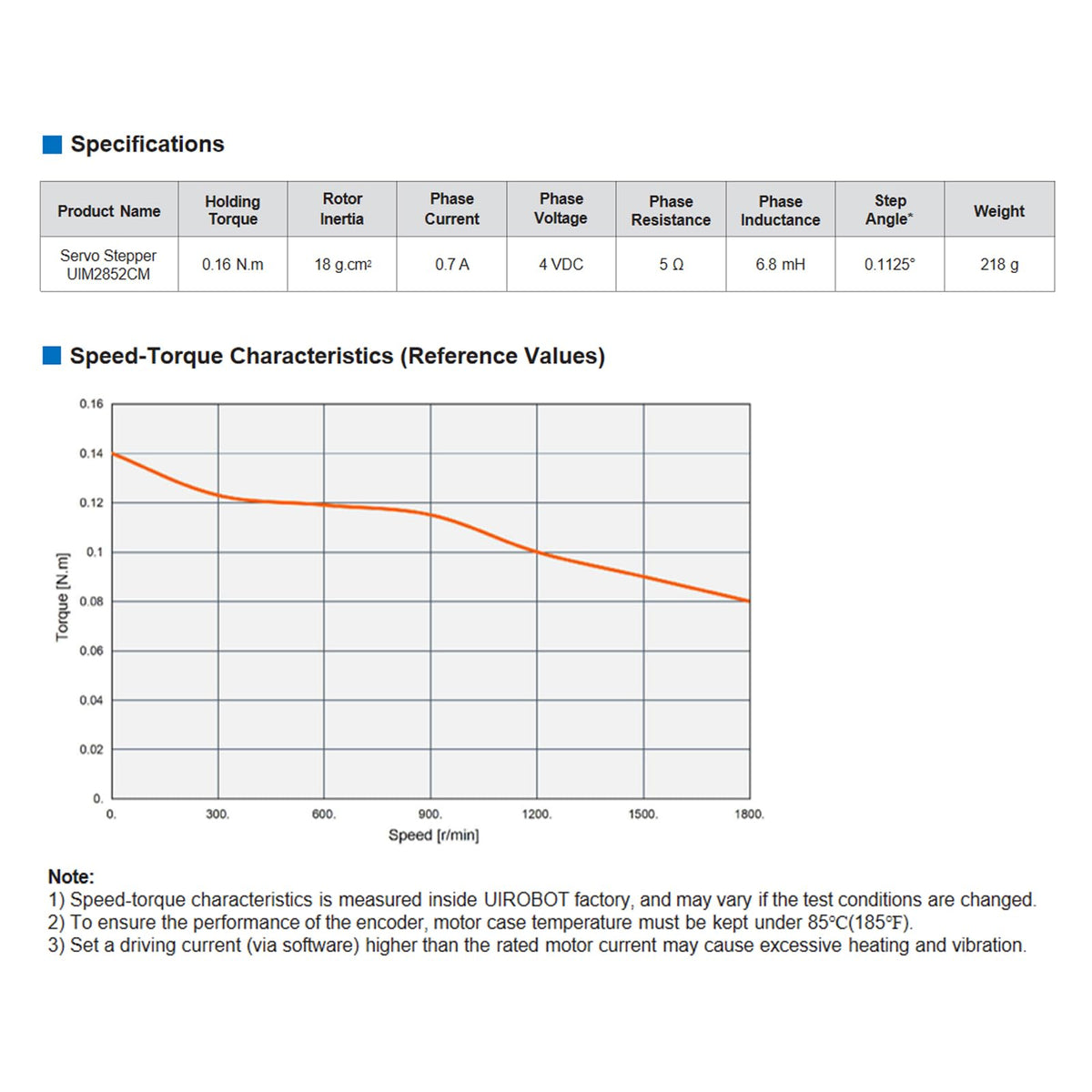

• Parameter: 0.16 N.m holding torque; 1–128 microstepping; 16–24 VDC supply; 0.25–0.7 A adjustable phase current. Delivers very smooth, low-vibration, low-noise motion—ideal as a small-servo alternative at low speeds.

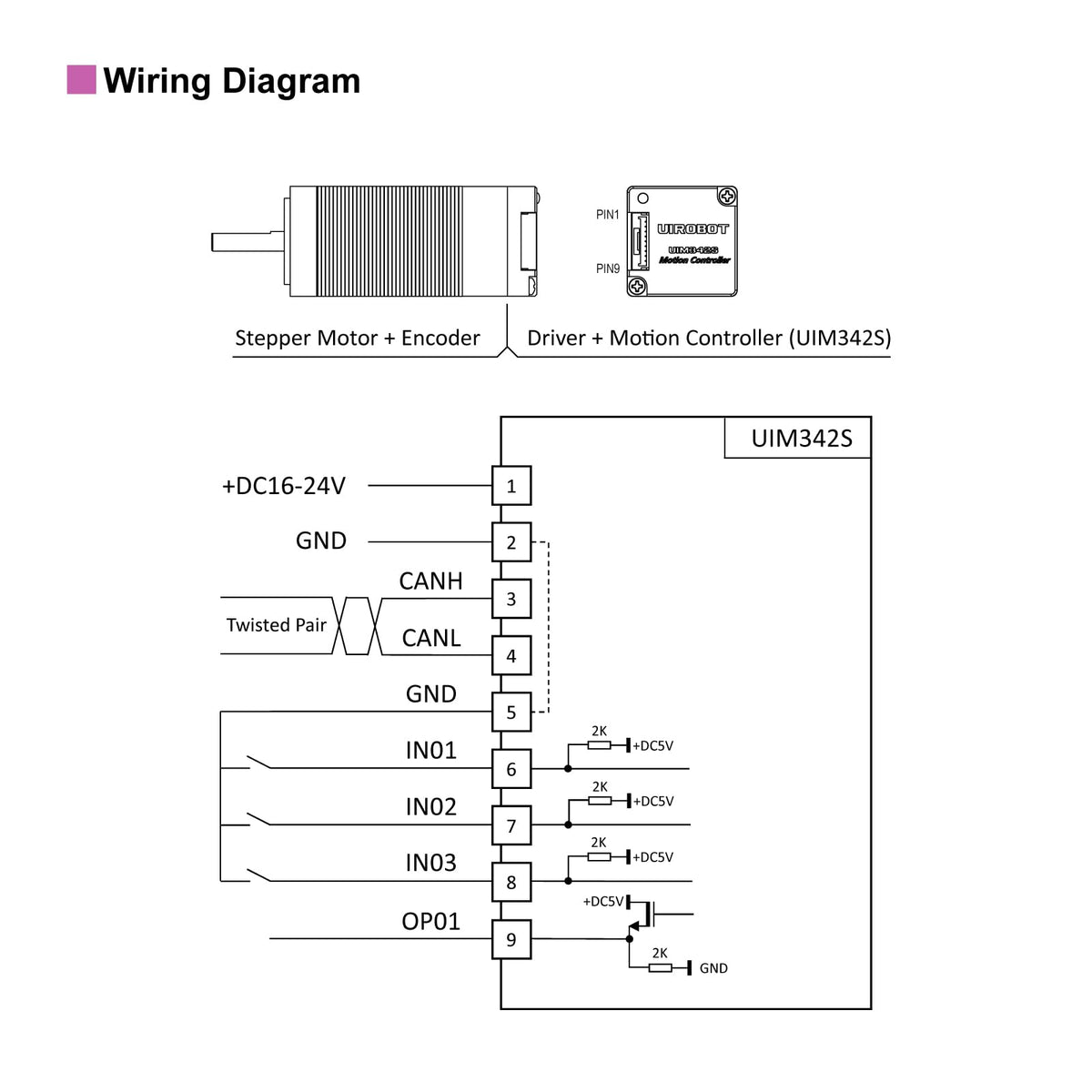

• Noise-resilient I/O and triggers: 3 inputs and 1 output with three trigger schemes to suppress electrical interference.
