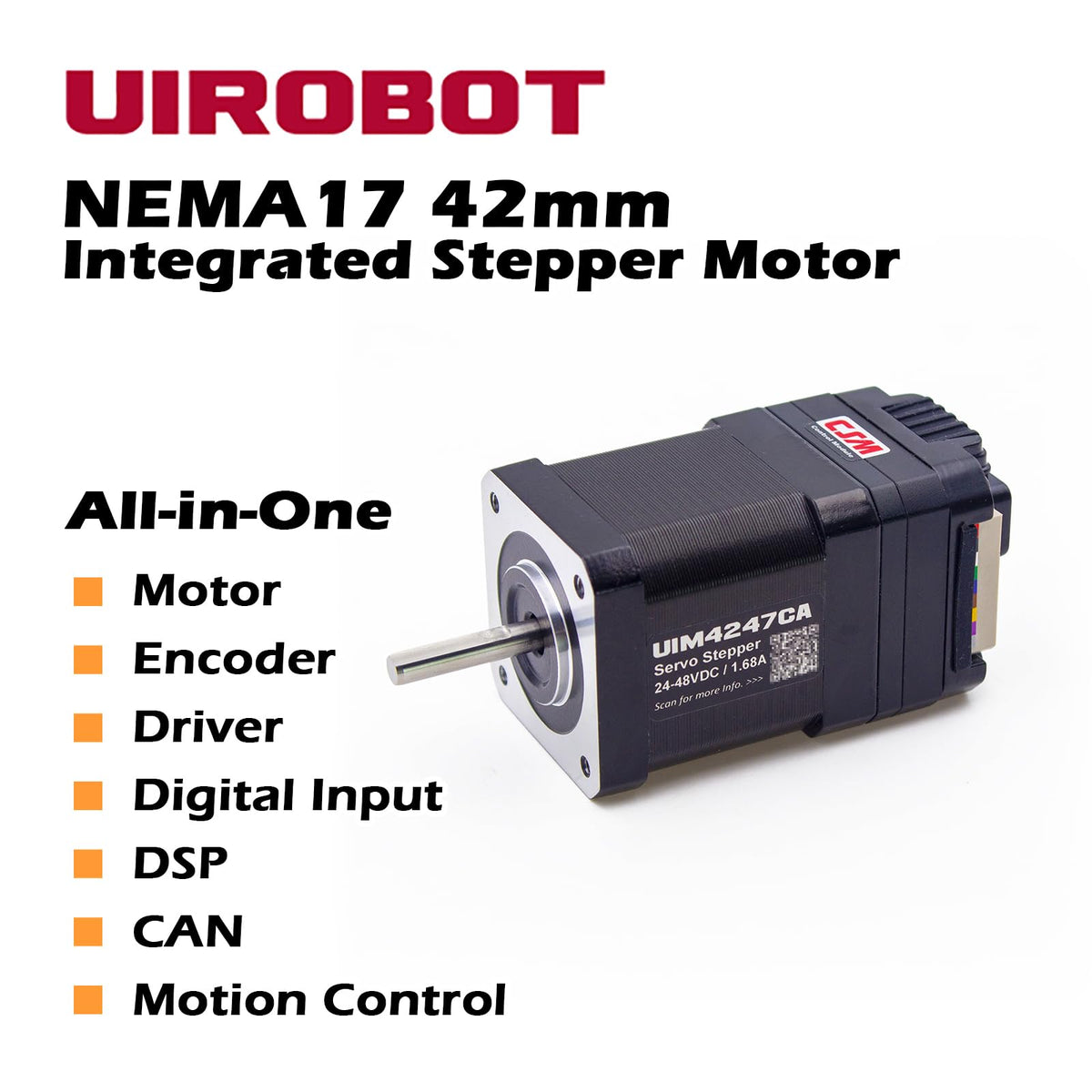

NEMA17 Integrated Servo Stepper Motor,CAN Bus,Absolute Encoder,Controller

NEMA17 Integrated Servo Stepper Motor,CAN Bus,Absolute Encoder,Controller

Key features

• MULTI-TURN ABSOLUTE ENCODER: Our smart motor integrates a NEMA 17 Absolute Multi-Turn Encoder with 16-bit single-turn and 32-bit multi-turn resolution. Featuring Power-Off Memory technology, it maintains exact positioning after shutdown without requiring re-zeroing, saving valuable time while boosting operational efficiency.
• EXCELLENT DESIGN: The motor features CAN interface with superior anti-interference capability, delivering reliable performance through digital outputs for stable operation in harsh environments. Its closed-loop motion system ensures high positioning accuracy and fast response, achieving speeds up to 3000 RPM. Multiple control functions include speed control, position control, backlash compensation, and stall detection.
• POWERFUL TECHNICAL SUPPORT: This NEMA 17 stepper motor incorporates a robust DSP core with fault tolerance and fail-safe user interface, complete with free debug/control software plus full SDK support including libraries, DLLs, and example codes in C++ and C#.
• PERFECT REPLACEMENT: Delivering 0.43 N·m holding torque with 1-128 microstepping resolution, this compact motor operates on 24-48 VDC with adjustable 0.8-1.7A current. Its vibration-free and low noise operation makes it an exceptional alternative to traditional AC/DC servo motors.
• VERSATILE APPLICATIONS: Ideal for high-precision, high-reliability applications including industrial robotics (joint positioning), CNC machines, and automated warehousing, among others. Using the CANBUS protocol, multiple motors can communicate simultaneously to achieve complex motion control.
