NEMA17 Stepper Motor, High Torque 1.5A, 4-Pack

Key features

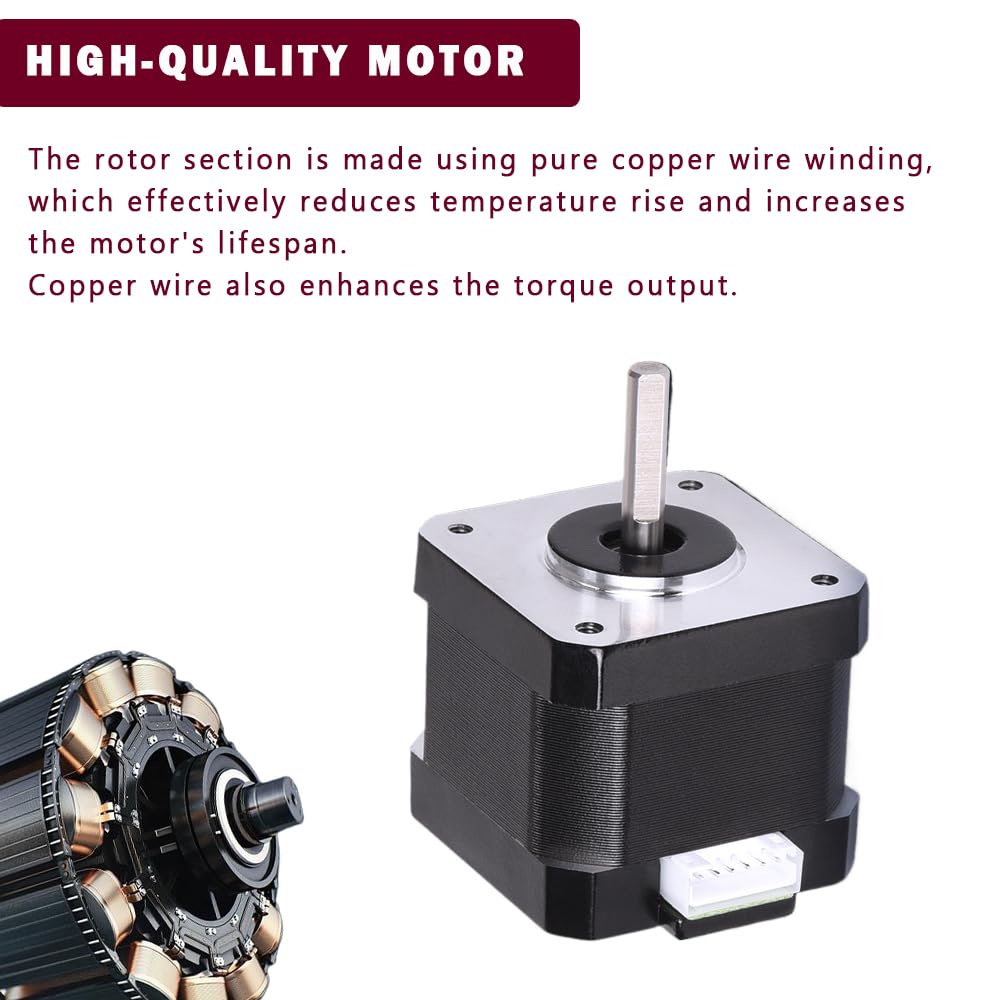

• HIGH TORQUE PERFORMANCE: The stepper motor is made of high-quality motor steel, providing high torque, low self-inductance reactance, fast response, and eliminating system errors. Low loss stators provide better high-speed performance
• LOW RESISTANCE DESIGN: The stepper motor offers a lower resistance value compared to motors of the same thickness and torque, significantly increasing the motor's thermal conductivity and effectively reducing temperature increase

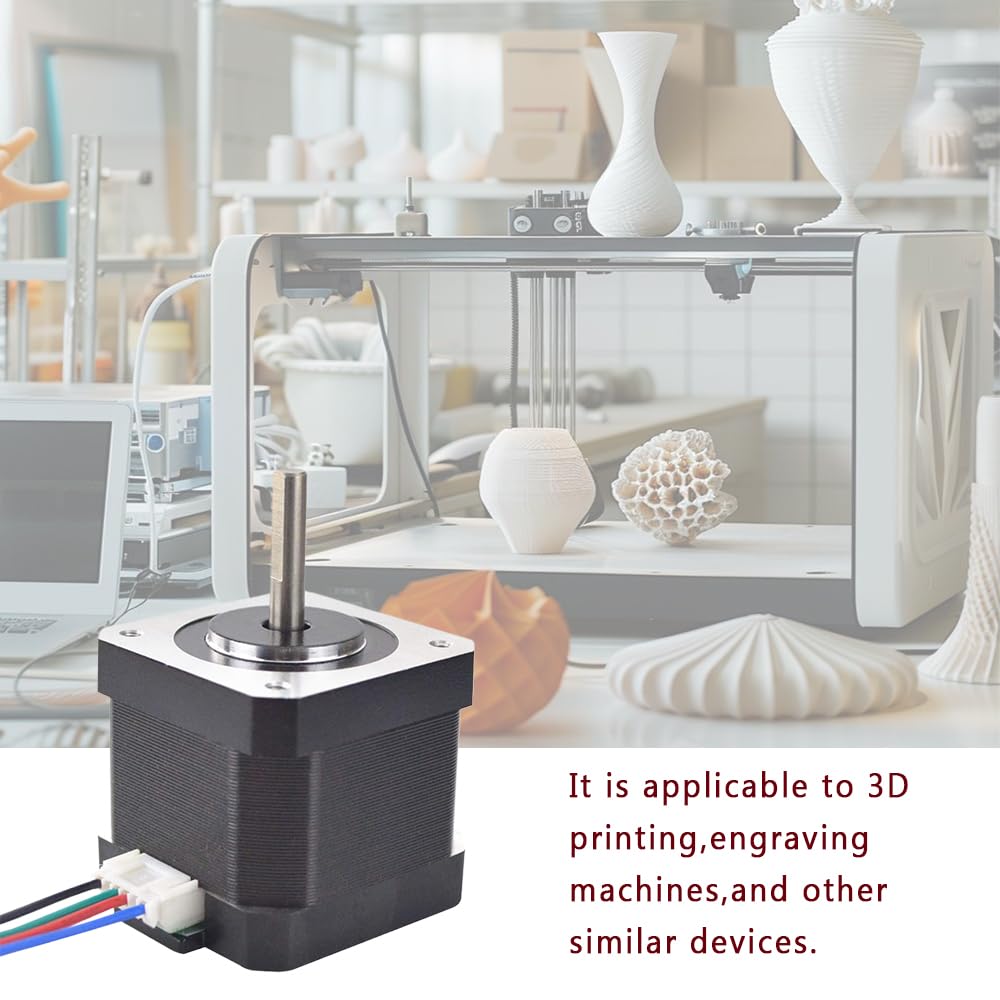

• VERSATILE APPLICATION: This compact stepper motor can be used in various areas, including 3D printers, stage lighting, laser engraving, textile machinery, medical equipment, placement machines, non-standard equipment, and automation equipment

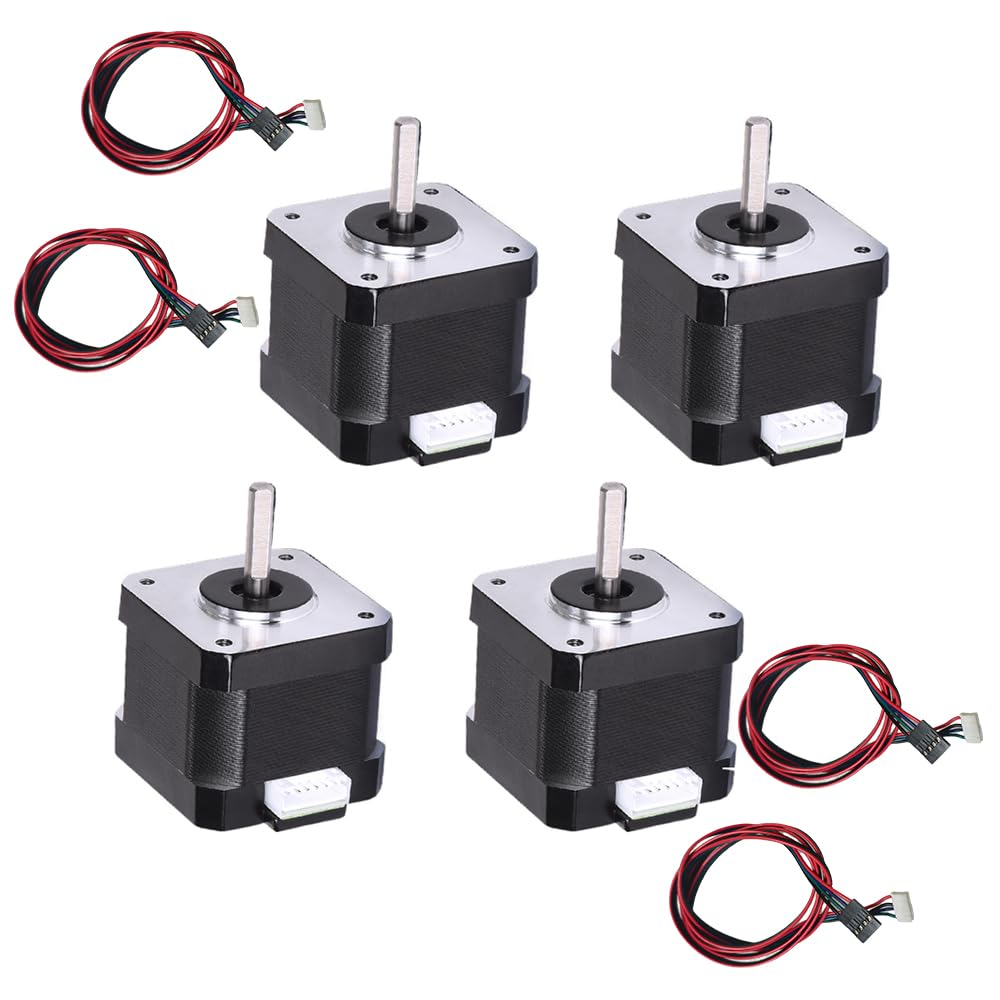

• PACKAGE CONTENTS: The set I includes two Stepper Motors and two 1m 4-pin cables. The set II includes four Stepper Motors and four 1m 4-pin cables
• QUALITY ASSURANCE: Each Nema 17 stepper motor undergoes strict quality control before leaving the factory and includes a 24-month warranty
• TECHNICAL SPECIFICATIONS: Bipolar 42 stepper motor with 2 phases, 1.8 degree step angle, rated voltage of 2.55V, rated current of 1.5A, and detent torque of 20mN.m for reliable operation

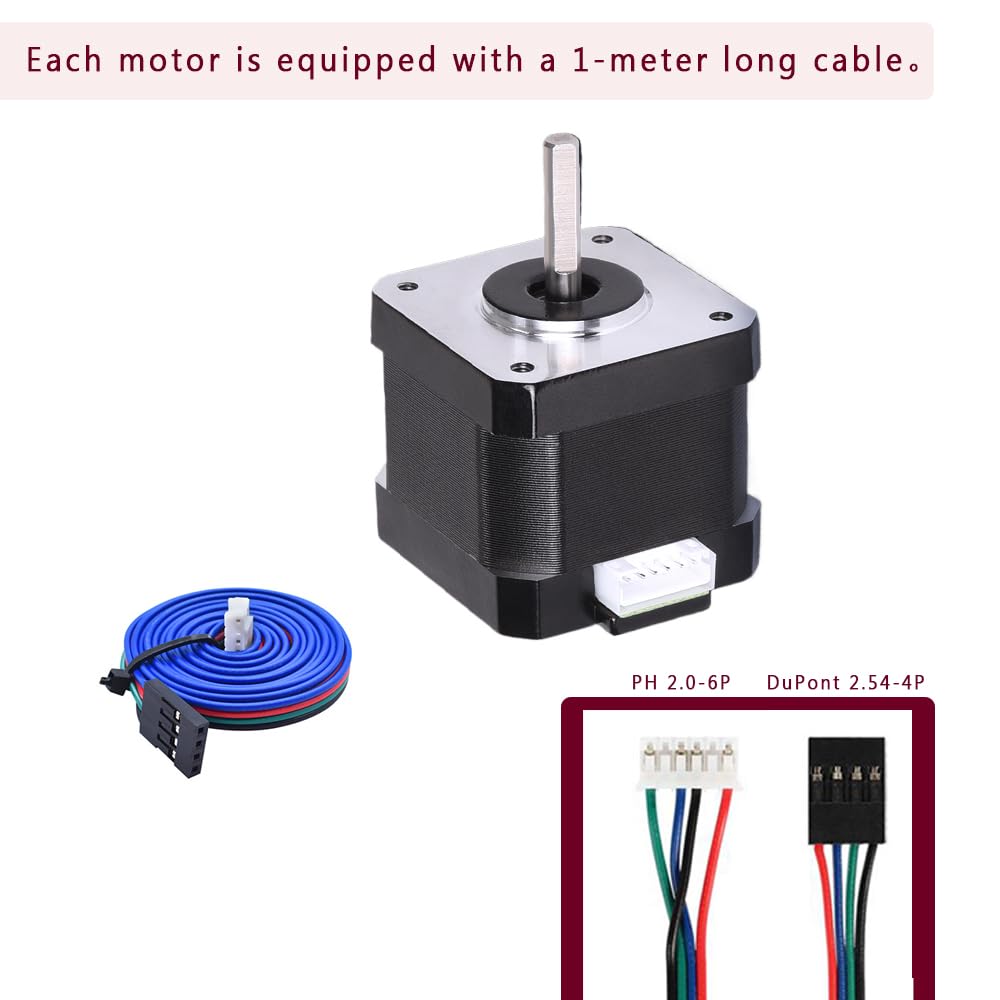

• COMPLETE CABLE SYSTEM: Each motor comes with a 1m 4-pin cable for convenient installation and connection to your control system or driver board

Electrical Specification: ▶ Product Type: Bipolar 42 Stepper Motor ▶ NO. Of Phases: 2 ▶ Step Angle: 1.8° ± 5% ▶ Rated Voltage: 2.55V ▶ Rated Current: 1.5A ▶ Detent Torque: 20mN.m

Free shipping included. 30-day hassle-free returns.
