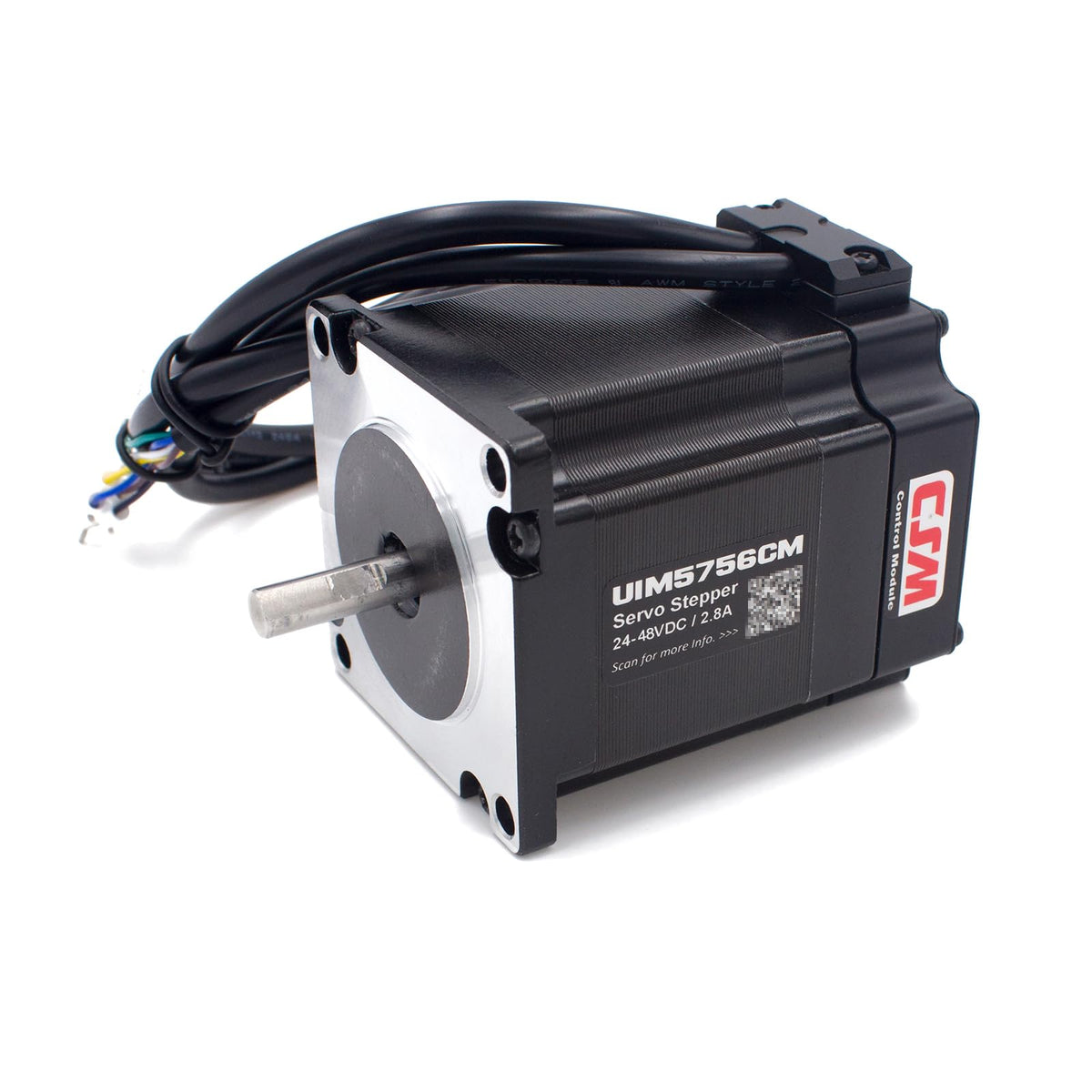

NEMA23 Integrated Servo Stepper Motor,CAN Bus,w/Encoder,Controller

Key features

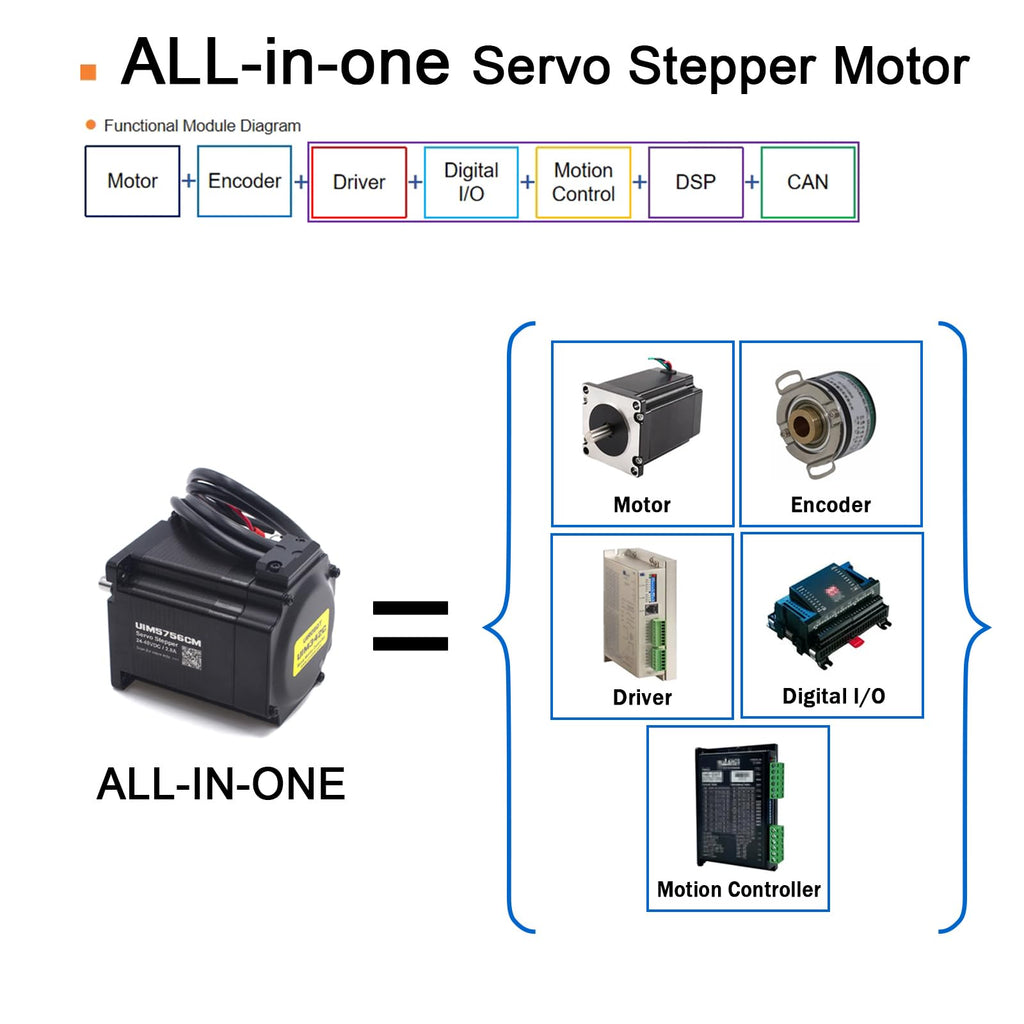

• FULLY FUNCTIONAL Our high torque stepper motor is a Nema23 (57x57mm), all-in-one integrated CAN interface smart servo step motor that comes with an encoder, motor driver and motion controller, in an aluminum alloy case. Using the CANBUS protocol, multiple motors can communicate simultaneously to achieve complex motion control.
• POWERFUL TECHNICAL SUPPORT This Nema 23 stepper motor incorporate robust DSP core and fault tolerance, fail safe user interface, along with free debug/control software and complete SDK, lib, dll and C++, C# example codes.
• HIGH TORQUE Holding Torque 1.26 N.m, 1-128 micro-stepping, 24-48 VDC supply voltage and 1-2.8 Amp adjustable current. Running with no vibration/noise and high torque, good substitution of AC/DC servo motor at low speed.
• EXCELLENT DESIGN Closed-loop motion, high positioning accuracy, fast response, and high speed to 2000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
• LOW NOISE This arduino stepper motor comes with 3 inputs, 1 output and 3 trigger modes to suppress electrical noise. 11 actions can be attached to each input level change. All inputs can generate notifications when triggered.
