NEMA23 Integrated Servo Stepper Motor,CAN Bus,w/Encoder,Controller,Brake

NEMA23 Integrated Servo Stepper Motor,CAN Bus,w/Encoder,Controller,Brake

Key features

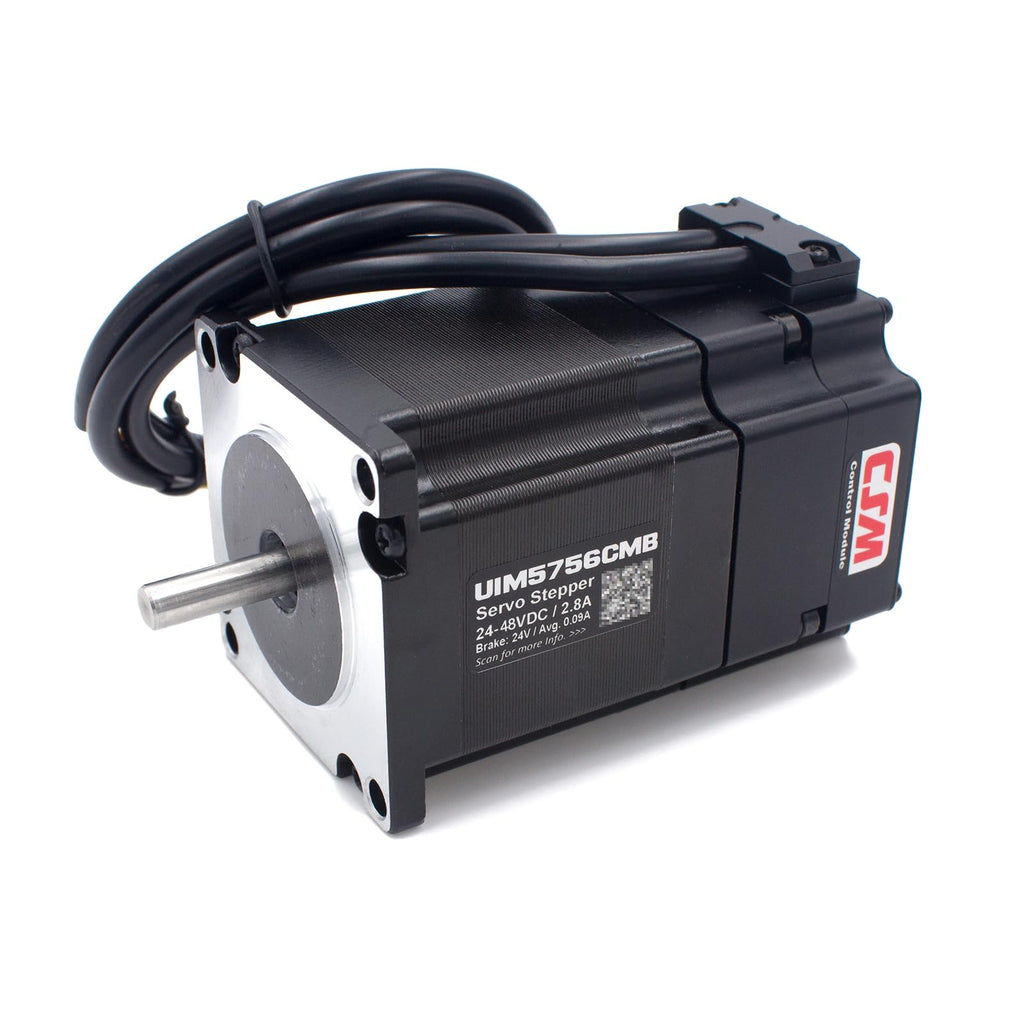

• FULLY FUNCTIONAL: Our high torque stepper motor is a Nema23 (57x57mm), all-in-one integrated CAN interface smart servo step motor that comes with an encoder, motor driver, high efficient power-off internal control brake and closed-loop motion controller, in an aluminum alloy case. Using the CANBUS protocol, multiple motors can communicate simultaneously to achieve complex motion control.
• POWERFUL TECHNICAL SUPPORT: This Nema 23 stepper motor incorporate robust DSP core and fault tolerance, fail safe user interface, along with free debug/control software and complete SDK, lib, dll and C++, C# example codes.
• HIGH TORQUE: Holding Torque 1.26 N.m, 1-128 micro-stepping, 24-48 VDC supply voltage and 1-2.8 Amp adjustable current. Running with no vibration/noise and high torque, good substitution of AC/DC servo motor at low speed.
• EXCELLENT DESIGN: Closed-loop motion, high positioning accuracy, fast response, and high speed to 2000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
• LOW NOISE: This arduino stepper motor comes with 3 inputs, 1 output and 3 trigger modes to suppress electrical noise. 11 actions can be attached to each input level change. All inputs can generate notifications when triggered.
