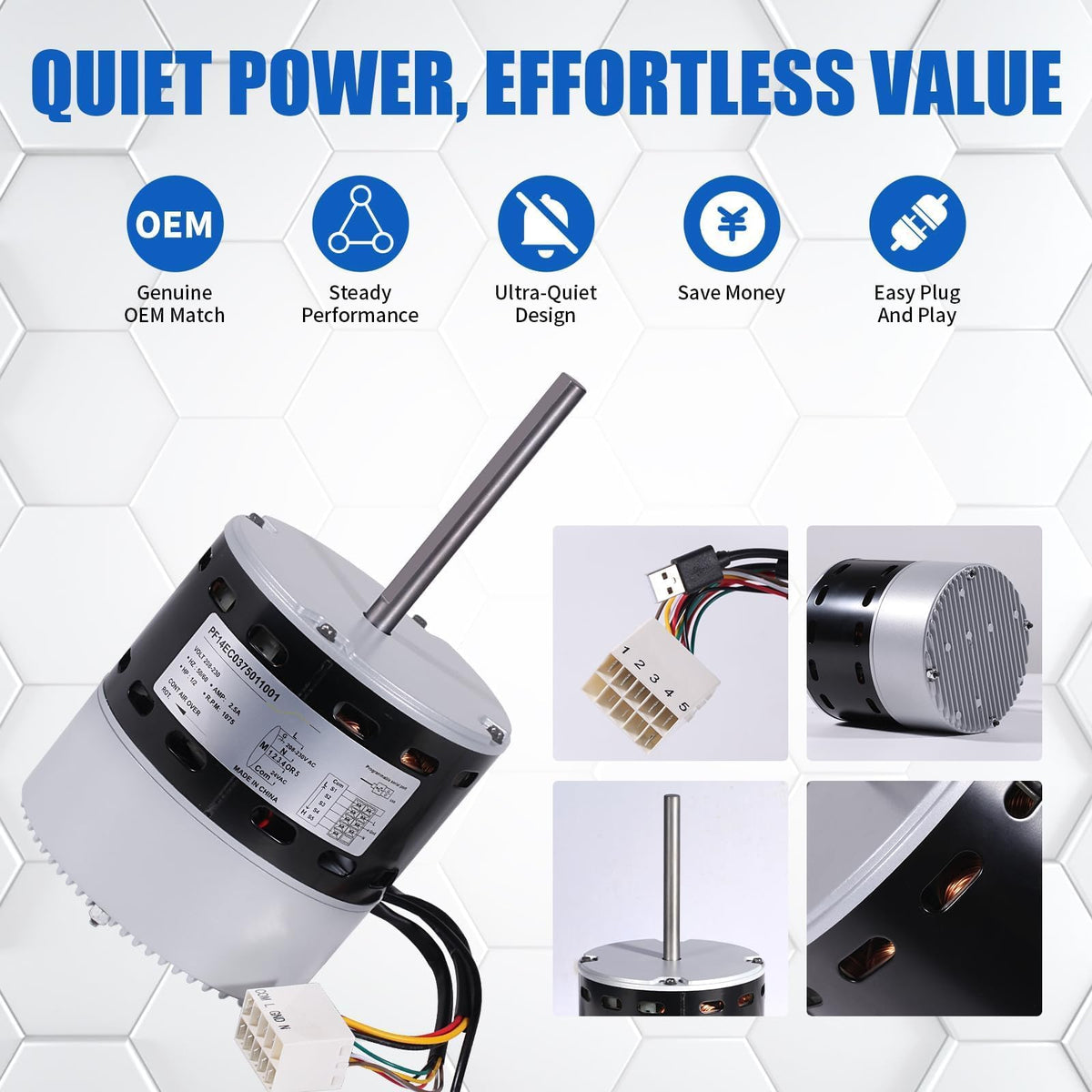

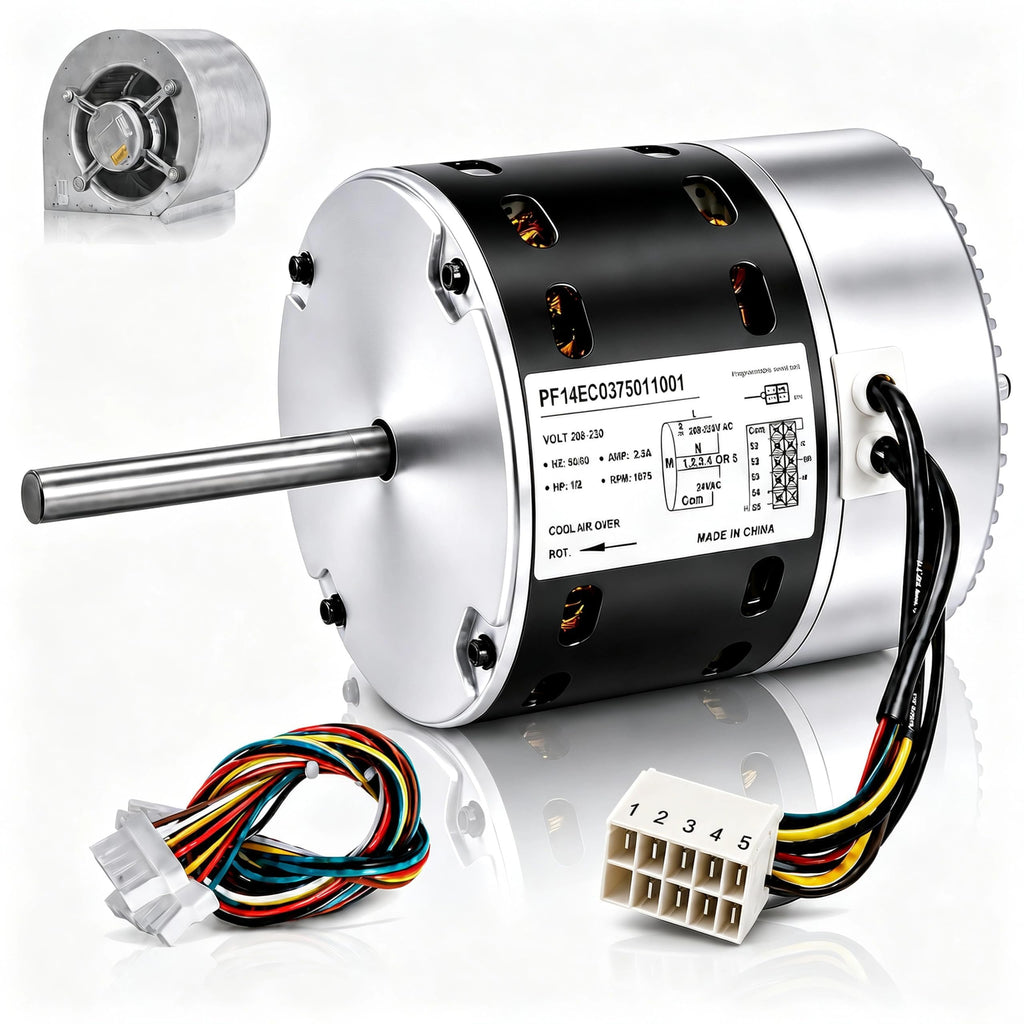

NiwNiw 6205E 1/2 HP ECM X-13 Furnace Blower Motor Replacement, Plug-and-Play, No Programming Required, 1075 RPM, 208/230V, 3.8A Multi-Speed Constant Torque, for Trane, American Standard, Carrier & ICP

Key features

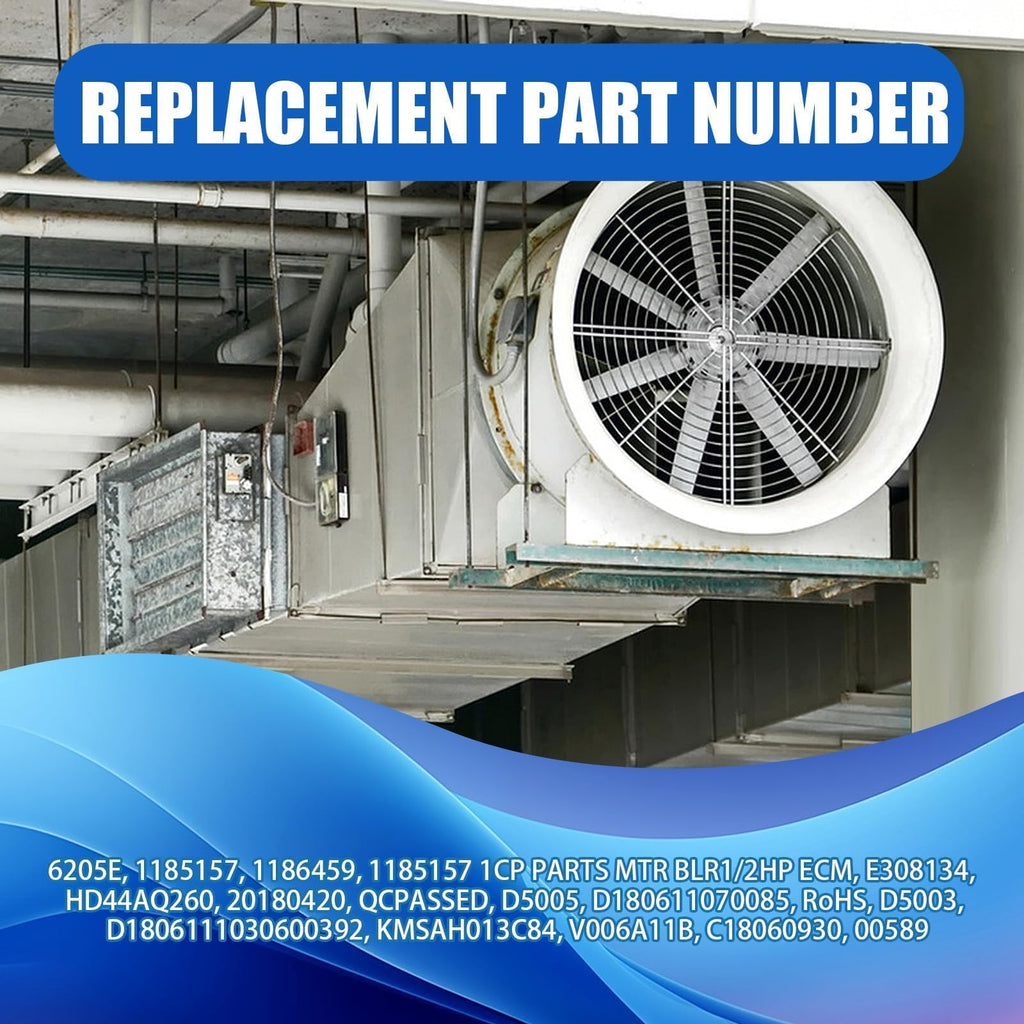

• 6205E BLOWER MOTOR REPLACEMENT - This 1/2 HP ECM blower motor replaces 6205E, ZWK702B53810001, 1185157, 1186459 and HD44AQ260, including select ICP Parts MTR BLR 1/2 HP ECM applications. Original motor labels may also show E308134, 20180420, QCPASSED, D5005, D180611070085, RoHS, D5003, D1806111030600392, KMSAH013C84, V006A11B, C18060930, 00589, 00823960367484, 23960 or 36748.

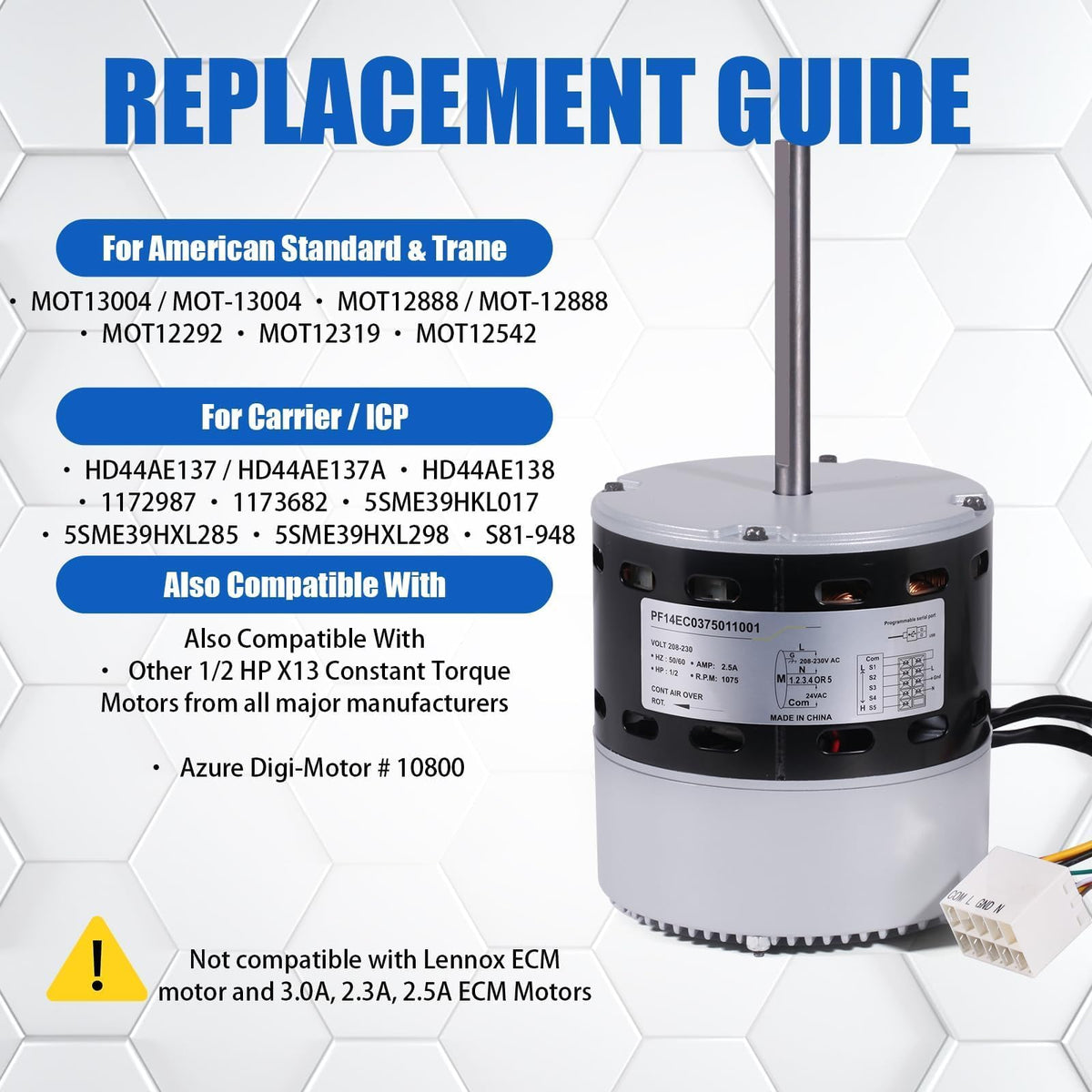

• X13 REPLACEMENT MOTOR CROSS-REFERENCES - Replaces American Standard and Trane MOT13004, MOT-13004, MOT12888, MOT-12888, MOT12292, MOT12319 and MOT12542; replaces Carrier and ICP HD44AE137, HD44AE137A, HD44AE138, 1172987 and 1173682. Also cross-references 5SME39HKL017, 5SME39HXL285, 5SME39HXL298, S81-948 and Azure Digi-Motor 10800 applications.

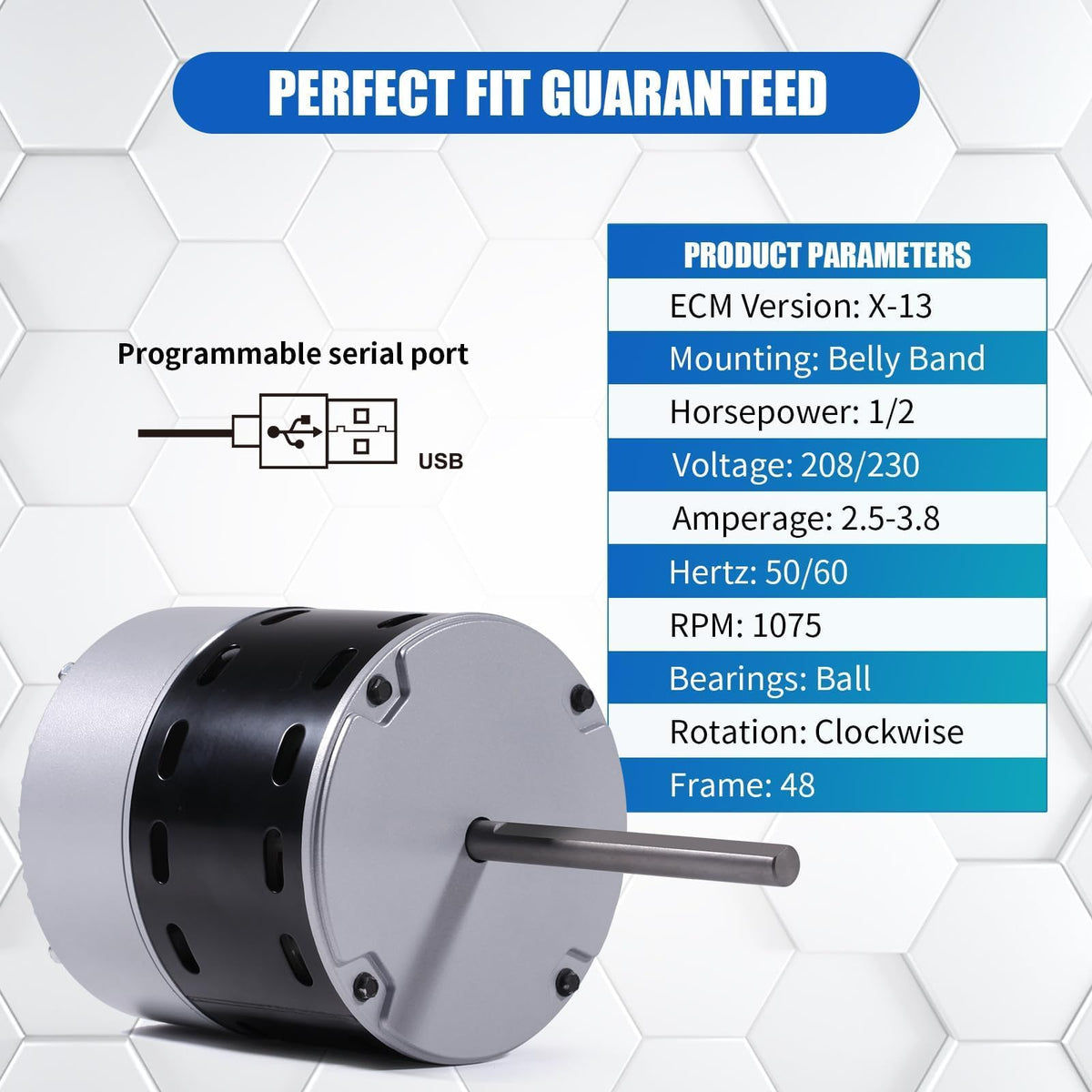

• MULTI-SPEED CONSTANT-TORQUE PERFORMANCE - This brushless DC furnace blower motor provides four discrete speed inputs using 24VAC plus automatic continuous-fan speed for consistent airflow. Built for compatible 1/2 HP X13 applications requiring 208/230V, 50/60Hz, 3.8A and 1075 RPM. Features a NEMA 48-frame belly-band mount, 5.6-inch diameter and 1/2-inch x 5-inch shaft.
• COMPATIBLE HVAC BRANDS AND MODELS - This 6205E furnace blower motor fits select ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night systems, including FEM4P3600A2, FEM4P3600AL2, FEM4P3600AT2, FEM4X3600B1, FEM4X3600BL1, FEM4X3600BT1, WAHL364B1, WAHM364B1, WAHT364B1, WAPL364A2, WAPM364A2 and WAPT364A2.
• DIRECT-DRIVE HVAC APPLICATIONS - Designed to replace compatible direct-drive blower motors in residential and light-commercial indoor furnaces, air handlers and packaged systems. This universal X13 replacement motor can replace other 1/2 HP X13 constant-torque motors when the voltage, amperage, RPM, shaft, mounting and electrical connections match. Does not replace EON, ECM 2.3, ECM 2.5 or ECM 3.0 constant-airflow motors.

Free shipping included. 30-day hassle-free returns.
