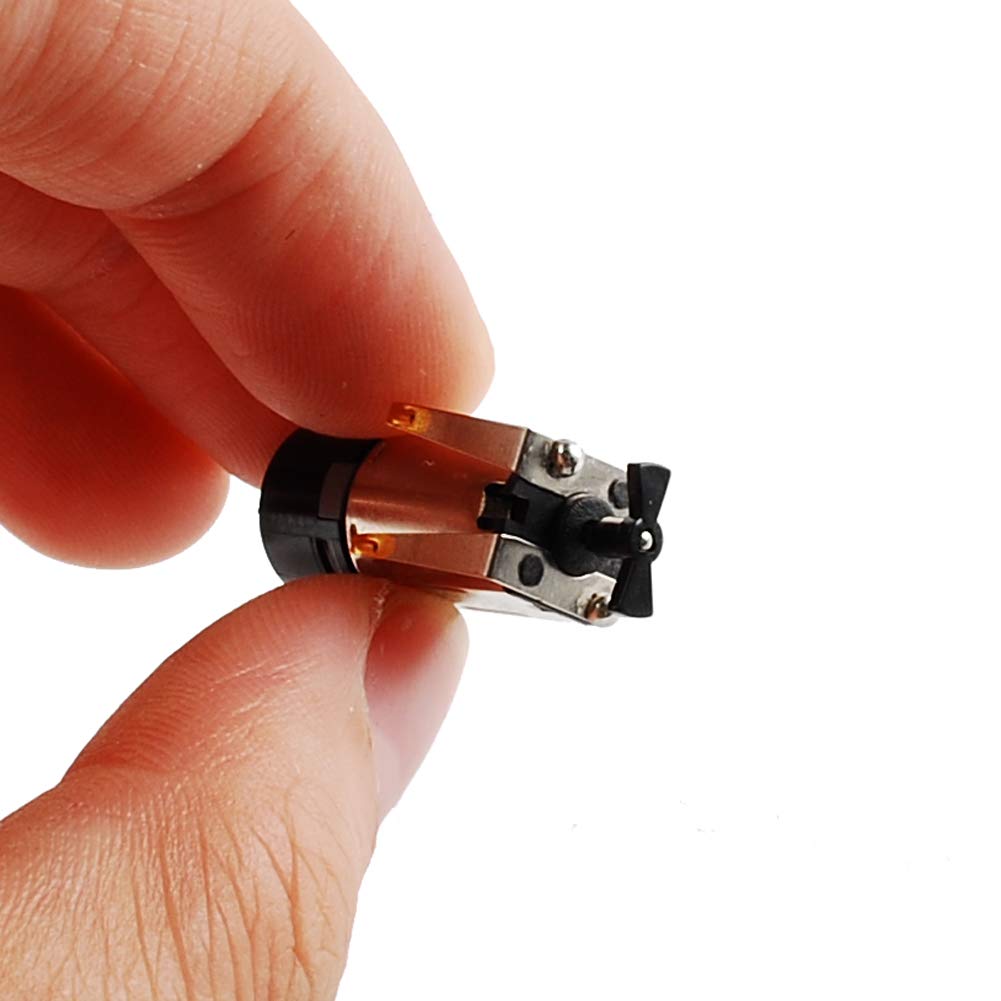

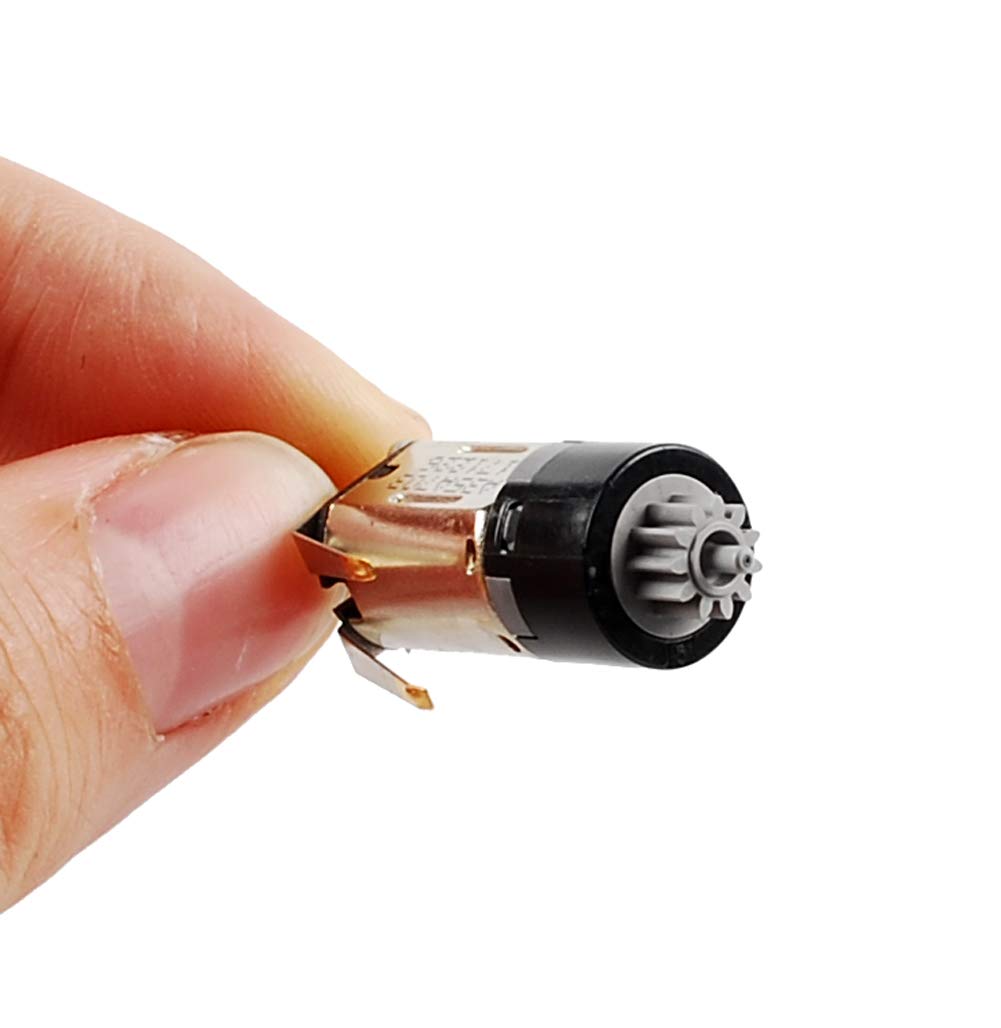

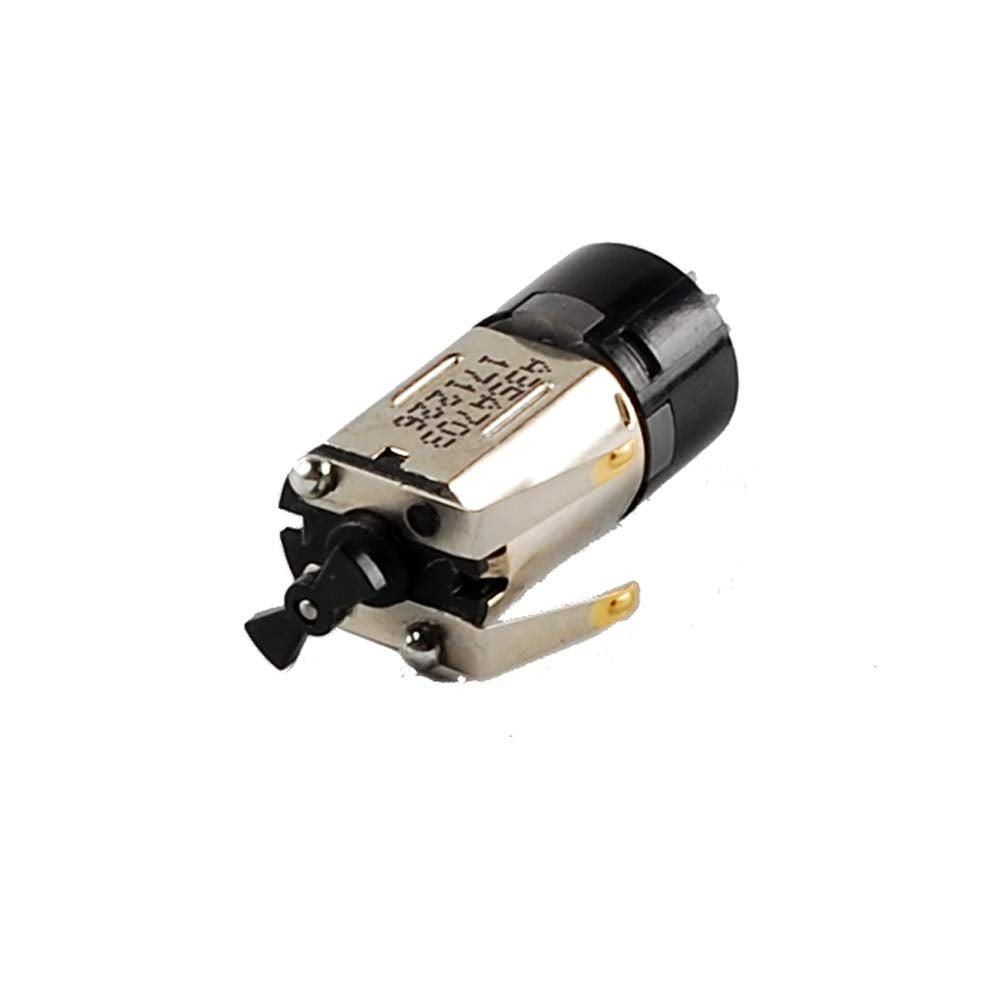

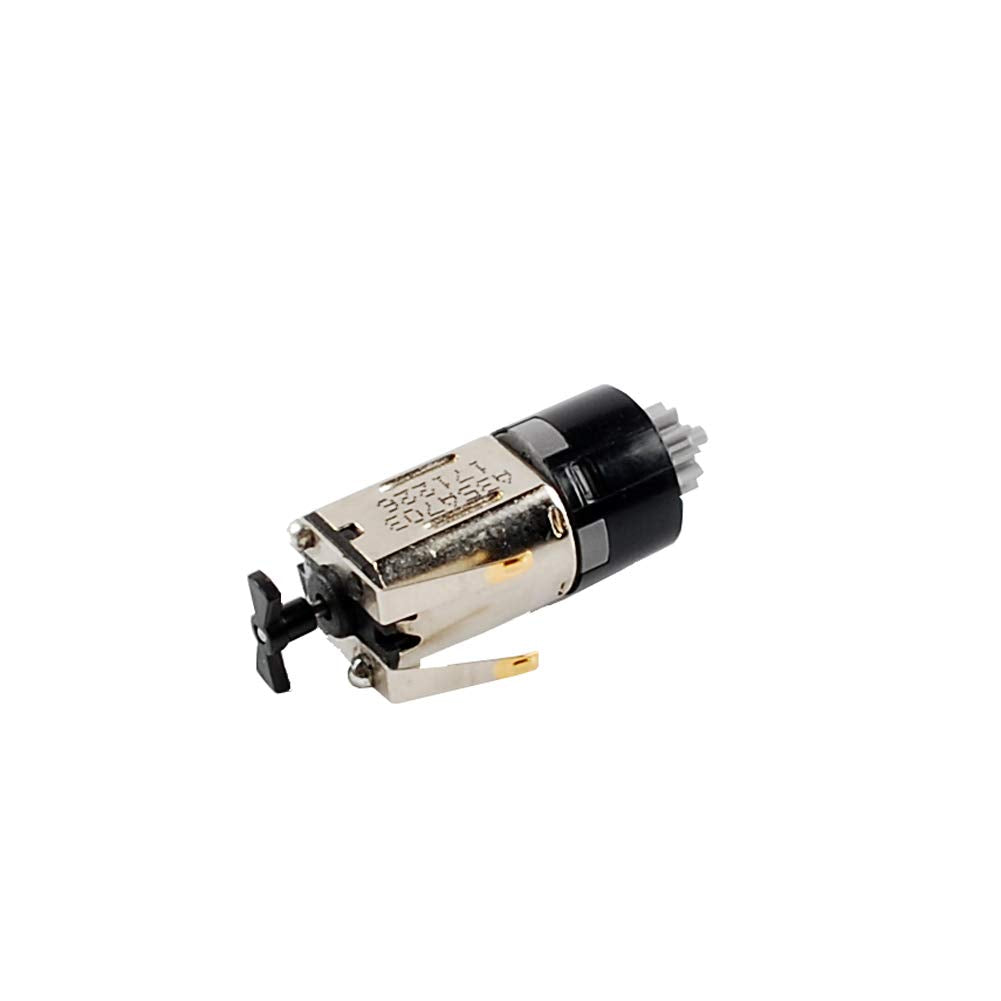

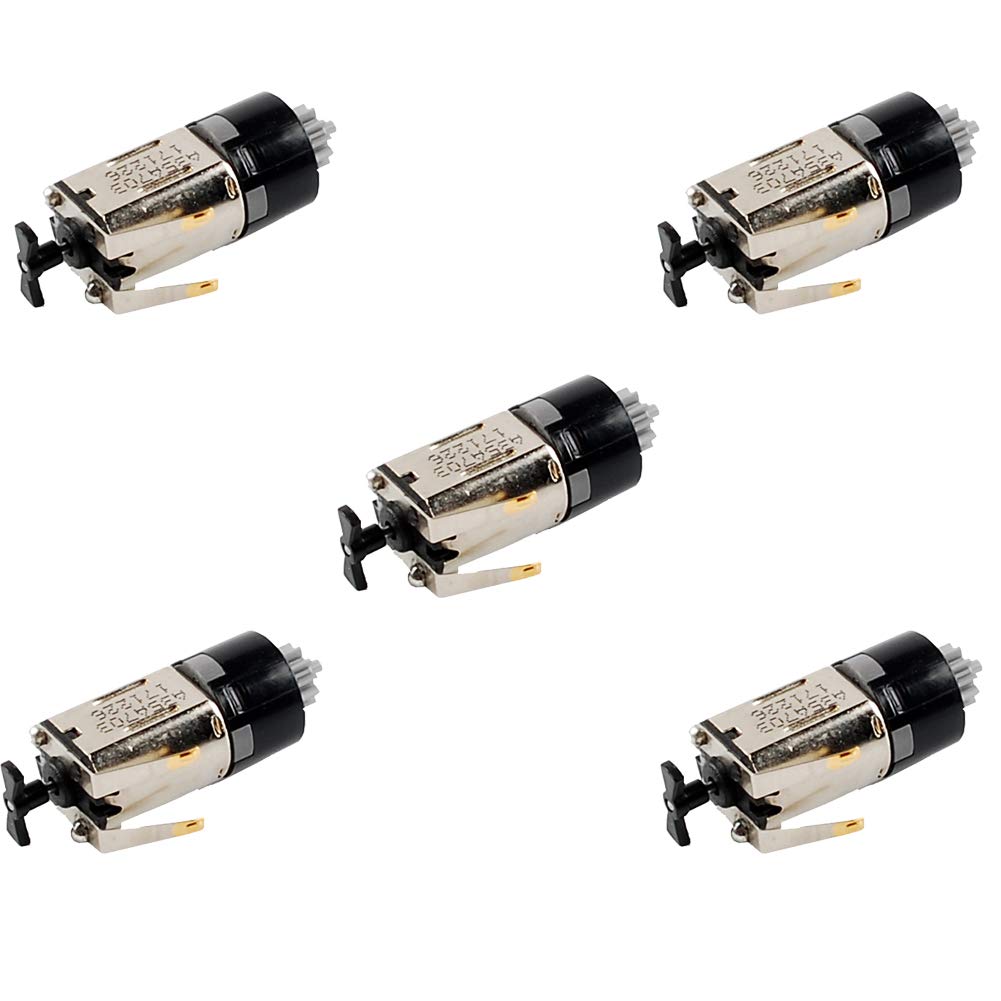

NW 5pcs 3V Micro Planetary Reducer Motor High Torque DC Motor DIY Robot Gearbox Motor (9161C)
NW 5pcs 3V Micro Planetary Reducer Motor High Torque DC Motor DIY Robot Gearbox Motor (9161C)
Key features
- Voltage: DC3V Current: 42 MA Speed: 110 rpm
- Voltage: DC3.7V Current: 48 MA Speed: 135 rpm
- Voltage: DC4.2V Current: 52 MA Speed: 154 rpm
- Voltage: DC5V Current: 58MA Speed: 180 rpm
Planetary gearbox outer diameter: 9.9 mm Motor specifications: 8 x10x12 mm (M10 motor) Geared motor height: 19.5 mm (motor + gear box) Output shaft: Gear with an outer diameter of 5.35 mm (11 teeth) Reduction ratio: 1:171 Weight: 4 grams Rated voltage: DC2.5V No-load current: 40 MA No-load speed: 92 RPM Rated torque: 9.8 mN.m Maximum torque: 37.2 mN.m The following measures the motor speed under other voltages: Voltage: DC3V Current: 42 MA Speed: 110 rpm Voltage: DC3.7V Current: 48 MA Speed: 135 rpm Voltage: DC4.2V Current: 52 MA Speed: 154 rpm Voltage: DC5V Current: 58MA Speed: 180 rpm
Free shipping included. 30-day hassle-free returns.
