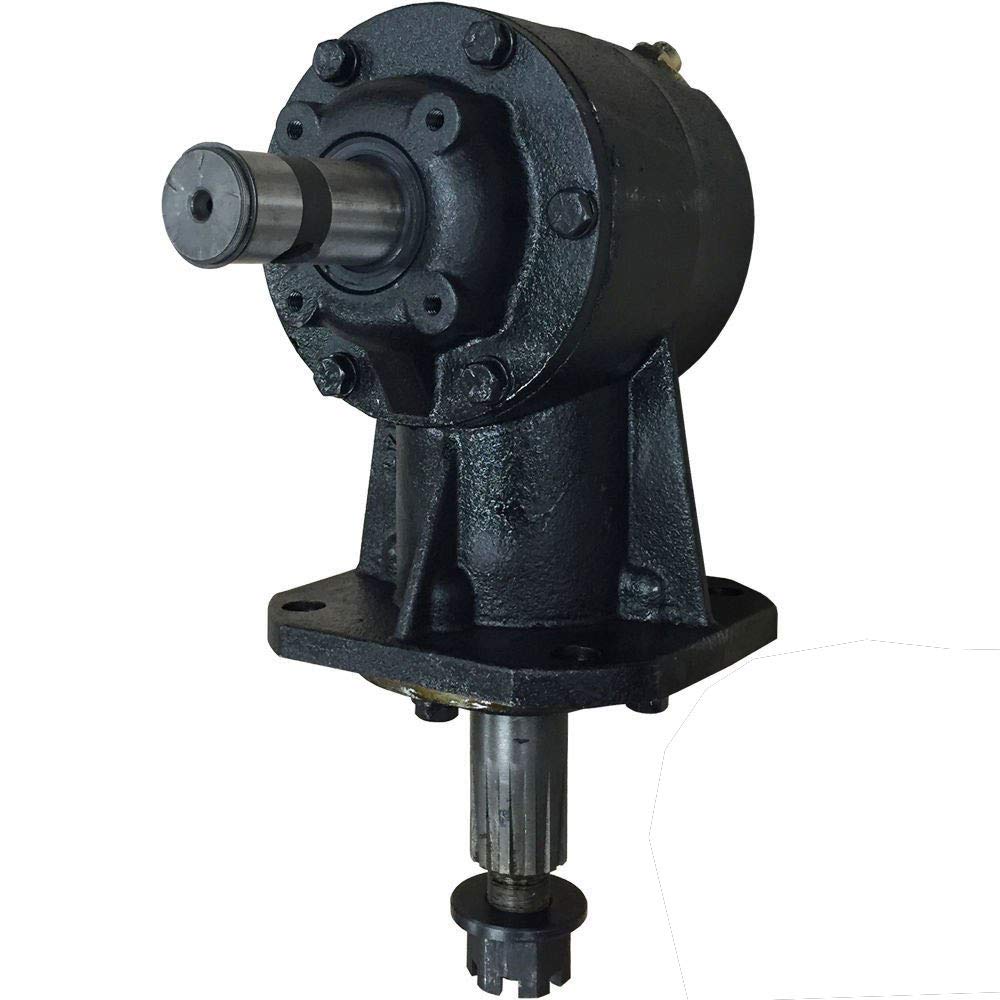

Omni Gear 40HP Shear Bolt Gearbox
Omni Gear 40HP Shear Bolt Gearbox
Key features
- 40 HP
- Shearbolt
- Gearbox
- Rotary Cutter
New Replacement Gearbox to fit a Sidewinder 5x5CW Rotary Cutter. As always, please check dimensions against what you currently have! Note: Actual Gearbox may have a rounded housing or square as shown, depending on current availability, all internal parts are interchangeable and specifications for both boxes are identical! This gearbox features a 1:1.47 Speed Up gear ratio for use on 5' and larger diameter rotary cutters. Industry standard 1-3/8" smooth diameter input shaft with 1/2" shear bolt hole and retaining ring groove and 1.57" diameter 12 tapered spline output shaft allow fitment to most light, standard and medium duty rotary cutters. Each gearbox features high speed ball bearing units and heat treated gears and shafts to ensure long life. Four bolt mounting matches industry standards, 4-3/4" centers. Each gearbox includes blade carrier mounting nut and cotter pin. Gearboxes are shipped dry and require 16 ounces of 80-90W gearlube or equivalent. Does not come with blade hub.
Free shipping included. 30-day hassle-free returns.
