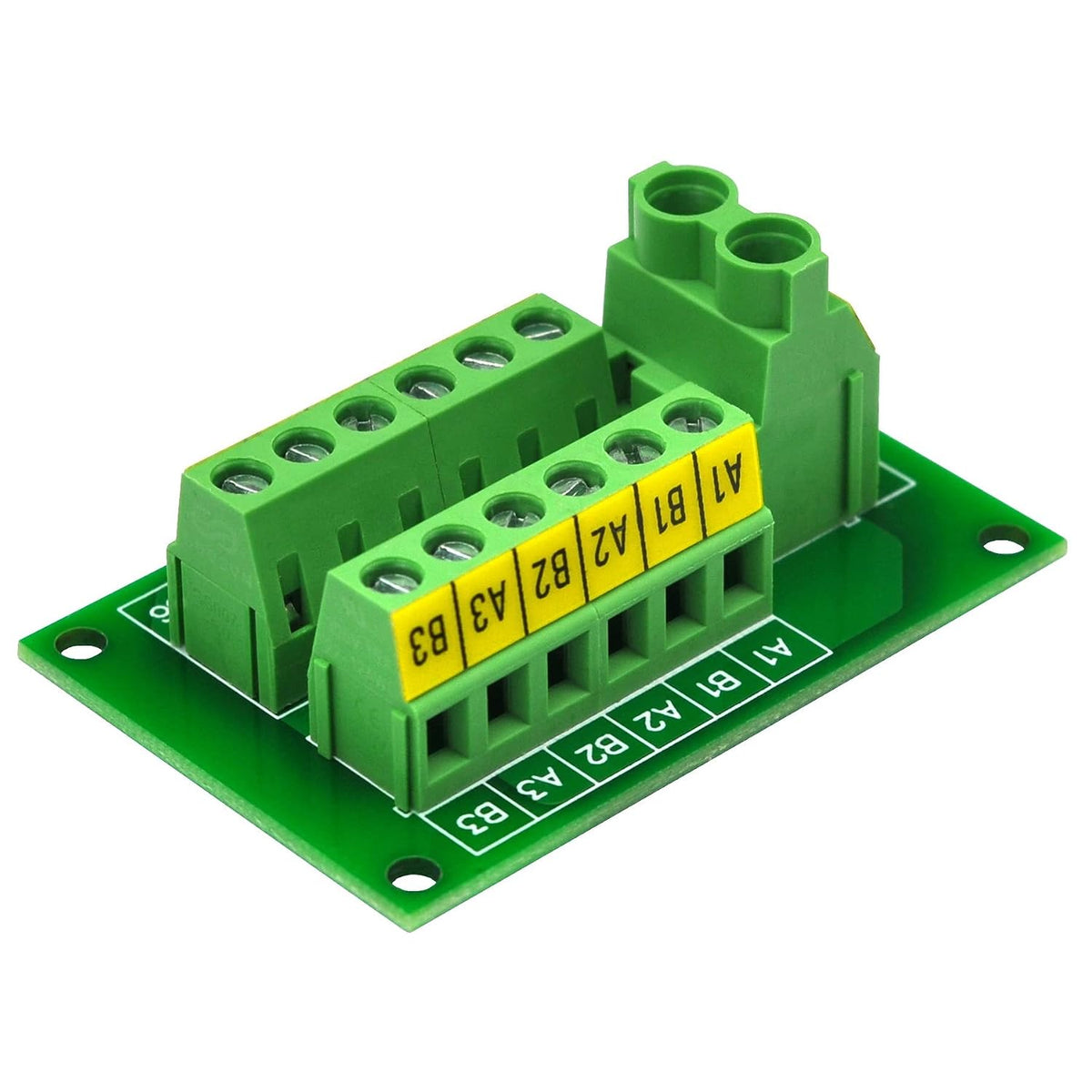

OONO 30Amp 48V 2x6 Position Terminal Block Distribution Module
$23.99
Sale price
$23.99
Regular price
$38.99
Skip to product information
OONO 30Amp 48V 2x6 Position Terminal Block Distribution Module
$23.99
Sale price
$23.99
Regular price
$38.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET
Key features
- 30Amp 48V 2x6 position screw terminal block distribution module.
- Rated current 30 Amp(total input or output), Maximum voltage 48V.

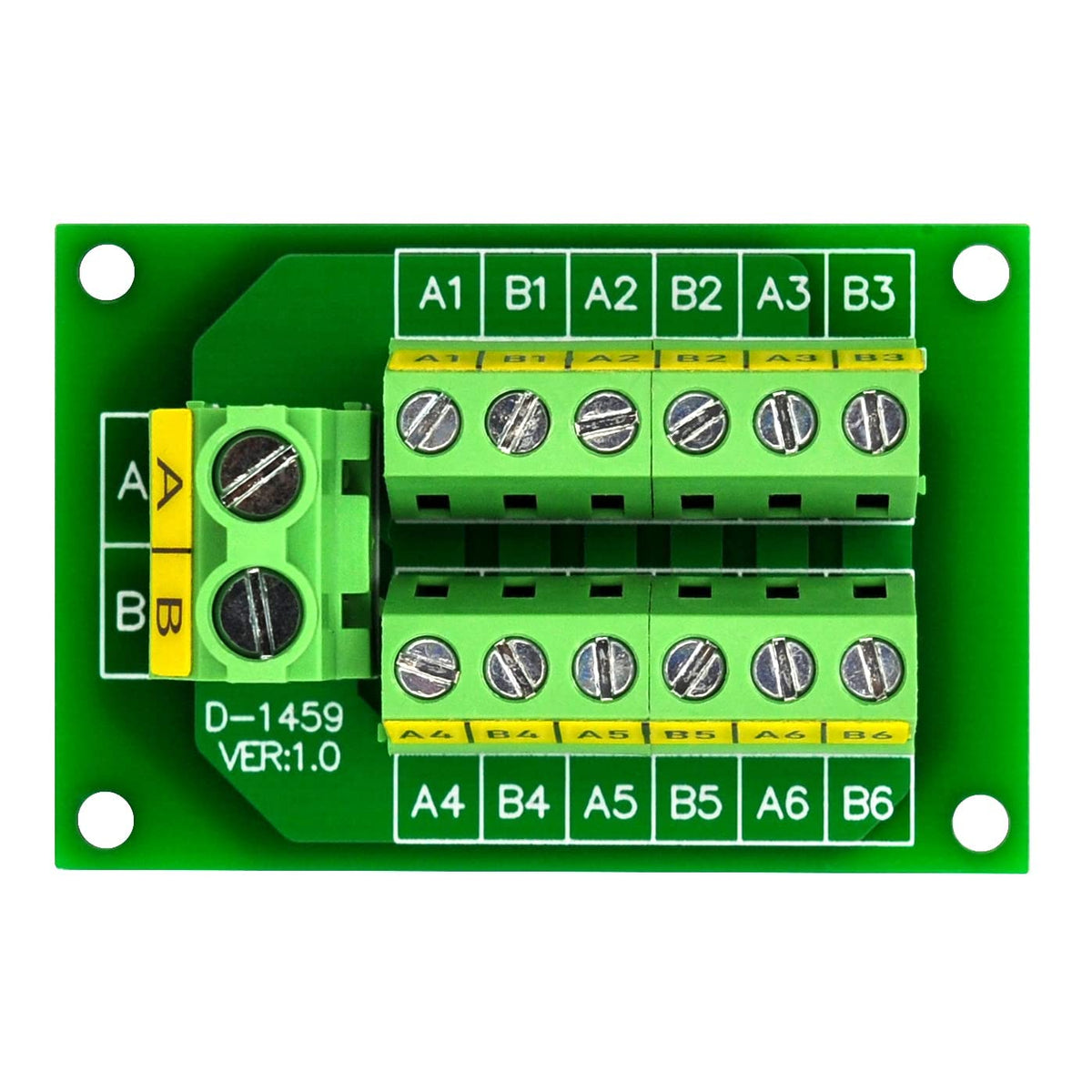

- A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
Free shipping included. 30-day hassle-free returns.
