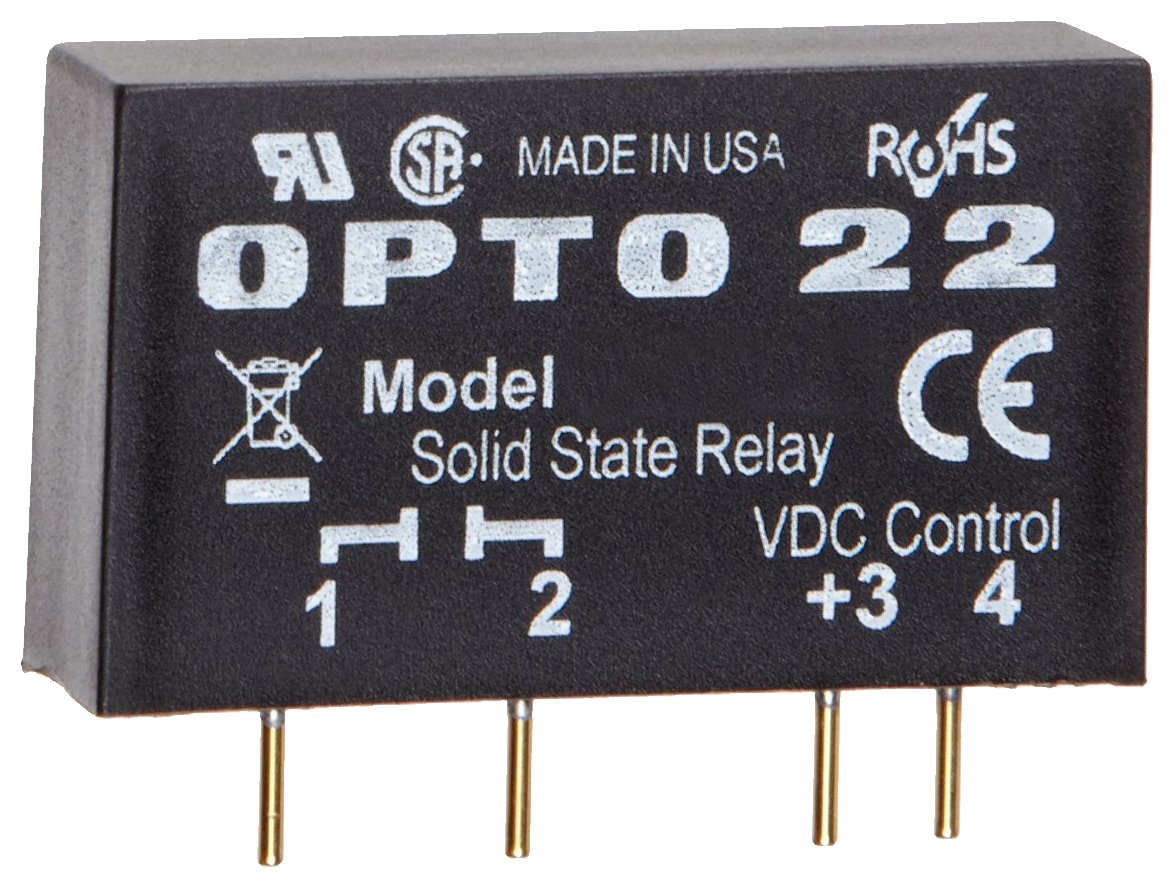

OPTO 22 MP120D2 120 VAC, 2 AMP, DC Control Solid State Relay (SSR), PCB Mount MP Model, Solid State Relay

Key features

• Solid state relay for fast response and high vibration resistance
• 4,000V of optical isolation for insulating the circuits
• LS TTL compatible
• Zero-voltage switching to reduce arcing and extend the life of the device
• UL Recognized for safety, CSA and CE certified for quality assurance

This Opto 22 MP120D2 solid state relay provides faster response time than an electromechanical relay and resists vibration. The diode has an optical isolation of 4,000 V for insulating the circuits, and the device has a voltage rating of 120 VAC and a current rating of 2 amp. It has Low-power Schottky transistor-transistor logic (LS TTL) for compatibility. It has zero-voltage switching to reduce arcing and extend the life of the device. The MP series has a minimum footprint to allow maximum relay density on the printed circuit board. This relay is UL Recognized for safety, CSA and CE certified for quality assurance. SpecificationsCoil typeACResistance1,000 ohmOptical isolation input to output4,000VInput voltage120 VACCurrent rating2 ampSignal pick-up voltage3 VDCSignal drop-out voltage1 VDCThermal resistance20 C/WOperating temperature-40 to +100 degrees CDimensions*38 x 26 x 25 mm (H x W x D)Standards metUL (Underwriter's Laboratories) CSA (Canadian Standards Association) CE (European Conformity) *H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Relay
