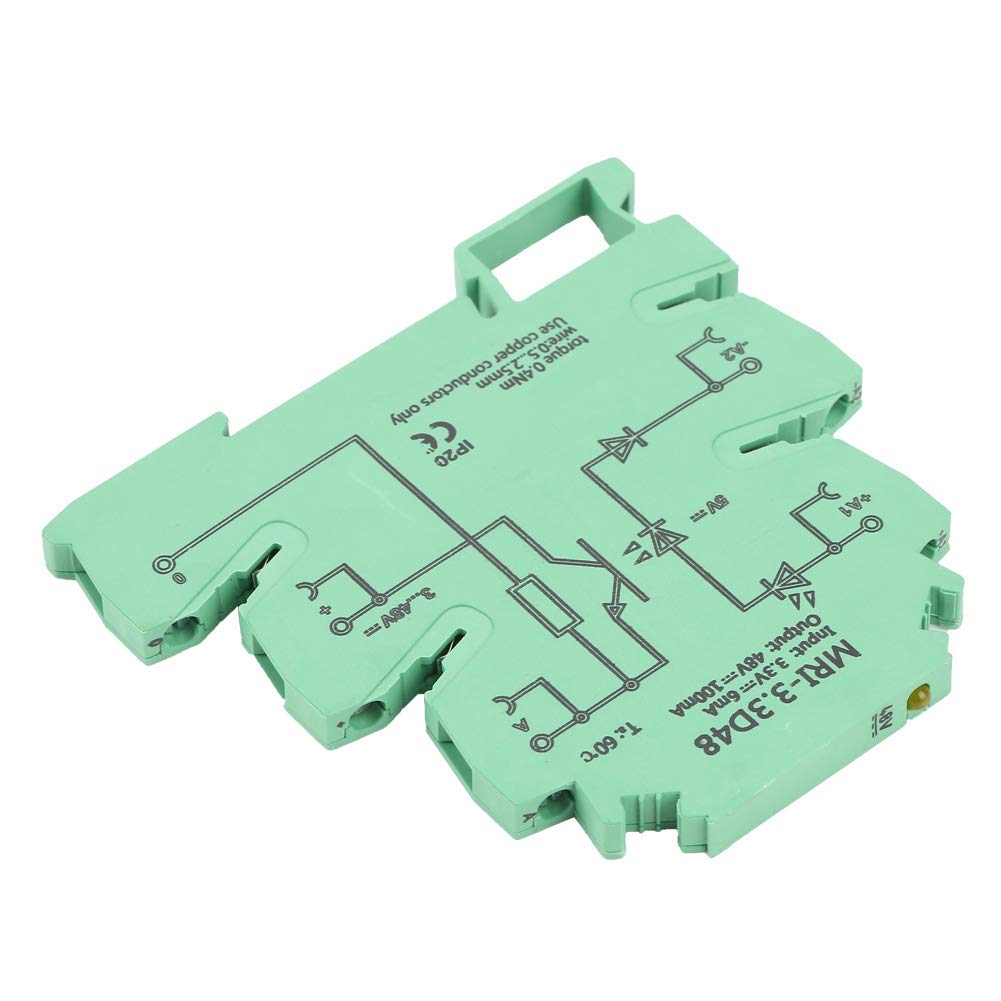

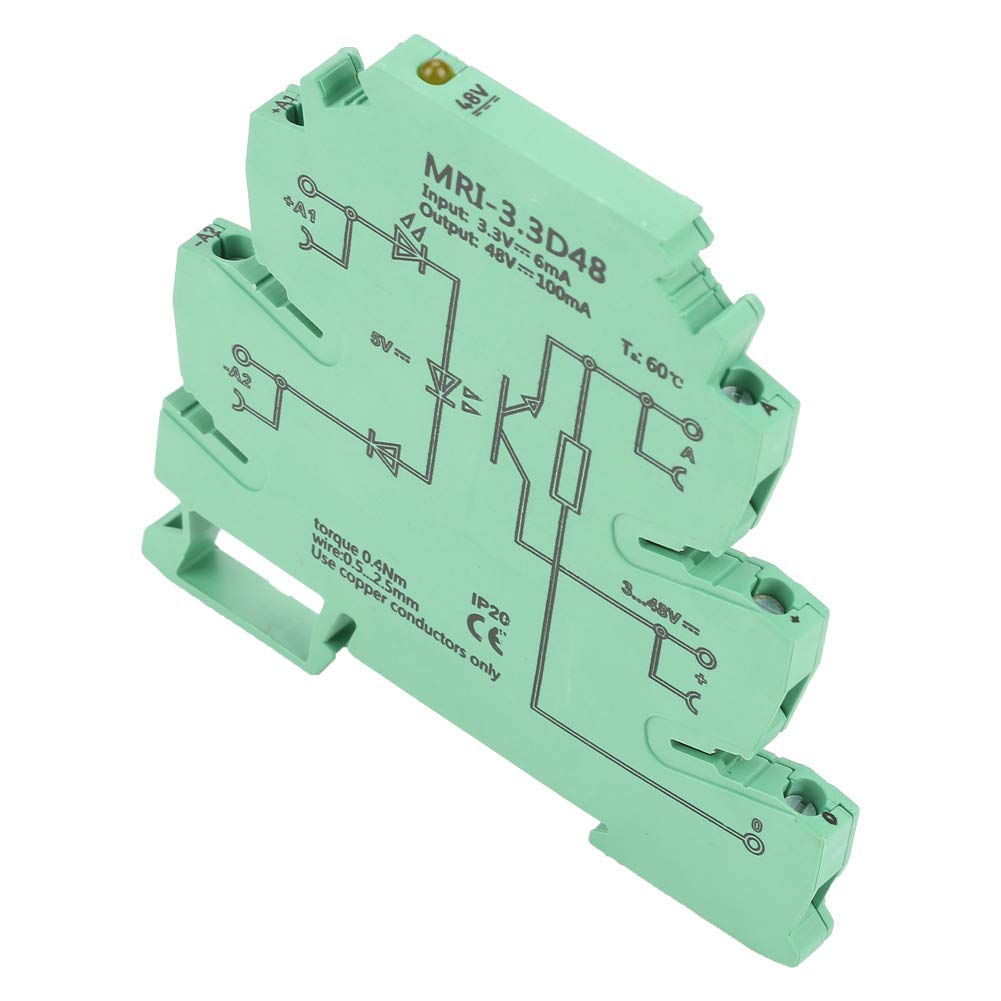

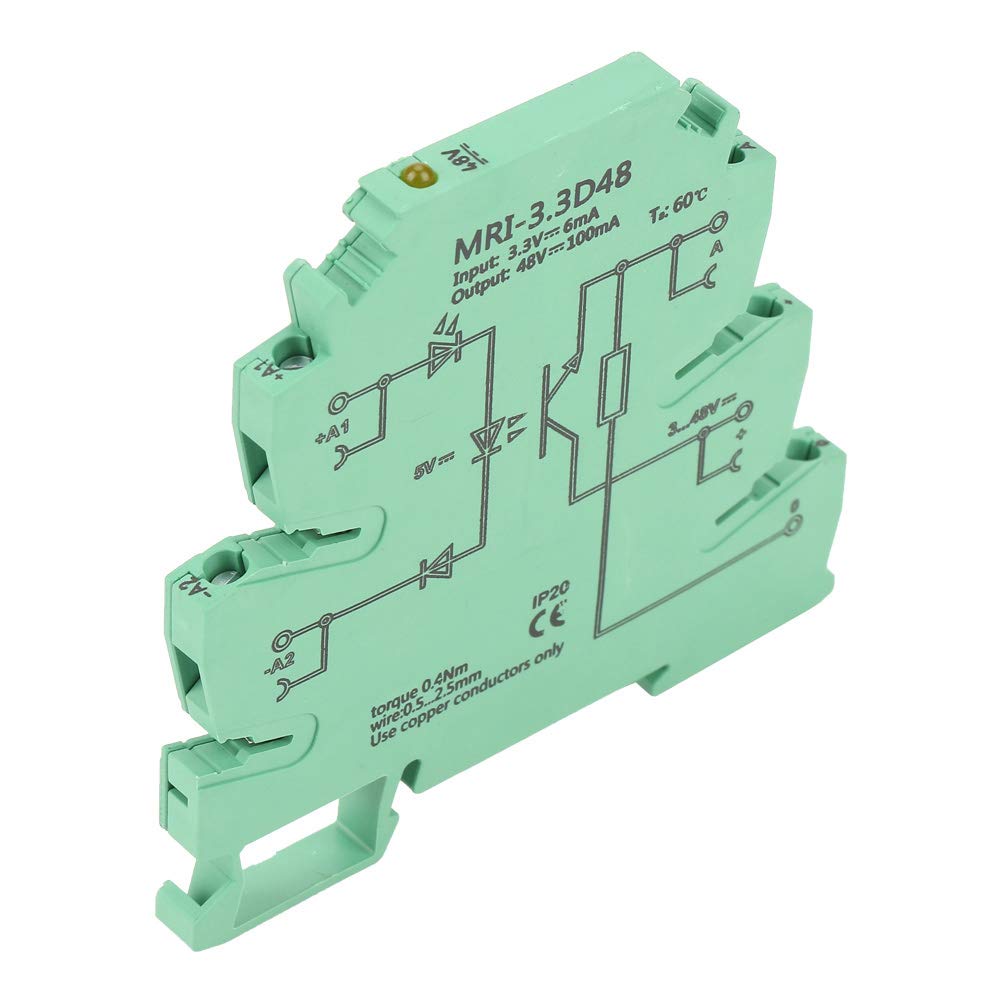

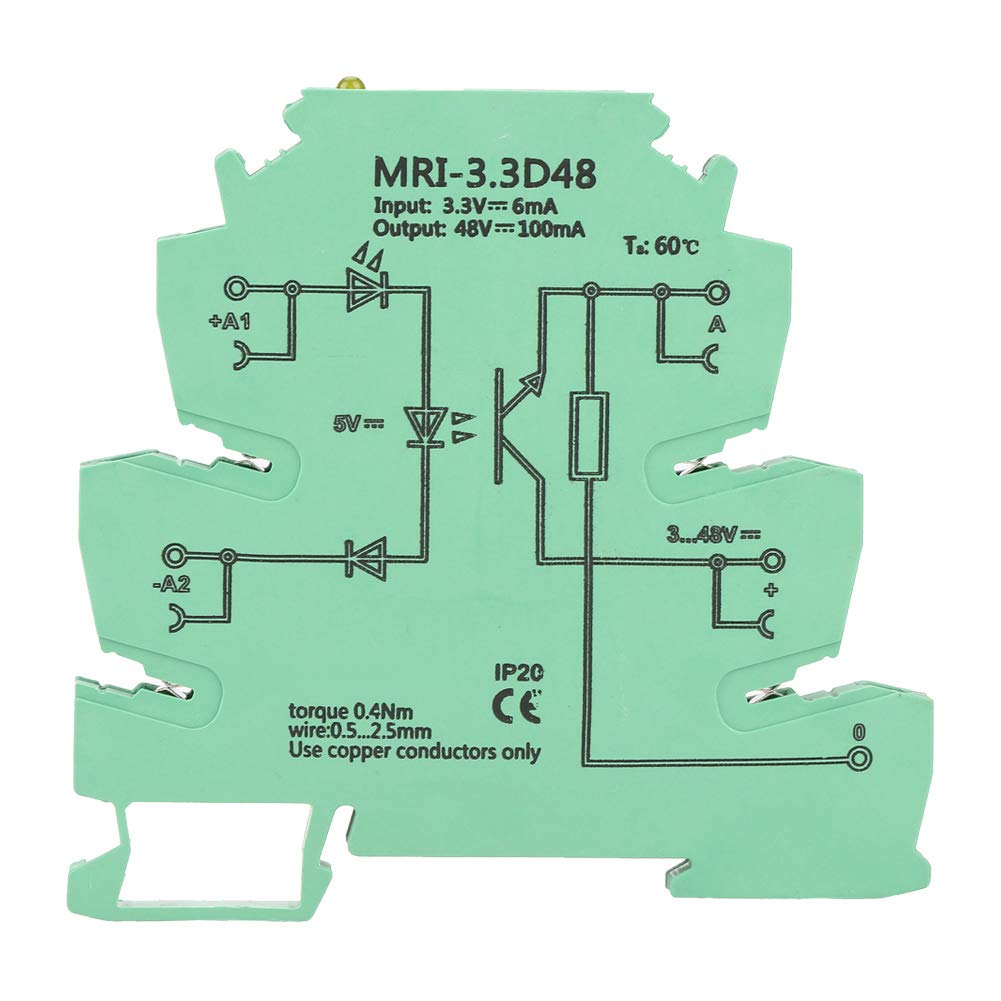

Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin

Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin

$28.99
$28.99 $41.99
Skip to product information
Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin
  • Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin
  • Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin
  • Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin
  • Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin
  • Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin
  • Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin
Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin

Optocoupler PLC Relay Module, 3.3V DC 6.2mm Ultra Thin

$28.99
$28.99 $41.99
FREE shipping on orders $50+· add $21.01 moreShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Yellow LED indication, clear port mark . SIZE: 8.00×8.00×1.00cm / 3.14× 3.14× 0.39inch(L*W*H)
  • Input Voltage Range:3.3VDC±10%; Output Voltage Range: 3-48VDC; Input Current: 6mA; .Sustained current: 100mA. The width is only 6.2mm,which saves 60% of installation space
  • Applicable Wire: (Rigidity)0.2-2.5mm2,(Flexibility)0.2-2.5mm2,(AWG)24-14 Plug-in bridging type.Convenient DIN rail installation
  • Internal input/output polarity circuit.The electrical isolation is 2.5kVrms
  • Operational frequency can reach to 300Hz.No-abrasion switch output :3-48V DC/100mA . Application areas: automation control, power distribution cabinets, railways, ships, robots, industrial controls, etc.

Free shipping included. 30-day hassle-free returns.
